John Boos PB-DIIB3420CP10 Bar Equipment
John Boos PB-DIIB3420CP10 Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos PB-DIIB3420CP10 Bar Equipment
Description

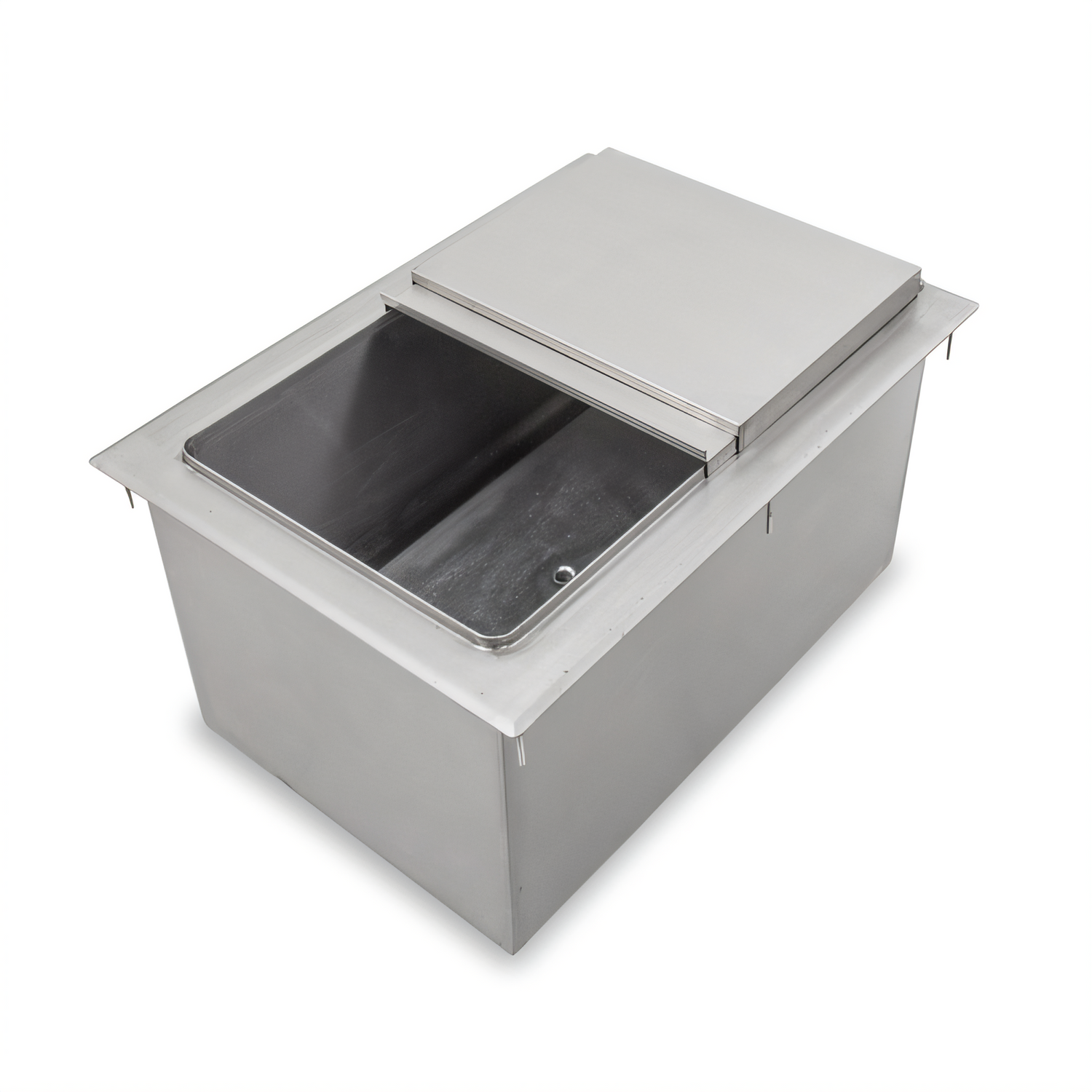

John Boos PB-DIIB3420-CP10 Drop-In Ice Bin w/Cold Plate – 34" × 20"
High-capacity, cold-plate-equipped ice solution for busy bars and beverage stationsBuilt for the rigors of commercial service, the John Boos PB-DIIB3420-CP10 keeps ice at the ready while instantly chilling up to ten beverage lines—all in one sleek, drop-in package.
Key Features
- Insulated 10"-deep basin (30" L × 15" F-B) preserves ice integrity and holds up to 96 lb.

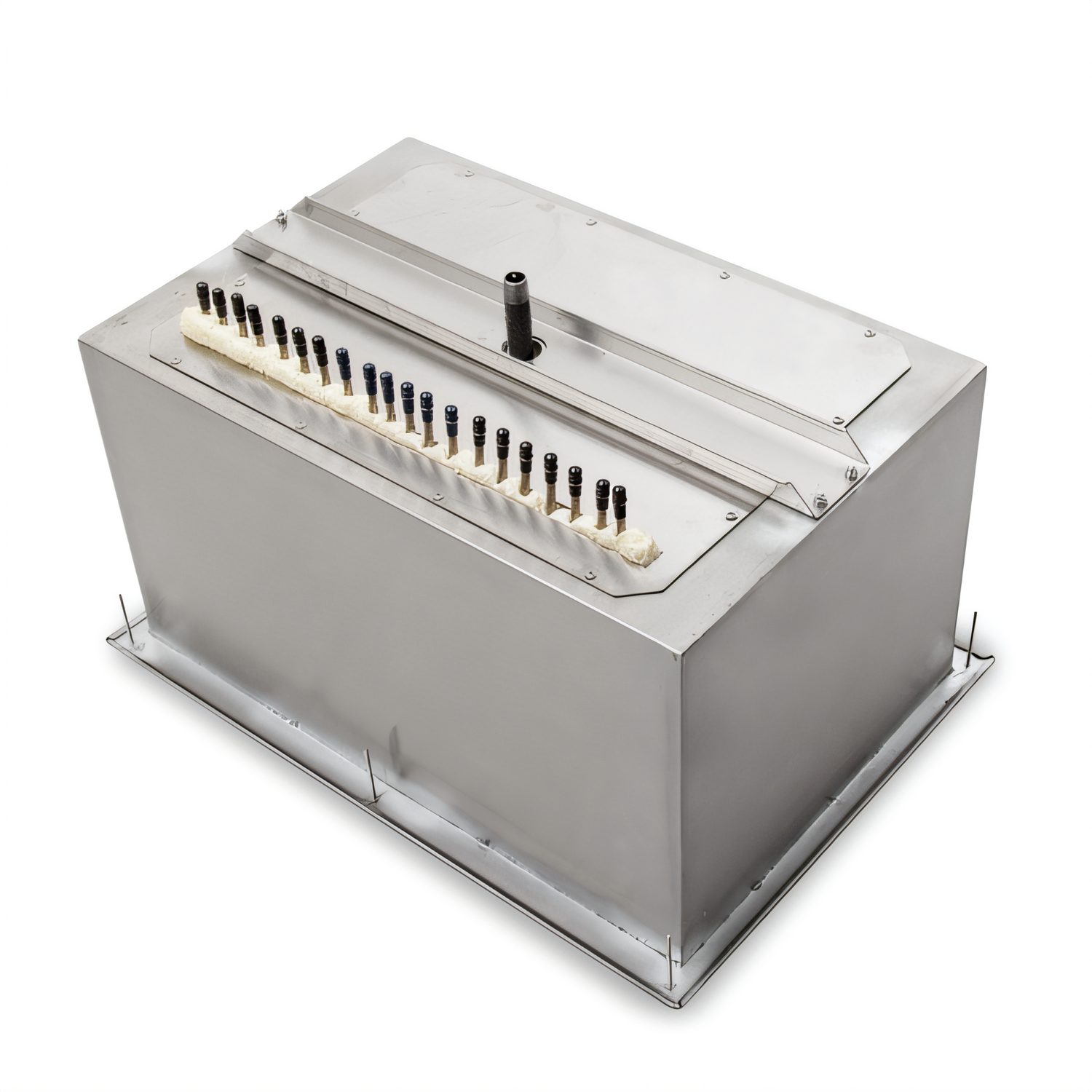

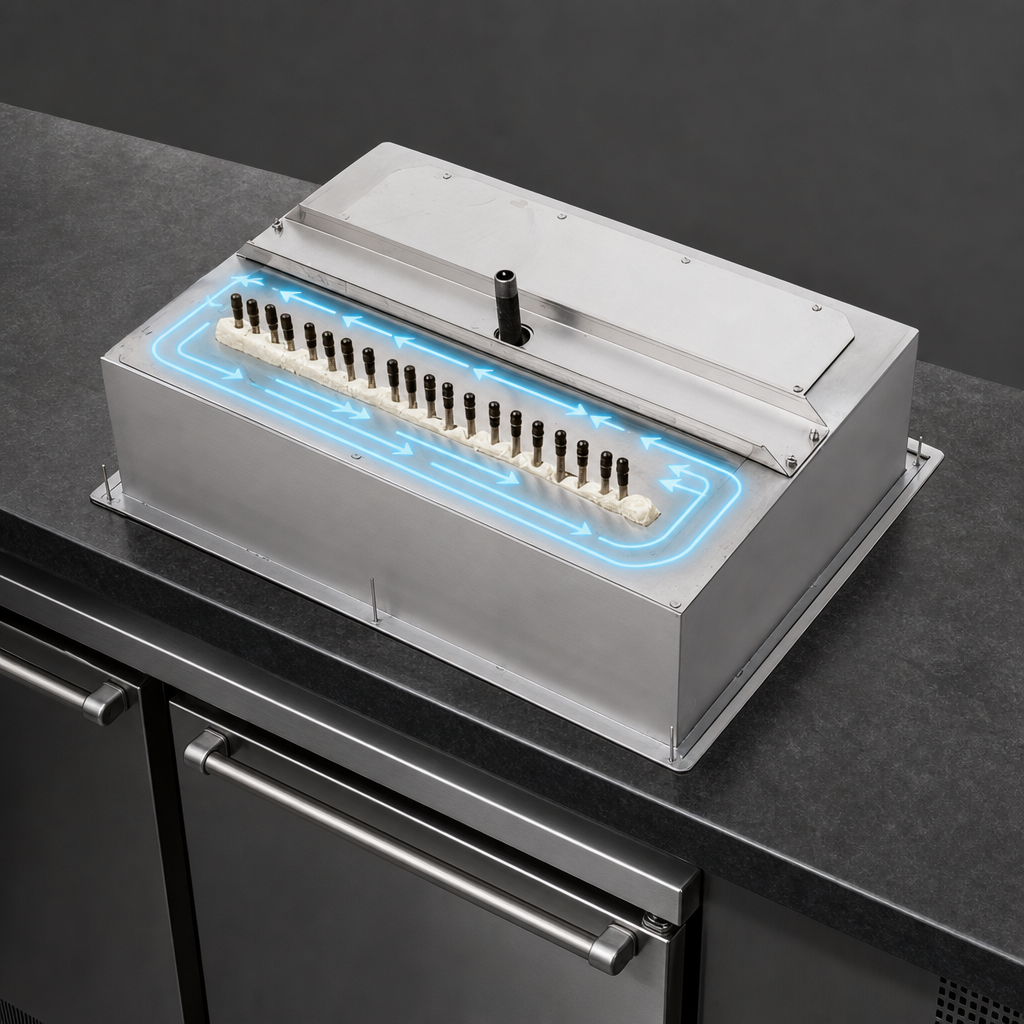

- Integrated 10-circuit cold plate with ½" × 5" MPT nipple for rapid soda/beer cooling.
- 14 ga type 300 stainless steel deck with ½" raised lip to contain spills.
- 18 ga type 300 stainless steel base; TIG-welded with polished exposed seams.

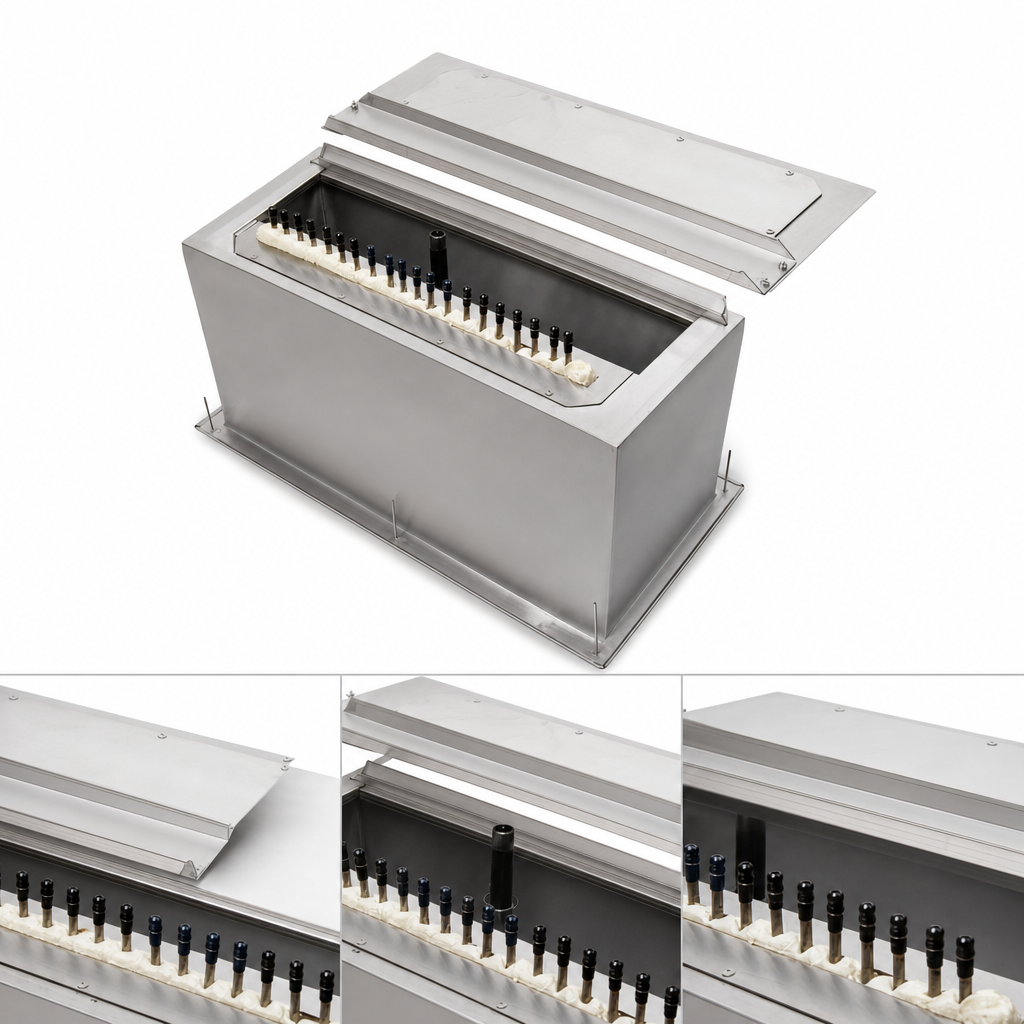

- Removable stainless steel sliding lid shields ice from contaminants.
- Factory-installed drain for quick meltwater removal.
- NSF listed for food-service safety and sanitation.
Specifications
| Model | PB-DIIB3420-CP10 |
|---|---|
| Overall dimensions (W × D × H) | 34" × 20" × 14-3/16" |
| Recommended cut-out | 33" × 19-1/8" |
| Internal bin size | 30" × 15" × 10" deep |
| Ice capacity | 96 lb |
| Cold plate | 10 circuits, ½" × 5" MPT outlet |
| Construction – deck | 14 ga 300-series stainless steel |
| Construction – base | 18 ga 300-series stainless steel |
| Net weight | 127 lb |
| Certifications | NSF |

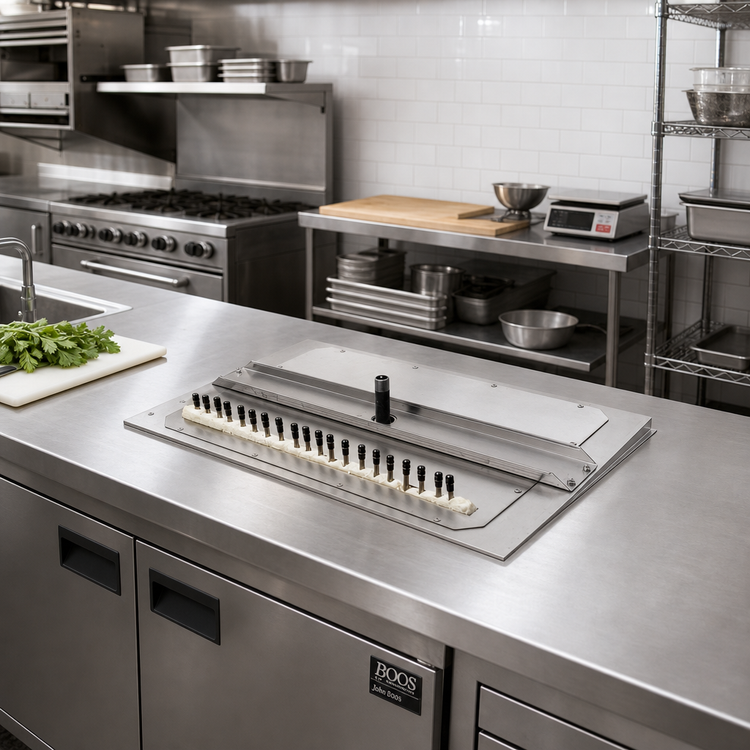

Easy Installation
Cut the 33" × 19-1/8" opening in your counter, drop the unit in place, connect the drain and beverage lines, and you’re ready for service—no additional framing needed in standard reinforced countertops.
Perfect For
- High-volume cocktail bars & nightclubs
- Restaurant soda or beer stations
- Concession stands & stadium suites
- Catering & banquet lines
Care & Maintenance
- Wipe daily with mild soap or detergent and a soft cloth; rinse and dry.
- Avoid abrasive pads and cleaners containing chlorides.
- For stubborn residue, use Bar Keepers Friend applied with the grain of the steel.
- Restore sheen with John Boos Stainless Steel Cleaner.
Proper cleaning preserves the chromium-rich protective film, preventing corrosion and keeping your ice bin looking new.
