John Boos PB-DIIB2820CP10-X Bar Equipment
Description
John Boos PB-DIIB2820-CP10 Drop-In Ice Bin with Cold Plate – 28 “ × 20 ”
High-capacity, insulated ice storage for busy bars & beverage stationsKeep drinks flowing and guests refreshed with the PB-DIIB2820-CP10. This NSF-listed drop-in ice bin combines rugged 300-series stainless steel construction with an integrated 10-circuit cold plate that chills beverage lines right at the point of dispense. Less ice melt, faster service, happier customers.
Why bartenders love it

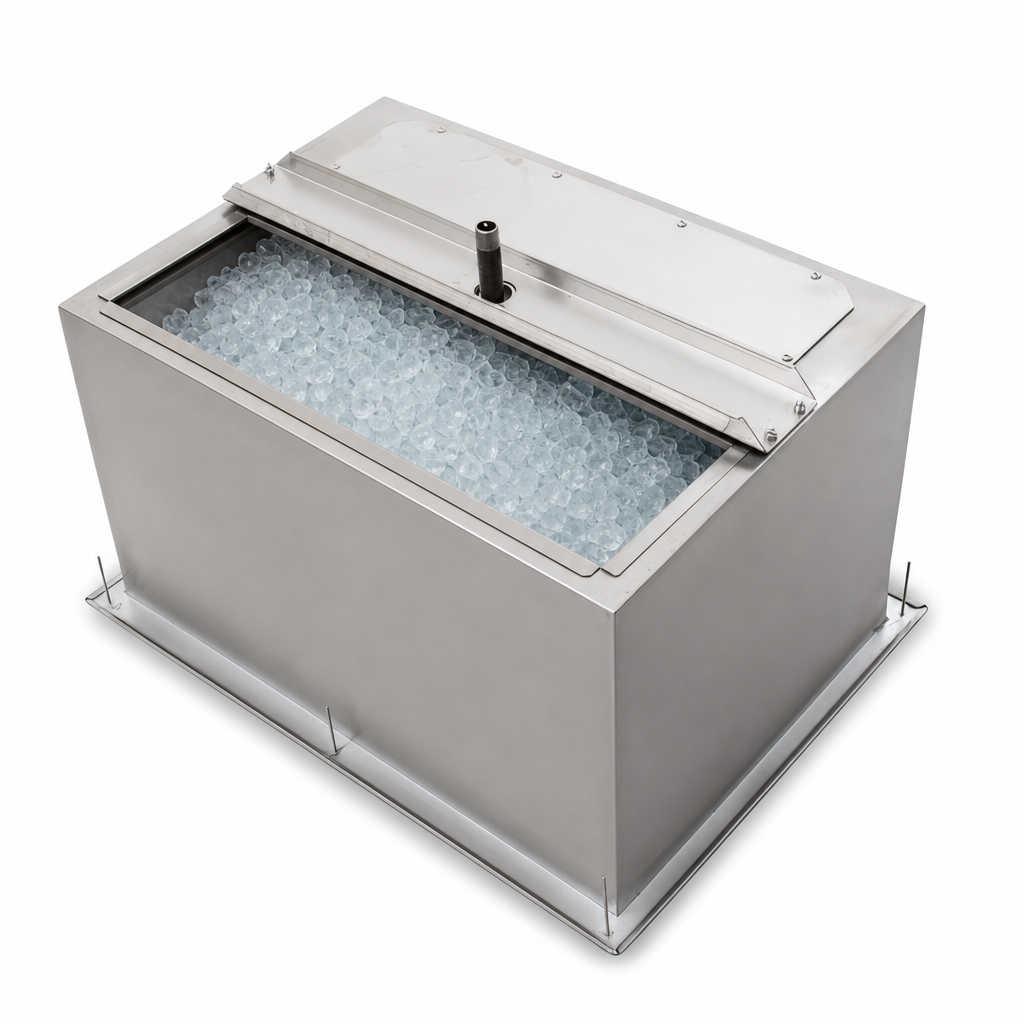

- 10 “ deep, insulated basin holds up to 77 lb of ice.

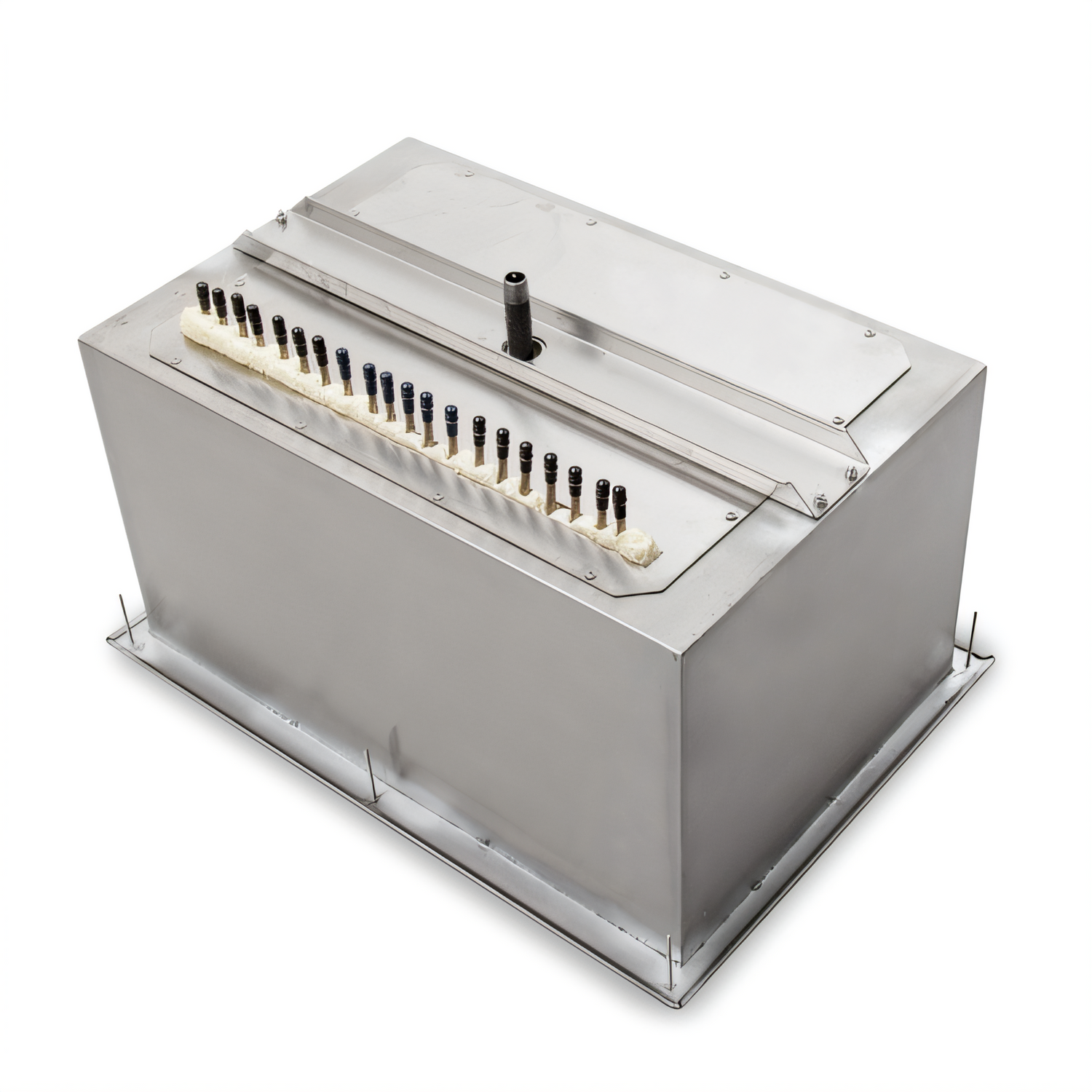

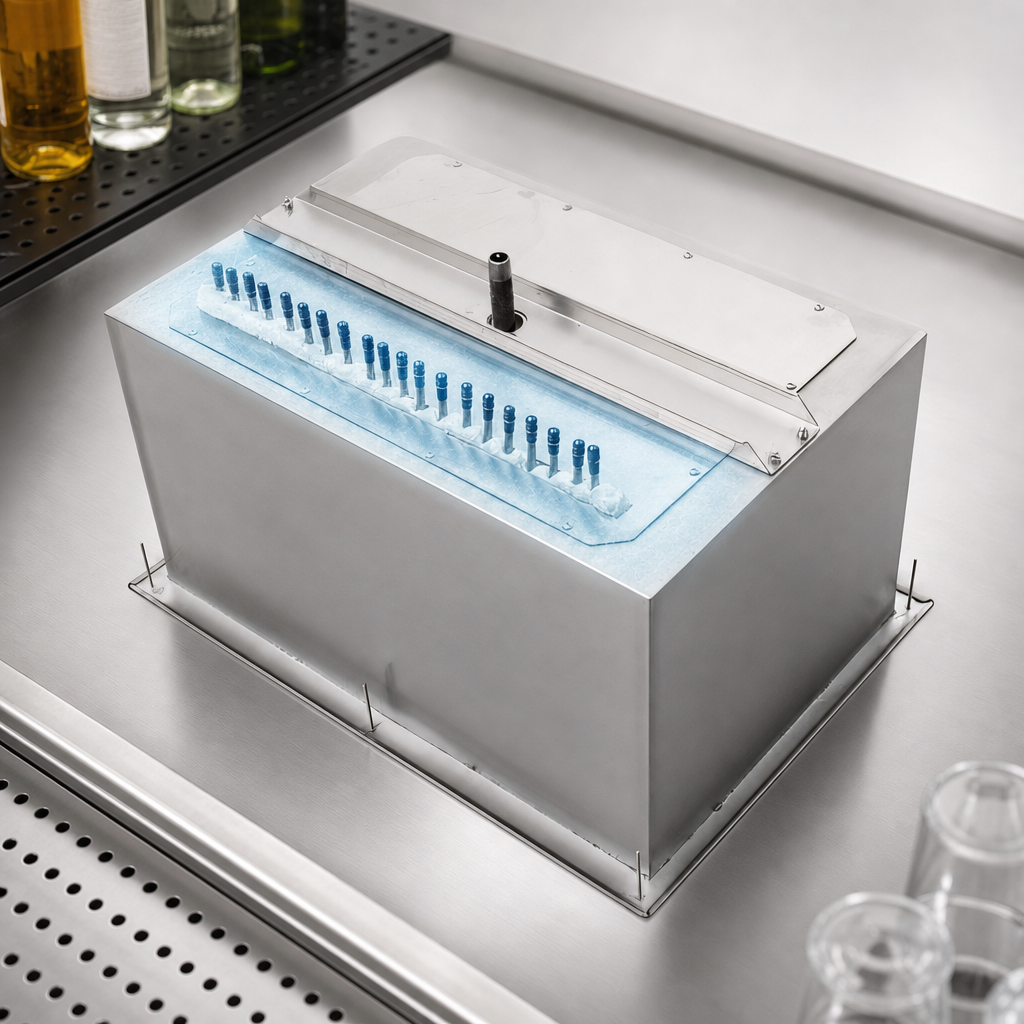

- 10-circuit aluminum cold plate (½ “ × 5 “ MPT nipple) keeps soda, juice & mixers ice-cold on the way to the gun.

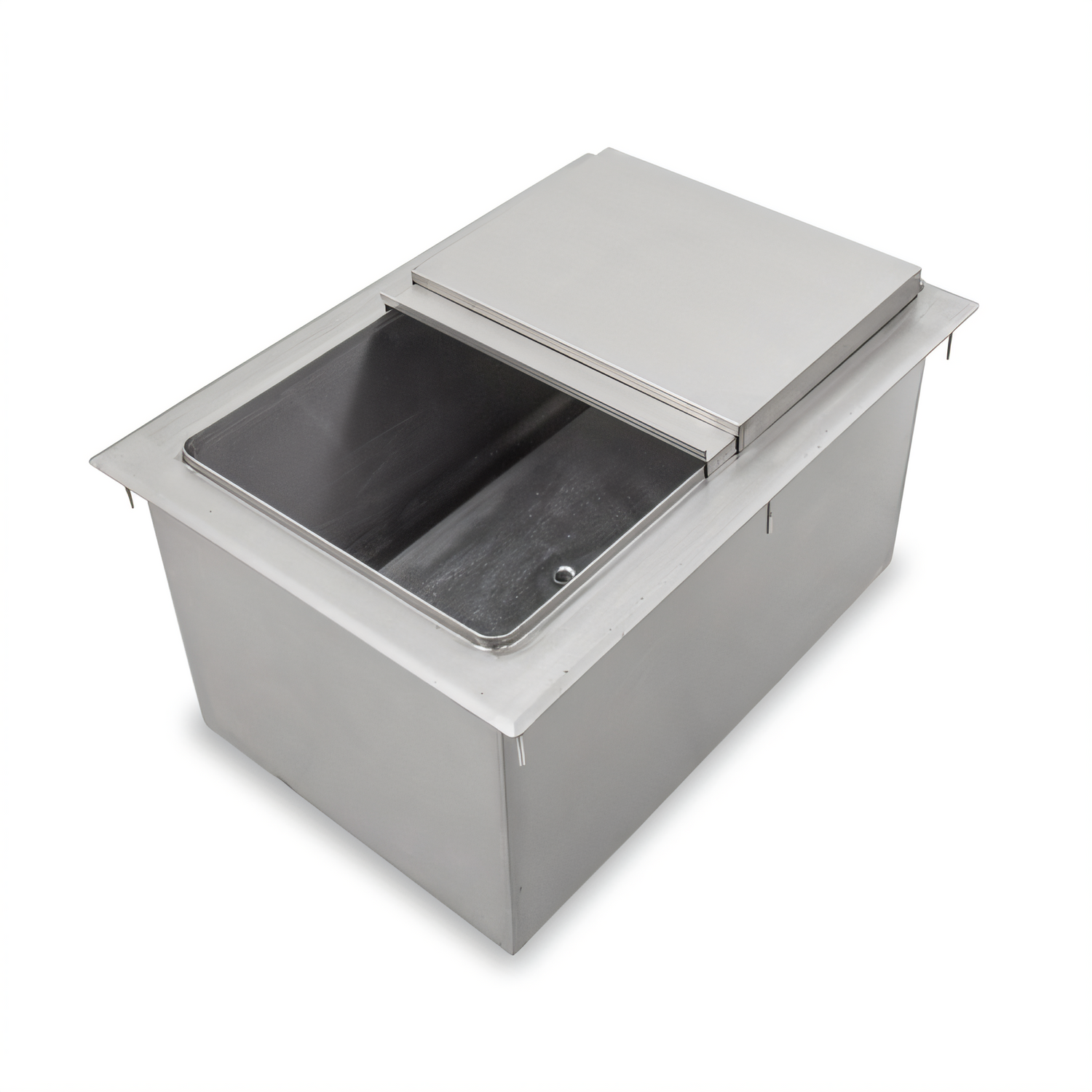

- Removable stainless steel sliding lid protects ice from airborne contaminants.
- ½ “ threaded drain fitting for fast, positive water removal.
- Durable 14 ga deck & 18 ga base made from Type 300 stainless steel; TIG-welded with polished seams.
- ½ “ raised lip around the bin helps contain spills and drips.
- Ships ready to install in Effingham, IL and Nevada for reduced lead times.
At-a-glance specifications
| Model | PB-DIIB2820-CP10 |
|---|---|
| Overall dimensions (L × W × H) | 28 “ × 20 “ × 14-3/16 ” |
| Internal ice bin (L × W × D) | 24 “ × 15 “ × 10 ” |
| Recommended cut-out | 27 “ × 19-1/8 ” |
| Ice capacity | 77 lb |
| Cold plate | 10 circuits, ½ “ × 5 “ MPT nipple outlet |
| Shipping weight | 120 lb (approx.) |
| Certifications | NSF |
| Construction | Deck – 14 ga 300 SS Base – 18 ga 300 SS |
All dimensions are typical; tolerance ± 0.5 “. Verify field measurements before cutting.
Care & maintenance
Maintain the passive protective film of your stainless steel by cleaning with non-chloride, non-abrasive cleaners and soft cloths. For best results, wipe with the grain and finish with John Boos Stainless Steel Cleaner.
