John Boos

John Boos LT6R5-3072SSW-X Adjustable-Height Stainless Steel ADA Work Table, 72 x 30 in, 16-Gauge 300 Series Top, 5 in Backsplash, Undershelf

SKU: LT6R5-3072SSW-X
$2,851.14
/each Configurable
Alternative products
LT6R5-3072SSW-X Current product Current
LT6-3048SSW Loading live product details…
LT6-3060SSW Loading live product details…
LT6-3072SSW Loading live product details…
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Commercial Work Tables Equipment Equipment John Boos New Arrivals Restaurant Equipment Stainless Steel Prep Tables Tables & Workstations Wood Top Work Tables Wooden Top Work Tables Work Tables & Fabrication Work Tables & Preparation Stations

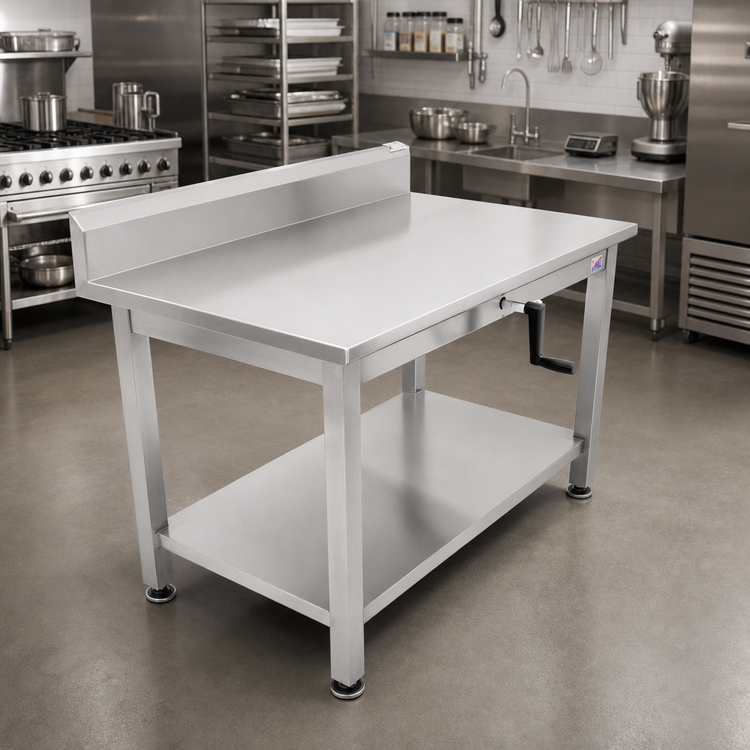

John Boos Hydraulic Lift ADA Stainless Steel Work Table with 5-Inch Backsplash, 72 x 30 Inches

Adjustable height from 32 to 40 inches, 16-gauge 300 series top, fixed undershelf

This ergonomic stainless steel work table combines hydraulic height adjustment with a backsplash and undershelf to support cleaner, more comfortable prep work.

  • Hydraulic lift system adjusts the table height from 32 to 40 inches.
  • 16-gauge Type 300 series stainless steel top provides a durable prep surface.
  • 5-inch backsplash helps contain spills and protect the wall behind the table.
  • 18-gauge fixed stainless steel undershelf adds storage and support.
  • Foldable hand crank and 8-inch stroke cylinders make height adjustment easy.
  • Stainless steel legs and adjustable floor glides help keep the table stable and level.

Overall Dimensions:

72.0"W x 30.0"D

Product Weight:

296.0 lb

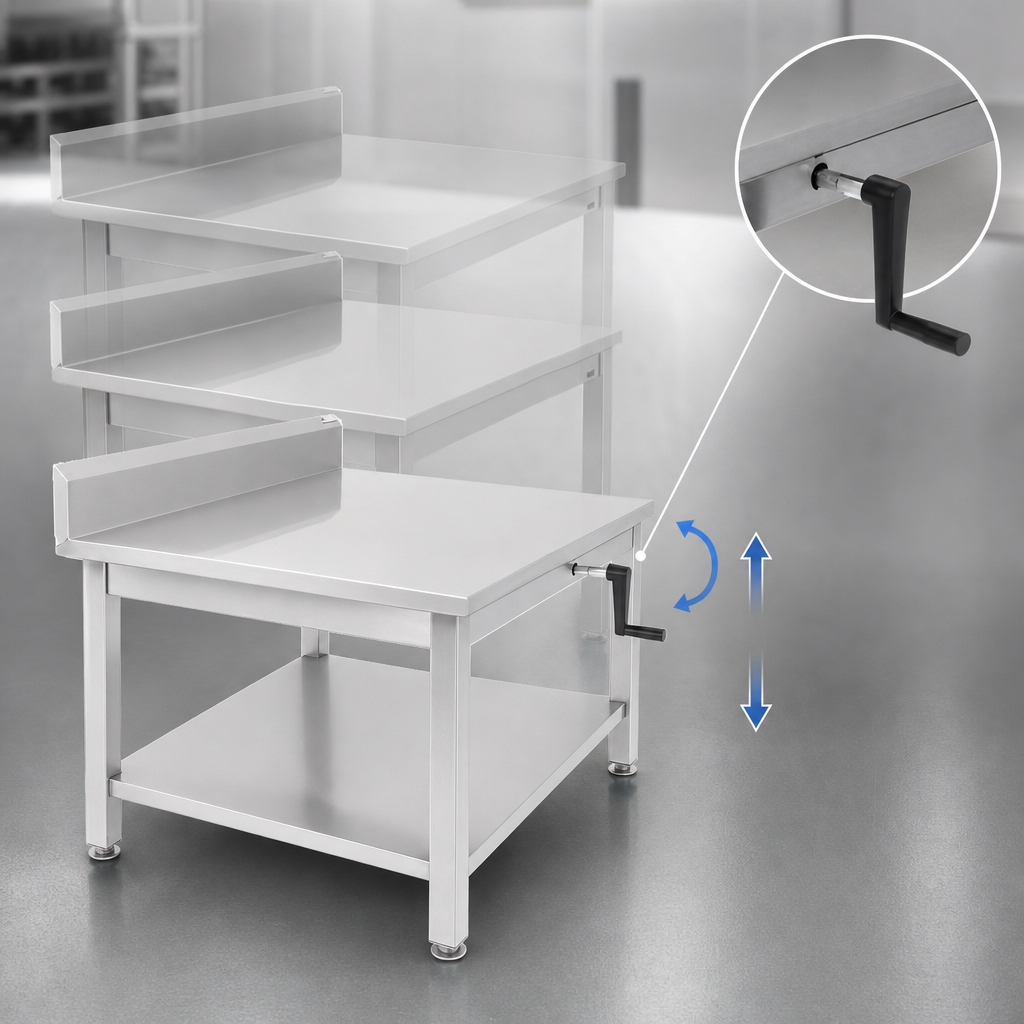

Hydraulic Lift System

Allows smooth manual height adjustment for ergonomic work positioning.

Hydraulic Lift System

Adjustable Height Range

Table height adjusts from 32 inches to 40 inches.

16-Gauge 300 Series Stainless Steel Top

Durable stainless steel work surface with TIG-welded construction and polished exposed welds.

5-Inch Backsplash

Helps contain messes and reduces splashback behind the work area.

18-Gauge Fixed Stainless Steel Undershelf

Provides additional storage space and strengthens the base.

Foldable Hand Crank

Crank folds away when not in use for a cleaner, safer setup.

8-Inch Stroke Lift Cylinders

Supports the hydraulic height adjustment range.

Stainless Steel Legs And Adjustable Floor Glides

Offers stable support and easy leveling on uneven floors.

Accessory Option For Casters

Casters can be added by using the -C suffix for a mobile configuration.

Type ADA Work Table
Style Adjustable Height
Installation Type Freestanding
Controls Hand Crank
Material Stainless Steel
Base Type Open With Undershelf
Top Gauge 16 Gauge
Top Stainless Series 300 Series
Splash Height 5 Inches
Table Edge Type Rounded / Rolled / Bullnose Edge
Width 72 Inches
Depth 30 Inches
Weight 296 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The hydraulic lift system adjusts the table from 32 inches to 40 inches high.
The top is 16-gauge Type 300 series stainless steel.
Yes, it includes an 18-gauge fixed stainless steel undershelf.
Height is adjusted with a hydraulic lift system and foldable hand crank.
Yes, casters are available as an accessory by adding the -C suffix.
