John Boos

John Boos ADA Hydraulic Lift Stainless Steel Work Table with 5-Inch Backsplash, 48 x 30 Inches

SKU: LT6R5-3048SSW-X
$2,521.68
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

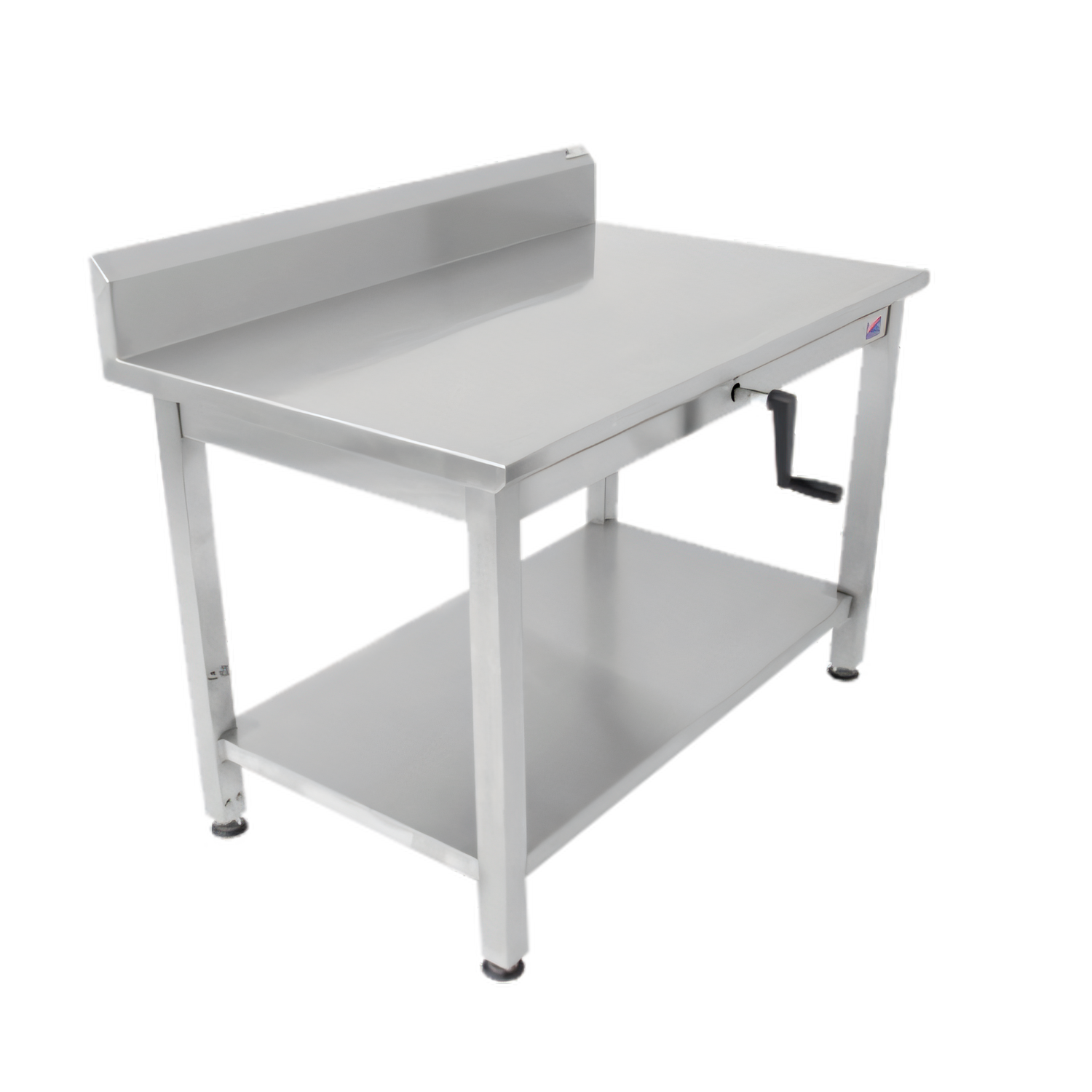

John Boos ADA Hydraulic Lift Stainless Steel Work Table with 5-Inch Backsplash, 48 x 30 Inches

16-gauge 300-series top with fixed undershelf, foldable hand crank, and adjustable height from 32 to 40 inches.

Build a more ergonomic prep station with a durable stainless steel table that adjusts to your preferred working height and adds backsplash protection and under-table storage.

  • 48-inch by 30-inch stainless steel work table with a 5-inch backsplash
  • Hydraulic lift system adjusts table height from 32 to 40 inches
  • 16-gauge 300-series stainless steel top with TIG-welded construction
  • 18-gauge fixed stainless steel undershelf for added storage
  • Foldable hand crank makes height adjustment easy and stores out of the way
  • Stainless steel legs and adjustable floor glides help with stability and leveling

Overall Dimensions:

48.0"W x 30.0"D

Product Weight:

255.0 lb

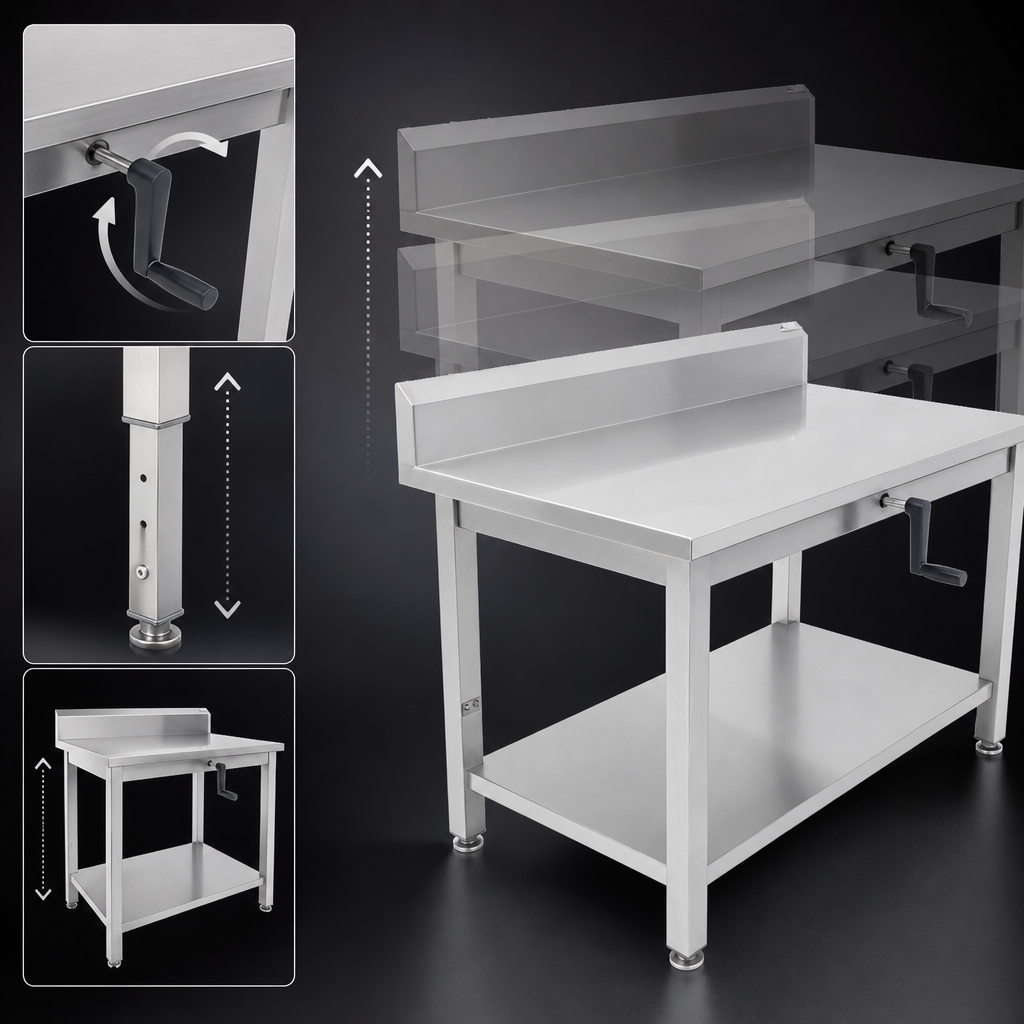

Hydraulic Lift Height Adjustment

Manual hydraulic lift system lets you raise and lower the table for ergonomic prep and service.

16-Gauge 300-Series Stainless Steel Top

Durable stainless steel top is TIG welded, and exposed welds are polished to match the surrounding surface.

5-Inch Backsplash

Helps contain splashes and keeps the wall behind the table cleaner during prep.

18-Gauge Fixed Stainless Steel Undershelf

Provides sturdy lower storage space for pans, containers, and supplies.

Foldable Hand Crank

Crank folds away when not in use for a cleaner, less obstructive work area.

Adjustable Floor Glides

Helps level the table on uneven floors and improves stability.

Stainless Steel Legs

Corrosion-resistant legs provide dependable support for daily commercial use.

8-Inch Stroke Cylinders

Hydraulic cylinders provide the travel needed for the 32-inch to 40-inch height range.

Type ADA Work Table
Style Hydraulic Lift
Installation Type Freestanding
Material Stainless Steel
Top Gauge 16 Gauge
Top Stainless Series 300 Series
Undershelf Gauge 18 Gauge
Base Type Open With Undershelf
Table Edge Type Rounded / Rolled / Bullnose Edge
Splash Height 5 Inches
Stroke Length 8 Inches
Shipping Width 48 Inches
Shipping Depth 30 Inches
Shipping Weight 255 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

The hydraulic lift system adjusts the table from 32 inches to 40 inches high.
It features a 16-gauge 300-series stainless steel top, an 18-gauge stainless steel undershelf, and stainless steel legs.
Yes, this model includes a 5-inch backsplash.
The table uses a hydraulic lift system with 8-inch stroke cylinders and a foldable hand crank.
Yes, optional casters are available by adding suffix "-C".
