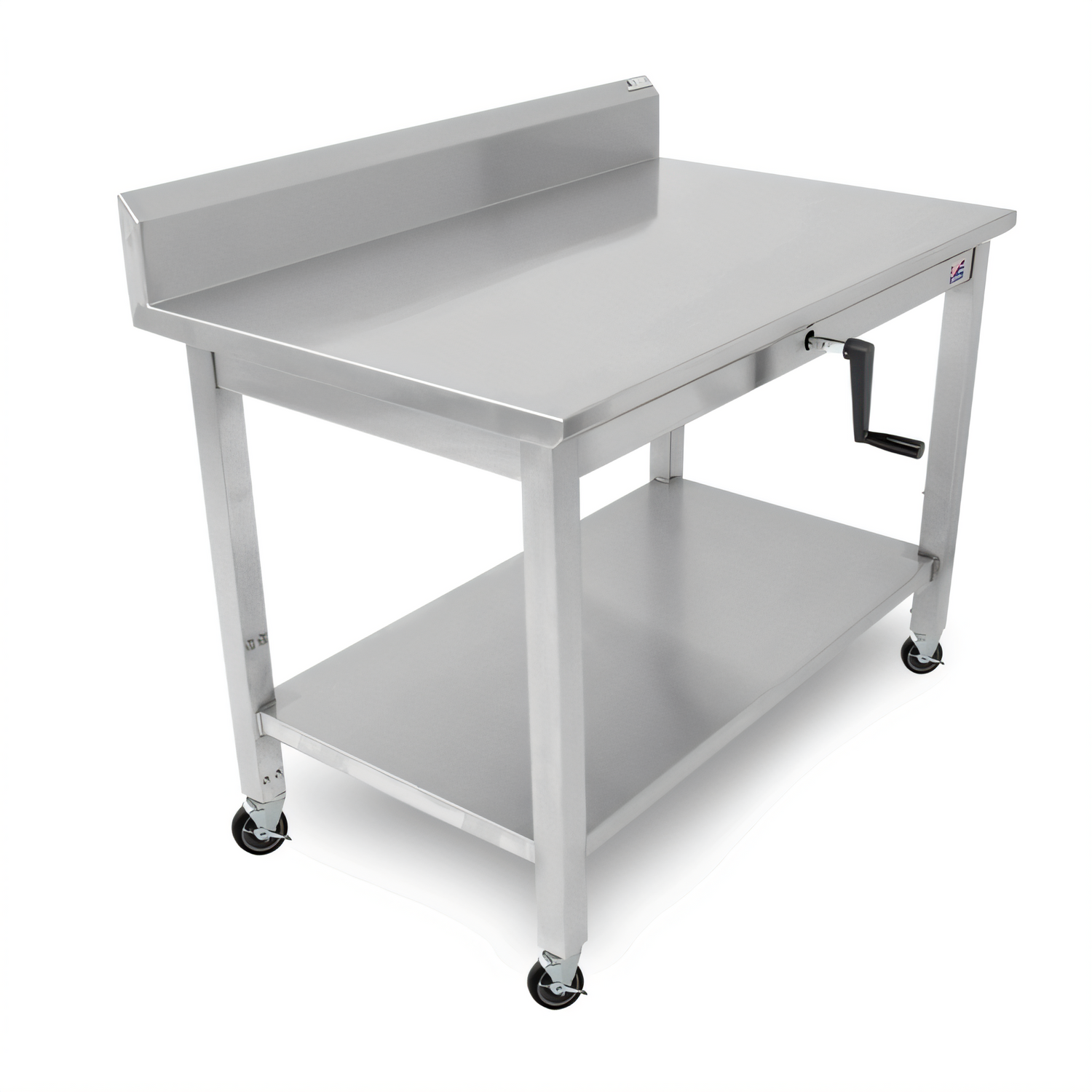

John Boos ADA Adjustable-Height Hydraulic Lift Stainless Steel Work Table with 5-Inch Backsplash and Locking Casters, 48 x 30 Inches

SKU: LT6R5-3048SSW-C
GTIN: 662969699888
$2,803.87
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables John Boos New Arrivals Restaurant Equipment Stainless Steel Prep Tables Tables & Workstations Wood Top Work Tables Wooden Top Work Tables

John Boos ADA Adjustable-Height Hydraulic Lift Stainless Steel Work Table with 5-Inch Backsplash and Locking Casters, 48 x 30 Inches

16-Gauge 300 Series Top, 18-Gauge Stainless Undershelf, 32"-40" Height Range

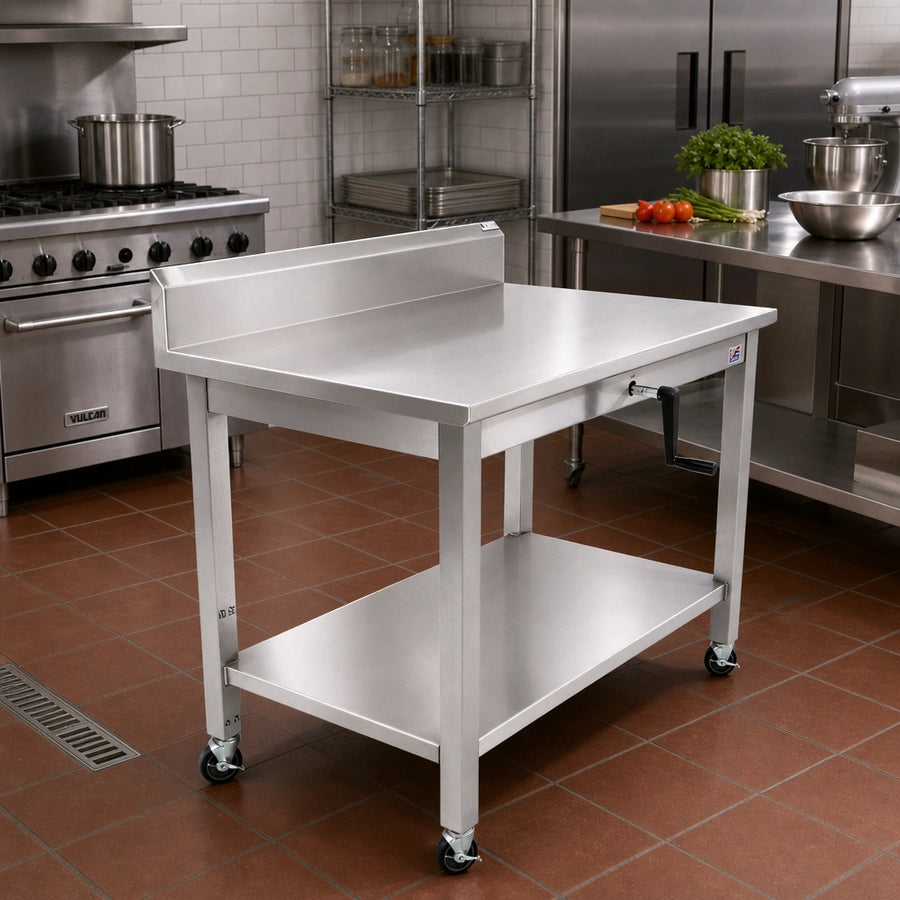

Built for ergonomic food prep, this ADA-height hydraulic lift table combines a durable stainless steel top, manual height adjustment, and locking casters for mobility.

  • ADA-height ergonomic design supports a comfortable working position.
  • Hydraulic lift system adjusts the table height from 32" to 40".
  • 16-gauge 300 series stainless steel top is TIG welded and polished at exposed seams.
  • 5" backsplash helps contain spills and protect surrounding surfaces.
  • 18-gauge fixed stainless steel undershelf adds storage and base rigidity.
  • Foldable hand crank makes manual height adjustment easy and stows away when not in use.
  • 5" locking casters provide mobility and secure positioning.

Overall Dimensions:

48.0"W x 30.0"D

Product Weight:

155.0 lb

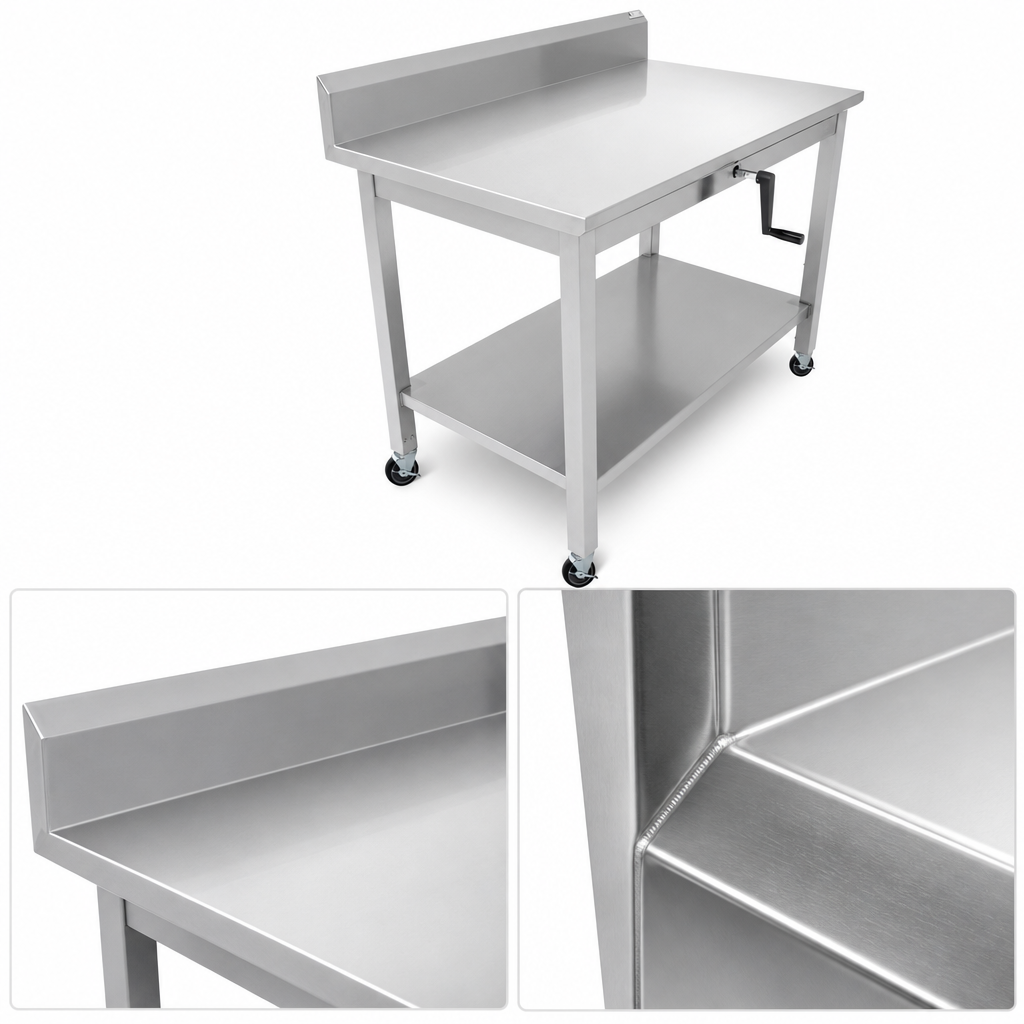

16-Gauge 300 Series Stainless Steel Top

Durable stainless steel work surface with TIG-welded construction and polished exposed welds.

5-Inch Stainless Steel Backsplash

Helps contain splashes and keeps items from sliding off the back of the table.

18-Gauge Fixed Stainless Steel Undershelf

Adds convenient storage space while reinforcing the table base.

Hydraulic Lift Height Adjustment

Smoothly adjusts the work surface from 32" to 40" for ergonomic use.

8-Inch Stroke Cylinders

Provides the lift range needed for the adjustable-height mechanism.

Foldable Hand Crank

Allows manual height adjustment and folds away when not in use.

5-Inch Locking Casters

Improves mobility for repositioning and locks to keep the table stable.

Stainless Steel Legs

Commercial-grade support structure designed for durability in foodservice environments.

Type ADA Hydraulic Lift Work Table
Style Open with Undershelf
Installation Type Freestanding
Material Stainless Steel
Controls Manual Hand Crank
Top Gauge 16 Gauge
Backsplash Height 5 Inches
Undershelf Gauge 18 Gauge
Adjustable Height Range 32 Inches to 40 Inches
Stroke Length 8 Inches
Caster Size 5 Inches
Edge Type Rounded / Rolled / Bullnose
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The hydraulic lift system adjusts the table from 32" to 40" high.
Yes. This model is the castered version and uses 5" locking casters.
It features a 16-gauge 300 series stainless steel top, an 18-gauge stainless steel undershelf, and stainless steel legs.
Height is adjusted with a hydraulic lift system and a foldable hand crank.
The LT6 family shown in the documentation is also offered in 60" and 72" lengths.
