John Boos  |  SKU: JDTS-20-72L-X

John Boos JDTS-20-72L-X Compartment Sinks

$1,223.22
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

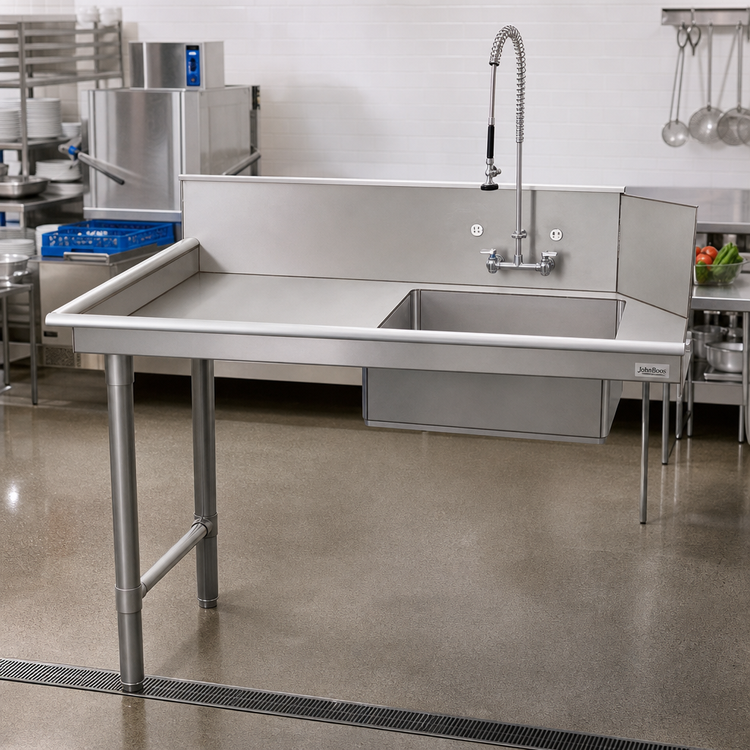

John Boos JDTS-20-72L Pro-Bowl Soiled Straight Dishtable

72" W x 30" D x 44" H • Left-to-Right Operation • 20" x 20" x 8" Pre-Rinse Sink

Engineered for busy ware-washing lines, the JDTS-20-72L delivers the rugged reliability John Boos is known for. With full 16 GA type 300 stainless steel construction, a spacious pre-rinse sink, and built-in slope toward your dish machine, it keeps soils contained and productivity flowing shift after shift.

Key Features & Benefits

  • Left-to-right workflow with built-in ⅛" per foot slope toward the dish machine opening.
  • Integrated 20" W x 20" F-to-B x 8" D pre-rinse sink simplifies scrap & rinse tasks.
  • 10" boxed backsplash with 45° return protects walls; pre-punched 1" faucet holes on 8" centers for splash-mount pre-rinse.
  • Rolled front & side rims plus bull-nosed outside corners for safer, snag-free edges.

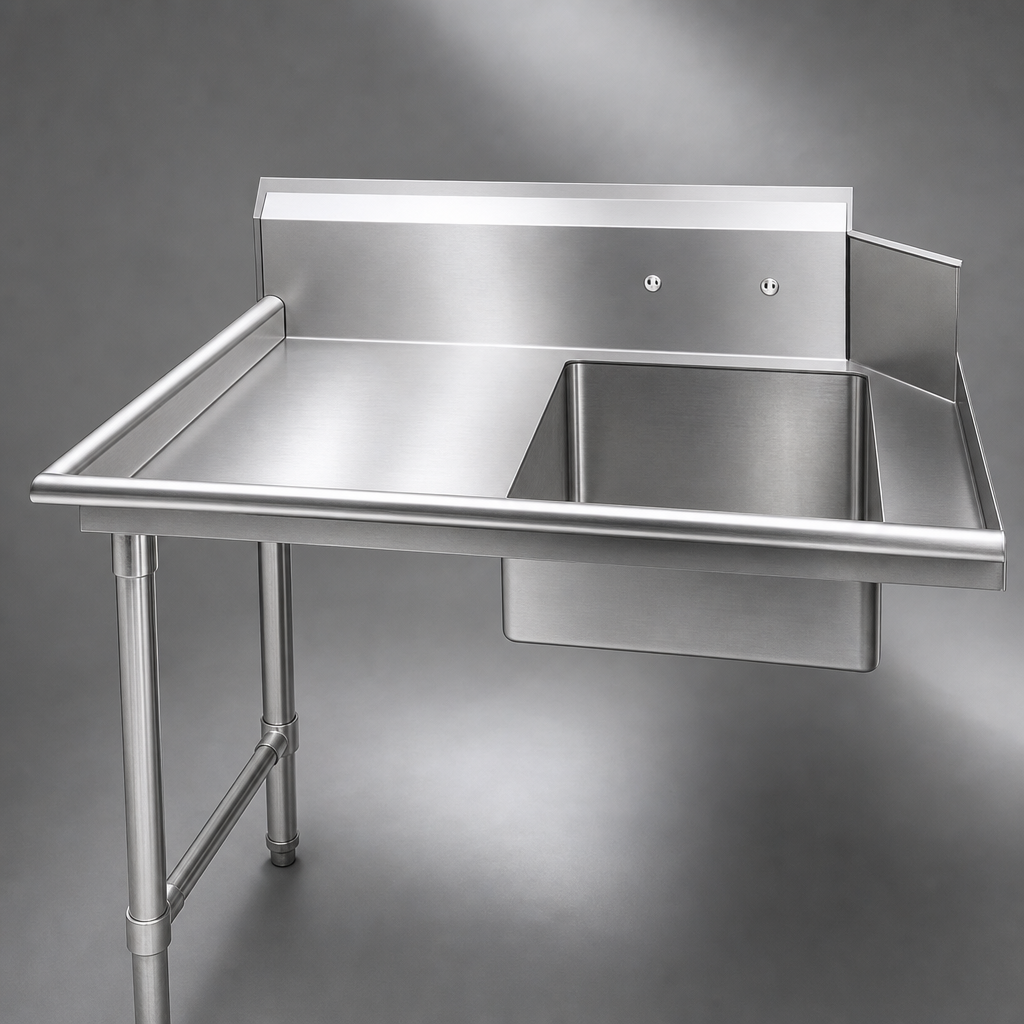

  • Heavy-duty 16 GA type 300 stainless steel top TIG-welded & satin-polished to a #4 finish.
  • 1-5/8" O.D. stainless steel legs with 1-1/4" O.D. adjustable stainless bracing resist twisting under heavy loads.
  • 1" adjustable stainless steel bullet feet level the table on uneven floors.
  • NSF & CSA-Sanitation listed for peace-of-mind compliance.

Ideal Applications

  • High-volume restaurants & cafeterias
  • Hotels, resorts & banquet kitchens
  • Catering commissaries & ghost kitchens
  • Institutional foodservice—schools, hospitals, correctional facilities

Technical Specifications

Model JDTS-20-72L (Left-to-Right)
Overall Dimensions 72" W x 30" D x 44" H
Sink Bowl 20" W x 20" F-B x 8" D (integral)
Backsplash 10" boxed with 45° top & 2" wall return
Faucet Mount (2) 1" diameter holes on 8" centers, splash-mount
Top & Bowl Material 16 GA, Type 300 Stainless Steel, #4 Satin Finish
Legs / Bracing 1-5/8" O.D. legs & 1-1/4" O.D. bracing, 16 GA stainless
Feet 1" adjustable stainless steel bullet feet
Weight Approx. 85 lb
Certifications NSF, CSA-Sanitation
Manufacturing Locations Effingham, IL & Nevada, MO

Compatible Accessories (sold separately)

  • Add-A-Faucet or pre-rinse assemblies
  • Level-waste outlets
  • Stainless over-shelves or under-shelves
  • Pot rack systems

Care & Maintenance

  • Clean daily with non-chloride detergent and a soft cloth or sponge; always wipe with the grain.
  • Avoid harsh abrasives, steel wool, or chlorine bleach to preserve the protective chrome film.
  • For restoration or passivation, use Bar Keepers Friend and John Boos Stainless Steel Cleaner.
Note: Faucet, drain, and dish machine are shown for illustration only and are not included. Verify dish machine clearance and plumbing rough-ins before ordering.

Need a different size or right-to-left configuration? Contact us for the complete John Boos Pro-Bowl dishtable line.

Features & Specs

Manufacturer

John Boos

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

72.0in

Depth

30.38in

Shipping Weight

85.0lbs

Leg Type

stainless steel legs

Direction

left to right

Stainless Gauge

16 gauge

Splash Height

10"H splash

Stainless Series

300 series

Shape

straight

Width (side - side) OA

61" - 72"

Specifications

Dishtable, soiled, straight design, 72"W x 30"D x 44"H overall size, for left-to-right operation, (1) 20"W x 20" front-to-back x 8" deep pre-rinse sink, 10" boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, rolled front & side rims, 16/300 stainless steel top, stainless steel legs, adjustable bracing, & bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)
