John Boos | SKU:
JDTS-20-48L-X
John Boos JDTS-20-48L-X Compartment Sinks
$1,049.94
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos JDTS-20-48L-X Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos JDTS-20-48L-X Compartment Sinks
$1,049.94
Unit price
/
Unavailable
Description

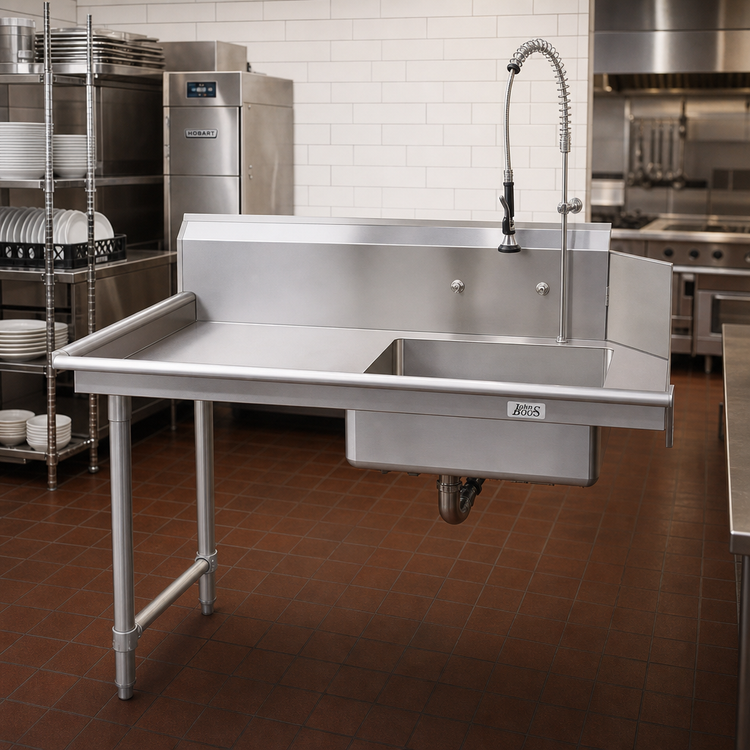

John Boos JDTS-20-48L Pro-Bowl Soiled Dishtable – 48" Straight, Left-to-Right
16 ga. 300-Series Stainless Steel Top & BaseStreamline your warewashing line with a heavy-duty, NSF-listed dishtable that moves dirty wares smoothly from prep to dish machine. Built at John Boos’ Effingham & Nevada facilities, the JDTS-20-48L delivers rugged performance in a compact 48" footprint.
Why you’ll love it
- NSF & CSA-Sanitation certified for food-safe compliance
- Rugged 16 ga. TIG-welded stainless steel top with #4 satin finish
- Integrated 20" × 20" × 8" deep pre-rinse sink contains soils and splatter
- 10" boxed backsplash with 2" 45° return keeps water off surrounding walls
- Splash-mount faucet holes (8" centers) accept most commercial pre-rinse units
- Bull-nosed, rolled front and side rims for drip control & operator safety
- 1-5/8" O.D. stainless legs with 1" bullet feet for fast, tool-free leveling
- Adjustable 1-1/4" tubular stainless cross-bracing adds rock-solid stability
- Factory-cut opening & built-in slope (1/8" per ft.) feed dish machine efficiently
- Quick-ship availability from IL or NV reduces lead time
Bowl specs
| Interior size | 20" W × 20" F/B × 8" D |
|---|---|
| Drain opening | 3 ½" |

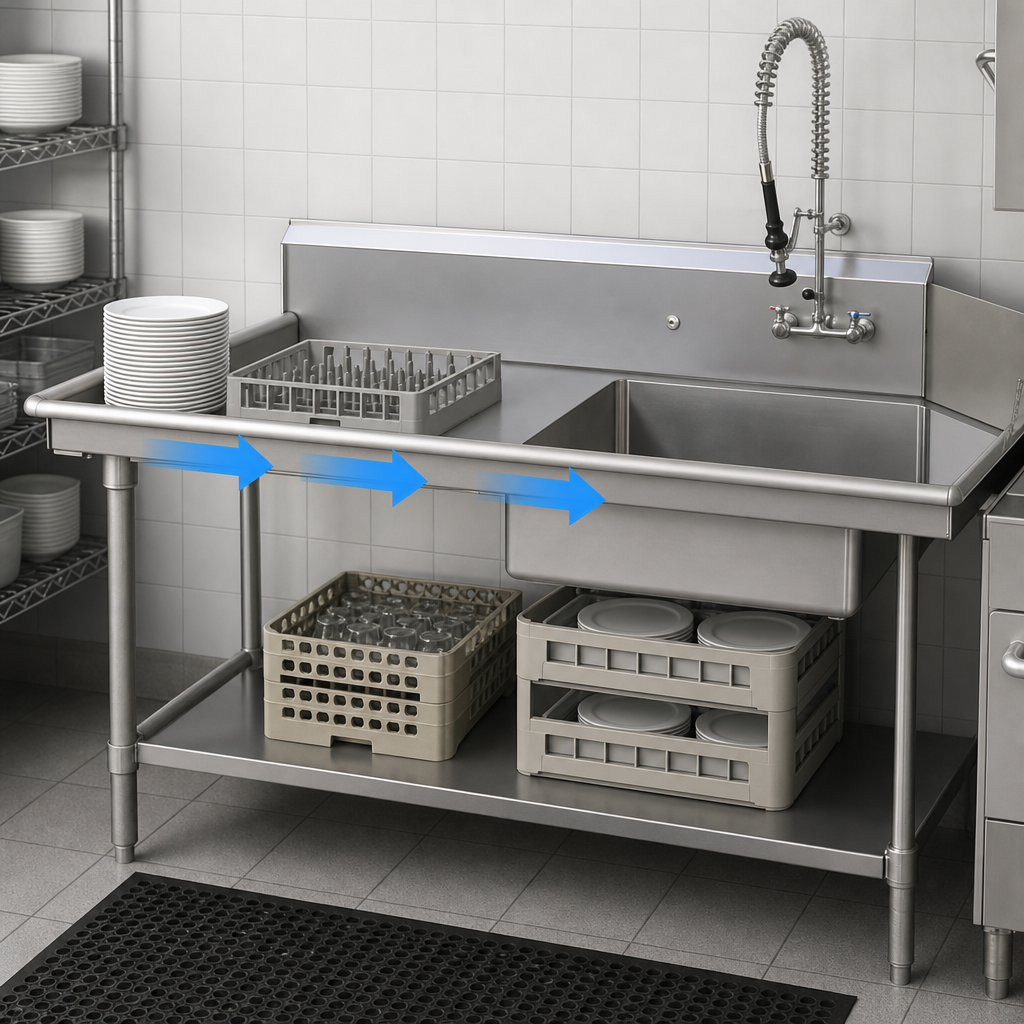

| Location | Right side (left-to-right workflow) |
Overall dimensions
| Width | 48" |
|---|---|
| Depth | 30" |
| Work surface height | 34 1/16" |
| Overall height (with backsplash) | 44" |
| Shipping weight | 60 lb |
Construction details
| Top & bowl material | 16 ga. type 300 stainless, #4 satin polish |
|---|---|
| Legs | 1-5/8" O.D. 16 ga. stainless steel |
| Bracing | 1-1/4" O.D. 16 ga. stainless – field adjustable |
| Feet | 1" stainless adjustable bullet feet |
| Backsplash | 10" boxed, 2" 45° return, ½" turned-down lip |
| Faucet holes | (2) 1" holes on 8" centers |
| Edge profile | Bull-nosed front & sides, rolled |
Need add-ons? Pair this table with a John Boos pre-rinse faucet, overshelf, or pot rack using the options above.
Note: Unit is configured for left-to-right operation only. Confirm dish machine orientation before ordering.
Care & maintenance
- Wipe daily with mild soap or non-chloride detergent and a soft cloth.
- Avoid abrasive pads, wire brushes, or cleaners containing chlorides.
- Polish regularly with John Boos Stainless Steel Cleaner to maintain protective finish.
Features & Specs
Features & Specs
Manufacturer
John Boos
Certifications
NSF, CSA-Sanitation
Height
44.06in
Width
48.0in
Depth
30.38in
Shipping Weight
60.0lbs
Direction
left to right
Stainless Gauge
16 gauge
Width (side - side) OA
37" - 48"
Leg Type
stainless steel legs
Shape
straight
Stainless Series
300 series
Splash Height
10"H splash
Specifications
Dishtable, soiled, straight design, 48"W x 30"D x 44"H overall size, for left-to-right operation, (1) 20"W x 20" front-to-back x 8" deep pre-rinse sink, 10" boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, rolled front & side rims, 16/300 stainless steel top, stainless steel legs, adjustable bracing, & bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)
