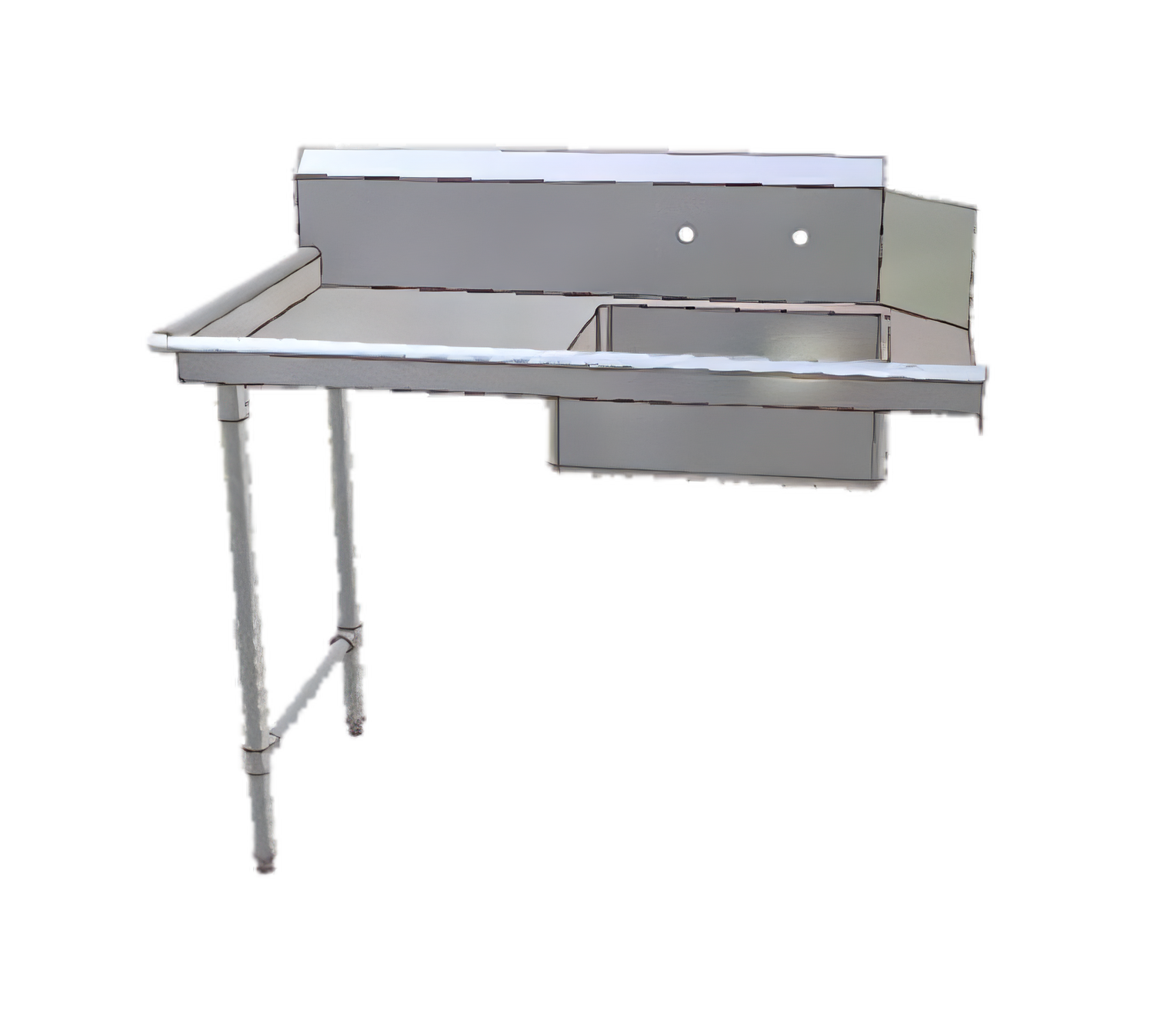

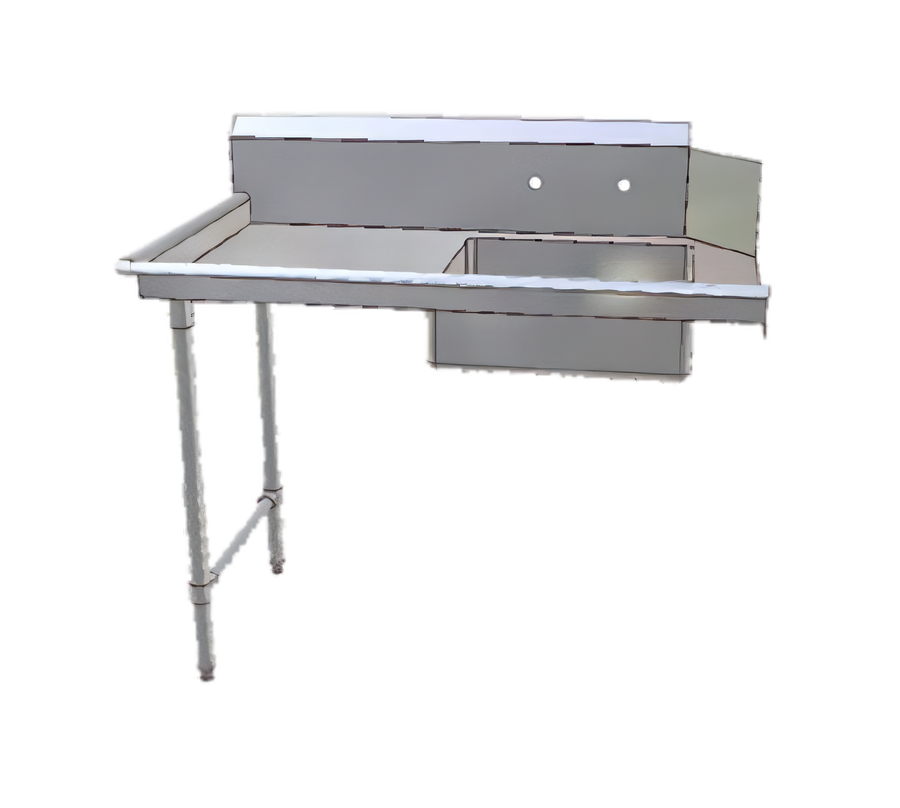

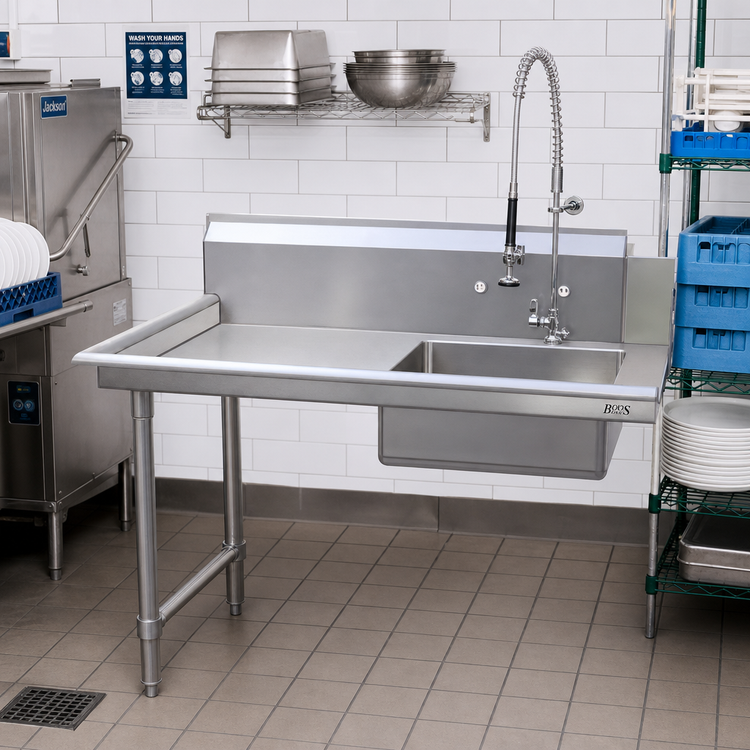

John Boos JDTS-20-26L-X Straight Soiled Stainless Steel Dish Table with 16" x 20" Pre-Rinse Sink

26" W x 30" D x 44" H, Left-to-Right Operation, 10" Boxed Backsplash

Built for efficient warewashing, this straight soiled dish table pairs a durable 16-gauge 300-series stainless steel build with a pre-rinse sink and adjustable support base for dependable left-to-right workflow.

  • Straight soiled dishtable designed for left-to-right operation.
  • 16-gauge Type 300 stainless steel top and base with a satin #4 finish.
  • Integrated 16" x 20" x 8" deep pre-rinse sink for scraping and rinsing.
  • 10" boxed backsplash with 45° return helps contain splashes and protect walls.
  • Stainless steel legs, bracing, and bullet feet provide stable support and easy leveling.
  • Built-in slope toward the dish machine helps direct water flow efficiently.

Overall Dimensions:

26.0"W x 30.38"D x 44.06"H

Product Weight:

41.0 lb

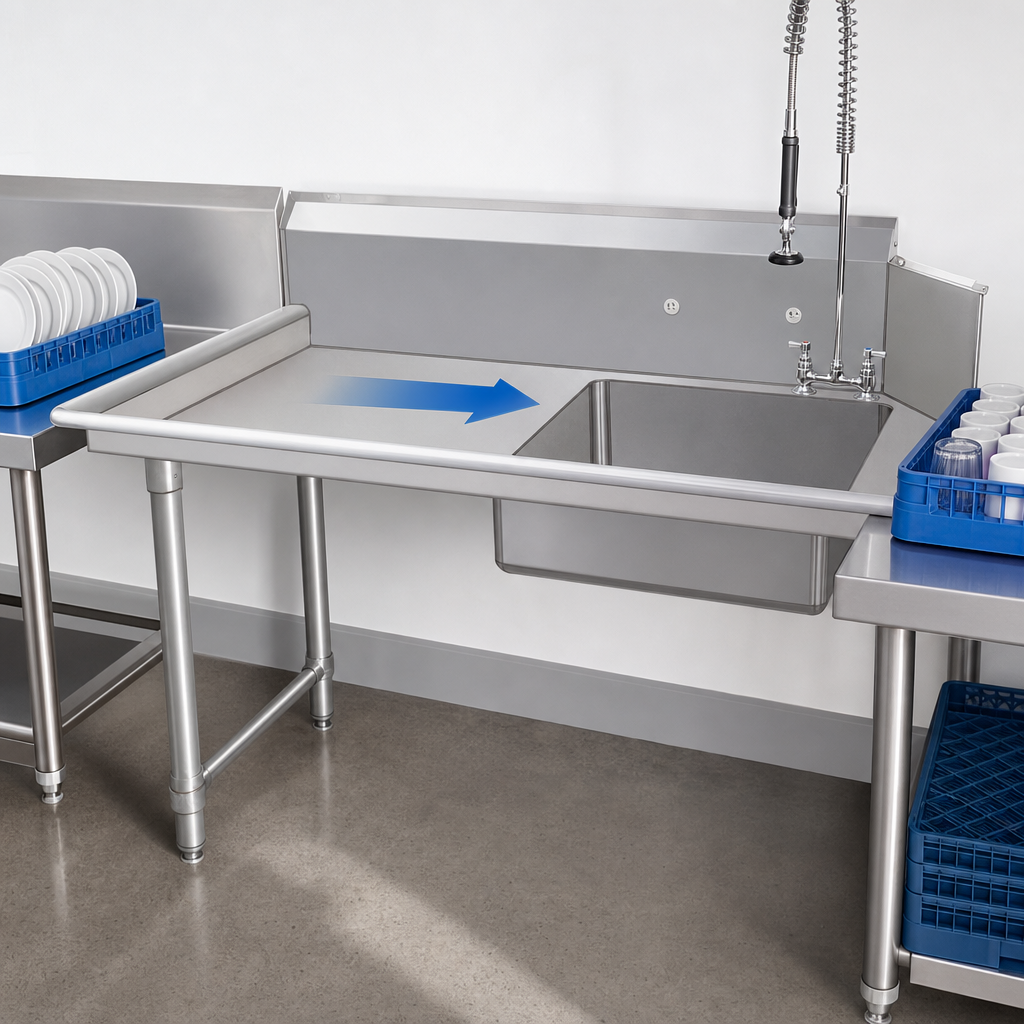

Straight Soiled Dishtable Design

Purpose-built for warewashing stations with a straight layout and left-to-right operation.

16-Gauge 300-Series Stainless Steel Construction

Top and base are made from 16-gauge Type 300 stainless steel for durability and corrosion resistance.

Integrated Pre-Rinse Sink

Includes one 16" x 20" x 8" deep pre-rinse sink for scraping and rinsing dishes before washing.

10-Inch Boxed Backsplash

Full-length backsplash includes a 2" return to the wall at 45° and a turned-down rear lip to help control splashes.

Splash-Mount Faucet Holes

Backsplash is prepared for splash-mount faucet installation with 8" centers.

TIG-Welded Top with Polished Welds

Top is TIG welded with exposed welds polished to match adjacent surfaces for a cleaner finish.

Heavy-Duty Support Base

Features 1-5/8" diameter stainless steel legs, 1-1/4" round stainless steel bracing, and stainless gussets.

Adjustable Bullet Feet

1" adjustable stainless steel bullet feet make leveling easier during installation.

Built-In Drain Slope

Work surface slopes toward the dish machine at 1/8" per foot to assist drainage.

Type Soiled Dishtable
Style Straight
Installation Type Floor Model
Material 300 Series Stainless Steel
Finish Satin
Selling Unit Each
Units Per Case 1
Shipping Width 26 Inches
Shipping Depth 31 Inches
Shipping Height 45 Inches
Shipping Weight 41 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The pre-rinse sink measures 16" wide x 20" front-to-back x 8" deep.
It includes a full-length 10" high boxed backsplash with a 2" return to the wall at 45° and a turned-down rear lip.
The top and base are constructed from 16-gauge Type 300 stainless steel with a #4 polished satin finish.
Yes. The backsplash includes splash-mount faucet holes with 8" centers.
Available accessories listed in the documentation include Add-A-Faucet, Pre-Rinse Units, Level Waste, Over-Shelf, Under Shelf, and Pot Rack.
Yes. The documentation notes that the dish machine opening location must be specified with either a left (L) or right (R) suffix.
