John Boos

John Boos Straight Right-to-Left Stainless Steel Dish Table with 10-Inch Backsplash

SKU: JDTC-20-72L-X
$839.04
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Compartment Sinks Dish Tables John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

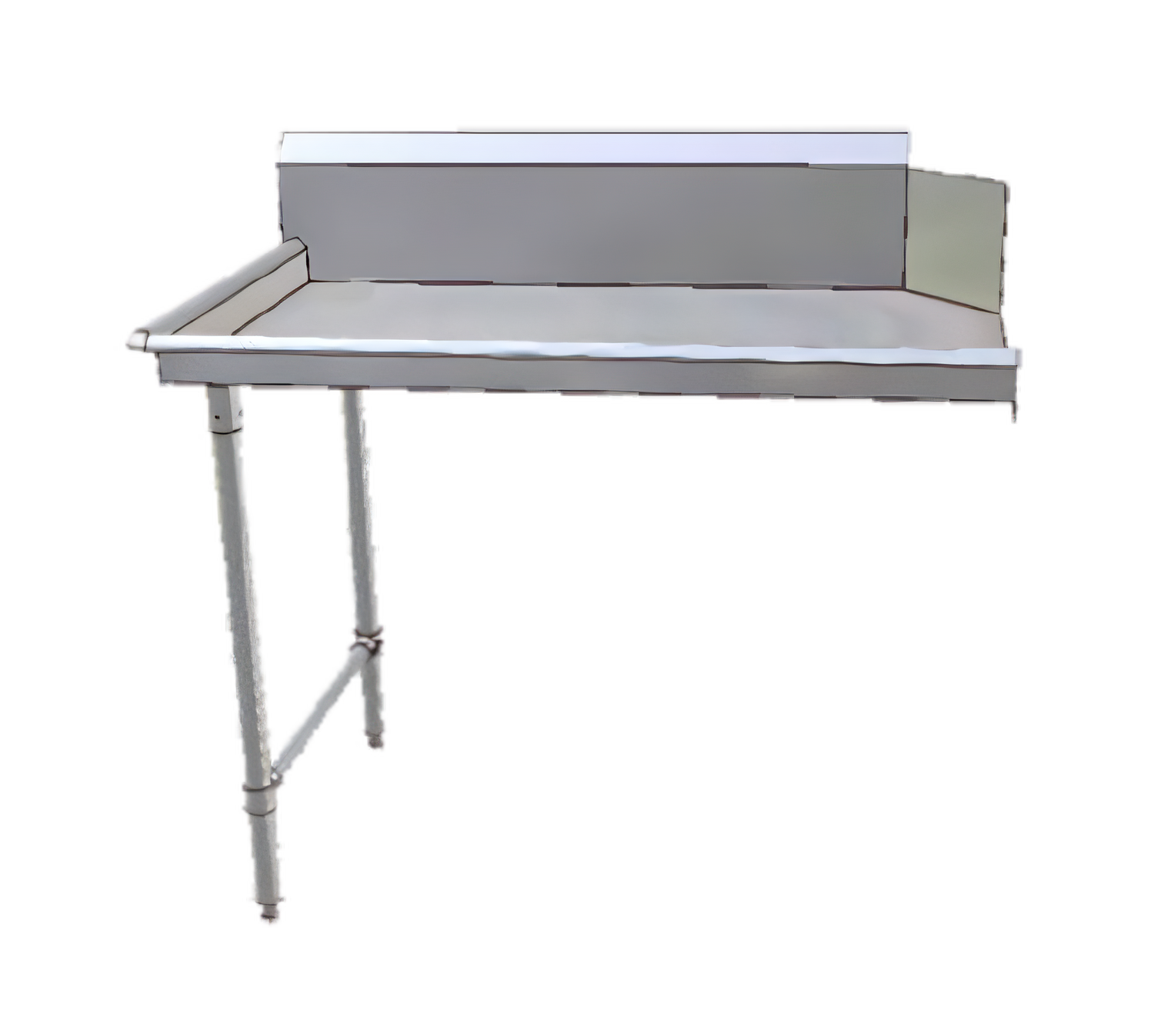

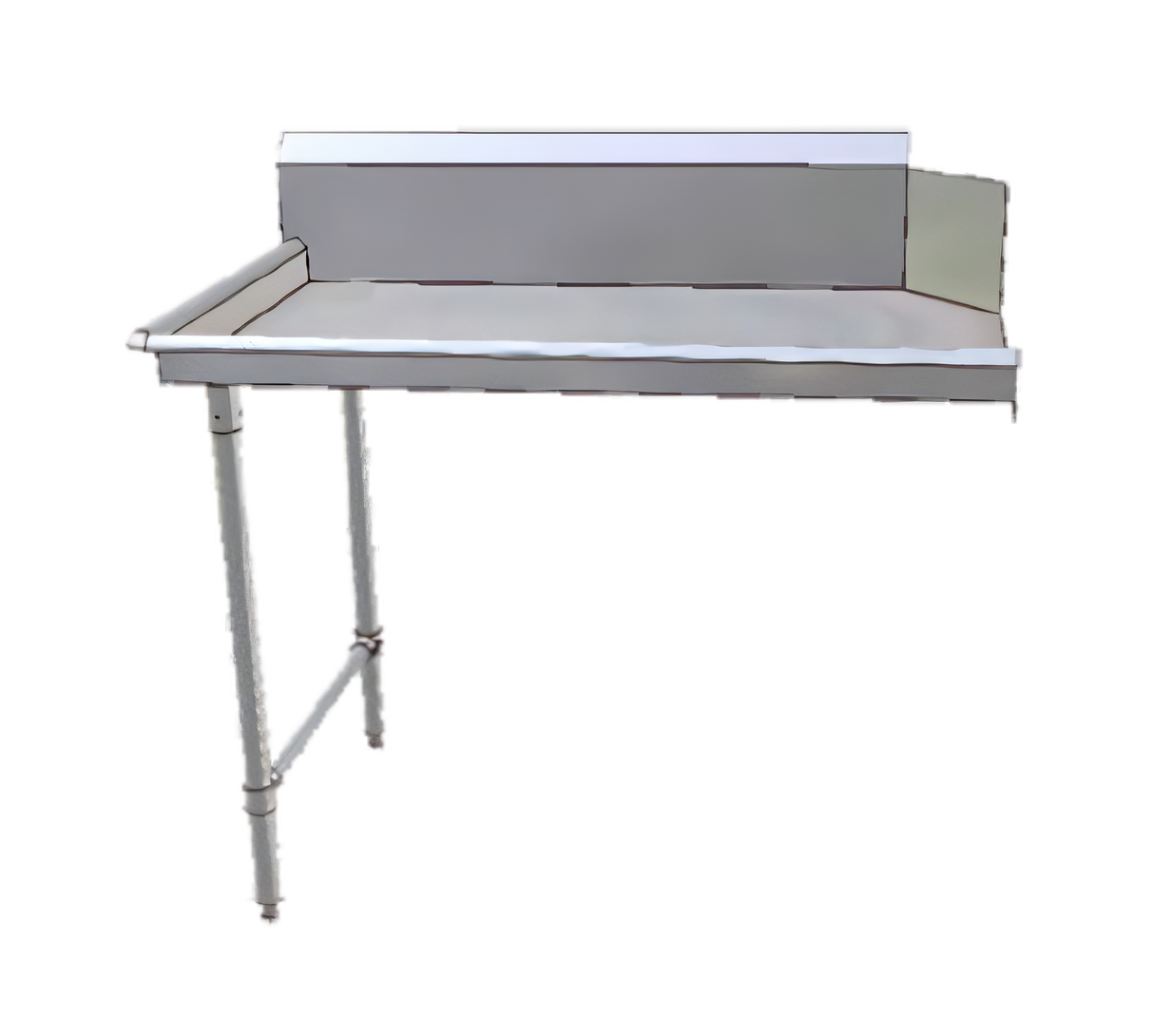

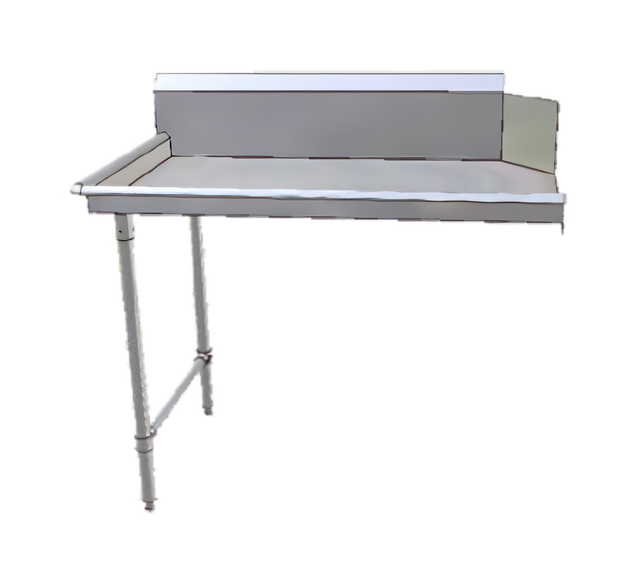

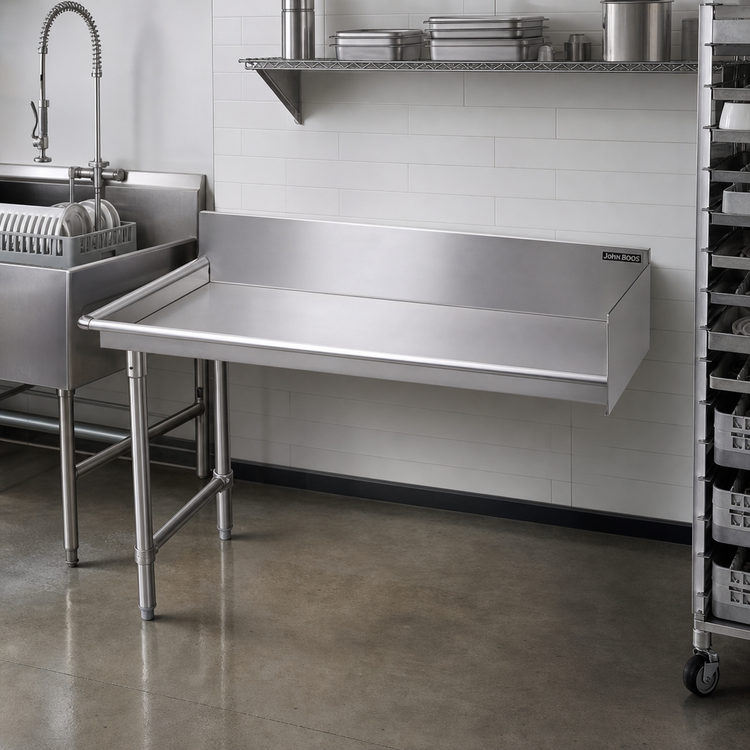

John Boos Straight Right-to-Left Stainless Steel Dish Table with 10-Inch Backsplash

72 x 30-3/8 x 44-1/16 Inches; 16 Gauge 300 Series Stainless Steel

Built for high-volume warewashing, this straight dishtable combines a durable stainless steel build, tall backsplash, and adjustable support to keep workflow moving.

  • Right-to-left layout supports efficient dish machine placement and warewashing flow.
  • 16-gauge Type 300 stainless steel construction delivers dependable durability.
  • 10-inch boxed backsplash helps contain splash and keep the work area cleaner.
  • Bull-nosed outside corners and a turned-down rear lip create a safer, finished edge.
  • Stainless steel legs, bracing, and gussets provide a sturdy support structure.
  • Built-in 1/8-inch-per-foot slope directs water toward the dish machine.

Overall Dimensions:

72.0"W x 30.38"D x 44.06"H

Product Weight:

85.0 lb

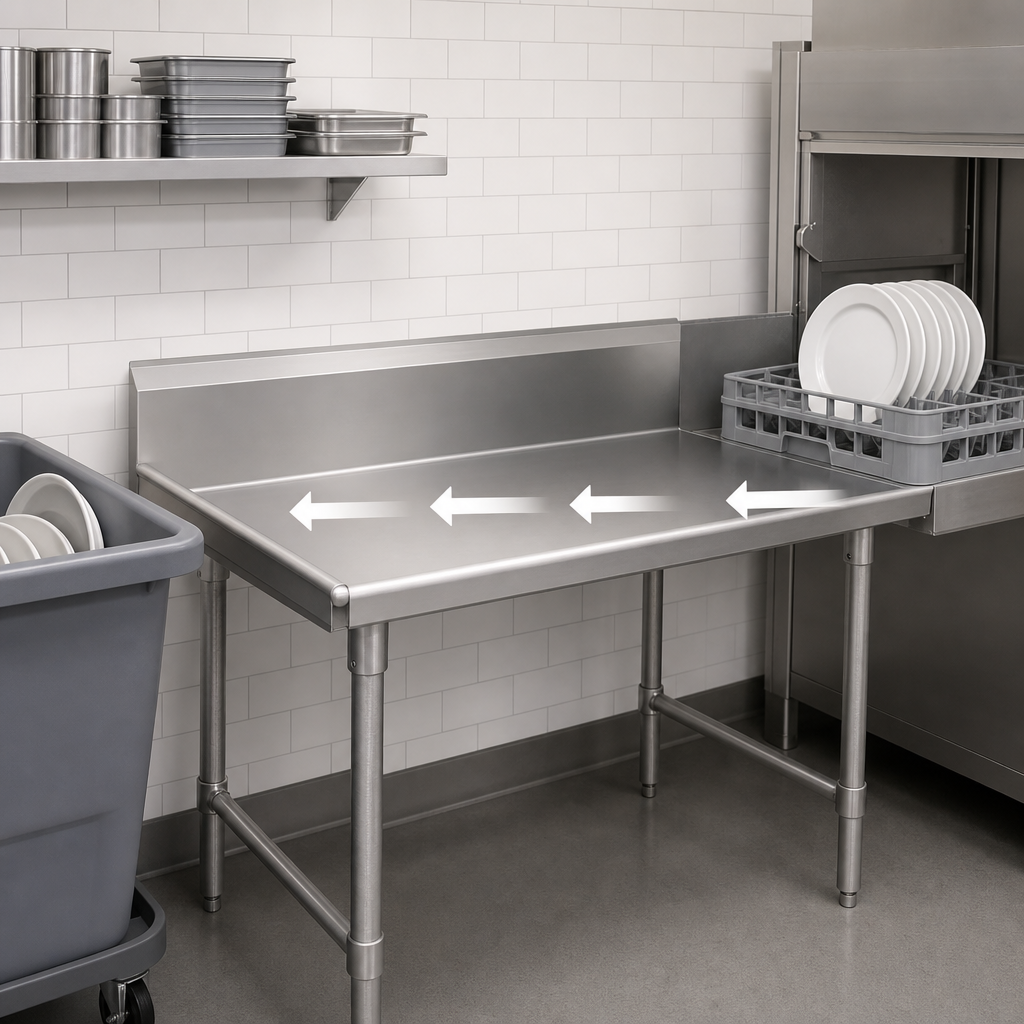

Straight Workflow Layout

Clean, straight design is set up for right-to-left operation to support an organized dishwashing workflow.

16-Gauge Stainless Steel Construction

Built with 16-gauge Type 300 stainless steel and a #4 polished satin finish for long-term durability.

10-Inch Boxed Backsplash

Full-length backsplash includes a 2-inch return to the wall at 45 degrees and a 1/2-inch turned-down rear lip to help control splash.

Bull-Nosed Safety Corners

Outside corners of the assembly are rounded for a cleaner, safer edge.

Stainless Steel Support Structure

1-5/8-inch diameter stainless steel legs, 1-1/4-inch round bracing, and stainless steel gussets help maintain stability.

Adjustable Bullet Feet

1-inch adjustable stainless steel bullet feet make leveling easier during installation.

Built-In Drain Slope

Deck is sloped 1/8 inch per foot toward the dish machine to help guide water flow.

Type Dish Table
Style Straight
Installation Type Floor Model
Material 300 Series Stainless Steel
Gauge 16 Gauge
Finish Satin
Direction Right to Left
Backsplash Height 10 Inches
Backsplash Return 2 Inches
Leg Diameter 1-5/8 Inches
Bracing Diameter 1-1/4 Inches
Shipping Width 72 Inches
Shipping Depth 31 Inches
Shipping Height 45 Inches
Shipping Weight 85 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Video assembly instructions PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The documentation states that the left (L) or right (R) suffix specifies the location of the dish machine opening. This unit is configured for right-to-left operation.
The overall size is 72 inches wide by 30-3/8 inches deep by 44-1/16 inches high.
It has a full-length 10-inch high boxed backsplash with a 2-inch return to the wall at 45 degrees and a 1/2-inch turned-down rear lip.
The table uses 16-gauge Type 300 stainless steel with stainless steel legs, bracing, gussets, and bullet feet.
Yes. It includes 1-inch adjustable stainless steel bullet feet.
Yes. The deck is built with a 1/8-inch-per-foot slope toward the dish machine.
