John Boos

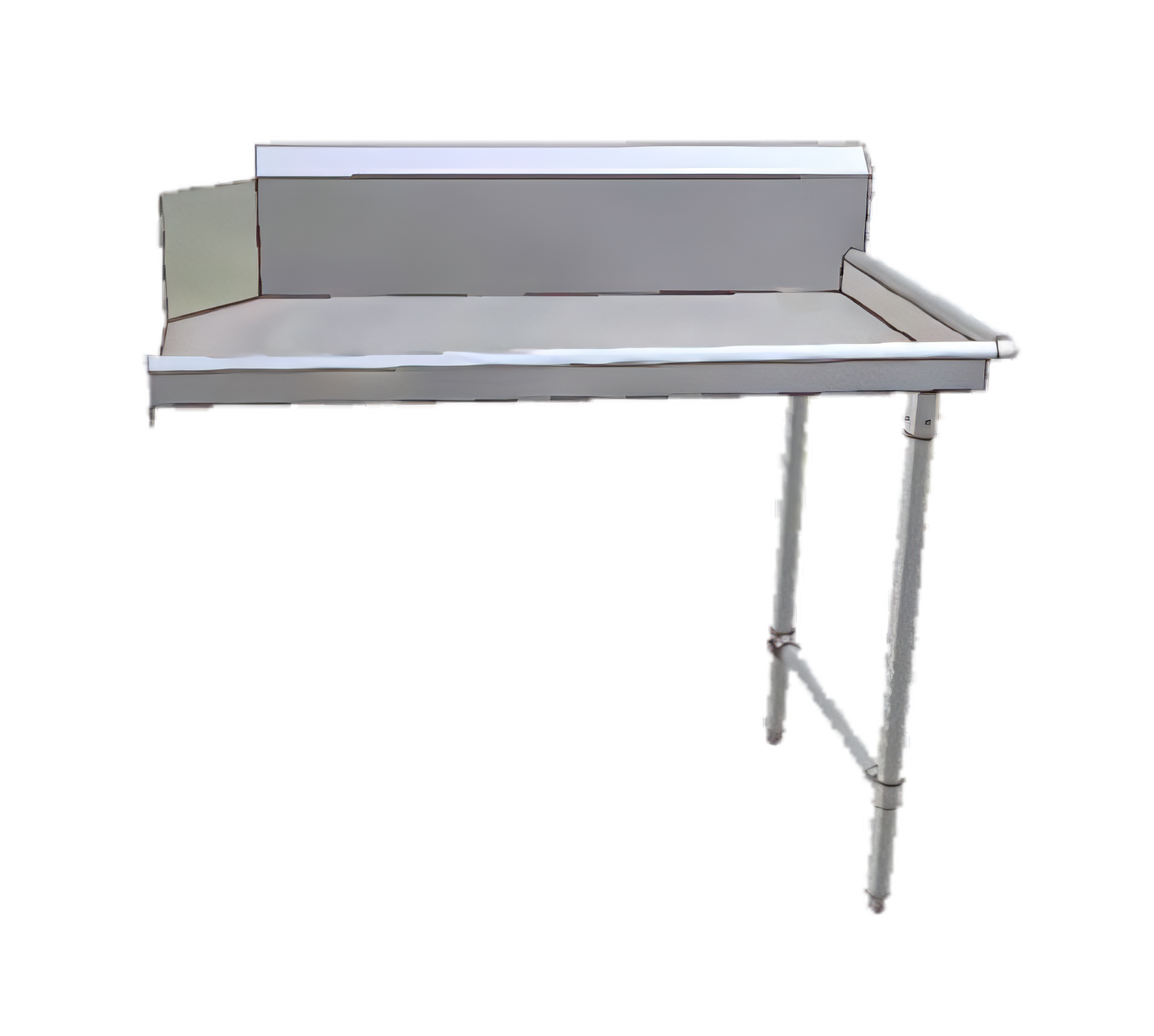

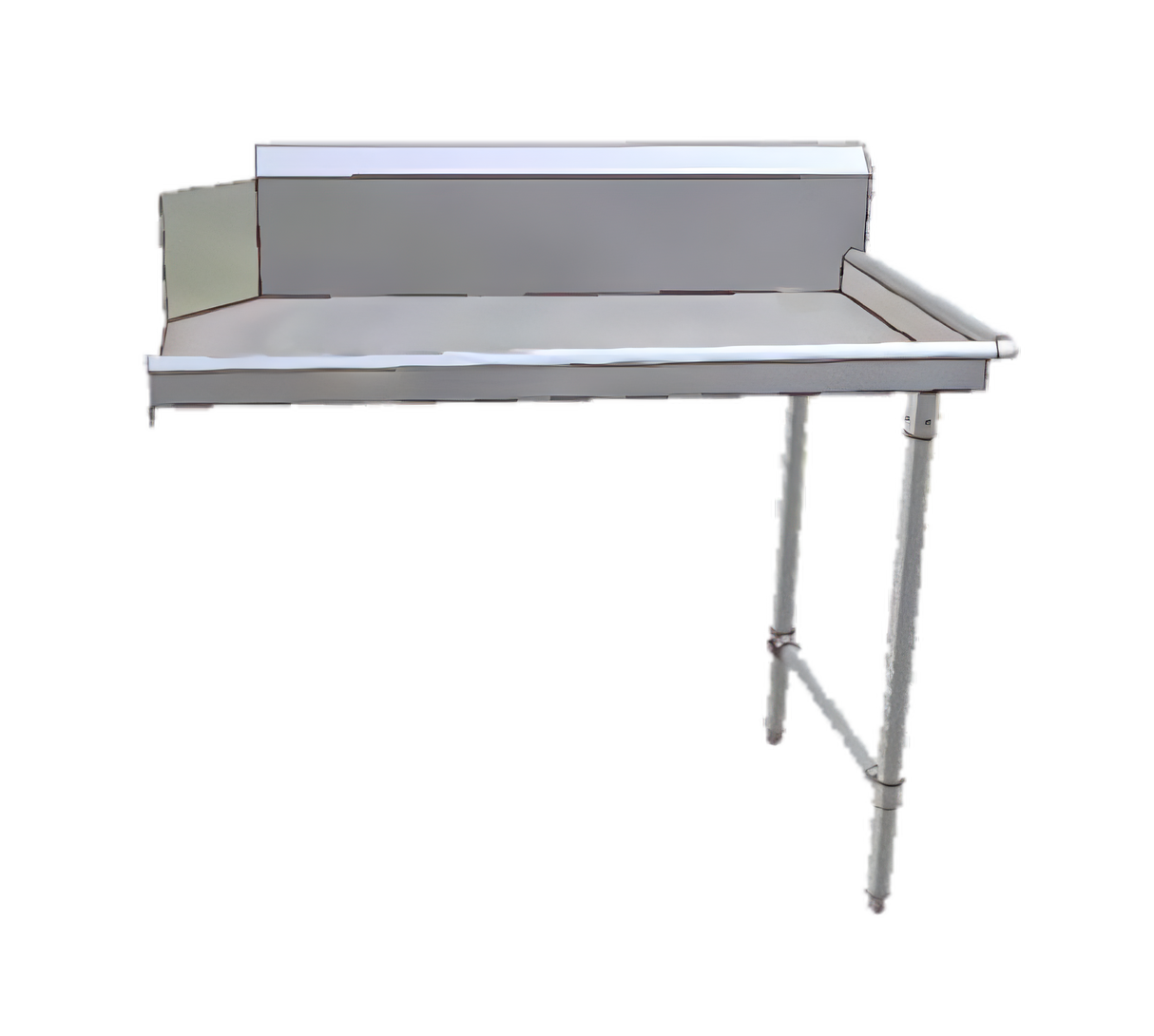

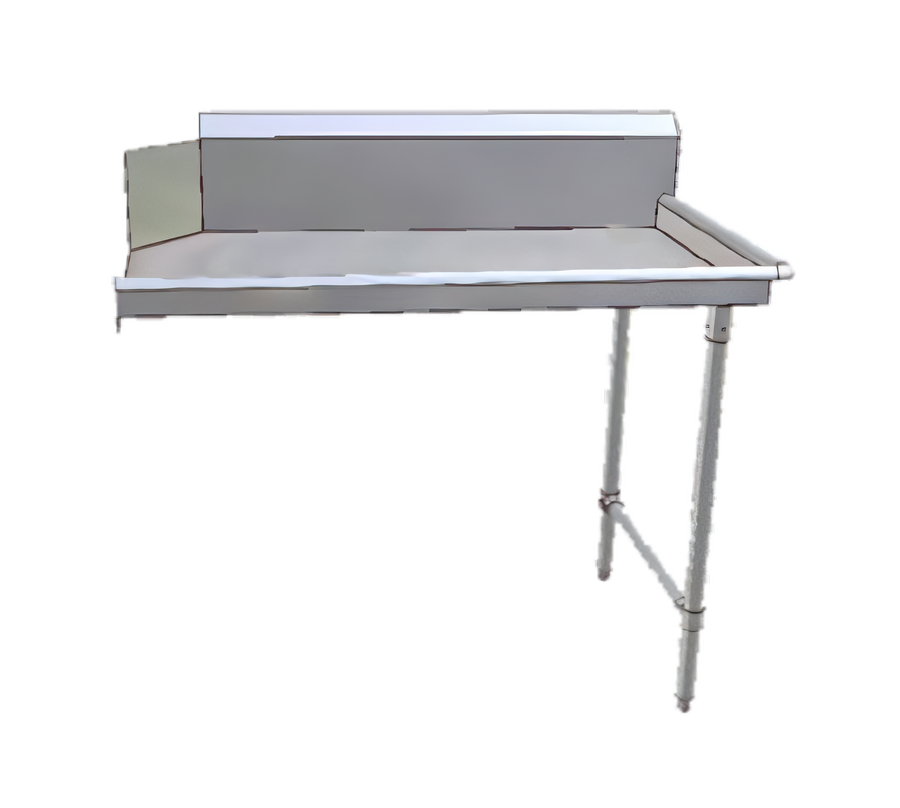

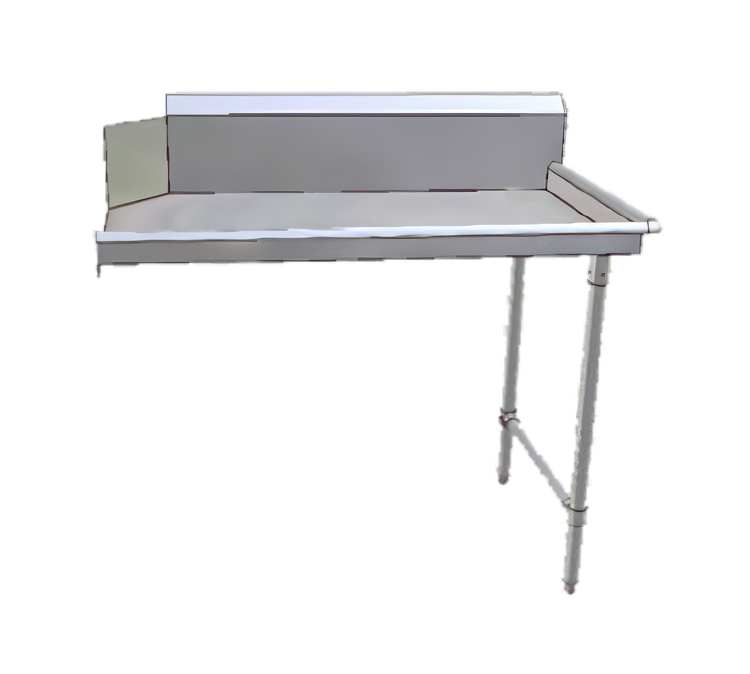

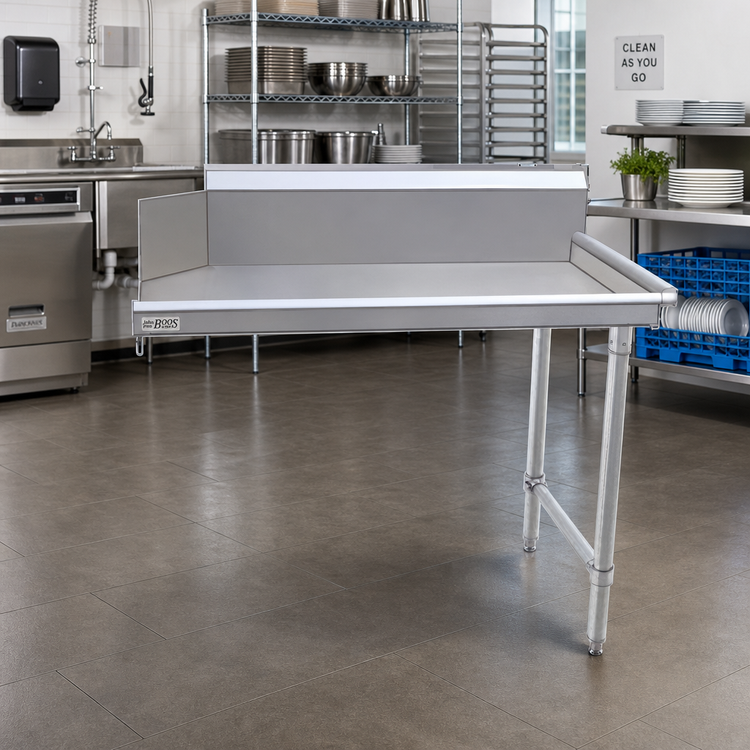

John Boos JDTC-20-24R-X Clean Straight Dish Table, Left-to-Right, 24 x 30 x 44 in, 10 in Backsplash, 16-Gauge 300 Series Stainless Steel

SKU: JDTC-20-24R-X
$421.80
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

John Boos Pro-Bowl Clean Straight Right-Hand Dish Table, 24 x 30 x 44-Inch, Stainless Steel

Model JDTC-20-24R-X, left-to-right operation

Built for demanding dishroom workflows, this straight dishtable combines a durable stainless steel work surface with a tall backsplash, sturdy support, and easy-to-clean construction.

  • 24-inch-wide clean straight dish table designed for left-to-right operation.
  • 10-inch boxed backsplash helps contain splashes and protect the wall.
  • 16-gauge Type 300 stainless steel top delivers commercial-grade durability.
  • Rolled front and side rims plus bull-nosed corners support safer handling.
  • Stainless steel legs, adjustable bracing, and bullet feet add strength and leveling.
  • Compact 30-inch depth and 44-inch height fit standard dishroom layouts.

Overall Dimensions:

24.0"W x 30.38"D x 44.06"H

Product Weight:

37.0 lb

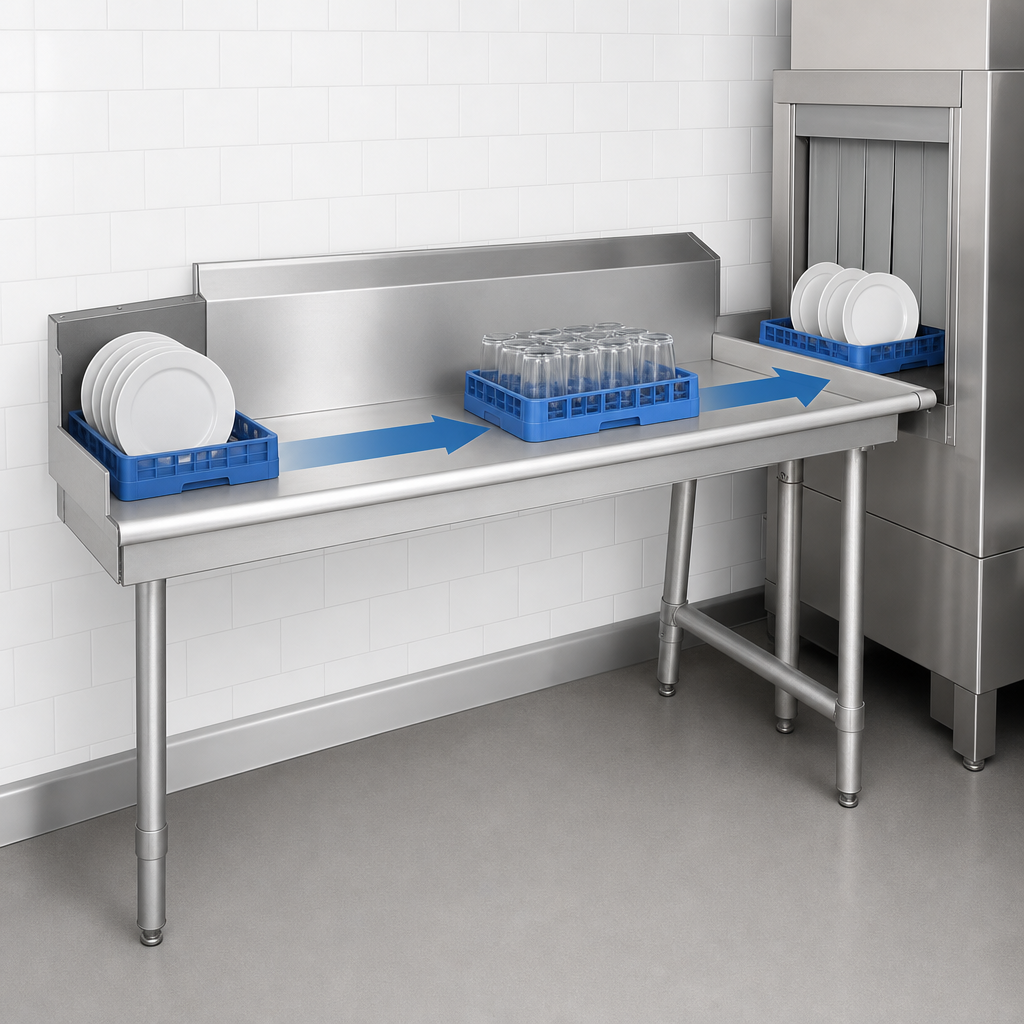

Left-to-Right Dishroom Flow

Configured for left-to-right operation; the R suffix indicates the dish machine opening is on the right side.

Left-to-Right Dishroom Flow

10-Inch Boxed Backsplash

Full-length backsplash includes a 2-inch return to the wall at a 45-degree angle and a 1/2-inch turned-down rear lip.

16-Gauge 300 Series Stainless Steel Top

Top and bowl area are made from 16-gauge Type 300 stainless steel with a #4 polish satin finish, with TIG-welded construction and polished exposed welds.

Stainless Steel Support Base

Includes 1-5/8-inch diameter stainless steel legs, 1-1/4-inch round O.D. stainless steel bracing, and stainless steel gussets for stability.

Adjustable Bullet Feet

1-inch adjustable stainless steel bullet feet help level the unit on uneven floors.

Safe Edge Design

Rolled front and side rims and bull-nosed outside corners provide a smoother, safer edge profile.

Built-In Drain Slope

Work surface is sloped toward the dish machine at 1/8 inch per foot to support drainage.

Related Searches

Best Sellers Clean Dish Tables Commercial Work Tables Compartment Sinks Dish Tables Dish Tables & Sorting Stations Equipment Equipment John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables Work Tables & Fabrication Work Tables & Preparation Stations
Type Pro-Bowl Dish Table
Style Clean, Straight
Installation Type Floor Model
Material Stainless Steel
Finish Satin Finish
Selling Unit Each
Units Per Case 1
Width 24 Inches
Depth 31 Inches
Height 45 Inches
Weight 37 Pounds

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This model is configured for left-to-right operation, and the R suffix indicates the dish machine opening is on the right side.
It uses a 16-gauge Type 300 stainless steel top with a #4 polish satin finish.
Yes. It has a full-length 10-inch boxed backsplash with a 2-inch return at 45 degrees and a turned-down rear lip.
Yes. The unit has stainless steel legs, adjustable bracing, and 1-inch adjustable stainless steel bullet feet.
The listed overall size is approximately 24 inches wide by 30.38 inches deep by 44.06 inches high.
Yes, the product documentation lists it as NSF certified.
