John Boos  |  SKU: GT-100  |  UPC: 662969040680

John Boos GT-100 Grease Traps

$1,020.89
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Instructions
Related Searches
Commercial Dishwashers Dish Room Equipment Grease Traps Grease Traps Restaurant Equipment Sanitizers & Cleaning

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

John Boos GT-100 Grease Interceptor

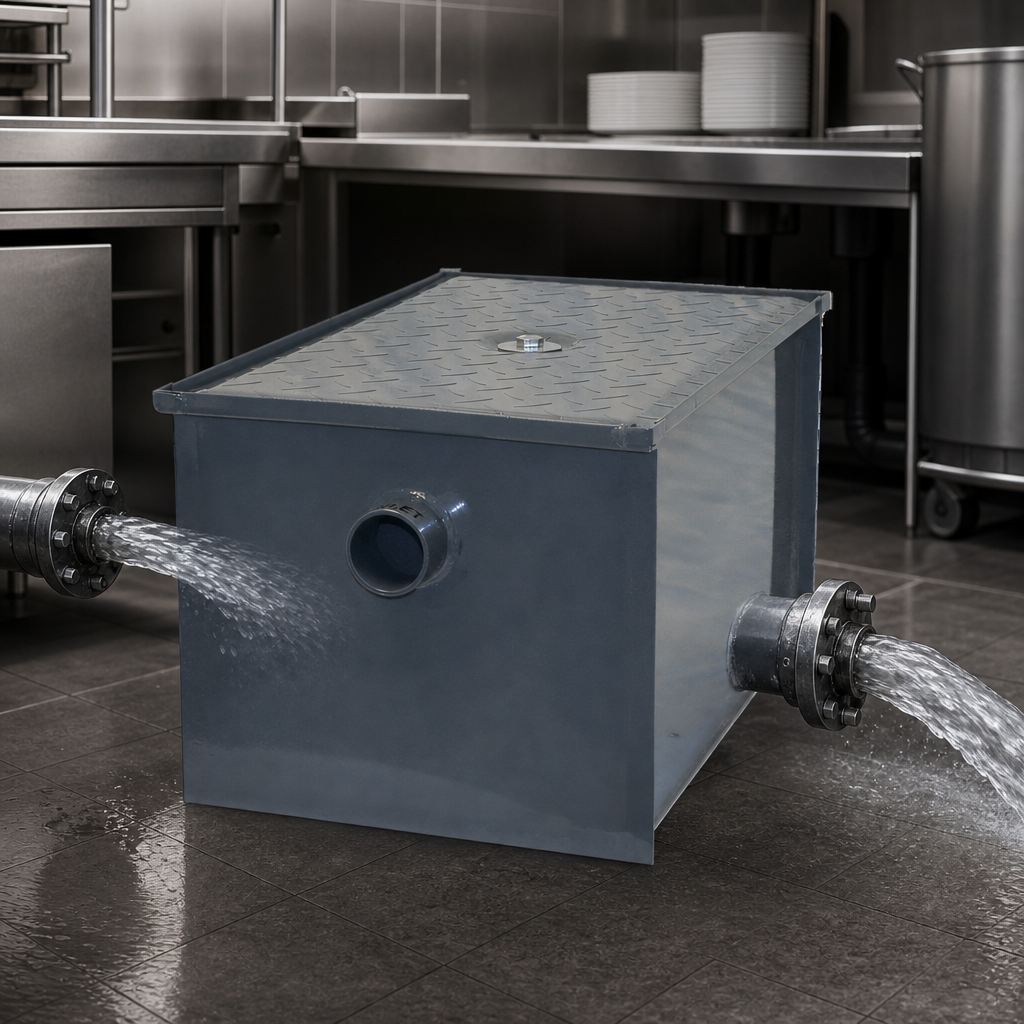

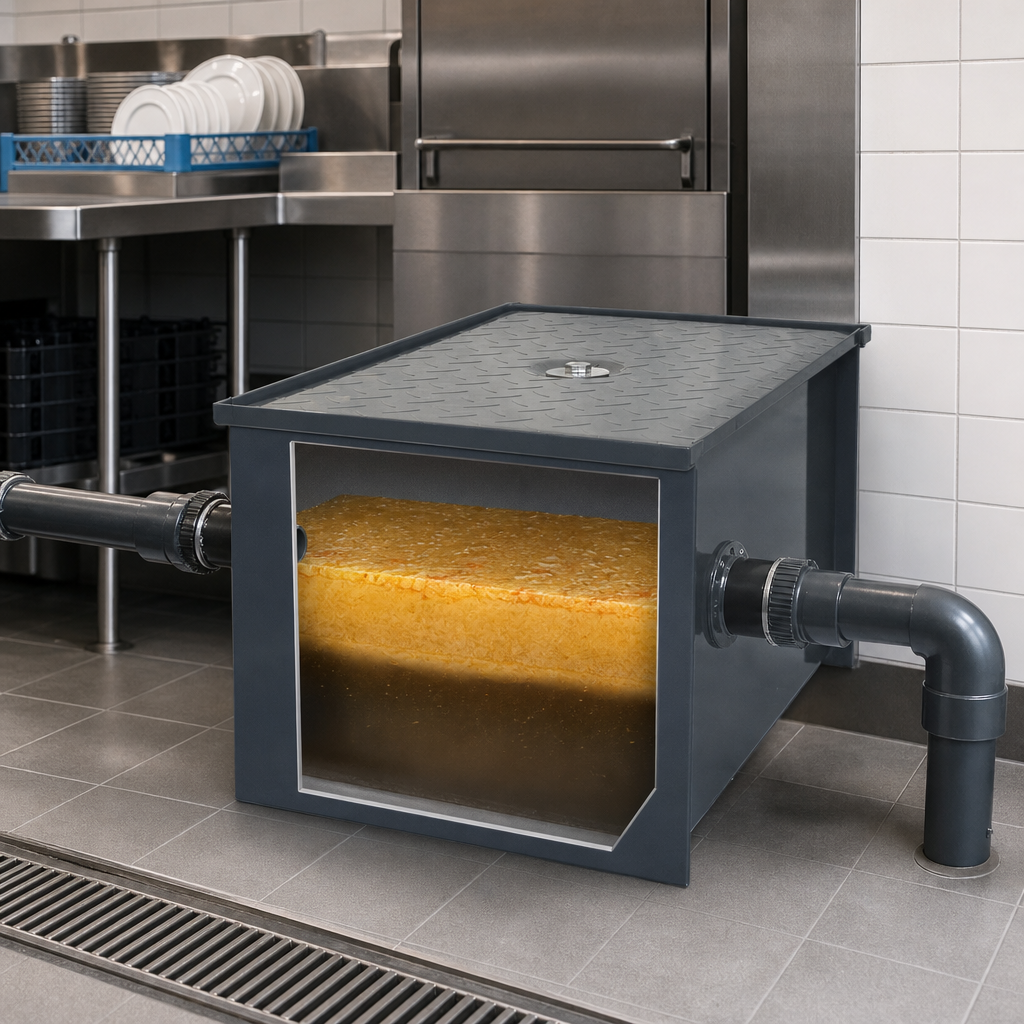

100 lb grease capacity • 50 GPM flow rate • 4" no-hub inlet/outlet

Keep your plumbing lines clear and code-compliant with the GT-100 carbon-steel grease interceptor from John Boos. Engineered for high-volume commercial kitchens, this unit captures up to 100 lb of fats, oils and grease (FOG) while maintaining a steady 50 gallon-per-minute flow—helping you avoid costly drain clogs, fines and downtime.

Key benefits at a glance

  • PDI certified (Performance & Design Certification) for proven separation efficiency
  • Robust 1/8" thick carbon-steel body—TIG welded for long-term durability
  • 4" no-hub connections for quick tie-in to standard sanitary lines
  • Integral flow-control (T-Vent) & vented inlet regulate incoming waste water
  • Removable internal baffle and easy-lift, no-skid cover speed up clean-outs
  • Integral trap prevents sewer gas backflow
  • Locking, non-skid cover keeps kitchen staff safe in above-floor installs
  • Field-serviceable design—no special tools required for routine maintenance

Technical specifications

Model GT-100
Grease storage capacity 100 lb
Flow rate 50 GPM
Inlet / outlet size 4" no-hub (female)
Body material / thickness Carbon steel, 1/8"
Overall width 22.25"
Overall length (A) 30.5"
Overall height (B) 21.5"
Liquid depth (C) 16.1"
Unit weight 175 lb
Certification PDI ● UPC/IAPMO compliant when installed per code

Installation & maintenance

  • Designed for indoor, above-floor or in-floor installation
  • Always install by a licensed plumber in accordance with local plumbing codes
  • Schedule routine pump-outs based on kitchen volume to maintain peak performance

Dimensions are typical; tolerances ±0.5". Specifications are subject to change without notice.

Features & Specs

Manufacturer

John Boos

Height

21.5in

Width

22.25in

Depth

30.5in

Shipping Weight

175.0lbs

Grease Capacity

40 - 149 lb

Draw-off

without

Flow Rate

50 GPM

Specifications

Grease Interceptor, 100 lb. grease capacity, 50 gallons per minute flow rate, 4" inlet/outlet, no-hub connections, T-Vent included, no-skid cover, removable baffle, easy removable cover, integral trap, vented inlet flow control device, 1/8" thick carbon steel, PDI certified
