John Boos 24" x 24" Stainless Steel Floor Trough with Subway-Style Grate

Engineered for busy food-service and industrial environments, the FTSG-2424 floor trough keeps floors dry, safe, and code-compliant. A heavy-duty subway-style grate sits above an all-welded, pitched drain pan that funnels liquids quickly toward the centrally located 4" outlet.

Key Features

• 24" wide x 24" long footprint—ideal for concentrated wash or prep stations
• 4" deep TIG-welded pan with 5° breaks for positive drainage

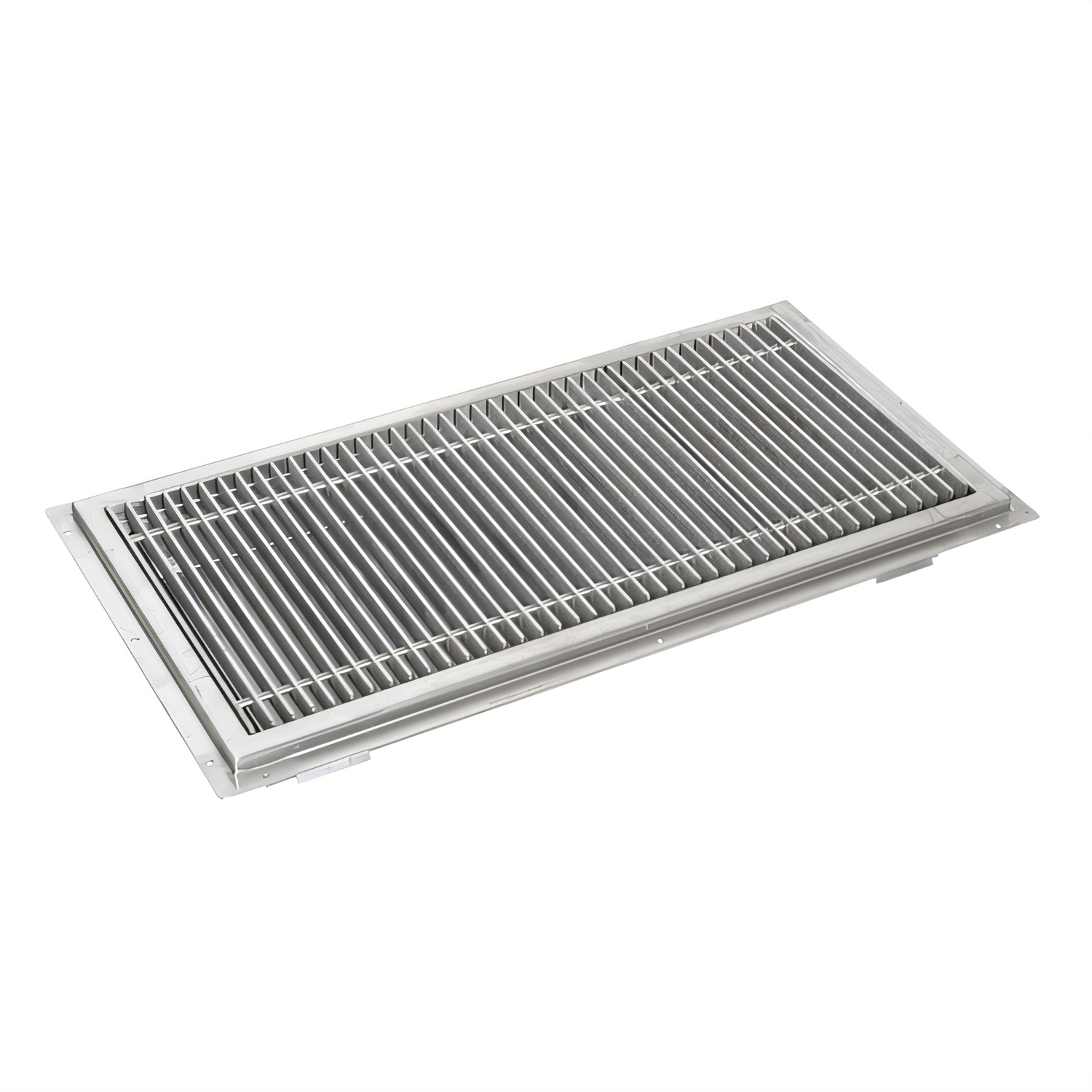

• Subway-style stainless steel grate
  • 3/8" Ø rods and 3/16" x 1" bar stock on 3/4" centers
  • Removes easily for cleaning and inspection
• Accepts up to a 4" O.D. drain pipe (3.25" long stub)

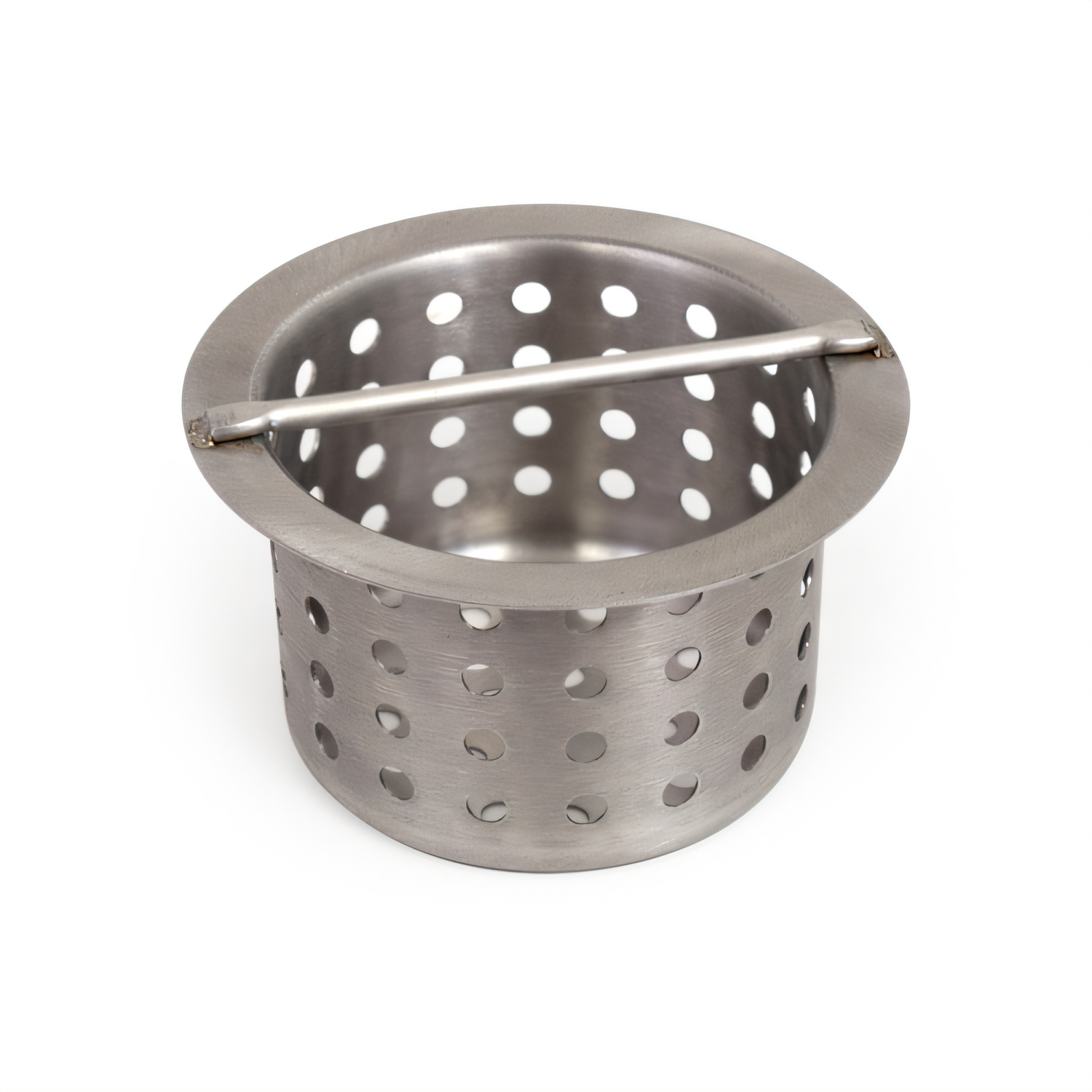

• Includes stainless steel perforated strainer / drain basket—lifts out for debris disposal
• All exposed welds polished to match adjacent surfaces
• NSF listed for sanitation and public health safety

Technical Specifications

Care & Maintenance

• Clean routinely with non-chloride, non-abrasive stainless steel cleaners.
• Always scrub and wipe in the direction of the metal’s polish lines.
• Rinse thoroughly and dry with a soft towel to preserve the protective chromium film.
• Avoid wire brushes, steel wool, and harsh chemicals that can scratch or corrode the surface.

Need a different length or drain location? John Boos manufactures floor troughs in lengths from 12" to 120"—contact us for custom quotes.
