John Boos FTSG-24108 Commercial Faucets & Plumbing
Description

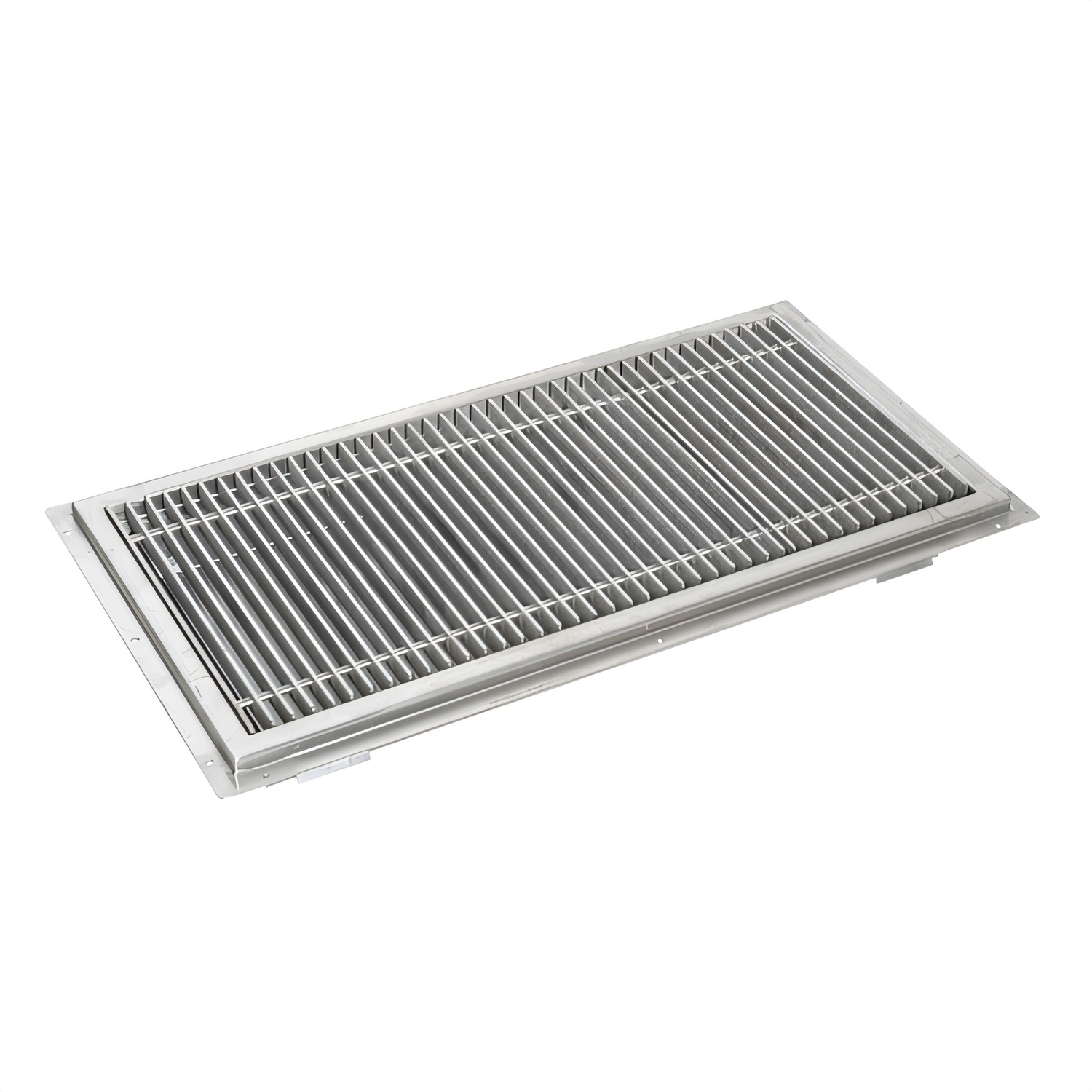

John Boos FTSG Series Floor Trough – 108" L x 24" W
Model FTSG-24108 | Subway-Style Stainless Steel GrateEngineered for high–volume wash-down areas, the John Boos 108 inch floor trough captures runoff fast, filters out debris, and keeps your workspace sanitary. Heavy-duty 14 gauge 300 series stainless steel construction, dual 4 inch drains, and a slip-resistant subway-style grate make this the premium solution for commercial kitchens, food-processing lines and breweries.
Key Features
- Subway-style removable grate with 3/8" Ø rods & 3/16" × 1" bar stock on 3/4" centers – tough yet easy to clean.
- 4" deep all-welded drain pan with built-in 5° pitch for positive drainage.
- Accommodates a standard 4" O.D. drain pipe (3.25" long).
- Includes two stainless steel perforated strainers to trap solids and prevent clogs.
- All TIG-welded; exposed welds are polished to match adjacent surfaces for a seamless, NSF-listed sanitary finish.
- 14 GA, Type 300 stainless steel resists corrosion, chemicals and heavy traffic.
- Made in the USA by John Boos & Co. – trusted in foodservice since 1887.
Technical Specifications
| Overall length | 108" (9 ft) |
|---|---|
| Overall width | 24" |
| Pan depth | 4" |
| Material | 14 GA, Type 300 stainless steel (grate & pan) |
| Number of drains | 2 (as required for 96" + models) |
| Drain location | 25-15/16" from each end (centerline) |
| Pipe connection | Accepts 4" O.D. drain pipe, 3.25" long |
| Included accessories | (2) removable perforated stainless steel strainers |
| Approx. weight | 230 lb |
| Certifications | NSF |
Care & Maintenance
- Rinse and wipe down after each shift; do not allow food acids or salts to dry on the surface.
- Use non-chloride cleaners such as Bar Keepers Friend with a soft cloth or plastic scouring pad.
- Avoid abrasive powders, steel wool, or wire brushes that can break the passive film.
- Periodically polish with John Boos Stainless Steel Cleaner to restore luster and corrosion resistance.
Following the above routine preserves the stainless steel’s protective film and maximizes service life.
All dimensions are typical. Tolerance ± 0.5". John Boos reserves the right to change specifications without notice.
