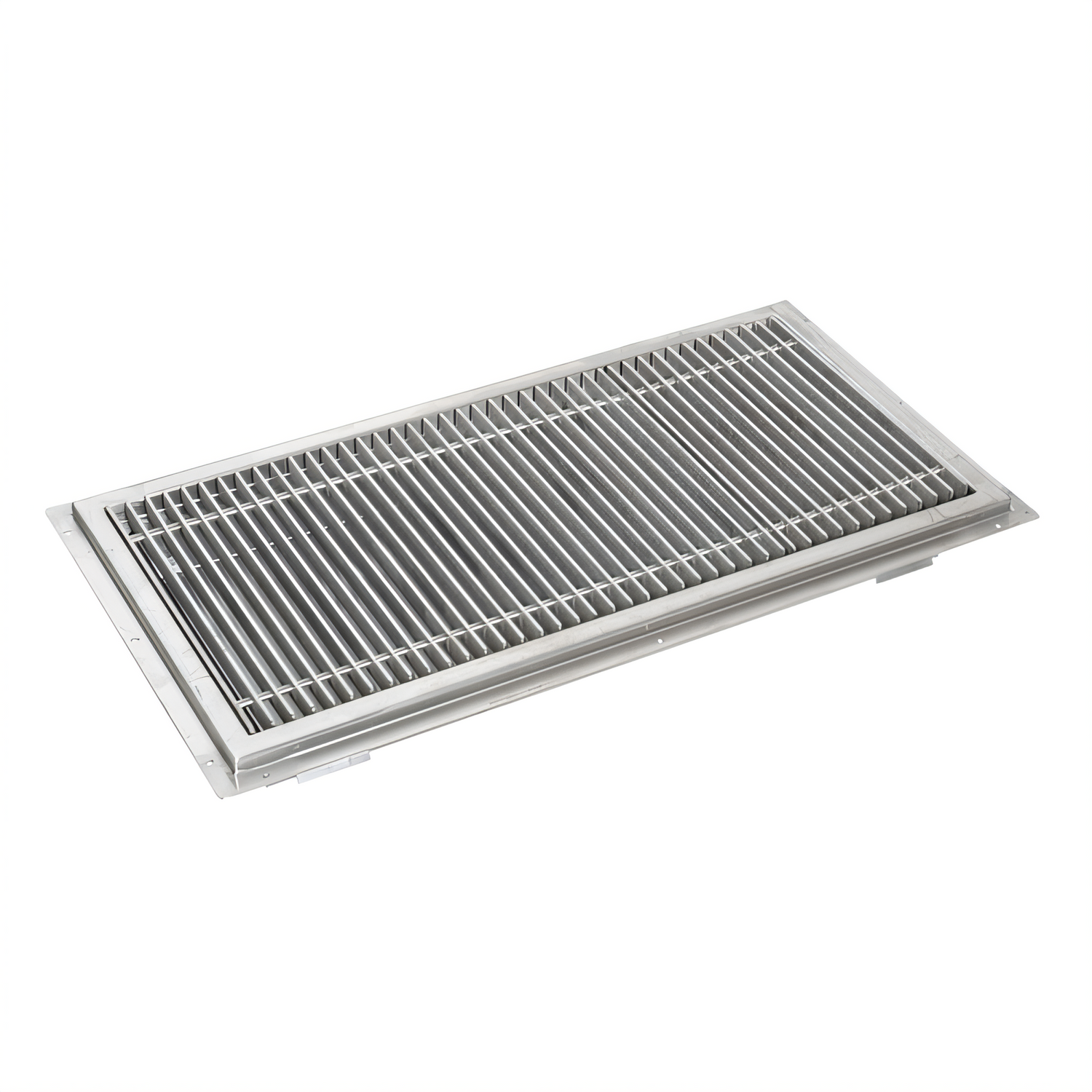

John Boos FTSG-1860 Floor Trough – 60" W x 18" D
14-ga Type 300 Stainless Steel • Subway-Style Grating • NSFBuilt for the busiest commercial kitchens, the John Boos FTSG-1860 collects water run-off and debris while creating a safer, drier work floor. A rugged one-piece drain pan and precision-machined grate deliver years of trouble-free service in restaurants, hospitals, supermarkets and food-processing plants.
Key Benefits
- Heavy-duty 14-gauge, Type 300 stainless steel resists corrosion and everyday abuse.
- Subway-style grate features 3/8" Ø rods & 3/16" × 1" bar stock on 3/4" centers for optimal load capacity.
- 4" deep all-welded drain pan with a built-in 5° pitch quickly channels water toward the outlet.
- Accepts up to a 4" O.D. pipe (3.25" long) for fast, code-compliant installation.

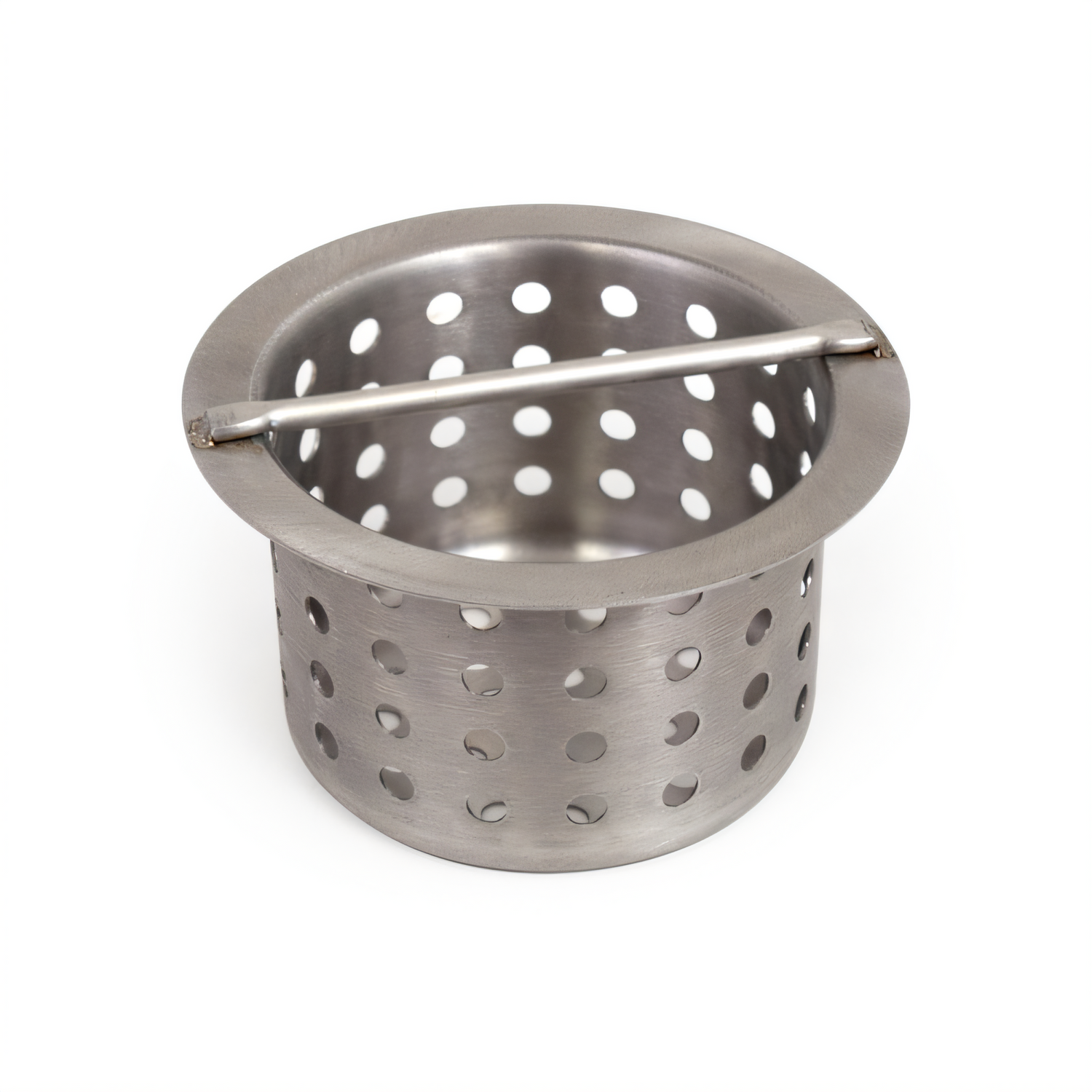

- Includes removable stainless steel perforated strainer basket—no tools required for clean-out.
- All TIG-welded construction; exposed welds are ground & polished to match adjacent surfaces.
- NSF certified for food-service applications.
At-a-Glance Specs
| Model | FTSG-1860 |
|---|---|
| Overall Dimensions | 60" W × 18" D × 4" H (grate flush with floor) |
| Grate Style | Subway – 3/8" Ø rods, 3/16" × 1" bars, 3/4" centers |
| Drain Location | Centered |
| Drain Connection | 4" O.D. pipe, 3.25" long (provided by installer) |
| Pan Pitch | 5° toward drain for positive drainage |
| Material | 14-ga Type 300 (304) stainless steel, TIG-welded |
| Shipping Weight | Approx. 93 lb |
| Certifications | NSF |
Installation & Use
- Set flush with finished floor; secure per local code.
- Connect to a 4" floor drain line (pipe not included).
- Lift-out grate and strainer for routine cleaning—no hardware to lose.
Stainless Steel Care
For maximum longevity, clean with non-chloride detergents and soft towels. Avoid abrasive pads and bleach. Rinse and dry after each wash-down. Periodic polishing with John Boos Stainless Steel Cleaner helps maintain the protective passive film.
All dimensions are typical. Tolerance ±0.50". Specifications subject to change without notice.
