John Boos FTSG-18120 Commercial Faucets & Plumbing
Description

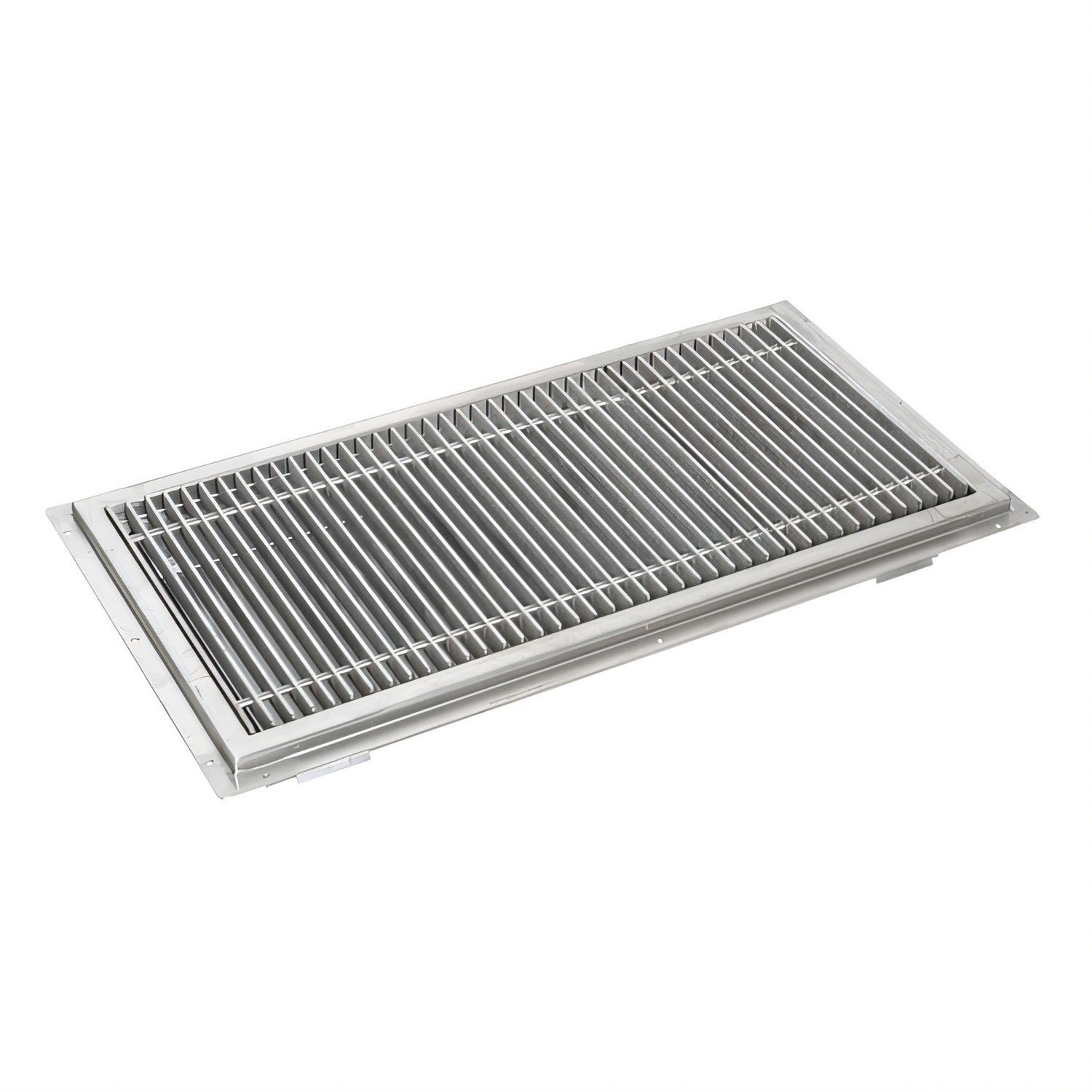

John Boos 120" × 18" Stainless Steel Floor Trough with Subway-Style Grating
Model FTSG-18120 • 14-Gauge, Type 300 Stainless SteelBuilt for the toughest commercial environments, the John Boos FTSG-18120 floor trough efficiently collects and directs water run-off while standing up to years of constant foot and cart traffic.
Key Features
- Expansive 120" long × 18" wide catchment area covers large prep, dish, and wash zones.
- Subway-style removable grate fabricated from 3/8" Ø rods and 3/16" × 1" bar stock on 3/4" centers for exceptional load capacity.
- 4" deep, one-piece TIG-welded pan with a 5° built-in pitch for positive drainage.

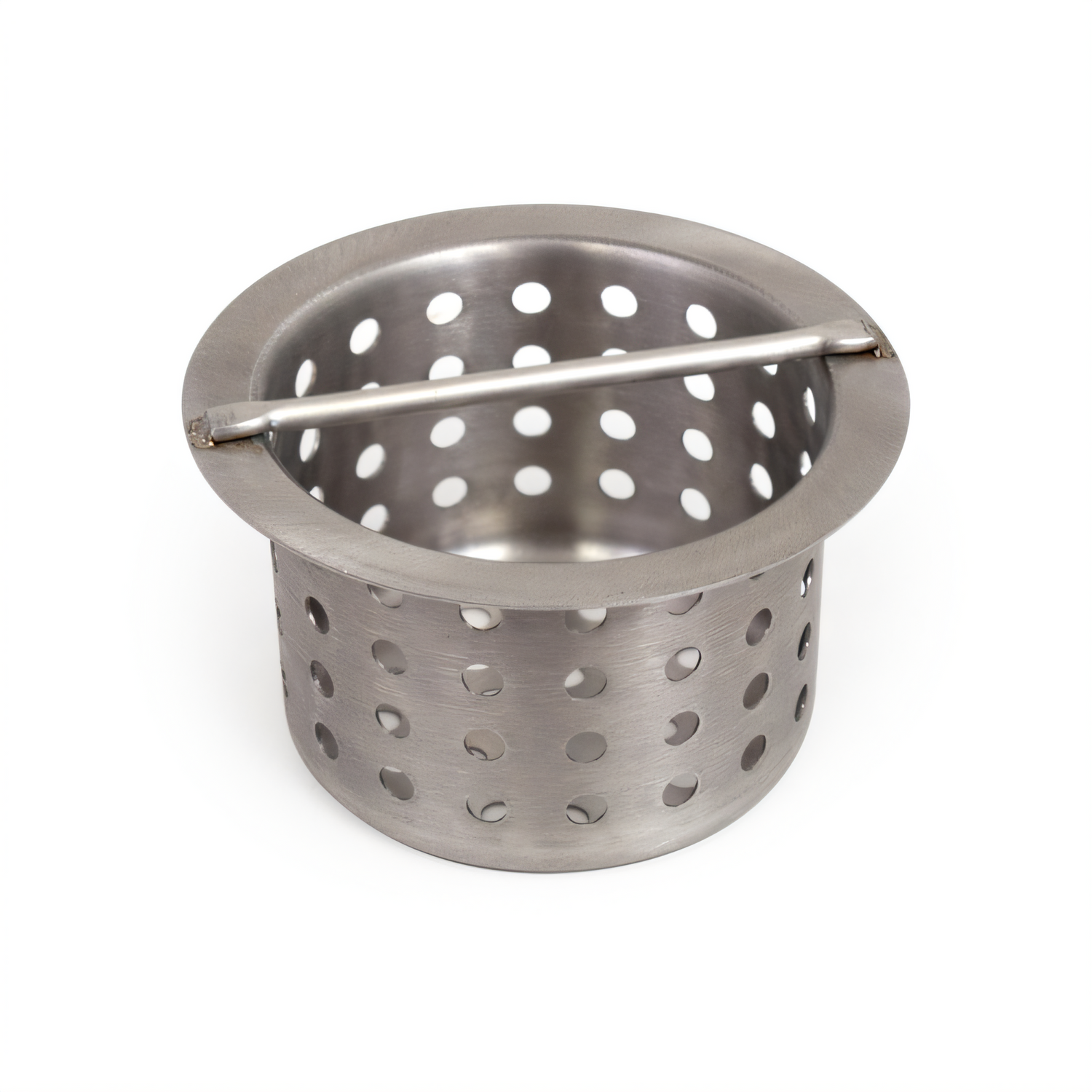

- Two 4" O.D. drain stubs (3.25" long) accept standard plumbing connections; perforated stainless baskets included.
- 14-gauge, Type 300 series stainless steel resists corrosion and is easy to sanitize.
- All exposed welds are polished to match the surrounding surface for a seamless, NSF-listed finish.
Specifications
| Model | FTSG-18120 |
|---|---|
| Overall Size | 120" L × 18" W × 4" D |
| Material | 14-ga Type 300 stainless steel |
| Grate Construction | Subway-style, removable |
| Drain Openings | (2) 4" O.D. stubs, 3.25" long — located 28-15/16" from each end |
| Included Strainer | Stainless steel, perforated, removable |
| Pan Slope | 5° toward drains |
| Approx. Weight | 165 lb |
| Certifications | NSF |
Installation Highlights
- Factory-set slope eliminates on-site calculations—simply set level and tie into 4" drain lines.
- Low profile flange allows a flush transition to surrounding floor finishes.
- Grate lifts out in sections for quick daily wash-downs and annual plumbing inspections.
Care & Maintenance
Preserve the stainless finish with non-chloride cleaners (e.g., Bar Keepers Friend) and a soft cloth. Avoid abrasive pads or wire brushes that can damage the protective passive film.
- Rinse and wipe dry after each shift to prevent mineral deposits.
- Scrub stubborn residue with a plastic scouring pad, following the grain.
- Apply John Boos Stainless Steel Cleaner regularly to polish and protect.
