John Boos FTSG-18108 Commercial Faucets & Plumbing
Description
John Boos FTSG-18108 Stainless Steel Floor Trough – 108" L x 18" W
Heavy-duty 14-gauge, Type 300 stainless steel with subway-style gratingEngineered for demanding food-service, hospitality, and industrial environments, the John Boos FTSG-18108 floor trough delivers reliable, high-capacity drainage over an expansive nine-foot span. Its removable subway-style grate, fully welded 4" deep drain pan, and dual 4" O.D. outlets make it the ideal solution for keeping large kitchen or production areas safe, sanitary, and dry.
Key Features
- 108" long x 18" wide x 4" deep all-welded drain pan (14-ga, Type 300 stainless steel).

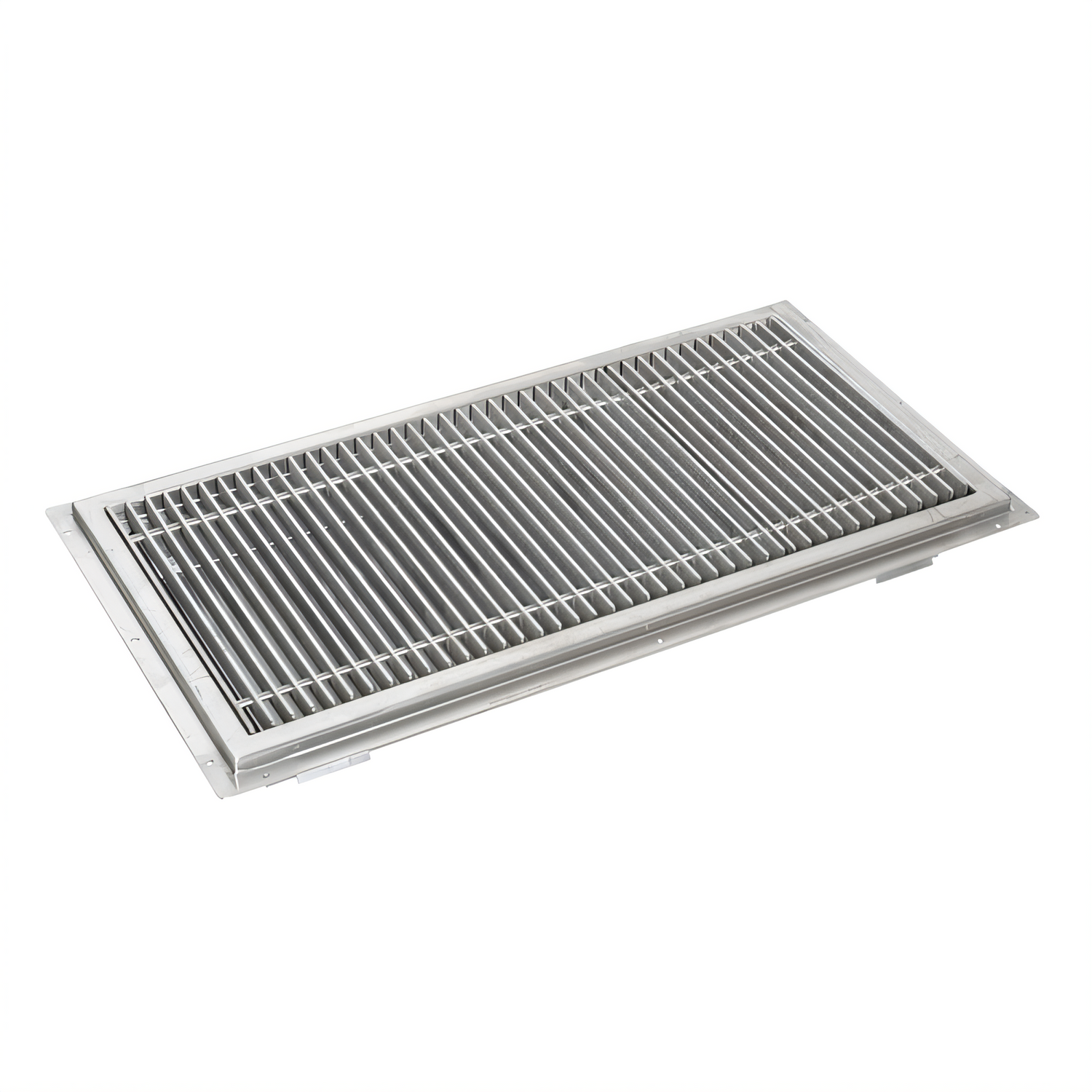

- Subway-style grate fabricated from 3/8" Ø stainless rods & 3/16" x 1" bar stock on 3/4" centers.
- 5° bottom pitch promotes positive drainage toward the outlets.
- Accommodates up to a 4" diameter drain pipe; two outlets supplied (3.25" L).

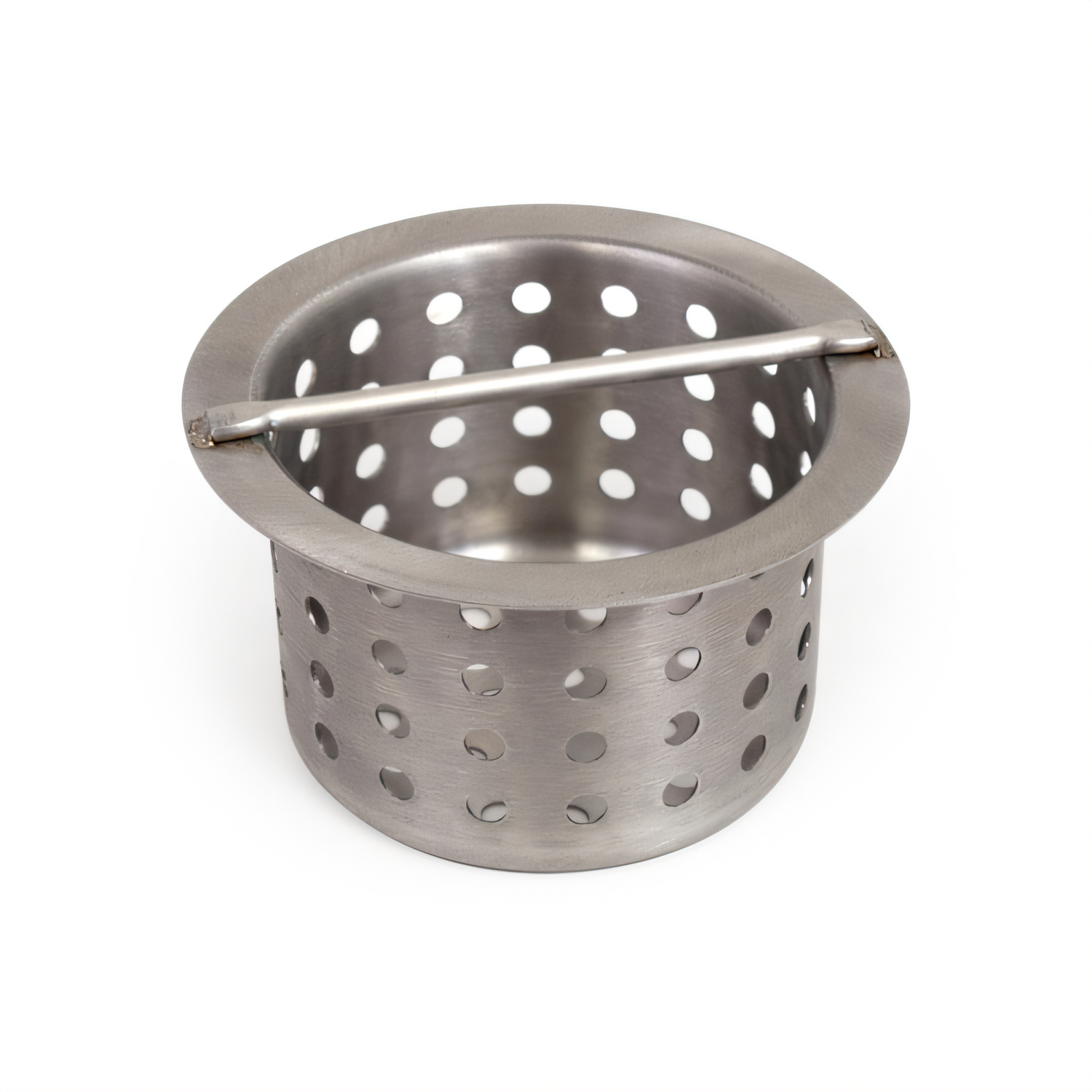

- Includes stainless steel removable perforated strainer baskets to catch solids before they reach the drain line.
- All TIG-welded construction; exposed welds ground & polished to match surrounding surfaces.
- NSF listed for sanitary performance.
- Made in the USA by John Boos & Co. – trusted in commercial kitchens since 1887.
Technical Specifications
| Model | FTSG-18108 |
|---|---|
| Overall length | 108" (2743 mm) |
| Overall width | 18" (457 mm) |
| Pan depth | 4" (102 mm) |
| Grate style | Subway-style, removable |
| Grate material | 14 ga, Type 300 stainless steel |
| Drain outlets | Two (2) × 4" O.D., 3.25" long |
| Drain location (A) | 25-15/16" from each end* |
| Shipping weight | Approx. 150 lb (68 kg) |
| Certifications | NSF |
*Per manufacturer’s drawing. All dimensions ±0.5".
Built-in Advantages
- Fast installation – factory set 5° pitch eliminates onsite pan shimming.
- Safety first – open grate pattern provides sure footing while allowing rapid water dispersal.
- Easy sanitation – grate lifts out in seconds for quick debris removal and cleaning.
- Long service life – corrosion-resistant 300-series stainless and polished welds stand up to harsh cleaners and heavy traffic.
Care & Maintenance
- Clean routinely with non-chloride, non-abrasive cleaners (e.g., Bar Keepers Friend).
- Avoid steel wool or wire brushes that can break the passive stainless film.
- Rinse thoroughly and dry after exposure to food acids, salts, or harsh chemicals.
- Restore shine with John Boos Stainless Steel Cleaner & Polish as needed.
John Boos & Co. reserves the right to change specifications without notice.
