John Boos FTSG-1236 Commercial Faucets & Plumbing
Description

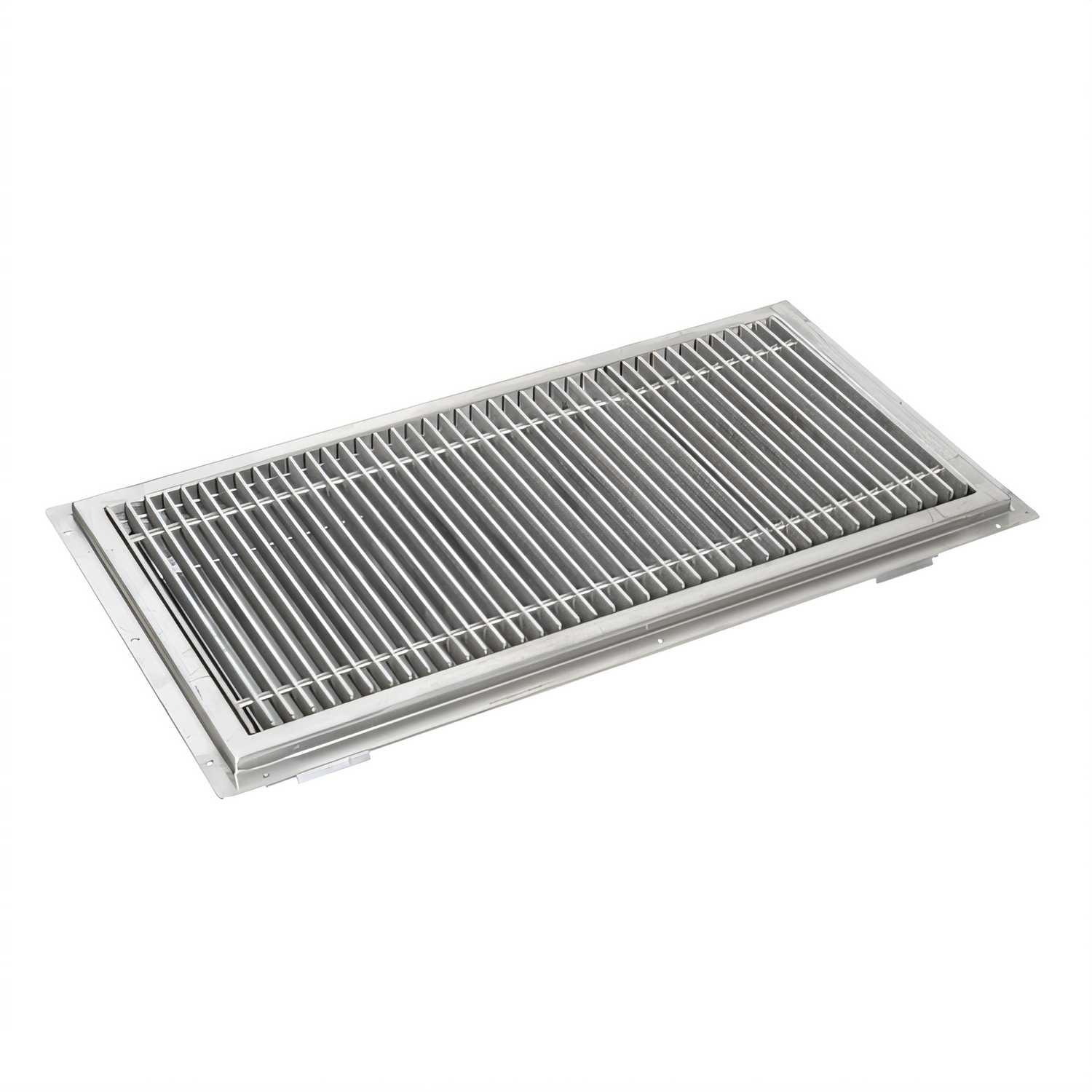

John Boos FTSG-1236 Stainless Steel Floor Trough
36" L × 12" W | 14-Gauge Type 300 Stainless | Subway-Style GratingEngineered for high-traffic food-service and industrial environments, the FTSG-1236 floor trough channels liquids and debris away from work areas, keeping your floors—and your team—safe. The heavy-duty subway-style grate lifts out quickly for cleaning, while the all-welded, pitched drain pan speeds water toward a centered outlet that accepts up to a 4" O.D. pipe.
Why You’ll Love It
- Subway-style grate built from 3/8" stainless rods & 3/16" × 1" bars on 3/4" centers—superior load capacity plus sleek appearance.
- 4" deep TIG-welded drain pan with 5° breaks for positive drainage—no standing water.
- Centered drain accommodates a 4" O.D. pipe (3.25" long).
- Includes removable perforated stainless steel strainer basket—catches solids before they enter your plumbing.
- Fabricated from 14-gauge, Type 300 stainless steel for maximum corrosion resistance.
- Exposed welds ground & polished to match surrounding finish.
- NSF listed—ready for commercial kitchen or food-processing installation.
Technical Specs
| Model | FTSG-1236 |
|---|---|
| Overall dimensions | 36" L × 12" W × 4" D (grate sits flush with floor) |
| Grate style | Subway-style, removable |
| Material & thickness | 14 GA (0.078") Type 300 stainless steel |
| Drain outlet | Centered; fits up to 4" O.D. pipe, 3.25" long |
| Weight | Approx. 37 lb |
| Certifications | NSF |
| Tolerances | ± 0.50" |
Care & Maintenance
- Clean routinely with mild soap, water, and a soft cloth or sponge—rinse and dry.
- Avoid chlorine bleach or cleansers containing chlorides; if contact occurs, rinse immediately.
- For tough buildup, use Bar Keepers Friend and a plastic scouring pad, always scrubbing with the grain.
- Finish with John Boos Stainless Steel Cleaner or similar non-chloride polish to restore luster.
Proper maintenance preserves the passive stainless film and prevents corrosion.
