John Boos FTFG-2496 Commercial Faucets & Plumbing
Description

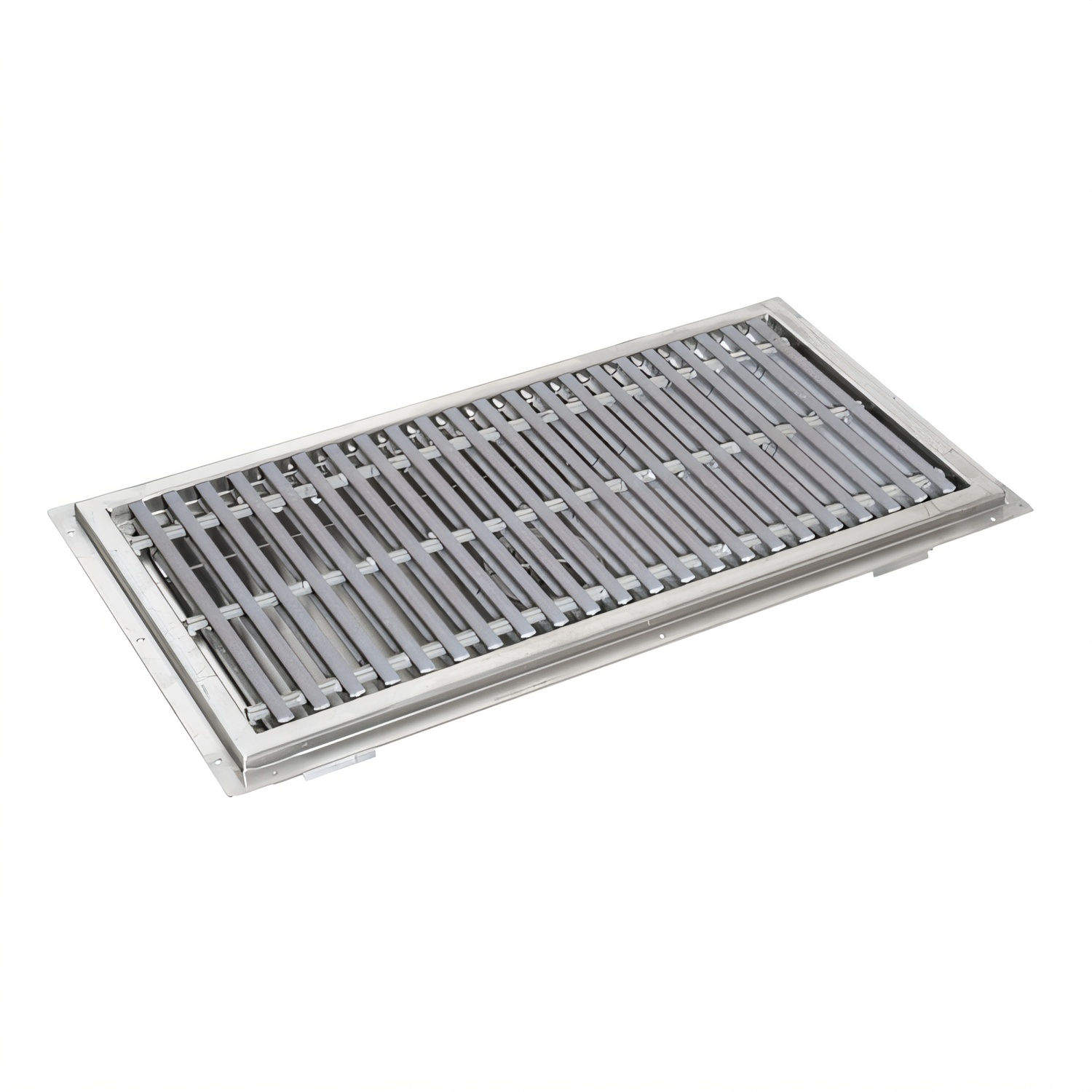

John Boos FTFG-2496 Floor Trough – 96" L × 24" W
14 ga 300-Series Stainless Steel Pan | Subway-Style Fiberglass GratingBuilt for the wettest, busiest back-of-house environments, the John Boos FTFG-2496 floor trough combines a rugged all-welded stainless pan with a removable, non-slip fiberglass grate to keep traffic areas dry, safe and sanitary. Two built-in drains speed away liquids while the 5° pitched bottom guarantees positive drainage every time.
Why You’ll Love It
- Heavy-duty 14 ga type 300 stainless steel pan – resists corrosion, chemicals & daily impact.
- Subway-style gray fiberglass grating on 1½" centers offers exceptional strength with a slip-resistant surface.
- 5° breaks in the pan bottom provide continuous pitch toward the drains for rapid water removal.
- (2) welded 4" O.D. drain connections – handle high-volume flow and simplify tie-in to existing plumbing.
- Stainless steel perforated strainers are removable for quick cleaning and prevent debris from clogging lines.
- All TIG welds are polished to match adjacent surfaces, delivering a smooth, easy-to-sanitize finish.
Technical Specifications
| Model | FTFG-2496 |
|---|---|
| Overall Length | 96 in (2438 mm) |
| Overall Width | 24 in (610 mm) |
| Pan Depth | 4 in (102 mm) |
| Drain Qty / Location | 2 drains, centered 22-15/16" from each end |
| Drain Pipe Size | Accepts up to 4" O.D. pipe (3.25" long) |
| Grate Style | Removable fiberglass subway grate, non-slip |
| Strainer | Stainless steel perforated basket (removable) |
| Material / Finish | 14 ga 300-series stainless steel, TIG welded & polished |
| Shipping Weight | ≈ 206 lb (93 kg) |
Requires field connection to 4" drain piping. Verify all local plumbing codes prior to installation.
