John Boos | SKU:
FTFG-2436
John Boos FTFG-2436 Commercial Faucets & Plumbing
$1,719.42
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos FTFG-2436 Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos FTFG-2436 Commercial Faucets & Plumbing
$1,719.42
Unit price
/
Unavailable
Description

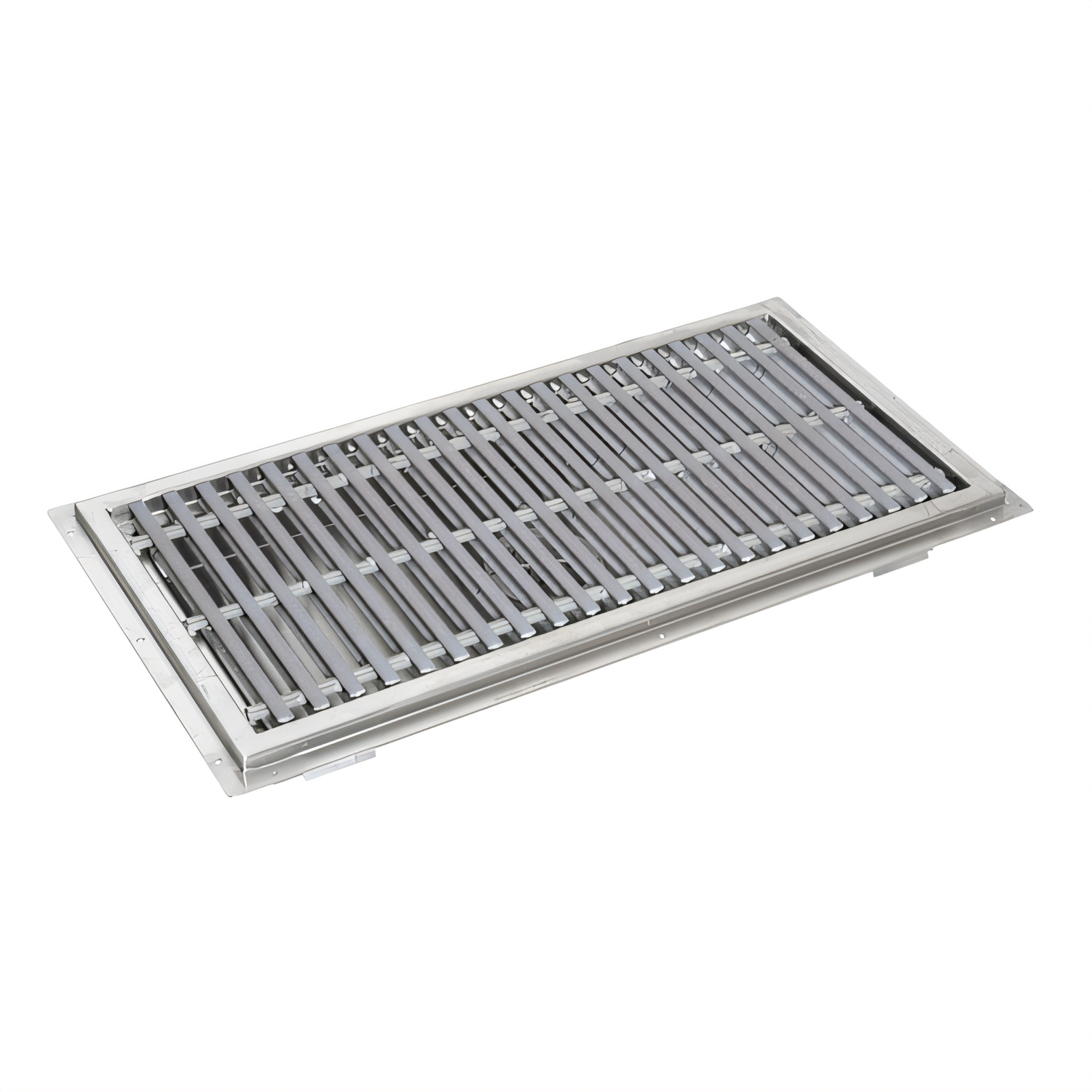

John Boos FTFG-2436 Floor Trough – 36" x 24"
14 ga Type 300 Stainless Steel Pan • Subway-Style Fiberglass GratingDesigned for demanding commercial kitchens, food-processing plants and wash-down areas, the FTFG-2436 combines a rugged 14-gauge stainless pan with a removable, non-slip fiberglass grate to keep floors dry, safe and sanitary.
Key Features
- 36" L x 24" W x 4" D all-welded drain pan
- 5° built-in pitch promotes rapid, positive drainage
- Subway-style gray fiberglass grate on 1-½" centers for superior traction
- Accepts up to a 4" O.D. drain pipe (3.25" long)
- Centered drain with stainless steel removable perforated strainer included
- All TIG-welded construction; exposed welds are polished to match adjoining surfaces
- 14 ga Type 300 stainless steel resists corrosion and heavy traffic
- NSF & food-service grade — ideal for kitchens, breweries, dairies and more
Technical Specifications
| Model | FTFG-2436 |
|---|---|
| Overall Size (L × W × D) | 36" × 24" × 4" |
| Pan Material | 14 ga Type 300 stainless steel |
| Grating | Removable gray fiberglass, non-slip surface, 1-½" centers |
| Drain Location | Centered |
| Drain Pipe Capacity | Up to 4" O.D. (3.25" long) |
| Supplied Strainer | Stainless steel, removable, perforated basket |
| Bottom Pitch | 5° (built-in) |
| Approx. Weight | 74 lbs |
Dimensions are typical; tolerance ±0.50". John Boos & Co. reserves the right to improve products without notice.
Features & Specs
Features & Specs
Manufacturer
John Boos
Height
4.0in
Width
36.0in
Depth
24.0in
Shipping Weight
74.0lbs
Grate Construction
fiberglass grates
Pan Type
non anti-splash
Deep (pan depth)
4"
Trough Construction
14 ga stainless steel trough
Depth (short side)
24"
Width (long side)
25" - 36" (3 ft)
Grate Type
subway-style grating
Specifications
Floor Trough, 36"W x 24"D, subway-style fiberglass grating, 4" deep all-welded drain pan with built-in pitch, accommodates up to a 4" diameter pipe, includes stainless steel removable perforated strainer, 14/300 stainless steel
