Description

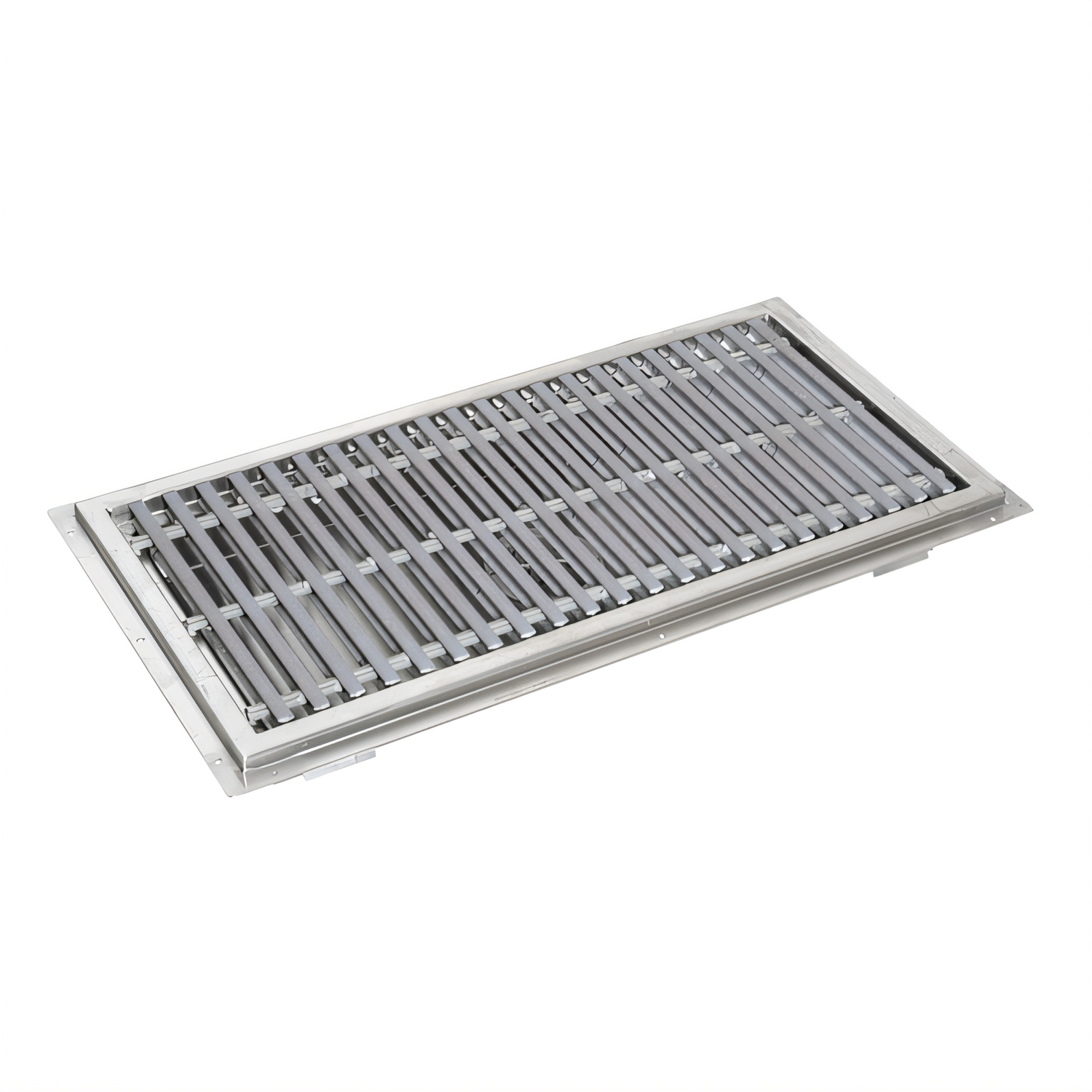

John Boos FTFG-1836 Floor Trough – 36" L × 18" W

14 Gauge Type 300 Stainless Steel Pan with Subway-Style Fiberglass Grating

Built for commercial kitchens, food-processing plants, and anywhere consistent wash-down is required, the John Boos FTFG-1836 floor trough combines heavy-duty stainless steel with a lightweight, non-slip fiberglass grate to move water away fast and keep work areas safe.

Key Features

  • 36" length × 18" width × 4" depth – perfect for medium-span trench runs
  • All-welded 14 ga Type 300 stainless steel drain pan for superior strength and corrosion resistance
  • 5° built-in pitch directs water to the outlet for quick, complete drainage
  • Accepts up to a 4" O.D. drain pipe (3.25" long connection)
  • Removable gray fiberglass “subway” grate on 1-1/2" centers with slip-resistant surface
  • Stainless steel perforated strainer basket lifts out for rapid debris removal
  • TIG-welded construction; exposed welds are ground and polished to match surrounding surface

Specifications

Model FTFG-1836
Overall dimensions 36" L × 18" W × 4" D
Material 14 ga Type 300 stainless steel pan & basket; fiberglass grate
Grate style Gray fiberglass, subway pattern, non-slip
Drain location Centered
Drain connection 4" Ø outlet, 3.25" long
Pan slope 5° toward drain
Approx. weight 50 lb (22.7 kg)

Mounting hardware, piping, and installation by others. All dimensions are typical; ±½" tolerance.

Features & Specs

Manufacturer

John Boos

Height

4.0in

Width

36.0in

Depth

18.0in

Shipping Weight

50.0lbs

Grate Construction

fiberglass grates

Trough Construction

14 ga stainless steel trough

Deep (pan depth)

4"

Pan Type

non anti-splash

Width (long side)

25" - 36" (3 ft)

Depth (short side)

18"

Grate Type

subway-style grating

Specifications

Floor Trough, 36"W x 18"D, subway-style fiberglass grating, 4" deep all-welded drain pan with built-in pitch, accommodates up to a 4" diameter pipe, includes stainless steel removable perforated strainer, 14/300 stainless steel
