John Boos FTFG-18120 Commercial Faucets & Plumbing
$3,079.67
Unit price
/
Unavailable
Description

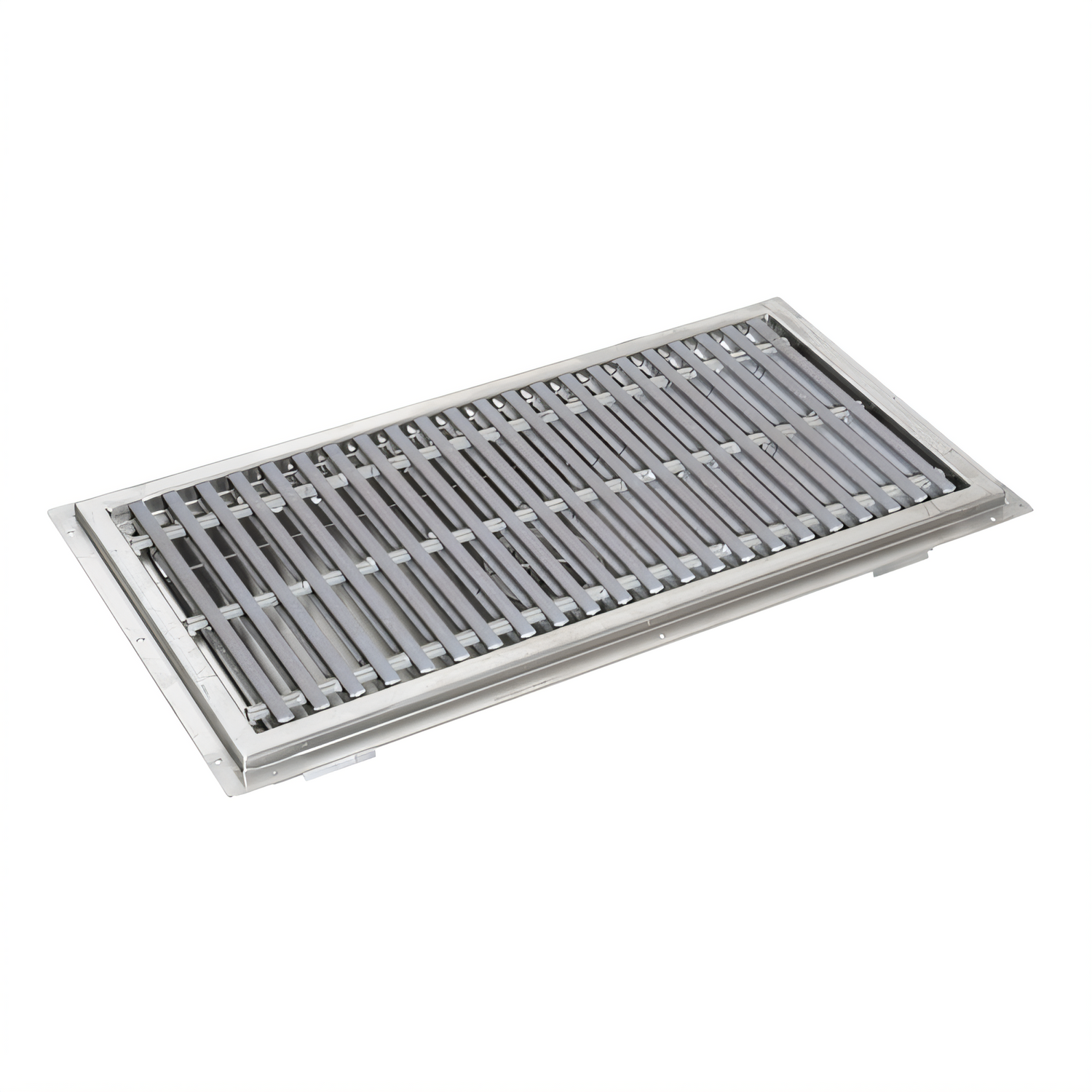

John Boos FTFG-18120 Floor Trough – 120" L x 18" W
14-Gauge Stainless Steel Pan · Subway-Style Fiberglass Grate · Dual 4" DrainsEngineered for the toughest wash-down environments, this John Boos floor trough combines a heavy-duty stainless steel drain pan with a removable fiberglass grate to keep large prep and ware-washing areas safe, sanitary and dry.
Key Features
- Expansive 120" (10 ft) length with a 18" width covers large splash zones.
- 4" deep all-welded pan includes a 5° built-in pitch for fast, complete drainage.
- (2) 4" O.D. outlet collars (3.25" long) accept standard waste pipe.
- Gray fiberglass “subway” grate on 1-1/2" centers offers a non-slip walking surface and lifts out for cleaning.

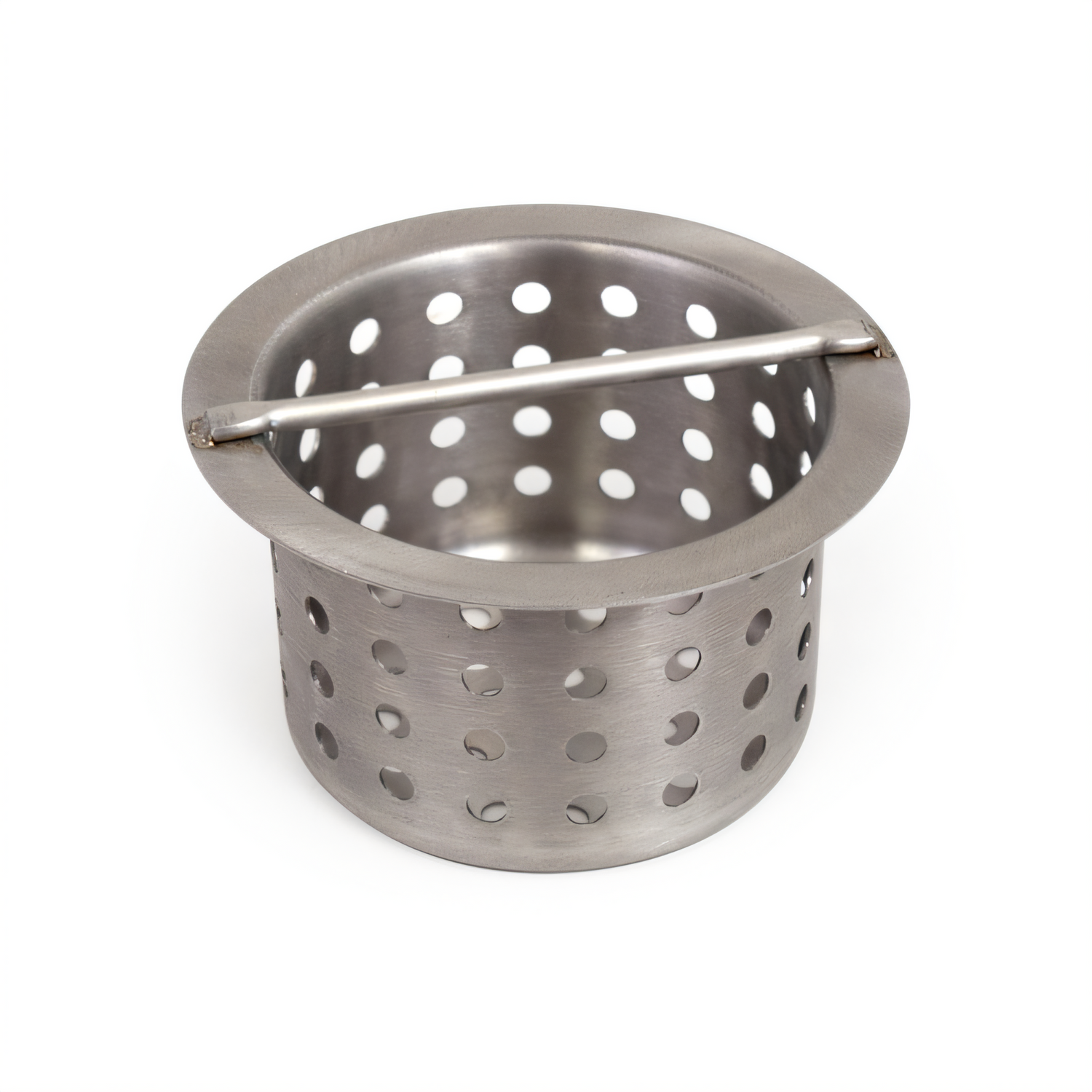

- Stainless steel removable perforated strainers prevent solids from entering the plumbing line.
- TIG-welded 14 GA, Type 300 stainless steel—exposed welds are polished to match adjacent surfaces.
Ideal For
- Commercial kitchens & dish rooms
- Supermarkets & food retail prep areas
- Meat, seafood, produce & dairy processing lines
- Breweries, wineries & beverage plants
Technical Specifications
| Model | FTFG-18120 |
|---|---|
| Overall Length | 120" (3048 mm) |
| Overall Width | 18" (457 mm) |
| Pan Depth | 4" (102 mm) |
| Drain Outlets | (2) 4" O.D. collars, 3.25" long |
| Drain Center (A) | 28-15/16" from each end |
| Material | 14-Gauge, Type 300 stainless steel pan & frame |
| Grating | Gray fiberglass, non-slip, 1-1/2" bar spacing (subway style) |
| Included Accessories | (2) Stainless steel removable perforated strainers |
| Shipping Weight | 146 lb (66 kg) |
All dimensions are typical and carry a tolerance of ± 0.50" per manufacturer specifications.
Installation Notice: Floor troughs must be set level in fresh concrete and connected
by a licensed plumber to comply with local plumbing codes.
Features & Specs
Features & Specs
Manufacturer
John Boos
Height
4.0in
Width
120.0in
Depth
18.0in
Shipping Weight
146.0lbs
Pan Type
non anti-splash
Grate Construction
fiberglass grates
Grate Type
subway-style grating
Deep (pan depth)
4"
Depth (short side)
18"
Trough Construction
14 ga stainless steel trough
Width (long side)
109 - 120" (10 ft)
Specifications
Floor Trough, 120"W x 18"D, subway-style fiberglass grating, 4" deep all-welded drain pan with built-in pitch, accommodates up to a 4" diameter pipe, includes stainless steel removable perforated strainer, 14/300 stainless steel
