John Boos 84" × 12" Floor Trough – Fiberglass Grate (FTFG-1284)

Engineered for demanding commercial kitchens, food-processing plants, and institutional facilities, the John Boos FTFG-1284 floor trough delivers reliable drainage in a slim 12" footprint while spanning a generous 84" length. A fully welded 4" deep pan, integral pitch and a centered 4" O.D. drain outlet keep floors dry, safe and sanitation-ready.

Key Features & Benefits

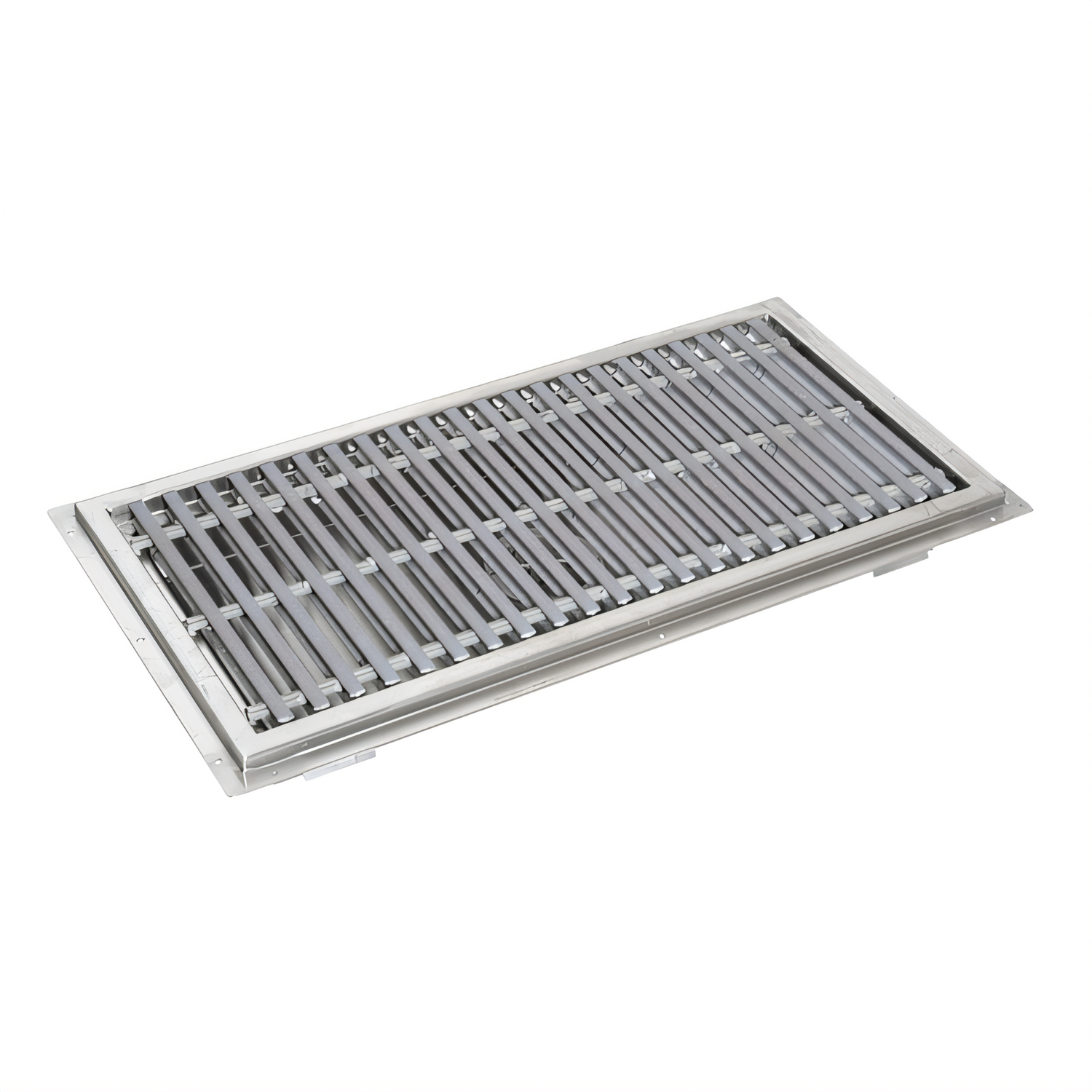

• Subway-style gray fiberglass grate on 1-1/2" centers – non-slip, corrosion-resistant and easy to lift for cleaning.
• 14 GA, Type 300 stainless steel trough – TIG welded; exposed welds polished to match adjacent surfaces.
• Built-in 5° breaks in the base create positive drainage toward the outlet – no onsite shimming required.
• 4" (O.D.) outlet accommodates standard sanitary piping; 3.25" long connection for secure coupling.

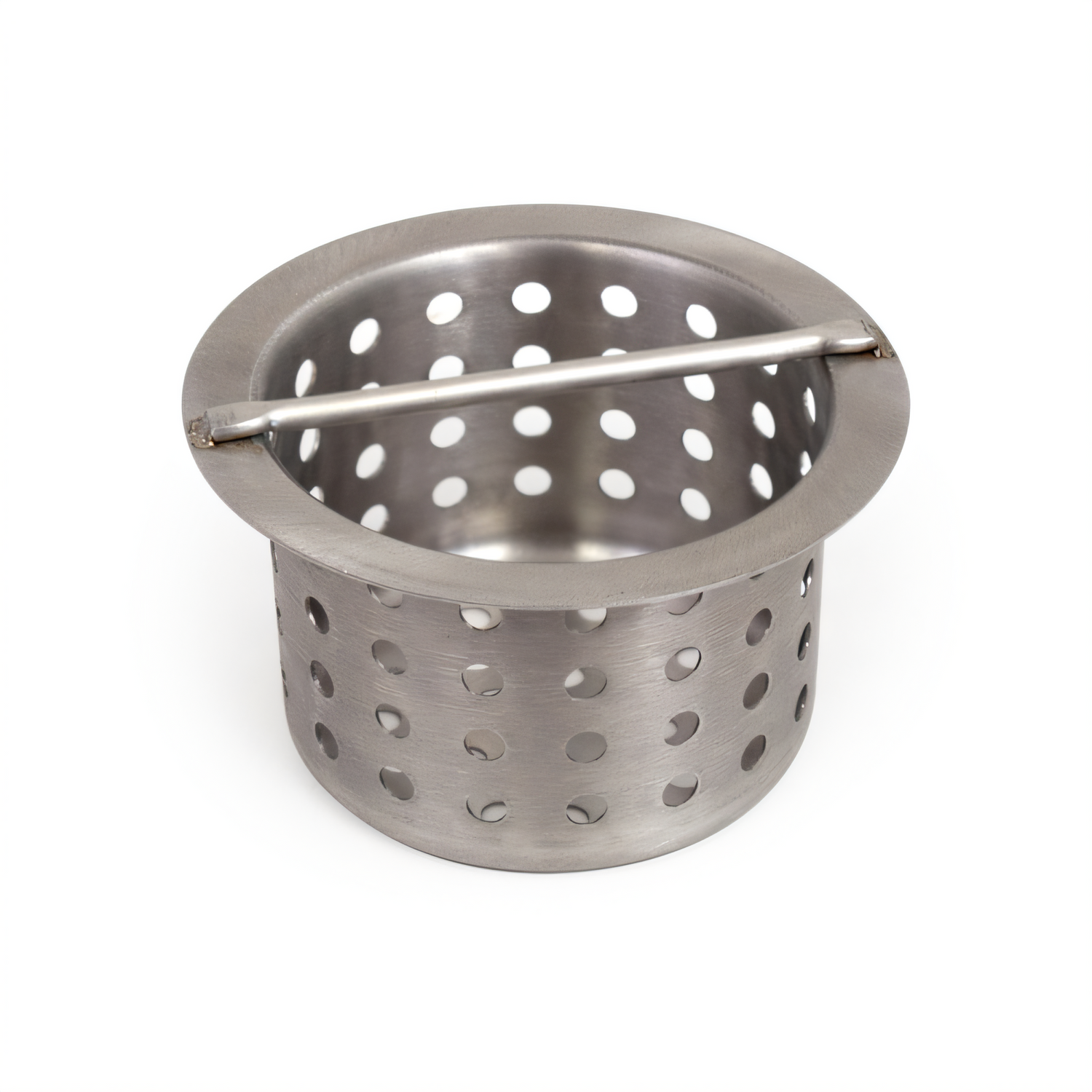

• Stainless steel removable perforated strainer basket catches solids before they reach the line.
• Low 4" pan depth minimizes excavation while still offering ample drainage capacity.
• NSF-style radius corners and smooth surfaces promote fast wash-downs and reduce bacteria harborage.
• Ships fully assembled – drop in place, connect and go.

Technical Specifications

Common Applications

• Commercial & institutional kitchens
• Meat, poultry & seafood processing areas
• Dairy & beverage plants
• Bakery wash-down zones
• Supermarket prep rooms

All dimensions are nominal (±½"). John Boos & Co. reserves the right to make design improvements without notice.
