John Boos FTFG-1236 Commercial Faucets & Plumbing
Description

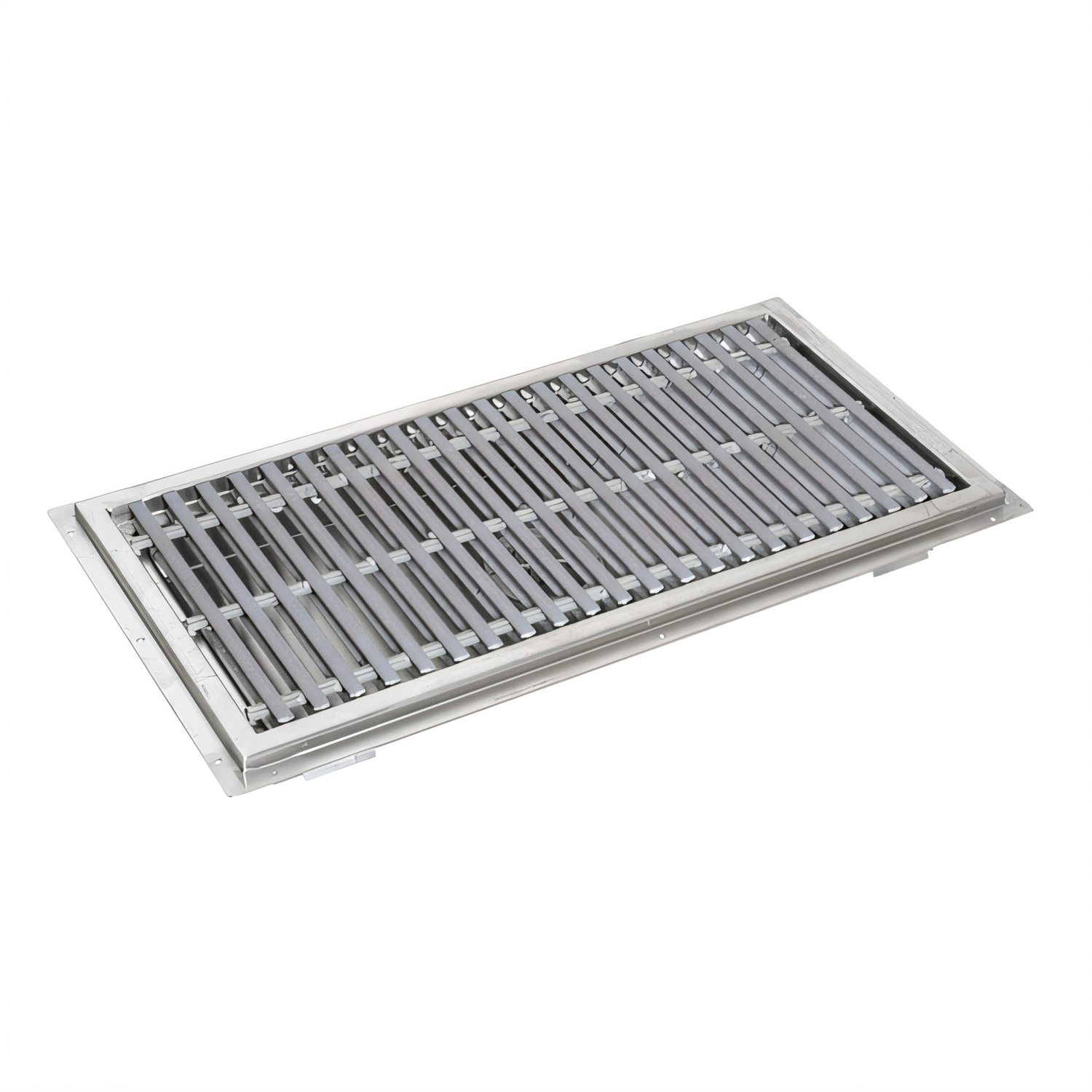

John Boos “FTFG-1236” Stainless Steel Floor Trough
36" L × 12" W | Subway-Style Fiberglass Grating | Center DrainEngineered for demanding commercial wet areas, the FTFG-1236 floor trough pairs a rugged, 14-gauge stainless steel pan with a lightweight, non-slip fiberglass grate. A factory-built 5° pitch, centered 4" drain, and removable strainer basket keep liquids moving—and crews safe.
Key Features
- 14 GA, Type 300 stainless steel pan—TIG-welded and polished for a seamless, sanitary finish
- Gray fiberglass “subway-style” grate on 1½" centers provides high load capacity & non-slip traction
- Built-in 5° bottom slope ensures positive drainage toward the outlet
- Accommodates a 4" O.D. drain pipe (3.25" long)

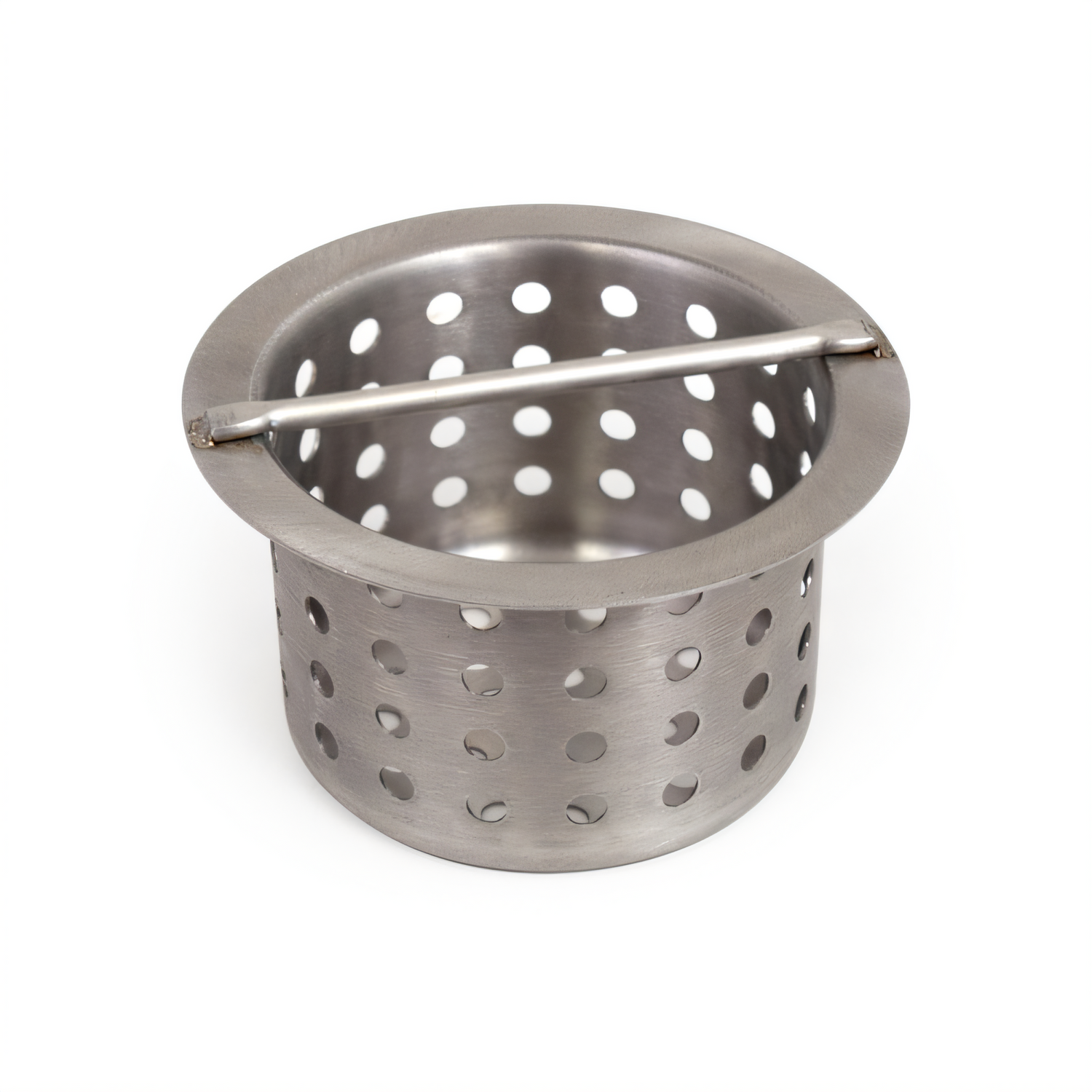

- Includes stainless steel, perforated strainer basket—fully removable for fast clean-outs
- 4" overall pan depth handles heavy wash-down volumes
- All exposed welds are ground & polished to match adjacent surfaces
- Center drain location simplifies installation and plumbing runs
Technical Specifications
| Model | FTFG-1236 |
|---|---|
| Overall length | 36" (914 mm) |
| Overall width | 12" (305 mm) |
| Pan depth | 4" (102 mm) |
| Grate material | Gray fiberglass, subway pattern, non-slip |
| Pan material / finish | 14 GA Type 300 series stainless steel, satin finish |
| Drain outlet | 4" O.D. pipe connection, centered |
| Slope to drain | 5° break (factory-built) |
| Included components | Removable fiberglass grate & stainless steel strainer basket |
| Shipping weight | 34 lb (15.4 kg) |
Need a different length, width, or outlet position? John Boos FTFG troughs are available in lengths up to 120" and widths up to 24". Contact us for custom sizing and lead times.
