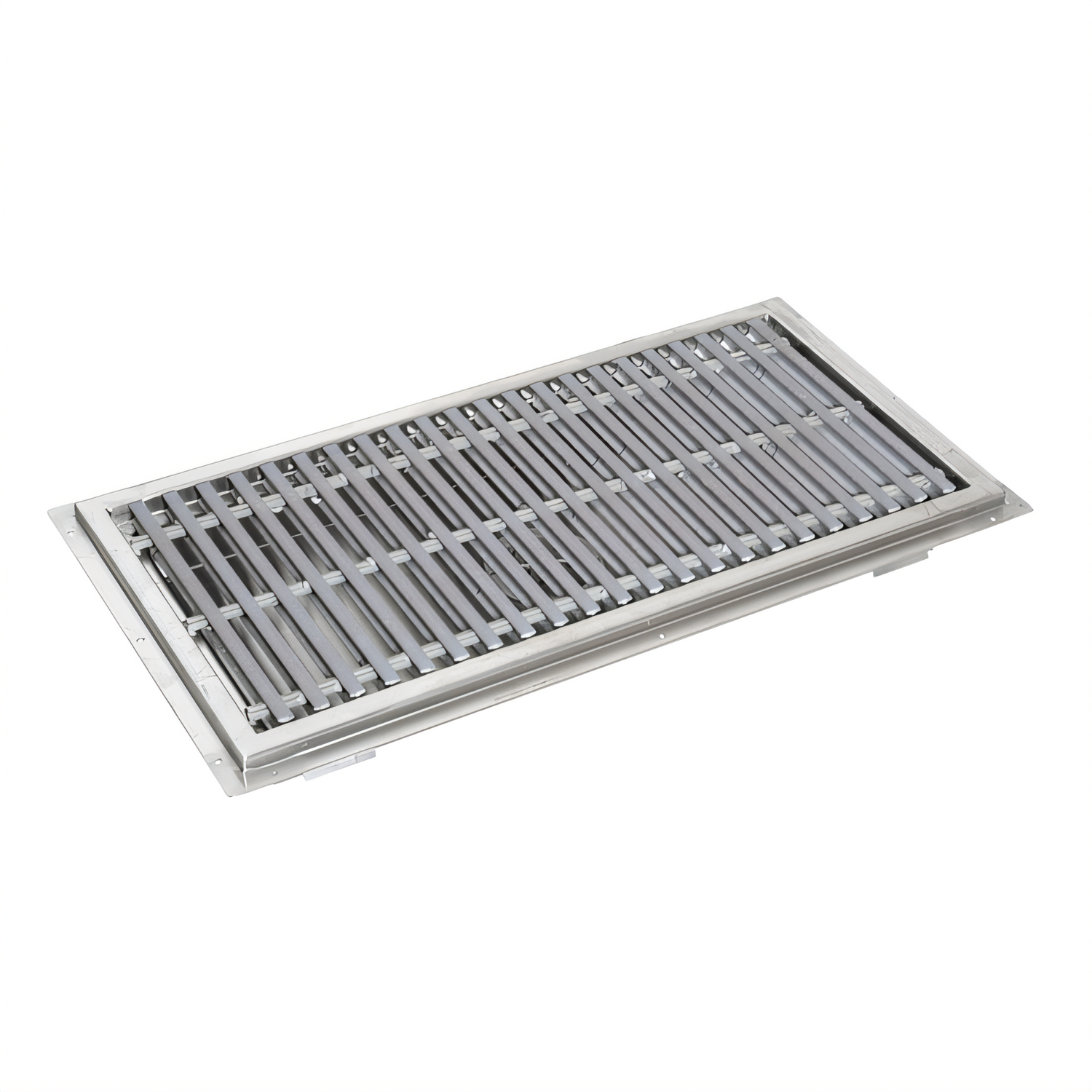

John Boos FTFG Series Floor Trough – 24" W × 12" L

Engineered for heavy-duty commercial use, this John Boos floor trough delivers reliable drainage, long-term corrosion resistance and a slip-resistant walking surface—all in a compact 24 inch by 12 inch footprint. The all-welded 14 ga stainless steel pan pitches 5° toward a centrally located drain that accepts up to a 4" O.D. pipe, while the removable fiberglass grate and stainless steel strainer make routine cleaning fast and sanitary.

Key Features

• All-TIG-welded 14 ga, Type 300 stainless steel construction
• 4" deep drain pan with factory-built 5° pitch for rapid, positive drainage
• Gray subway-style fiberglass grating on 1½" centers with molded non-slip surface
• Accommodates a 4" O.D. drain pipe (3.25" long connection)
• Stainless steel, removable perforated strainer basket included
• Exposed welds are ground and polished to match surrounding surfaces
• NSF-friendly design—grate and strainer lift out for full-access cleaning

Technical Specifications

Ideal Applications

• Food-service kitchens and dish rooms
• Meat, seafood & poultry processing lines
• Breweries, dairies and beverage plants
• Produce prep, wash-down and sanitation areas

Need a different length or outlet location? John Boos floor troughs are available in multiple sizes and can be factory-modified to meet local code requirements. Contact us for custom quotes.
