John Boos EDTS8-S30-L72 Compartment Sinks
Description

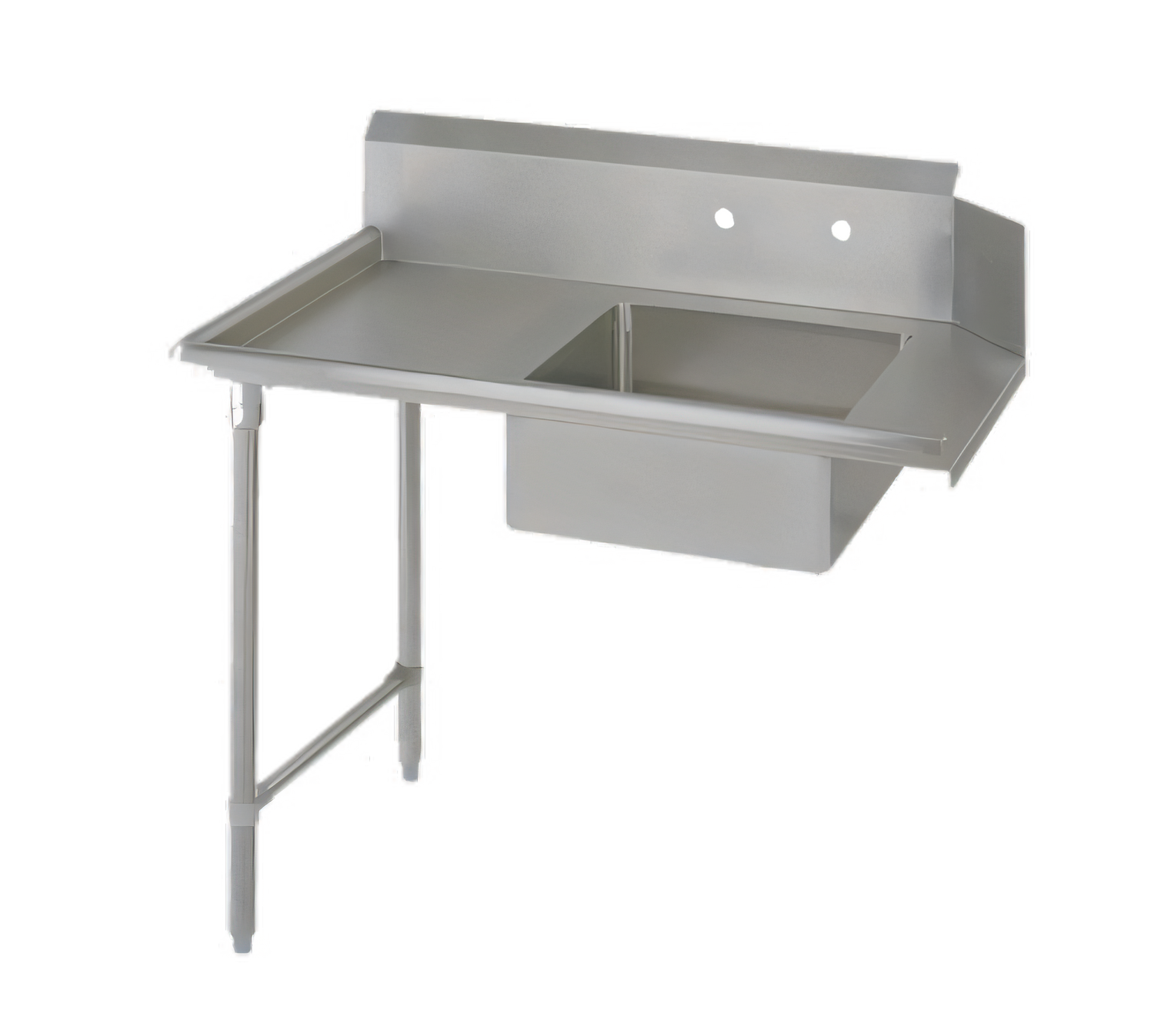

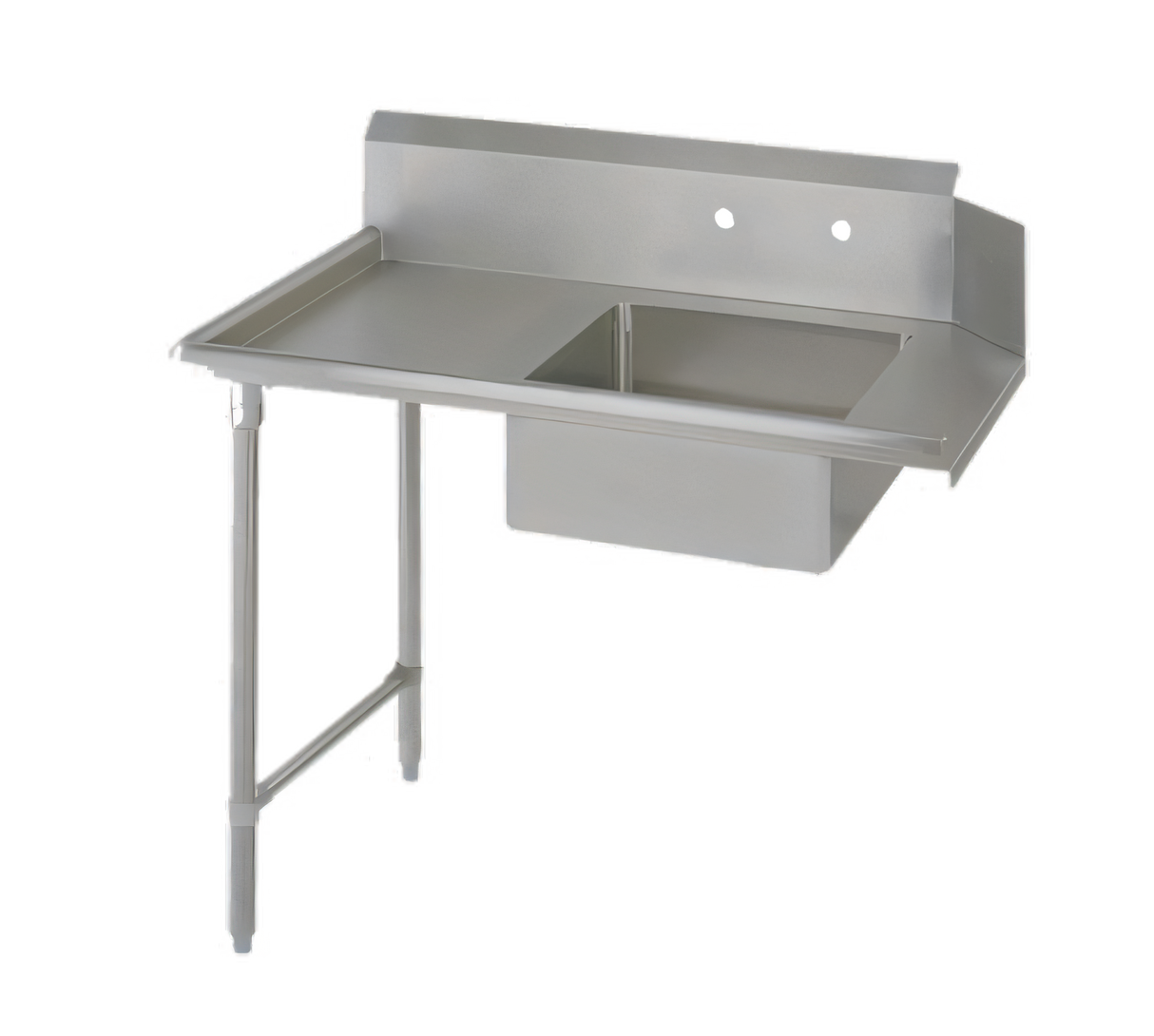

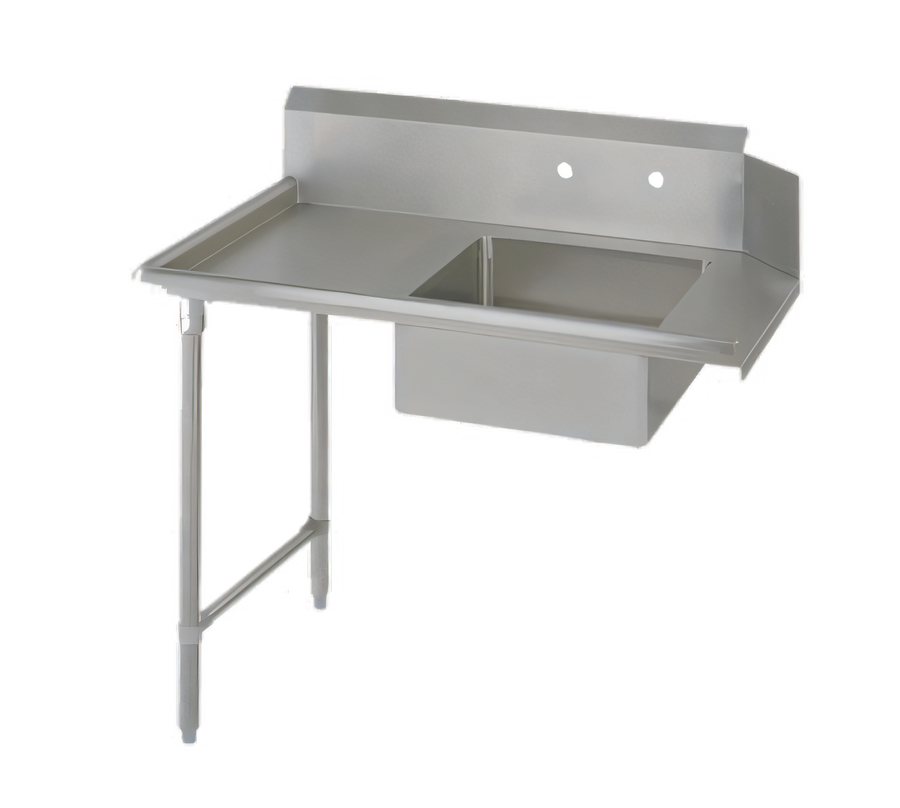

John Boos EDTS8-S30-L72 Soiled Straight Dishtable
72" W x 30" D x 44" H • Left-to-Right OperationBuilt for high-volume dish rooms, this 72-inch E-Series soiled dishtable delivers John Boos quality at an economical price point. A spacious pre-rinse sink, heavy-duty 18 ga. stainless steel work surface and six-leg galvanized base make it the dependable landing zone your ware-washing station demands.
Key Features
- 18 ga. type 300 stainless steel top with #4 satin polish
- 20" W x 20" F-to-B x 8" D pre-rinse sink welded in place
- Full-length 10" boxed backsplash with 45° return & 2" wall cap
- (1) set splash-mount faucet holes – 8" centers (faucet sold separately)
- Rolled (bullnosed) front & side rims for worker safety and easy cleaning
- Built-in 1/8"-per-foot pitch directs water toward dishmachine
- 1-5/8" O.D. galvanized legs & gussets with 1" adjustable plastic bullet feet
- TIG-welded construction; exposed welds ground & polished to match top
- NSF & CSA-Sanitation listed for commercial use
At-a-Glance Specifications
| Model | EDTS8-S30-L72 |
|---|---|
| Overall Dimensions | 72" W x 30" D x 44" H |
| Operation Flow | Left-to-Right (soiled → dishmachine) |
| Sink Bowl Size | 20" W x 20" F-B x 8" D |
| Backsplash Height | 10" boxed, 2" return, 45° top |
| Faucet Mount | Splash – 8" centers (holes pre-drilled) |
| Top Material / Gauge | 18 ga. 300 series stainless steel |
| Base | Galvanized legs (6) & gussets |
| Feet | 1" adjustable plastic bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping Weight | ≈ 100 lb |
Ideal Applications
- Restaurants & cafés needing a reliable pre-rinse landing table
- School, hospital & institutional kitchens with left-to-right dish flow
- Catering facilities and commissaries seeking NSF-listed equipment
Stainless Steel Care Tips
- Clean daily with mild soap or non-chloride detergent and a soft cloth.
- Avoid harsh, abrasive cleaners or steel wool that can break the protective surface layer.
- Rinse and dry thoroughly to preserve the chromium-oxide “self-healing” film.
- Periodically polish with John Boos Stainless Steel Cleaner for a like-new sheen.

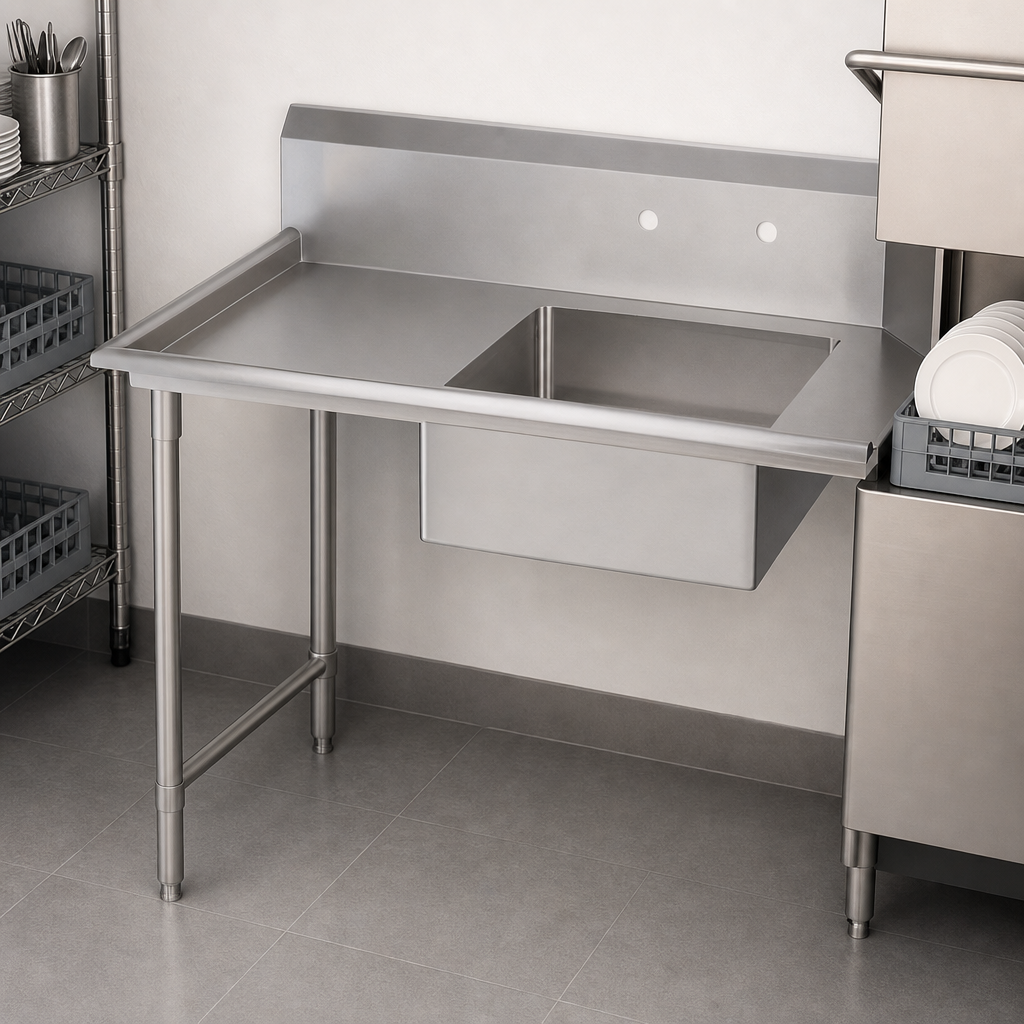

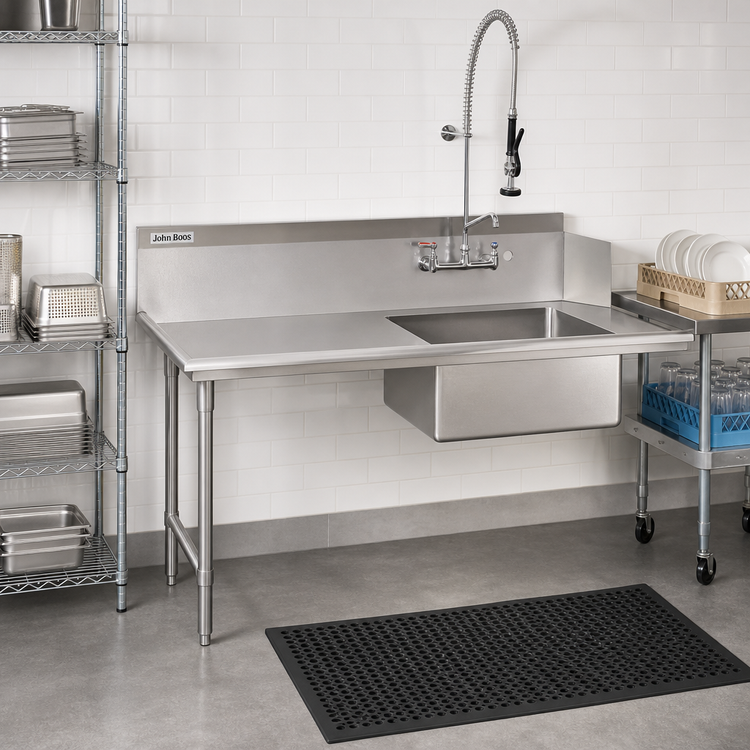

Faucet, pre-rinse spray, and dishmachine shown in lifestyle images are sold separately. Some assembly may be required upon delivery.
