John Boos

John Boos EDTC8-S30-R48-X 48-Inch x 30-Inch Clean Straight Dishtable, Left-to-Right, 18-Gauge 300 Series Stainless Steel, 10-Inch Boxed Backsplash

SKU: EDTC8-S30-R48-X
$474.24
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

John Boos 48-Inch x 30-Inch Clean Straight Dishtable, Left-to-Right Operation, 10-Inch Boxed Backsplash

18-Gauge Type 300 Stainless Steel Top, Galvanized Legs, Adjustable Bullet Feet

Built for efficient dishroom flow, this clean straight dishtable combines a durable stainless steel top, boxed backsplash, and galvanized support base.

  • 48"W x 30"D clean straight dishtable designed for left-to-right operation.
  • 18-gauge Type 300 stainless steel top with a satin finish.
  • Full-length 10" boxed backsplash with 45° return and rear lip helps contain splashes.
  • Rolled front and side rims with bullnosed outside corners provide a cleaner, safer edge.
  • Galvanized steel legs and gussets deliver sturdy support.
  • Adjustable plastic bullet feet help level the table on uneven floors.
  • Built-in slope toward the dish machine supports drainage and workflow.

Overall Dimensions:

48.0"W x 30.38"D x 44.06"H

Product Weight:

60.0 lb

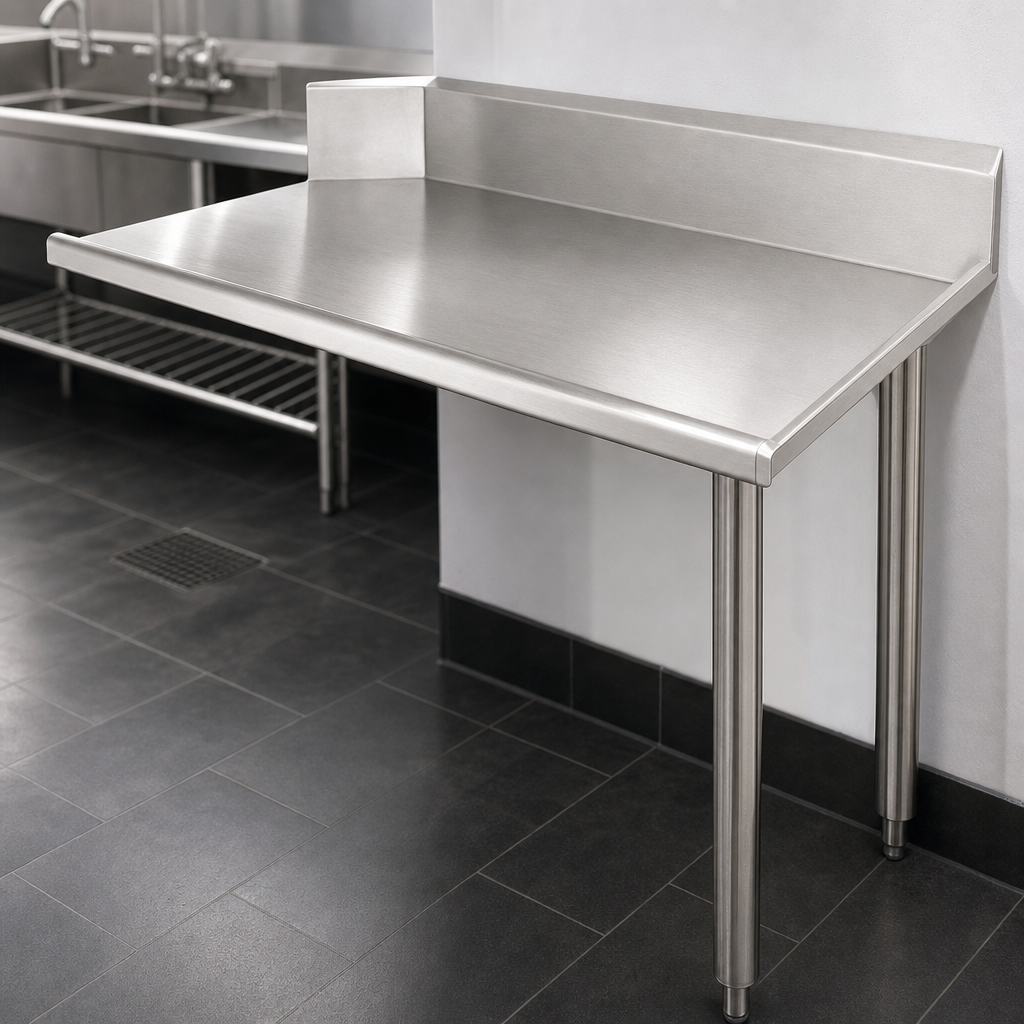

18-Gauge Type 300 Stainless Steel Top

Durable stainless work surface with a #4 polish satin finish for a clean, professional look.

18-Gauge Type 300 Stainless Steel Top

10-Inch Boxed Backsplash

Full-length backsplash includes a 45° return to the wall and a 1/2-inch turned-down rear lip to help control splashes.

Rolled Front and Side Rims

Rounded edge treatment helps improve safety and gives the table a finished appearance.

Bullnosed Outside Corners

Smooth, rounded corners create a cleaner edge and help reduce snag points.

Galvanized Steel Base

1-5/8-inch round O.D. galvanized steel legs and galvanized gussets provide dependable support.

Adjustable Plastic Bullet Feet

Feet adjust for leveling and stable placement on uneven flooring.

Built-In Drain Slope

Table is sloped 1/8 inch per foot toward the dish machine to support drainage.

Polished Weld Construction

Exposed TIG welds are polished to blend with adjacent stainless surfaces.

Related Searches

Best Sellers Clean Dish Tables Commercial Work Tables Compartment Sinks Dish Tables Dish Tables & Sorting Stations Equipment Equipment John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables Work Tables & Fabrication Work Tables & Preparation Stations
Type Clean Straight Dishtable
Style E-Series
Installation Type Floor Model
Direction Left To Right
Material Stainless Steel
Finish Satin Finish
Stainless Series 300 Series
Stainless Gauge 18 Gauge
Leg Type Galvanized Legs
Splash Height 10 Inches
Width 48 Inches
Depth 31 Inches
Height 45 Inches
Weight 60 Pounds
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall size is 48 inches wide by 30 inches deep by 44 inches high.
The top is made of 18-gauge Type 300 stainless steel with a #4 polish, satin finish.
It has a full-length 10-inch boxed backsplash with a 45-degree return and a 1/2-inch turned-down rear lip.
The table uses 1-5/8-inch round galvanized steel legs with galvanized gussets and adjustable plastic bullet feet.
Yes. It has a built-in slope of 1/8 inch per foot toward the dish machine for drainage.
The series is shown in 26-inch, 36-inch, 48-inch, 60-inch, and 72-inch lengths, with left-side and right-side versions.
