John Boos E-Series 3-Compartment Stainless Steel Sink with Left and Right Drainboards, 120-Inch

18 Gauge Top, Galvanized Legs and Gussets, Adjustable Plastic Bullet Feet

Built for busy prep and warewashing areas, this floor model combines three deep compartments, dual drainboards, and a splash-controlling backsplash in one rugged sink.

  • Three 24" x 24" x 14" compartments support wash, rinse, and sanitize workflows.
  • Left and right 24" drainboards add landing space for staging, drying, and cleanup.
  • 9-3/4" boxed backsplash with a 45° top and 2" return helps protect the wall behind the sink.
  • Two sets of splash-mount faucet holes with 8" centers are ready for installation.
  • 18/300 stainless steel construction, galvanized legs and gussets, and adjustable bullet feet are built for heavy-duty use.

Overall Dimensions:

120.0"W x 29.5"D x 43.75"H

Product Weight:

140.0 lb

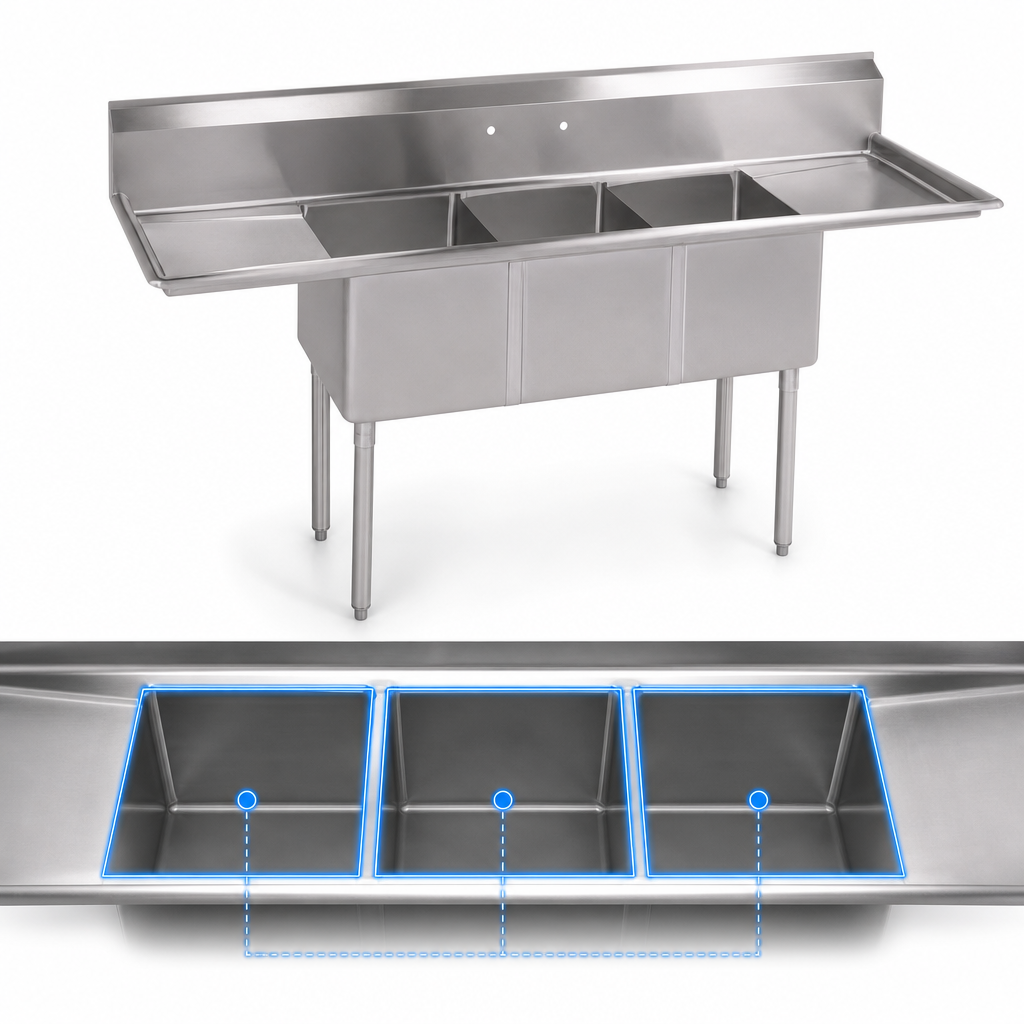

Three-Compartment Layout

Three 24" wide x 24" front-to-back x 14" deep compartments provide separated wash, rinse, and sanitize stations.

Dual Drainboards

24" drainboards on the left and right side give you space to stage dishes and drain items.

Boxed Backsplash

The 9-3/4" high backsplash includes a 45° top and 2" return to help contain splashes.

Faucet Hole Prep

Two sets of splash-mount faucet holes with 8" centers simplify faucet mounting.

Stainless Steel Top

18/300 stainless steel construction is designed for commercial kitchen durability.

Galvanized Understructure

Galvanized legs and gussets provide dependable support under heavy use.

Adjustable Bullet Feet

Plastic bullet feet make it easier to level the sink on uneven floors.

Large Drain Openings

3-1/2" die-stamped drain openings help promote efficient drainage.

Type 3-Compartment Sink
Style With Left and Right Drainboards
Installation Type Floor Model
Material Stainless Steel
Top Gauge 18 Gauge
Base Construction Galvanized Steel
Base Type Legs
Compartments 3
Compartment Width 24 Inches
Compartment Depth 24 Inches
Sink Depth 14 Inches
Splash Height 9-3/4 Inches
Drainboards Left and Right
Faucet Hole Centers 8 Inches
Drain Opening Diameter 3-1/2 Inches
Shipping Width 120 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 140 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has three compartments, each measuring 24 inches wide by 24 inches front-to-back by 14 inches deep.
Yes, it includes 24-inch drainboards on both the left and right sides.
It has two sets of splash-mount faucet holes with 8-inch centers.
The sink has a 9-3/4-inch boxed backsplash with a 45° top and 2-inch return.
The sink uses 18/300 stainless steel for the top and galvanized legs and gussets for support.
