John Boos | SKU:
E3S8-24-14R24-X
John Boos E3S8-24-14R24-X Compartment Sinks
$1,598.28
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos E3S8-24-14R24-X Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos E3S8-24-14R24-X Compartment Sinks
$1,598.28
Unit price
/
Unavailable
Description

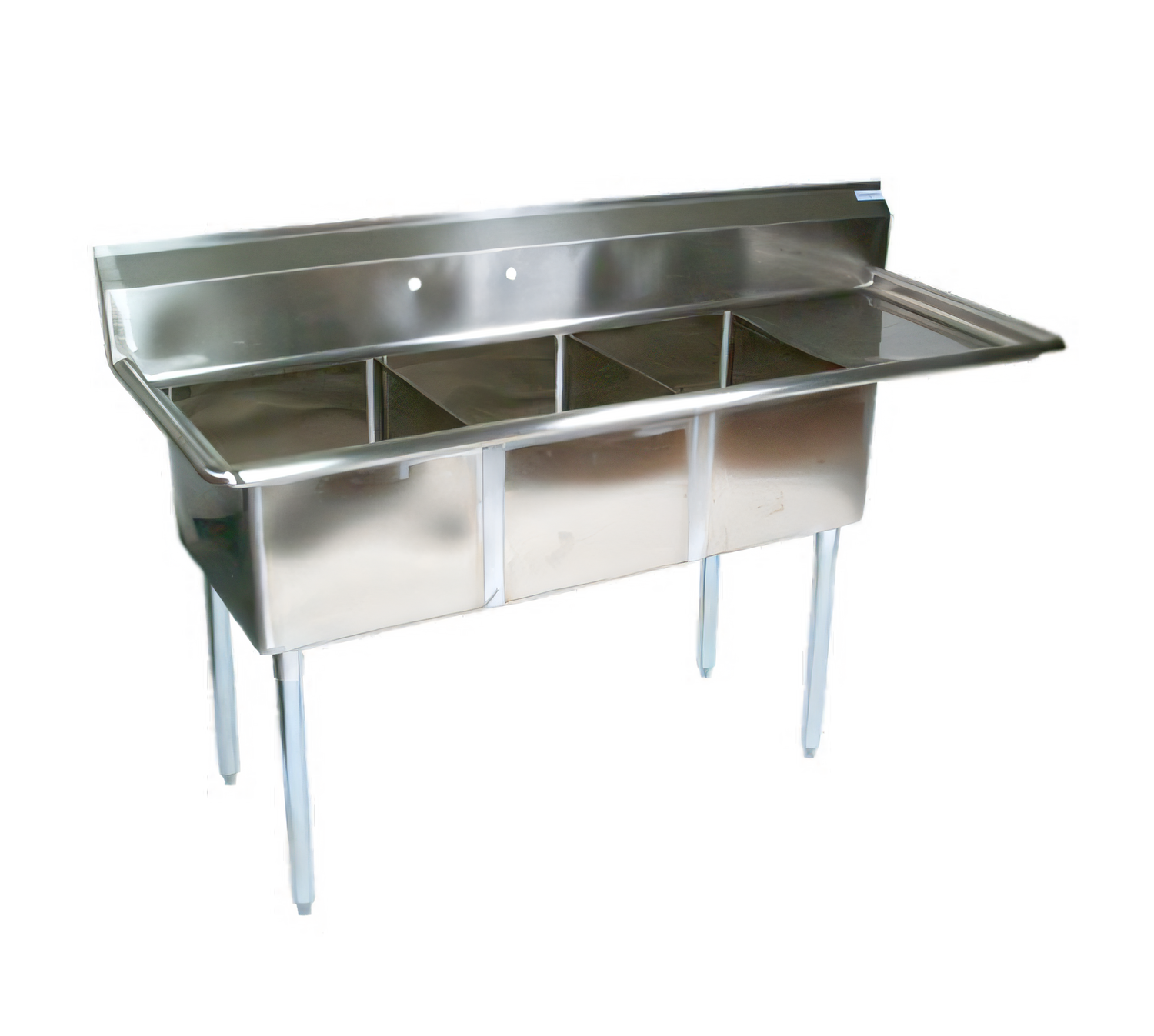

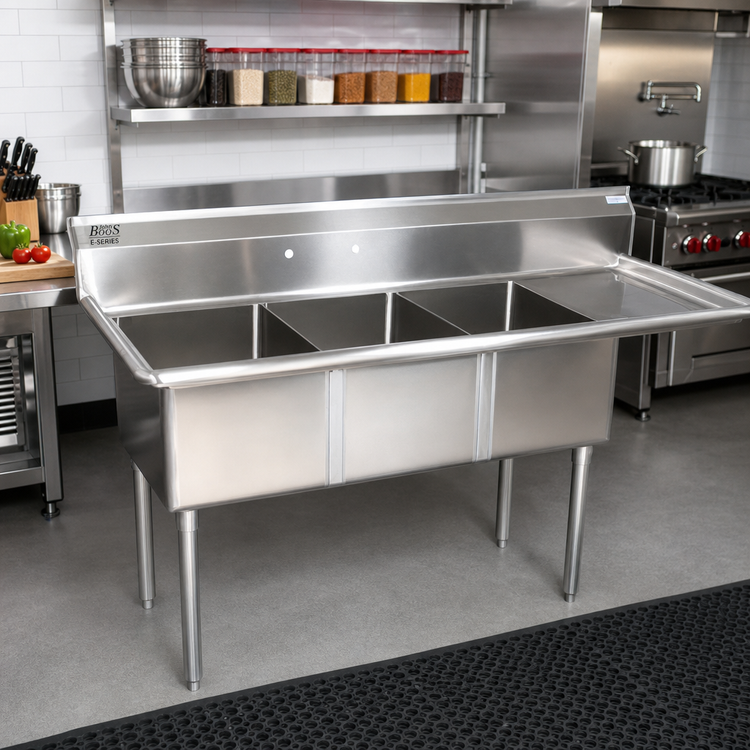

John Boos E-Series 98-1/2" 3-Compartment Sink w/ 24" Right Drainboard
Model E3S8-24-14R24 • 18-Gauge Type 300 Stainless SteelBuilt for busy commercial kitchens, this NSF-listed John Boos sink delivers the strength, sanitation and legendary craftsmanship you need—at an economy-friendly price point.
Key Features

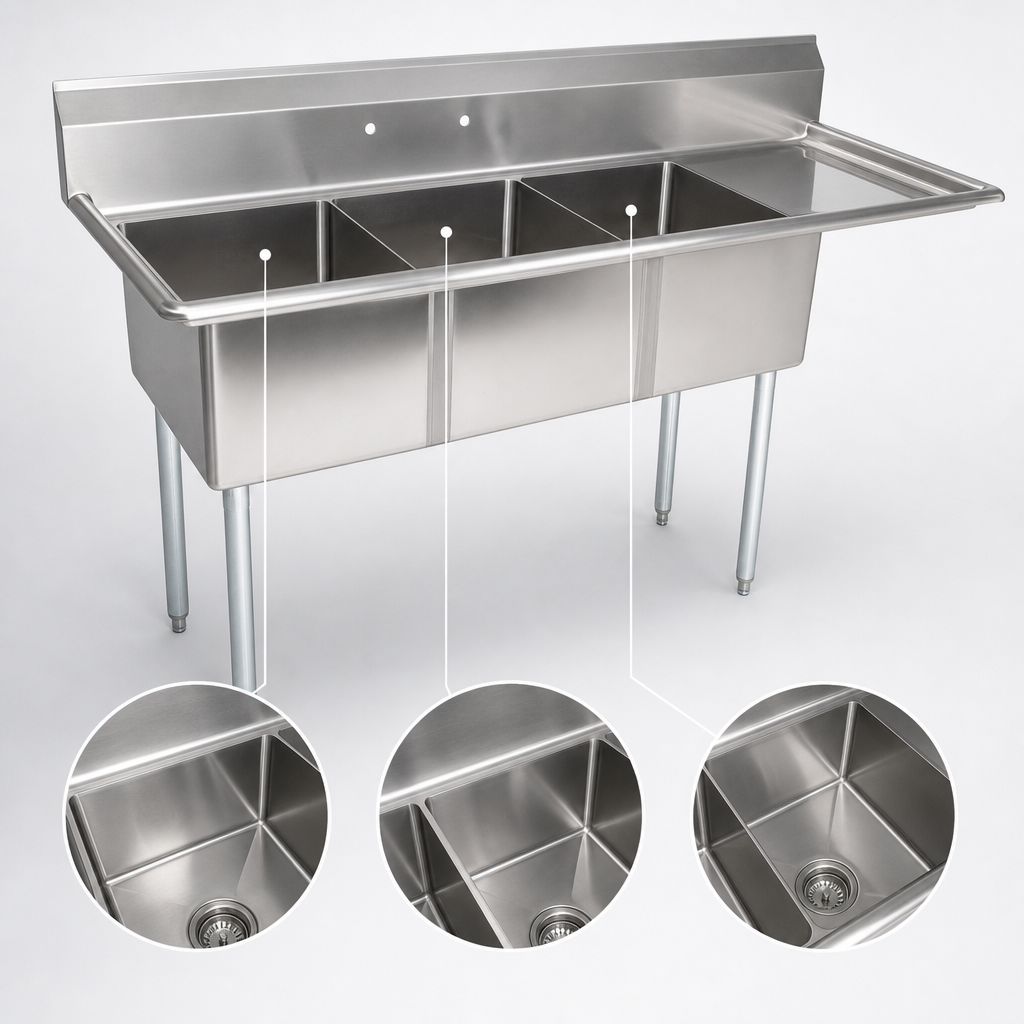

- Three 24" W × 24" F-B × 14" D bowls create a true wash / rinse / sanitize setup
- Integrated 24" right-side drainboard pitched for fast water run-off
- 18-ga Type 300 stainless steel top & bowls with #4 satin polish
- 9-3/4" high boxed backsplash with sanitary 45° top & 2" return
- (2) splash-mount faucet punchings on 8" centers (1-1/8" Ø)
- 3-1/2" die-stamped drain openings accept standard basket strainers
- TIG-welded seams; bull-nosed front & side edges for operator safety
- 1-5/8" Ø galvanized legs with galvanized gussets
- Adjustable 1" plastic bullet feet level the sink on uneven floors
- NSF & CSA-Sanitation certified; made in Effingham, IL USA
At-a-Glance Specs
| Model | E3S8-24-14R24 |
|---|---|
| Compartments | 3 |
| Compartment Size | 24" W × 24" F-B × 14" D |
| Drainboard | Right, 24" long |
| Overall Dimensions | 98-1/2" W × 29-1/2" D × 43-3/4" H (to top of backsplash) |
| Working Height | 36" to rolled rim |
| Material | 18-ga Type 300 stainless steel top & bowls; galvanized legs & gussets |
| Faucet Holes | (2) sets, 8" centers, 1-1/8" Ø |
| Drain Openings | 3-1/2" Ø (die-stamped) |
| Weight | Approx. 128 lb |
| Certifications | NSF, CSA-Sanitation |
Why Choose the John Boos E-Series?
- Economical alternative to heavy-duty series without sacrificing sanitation standards
- Ships knocked-down to reduce freight costs; simple field assembly
- Perfect for bars, bakeries, commissaries, food trucks and light- to medium-duty kitchens
Care & Maintenance
- Clean daily with a soft cloth or sponge and a non-chloride detergent
- Avoid wire brushes, steel wool and abrasive cleaners containing chlorides
- Rinse and wipe dry after each use to preserve the protective chromium-oxide layer
- Restore shine with John Boos Stainless Steel Cleaner & Polish
Need faucets, basket strainers or other accessories? Our team is happy to help you outfit the perfect sink package.
Freight Note: This item ships via truck from Effingham, IL. Please inspect all cartons for damage
and note any issues on the Bill of Lading at delivery.
Features & Specs
Features & Specs
Manufacturer
John Boos
Certifications
NSF, CSA-Sanitation
Height
43.75in
Width
98.5in
Depth
29.5in
Shipping Weight
128.0lbs
Overall Length
97" - 108"
Compartment (front - back)
24"
Base Construction
galvanized
Splash Height
9-3/4"
Sink Depth (rim - drain)
14"
Drainboards
with right-hand drainboard
Base Type
legs
Top Gauge
18 gauge
Compartment Width (side - side)
24"
Top Stainless Series
300 series
Specifications
E-Series Sink, 3-compartment, 98-1/2"W x 29-1/2"D x 43-3/4"H overall size, (3) 24"W x 24" front-to-back x 14" deep compartments, (1) 24" right drainboard, 9-3/4"H boxed backsplash with 45° top and 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
