John Boos

John Boos E-Series 3-Compartment Stainless Steel Sink with Right Drainboard

SKU: E3S8-24-14R24
GTIN: 662969011444
$2,091.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series 3-Compartment Stainless Steel Sink with Right Drainboard

98.5 Inches W x 29.5 Inches D x 43.75 Inches H; 14-Inch Deep Compartments

Built for busy dish areas, this three-compartment sink combines deep bowls, a right-side drainboard, and a splash-controlling backsplash in a durable stainless steel design.

  • Three 24-inch x 24-inch x 14-inch compartments support wash, rinse, and sanitize workflows.
  • 24-inch right drainboard adds convenient space for draining, staging, or air-drying items.
  • 9-3/4-inch boxed backsplash with a 45° top and 2-inch return helps reduce wall splashes.
  • 18-gauge 300-series stainless steel construction is built for commercial durability.
  • Galvanized legs and gussets with adjustable plastic bullet feet provide stable support and leveling.
  • Two sets of splash-mount faucet holes on 8-inch centers simplify faucet installation.

Overall Dimensions:

98.5"W x 29.5"D x 43.75"H

Product Weight:

128.0 lb

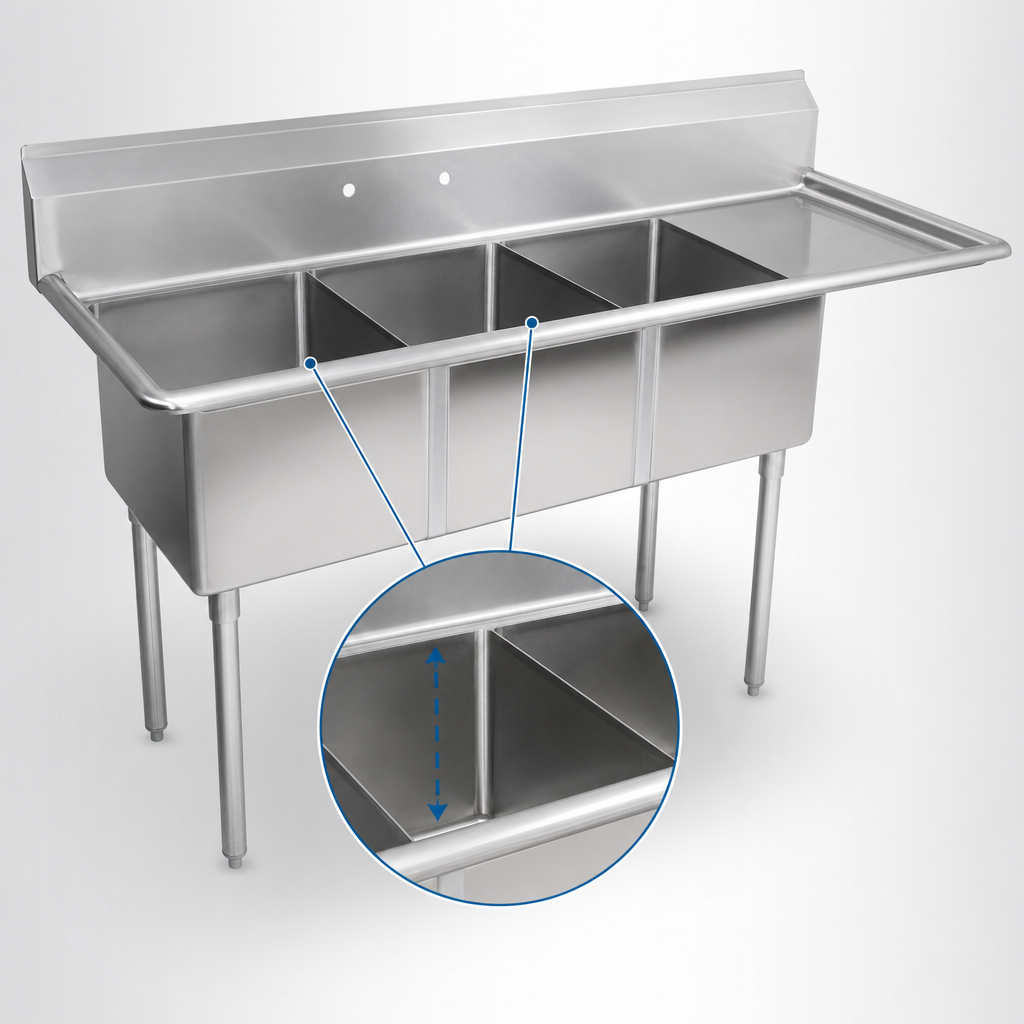

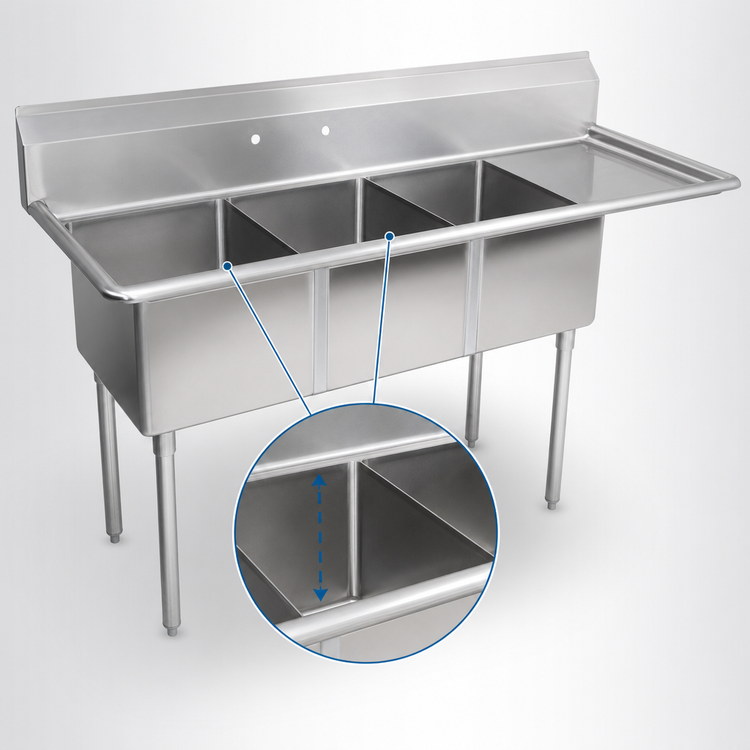

Three Deep Compartments

Includes three 24-inch wide x 24-inch front-to-back x 14-inch deep sink compartments for high-volume warewashing.

Right Drainboard

A 24-inch right-hand drainboard provides added landing and drying space.

Boxed Backsplash

Features a 9-3/4-inch boxed backsplash with a 45° top and 2-inch return to help contain splashes.

Faucet Hole Layout

Supplied with two sets of splash-mount faucet holes spaced on 8-inch centers.

Die-Stamped Drain Openings

3-1/2-inch diameter die-stamped drain openings support standard sink drainage.

Stainless Steel Top

Made with 18-gauge 300-series stainless steel for strength and corrosion resistance.

Galvanized Support Frame

Galvanized legs and gussets, plus adjustable plastic bullet feet, provide stability and leveling.

Type 3-Compartment Sink
Style Right Drainboard
Installation Type Floor Model
Material Stainless Steel
Compartments 3
Selling Unit Each
Units Per Case 1
Shipping Width 99 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 128 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

Each compartment measures 24 inches wide x 24 inches front-to-back x 14 inches deep.
Yes. It includes a 24-inch right-hand drainboard.
The sink has two sets of splash-mount faucet holes on 8-inch centers.
It features a 9-3/4-inch boxed backsplash with a 45° top and 2-inch return.
The sink uses 18-gauge 300-series stainless steel with galvanized legs and gussets.
