John Boos

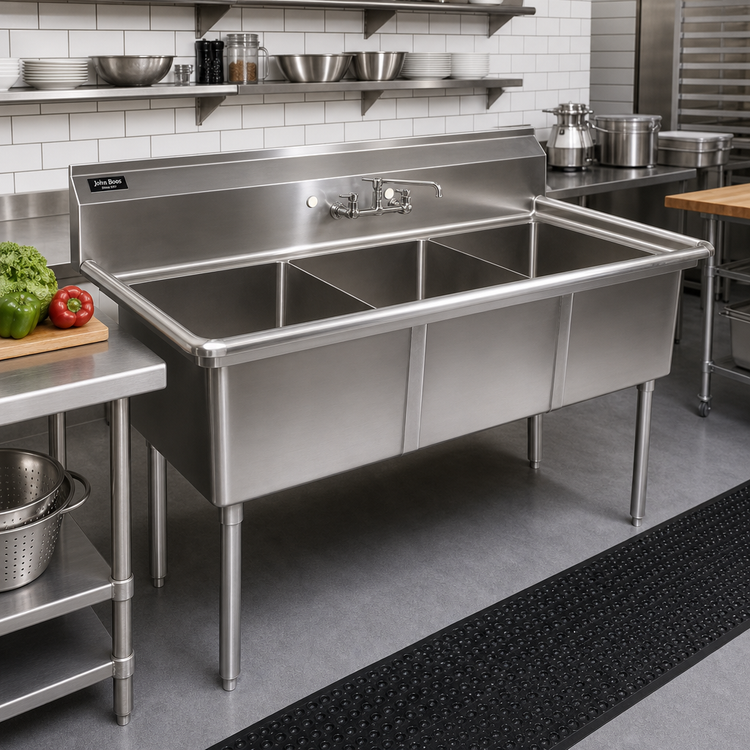

John Boos E-Series 3-Compartment Stainless Steel Floor Sink with Boxed Backsplash, 77"W x 29-1/2"D x 43-3/4"H

SKU: E3S8-24-14
GTIN: 662969010881
$1,935.46
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series 3-Compartment Stainless Steel Floor Sink with Boxed Backsplash, 77"W x 29-1/2"D x 43-3/4"H

18/300 stainless steel, 24" x 24" x 14" compartments, splash-mount faucet holes

This heavy-duty 3-compartment sink combines deep wash-rinse-sanitize basins, a sanitary boxed backsplash, and a galvanized leg frame for dependable daily operation.

  • Three 24" x 24" x 14" compartments support efficient wash, rinse, and sanitize workflows.
  • 9-3/4" boxed backsplash helps protect the wall and keeps cleanup contained.
  • Two sets of splash-mount faucet holes with 8" centers accommodate standard sink faucets.
  • 18/300 stainless steel construction is built for durable commercial use.
  • Galvanized legs and gussets provide a sturdy floor-mounted support base.
  • Adjustable plastic bullet feet help level the sink on uneven floors.
  • No drainboards keeps the footprint compact and maximizes surrounding workspace.

Overall Dimensions:

77.0"W x 29.5"D x 43.75"H

Product Weight:

112.0 lb

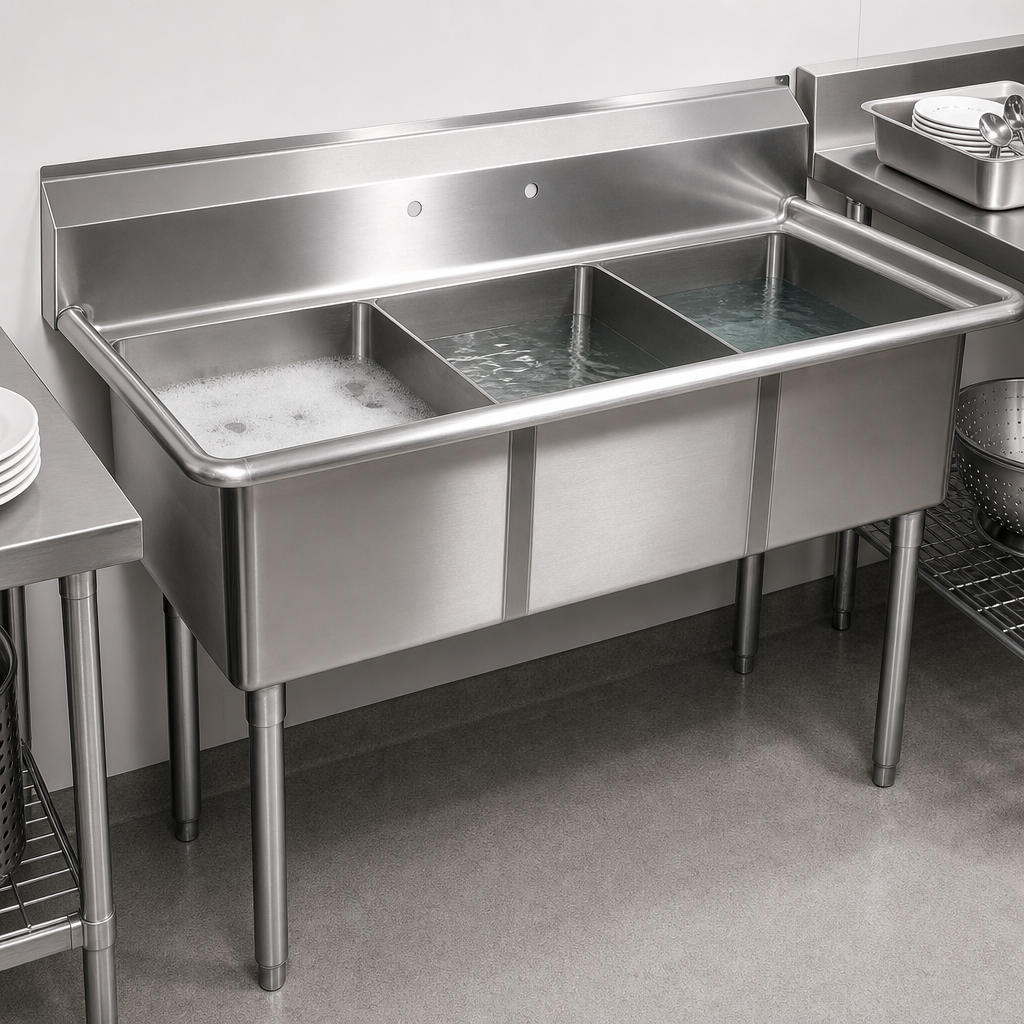

Three-Compartment Layout

Includes three separate sink compartments for organized wash, rinse, and sanitize tasks.

Deep Sink Bowls

Each compartment measures 24" wide x 24" front-to-back x 14" deep for generous wash space.

Boxed Backsplash

Features a 9-3/4" boxed backsplash with a 45° top and 2" return for added wall protection.

Splash-Mount Faucet Holes

Supplied with two sets of faucet holes on 8" centers for standard faucet installation.

Die-Stamped Drain Openings

3-1/2" diameter drain openings support efficient drainage and easy connection.

Stainless Steel Top

Built with 18/300 stainless steel for strength and corrosion resistance.

Galvanized Support Frame

Galvanized legs and gussets add rigidity and long-lasting support.

Adjustable Bullet Feet

Plastic bullet feet allow the sink to be leveled after installation.

Type 3-Compartment Sink
Style Boxed Backsplash
Installation Type Floor Model
Material Stainless Steel
Compartments 3
Sink Depth 14 Inches
Compartment Width 24 Inches
Compartment Depth 24 Inches
Splash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Base Construction Galvanized
Base Type Legs
Selling Unit Each
Units Per Case 1
Shipping Width 77 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 112 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This model has three compartments.
Each compartment measures 24" wide x 24" front-to-back x 14" deep.
No, this model is without drainboards.
It has a 9-3/4" boxed backsplash with a 45° top and 2" return.
The sink includes two sets of splash-mount faucet holes with 8" centers.
It uses galvanized legs and gussets with adjustable plastic bullet feet.
