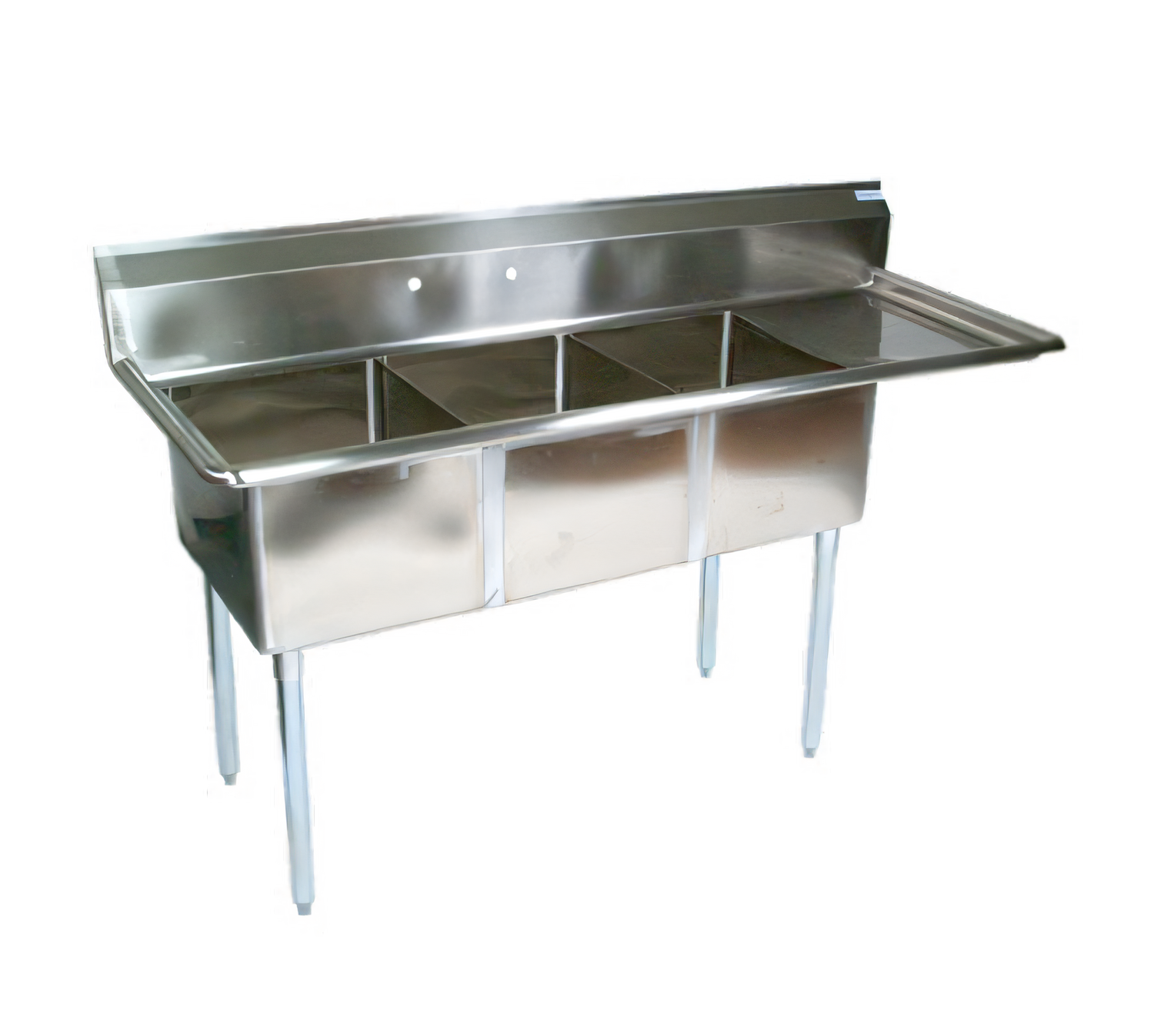

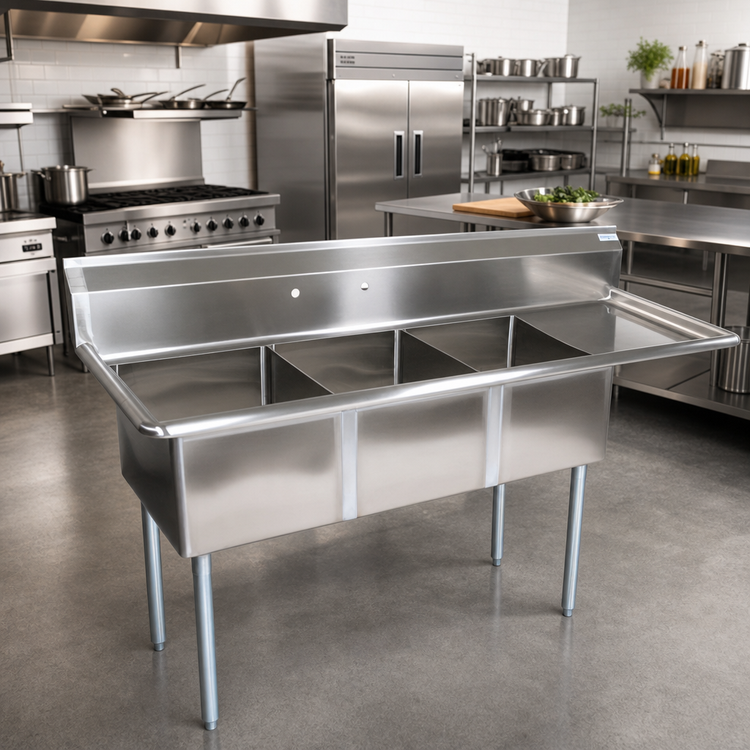

John Boos E-Series 3-Compartment Sink with Right-Hand Drainboard, 80-1/2 Inch Wide

18-Gauge 300-Series Stainless Steel, 14-Inch Deep Bowls, 9-3/4-Inch Boxed Backsplash

Built for high-volume dishwashing, this three-compartment floor sink combines deep bowls, a right-hand drainboard, and durable stainless-steel construction.

  • Three 18" x 24" x 14" deep compartments support efficient wash, rinse, and sanitize workflows.
  • 24" right-hand drainboard adds convenient landing space for clean or soiled items.
  • 9-3/4" boxed backsplash with 45° top and 2" return helps contain splashes.
  • 18-gauge 300-series stainless steel top is designed for demanding commercial kitchen use.
  • Galvanized legs, gussets, and adjustable plastic bullet feet provide stable floor support.
  • Splash mount faucet holes with 8" centers are ready for faucet installation.

Overall Dimensions:

80.5"W x 29.5"D x 43.75"H

Product Weight:

111.0 lb

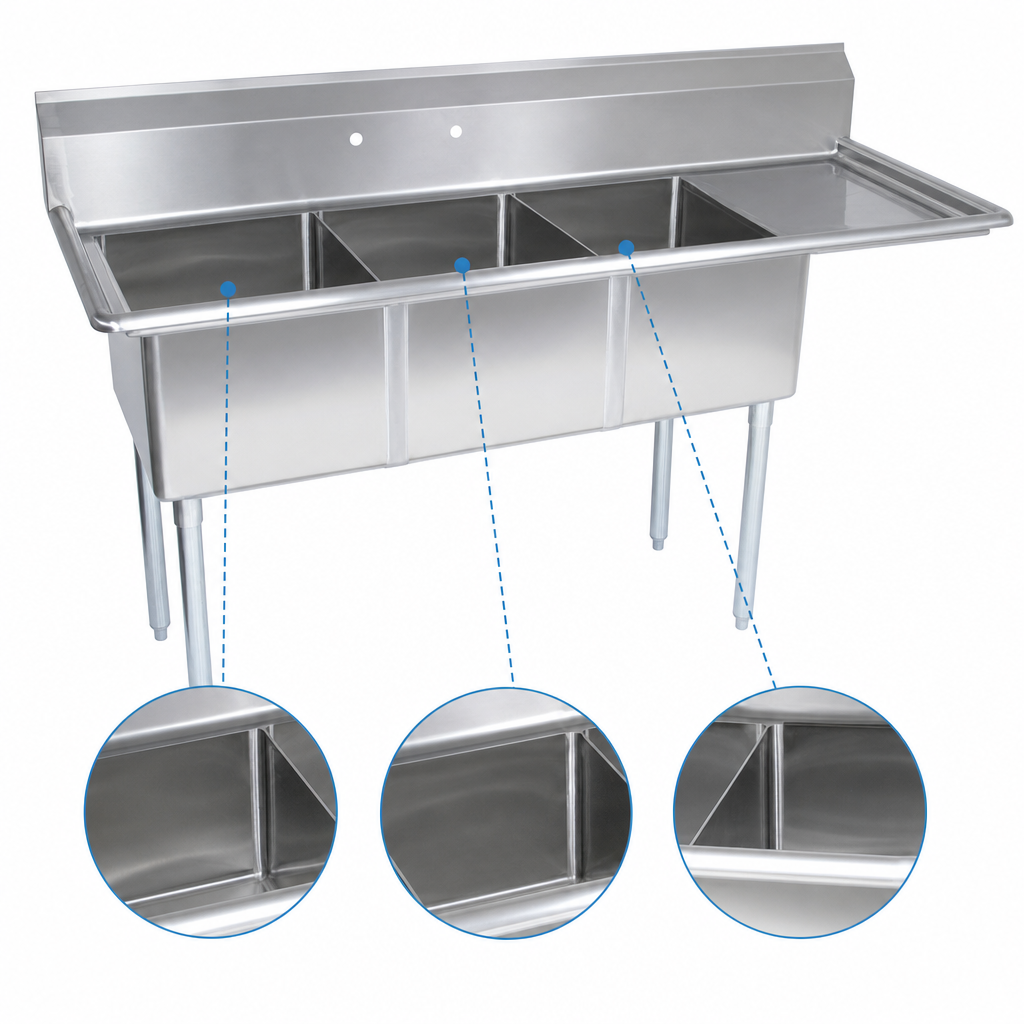

Three-Compartment Layout

Includes three equally sized sink compartments for standard wash, rinse, and sanitize operation.

Right-Hand Drainboard

A 24-inch drainboard is mounted on the right side for extra prep and drying space.

Boxed Backsplash

The 9-3/4-inch backsplash with 45-degree top and 2-inch return helps reduce wall splashes.

Splash Mount Faucet Holes

One set of faucet holes is punched with 8-inch centers for splash-mount faucet installation.

Heavy-Duty Stainless Top

18-gauge, 300-series stainless steel construction supports durability and corrosion resistance.

Galvanized Support Base

Galvanized legs and gussets provide a sturdy support structure for floor installation.

Adjustable Bullet Feet

Plastic bullet feet allow leveling on uneven floors.

Die-Stamped Drain Openings

3-1/2-inch die-stamped drain openings are built into the compartments for drainage.

Type 3-Compartment Sink
Style With Right-Hand Drainboard
Installation Type Floor Model
Material 300 Series Stainless Steel
Top Gauge 18 Gauge
Base Construction Galvanized Steel
Compartments 3
Compartment Width 18 Inches
Compartment Depth 24 Inches
Sink Depth 14 Inches
Backsplash Height 9-3/4 Inches
Drainboard Length 24 Inches
Faucet Holes 1 Set, 8-Inch Centers
Drain Opening Diameter 3-1/2 Inches
Shipping Width 81 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 111 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

Each compartment measures 18 inches wide by 24 inches front-to-back by 14 inches deep.
Yes. It includes a 24-inch drainboard on the right side.
It comes with one set of splash mount faucet holes with 8-inch centers.
The sink uses 18-gauge 300-series stainless steel with galvanized legs and gussets.
The overall size is 80-1/2 inches wide by 29-1/2 inches deep by 43-3/4 inches high.
