John Boos | SKU:
E3S8-18-14T24-X
John Boos E3S8-18-14T24-X Compartment Sinks
$1,209.54
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos E3S8-18-14T24-X Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos E3S8-18-14T24-X Compartment Sinks
$1,209.54
Unit price
/
Unavailable
Description

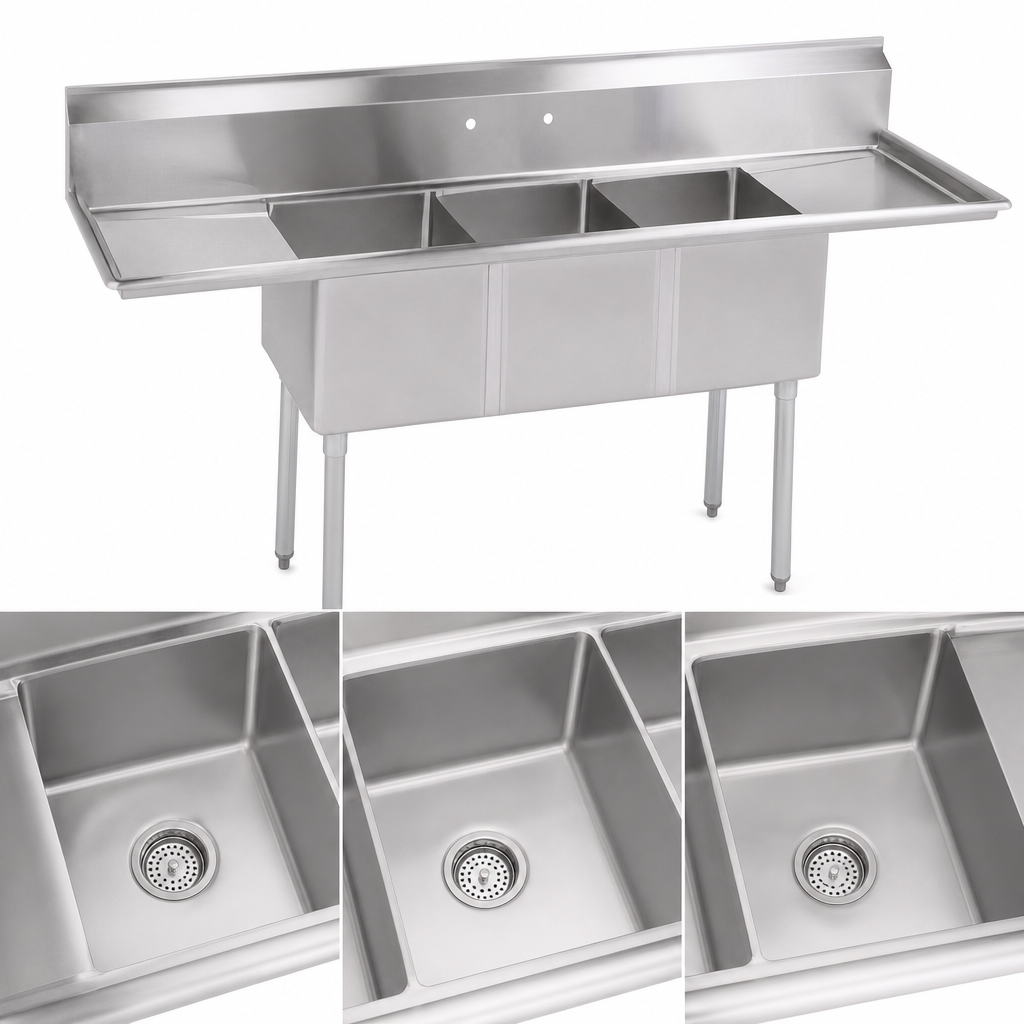

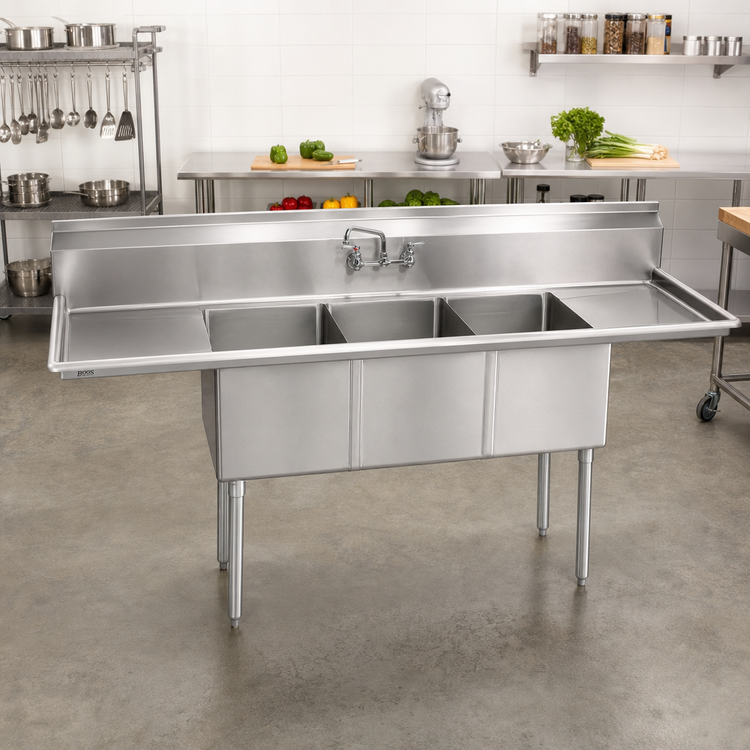

John Boos 102" E-Series 3-Compartment Sink with Dual 24" Drainboards
Model E3S8-18-14T24 | NSF & CSA-Sanitation CertifiedBuilt for demanding commercial kitchens, this John Boos E-Series sink delivers the perfect balance of rugged durability, easy sanitation, and everyday value. Three generous 18" x 18" x 14" deep bowls handle high-volume washing while full-size drainboards on both sides keep workflow moving smoothly.
Key Features
- 18 gauge, Type 300 stainless steel top & bowls with #4 satin polish for superior corrosion resistance.
- (3) 18" W x 18" F-B x 14" D compartments—ideal for wash, rinse, and sanitize set-ups.
- (2) 24" drainboards (left & right) formed with positive drain pitch.
- 9 3⁄4" boxed backsplash with 45° sanitary top, 2" return, and 1" tile edge.
- Splash-mount faucet holes on 8" centers, 1 1⁄8" diameter (facets sold separately).
- 3 1⁄2" die-stamped drain openings—ready for standard sink drains or disposers.
- Galvanized 1 5⁄8" O.D. legs & gussets with adjustable plastic bullet feet for a level install.
- All corners coved to a 3⁄4" radius and outside edges bull-nosed for operator safety.
- Certified to NSF/ANSI 2 and CSA-Sanitation standards—meets health-department codes nationwide.
- Manufactured in Effingham, Illinois, USA.
Detailed Specifications
| Overall dimensions (W × D × H) | 102" W × 23 1⁄2" D × 43 3⁄4" H (to top of backsplash) |
|---|---|
| Working height | 36" (to sink roll) |
| Compartments | (3) 18" W × 18" F-B × 14" D |
| Drainboards | (2) 24" left & right |
| Backsplash | 9 3⁄4" high boxed, 45° top, 2" return, 1" tile edge |
| Faucet mounting | 1 set splash-mount holes, 8" on-center, 1 1⁄8" Ø |
| Drain openings | (3) 3 1⁄2" die-stamped |
| Material | 18 GA / 300 series stainless steel (top & bowls) |
| Base | Galvanized legs & gussets, adjustable plastic bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Approx. ship weight | 107 lb |
Faucets, drains, and installation fittings are sold separately.
Care & Maintenance
- Clean daily with mild soap or non-chloride detergents and a soft cloth.
- Avoid harsh abrasive cleansers, metal scrapers, or steel wool to preserve the protective finish.
- Rinse and wipe dry after each use to maintain the stainless “passive” film and prevent spotting.
- For tough stains, use Bar Keepers Friend or the John Boos Stainless Steel Care Kit.
Need it fast? This model is stocked in Effingham, IL. Contact us for current lead times and freight
quotes.
Features & Specs
Features & Specs
Manufacturer
John Boos
Certifications
NSF, CSA-Sanitation
Height
43.75in
Width
102.0in
Depth
23.5in
Shipping Weight
107.0lbs
Base Type
legs
Compartment Width (side - side)
18"
Overall Length
97" - 108"
Top Gauge
18 gauge
Base Construction
galvanized
Drainboards
with left & right-hand drainboards
Compartment (front - back)
18"
Splash Height
9-3/4"
Sink Depth (rim - drain)
14"
Top Stainless Series
300 series
Specifications
E-Series Sink, 3-compartment, 102"W x 23-1/2"D x 43-3/4"H overall size, (3) 18"W x 18" front-to-back x 14" deep compartments, (2) 24" left & right drainboards, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
