John Boos E-Series 3-Compartment Stainless Steel Sink with Dual Drainboards, 102-Inch Wide

SKU: E3S8-18-14T24
GTIN: 662969353773
$1,617.86
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series 3-Compartment Stainless Steel Sink with Dual Drainboards, 102-Inch Wide

Floor Model, 18-Inch x 18-Inch x 14-Inch Compartments, 9-3/4-Inch High Backsplash

Built for busy prep areas, this floor-standing sink combines three deep compartments, dual drainboards, and a tall backsplash in durable stainless steel.

  • Three 18-Inch x 18-Inch x 14-Inch compartments support wash, rinse, and sanitize workflows.
  • 24-Inch drainboards on both sides provide extra landing and drying space.
  • 9-3/4-Inch boxed backsplash with a 45-degree top and 2-Inch return helps contain splashes.
  • 18/300 stainless steel top is paired with galvanized legs and gussets for durability.
  • Splash-mount faucet holes with 8-Inch centers and 3-1/2-Inch die-stamped drain openings simplify setup.
  • Adjustable plastic bullet feet help level the sink on uneven floors.

Overall Dimensions:

102.0"W x 23.5"D x 43.75"H

Product Weight:

107.0 lb

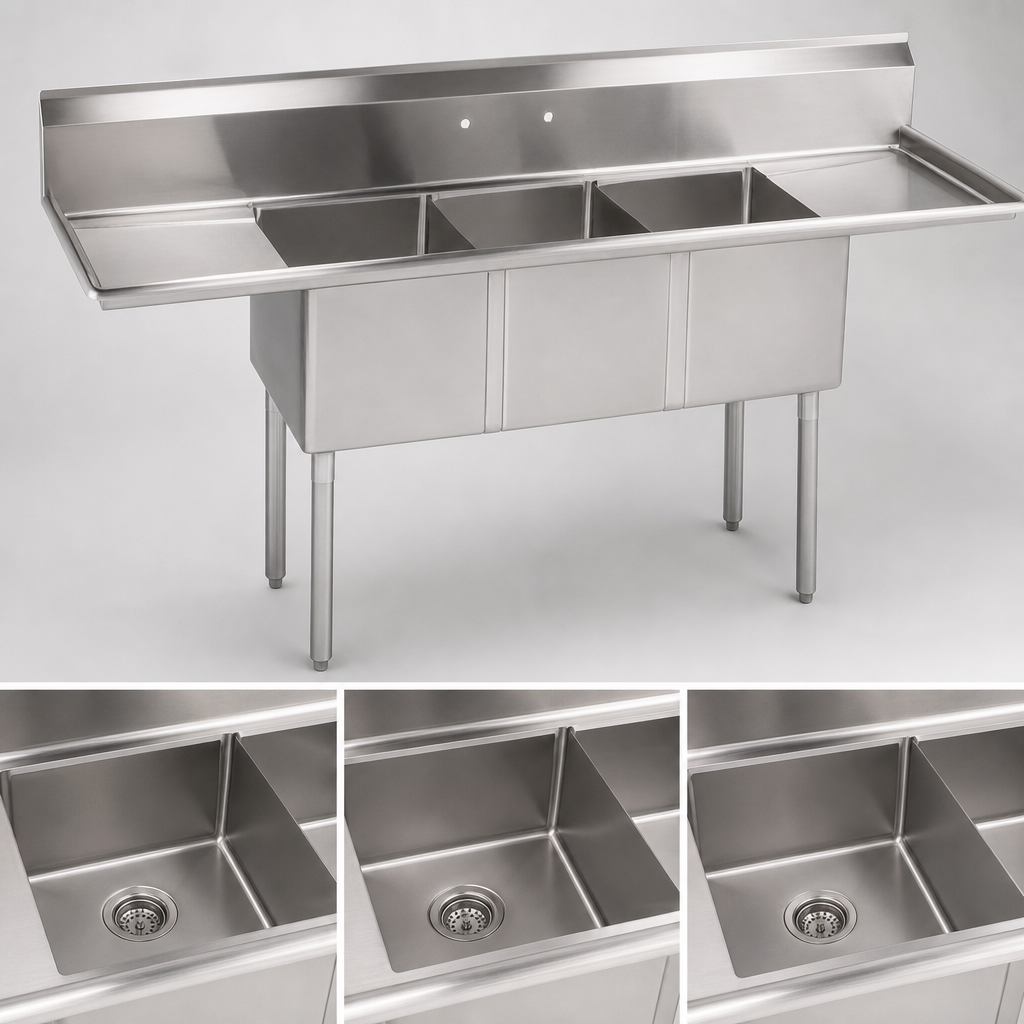

Three-Compartment Layout

Three equally sized compartments give operators separate areas for washing, rinsing, and sanitizing.

Dual Drainboards

Left and right 24-Inch drainboards add valuable prep, landing, and drying space.

Boxed Backsplash

The 9-3/4-Inch backsplash with a 45-degree top and 2-Inch return helps reduce wall splash.

Splash-Mount Faucet Holes

One set of splash-mount faucet holes is built into the backsplash with 8-Inch centers.

Die-Stamped Drain Openings

3-1/2-Inch diameter drain openings are pre-formed for straightforward drainage connection.

Stainless Steel Top

18/300 stainless steel construction provides a durable work surface for commercial use.

Galvanized Legs And Gussets

Galvanized support components add strength and stability to the floor-standing base.

Adjustable Bullet Feet

Plastic bullet feet make it easier to level the sink on uneven flooring.

Type Sink
Style 3-Compartment Sink
Installation Type Floor Model
Base Type Legs
Base Construction Galvanized
Material Stainless Steel
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Compartments 3
Compartment Width 18 Inches
Compartment Front To Back 18 Inches
Sink Depth 14 Inches
Drainboards Left And Right
Splash Height 9-3/4 Inches
Mounting Type Splash Mount
Faucet Hole Centers 8 Inches
Drain Opening Diameter 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 102 Inches
Shipping Depth 24 Inches
Shipping Height 44 Inches
Shipping Weight 107 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has three compartments, each measuring 18-Inches wide by 18-Inches front-to-back by 14-Inches deep.
Yes, it includes 24-Inch drainboards on both the left and right sides.
The sink has a 9-3/4-Inch boxed backsplash with a 45-degree top and 2-Inch return.
It has one set of splash-mount faucet holes with 8-Inch centers.
The sink is made with 18/300 stainless steel and supported by galvanized legs and gussets.
It uses 3-1/2-Inch diameter die-stamped drain openings.
