Key specifications
- Dimensions
- 90.0"W × 23.5"D × 43.75"H
- Type
- Three-Compartment Sink
- Style
- With Drainboards
- Installation Type
- Floor Model
- Material
- Stainless Steel
- Finish
- Satin

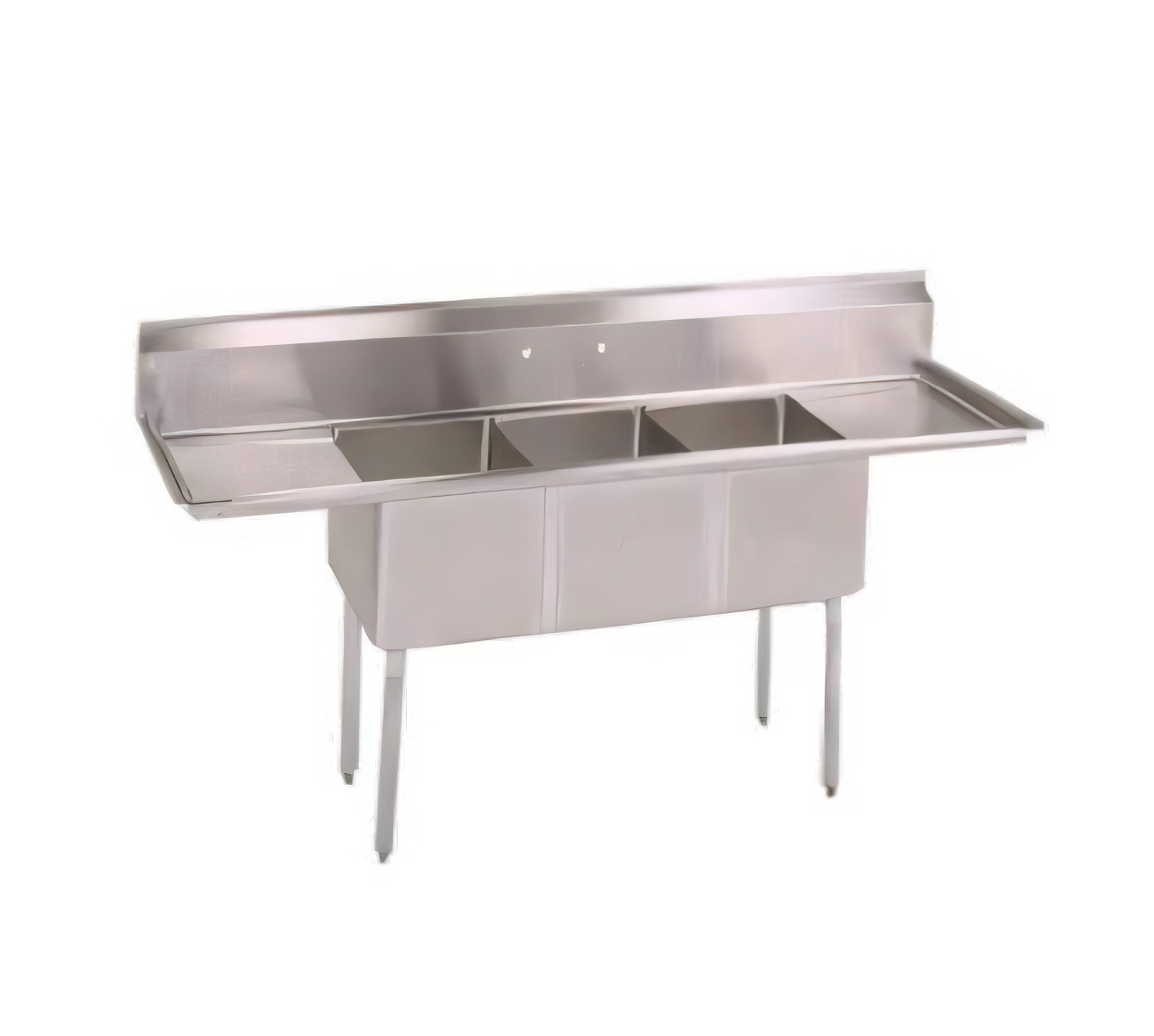

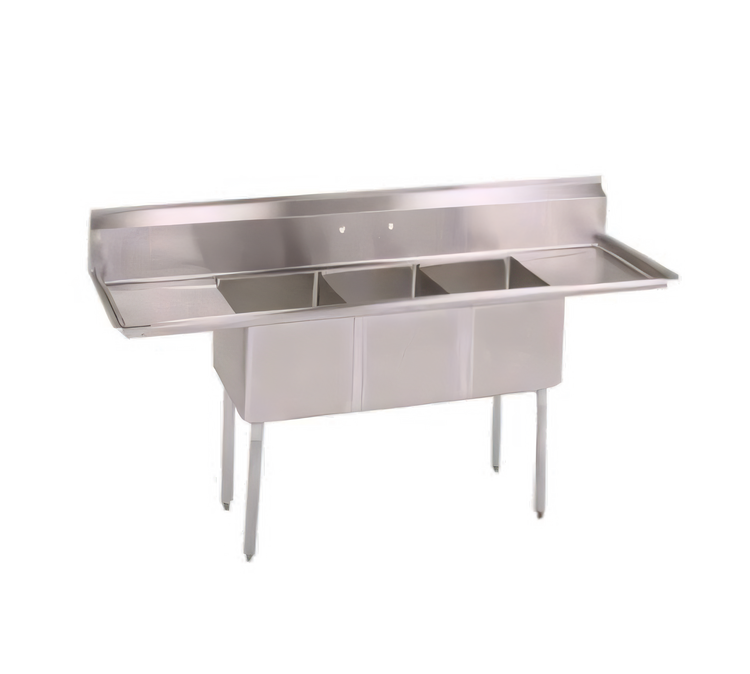

John Boos E3S8-18-14T18 90 in 3-Compartment Sink
Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The John Boos E-Series E3S8-18-14T18 is a floor-model, three-compartment sink with a stainless steel top and bowls, left and right drainboards, and a galvanized base.
- Three compartments: Each compartment measures 18 in wide by 18 in front-to-back and 14 in deep.
- Drainboards: An 18 in drainboard is provided on both the left and right sides.
- Stainless steel construction: The top and bowls are 18-gauge Type 300 stainless steel with a No. 4 polish and satin finish.
- Backsplash: The 9.75 in boxed backsplash has a 45-degree top and a 2 in wall return.
- Plumbing details: Splash-mount faucet holes are spaced 8 in on center, and the bowls have 3.5 in die-stamped drain openings.
- Base: Galvanized legs and gussets finish with adjustable plastic bullet feet.
Overall Dimensions:
90.0"W x 23.5"D x 43.75"HProduct Weight:
101.0 lbThree Compartments

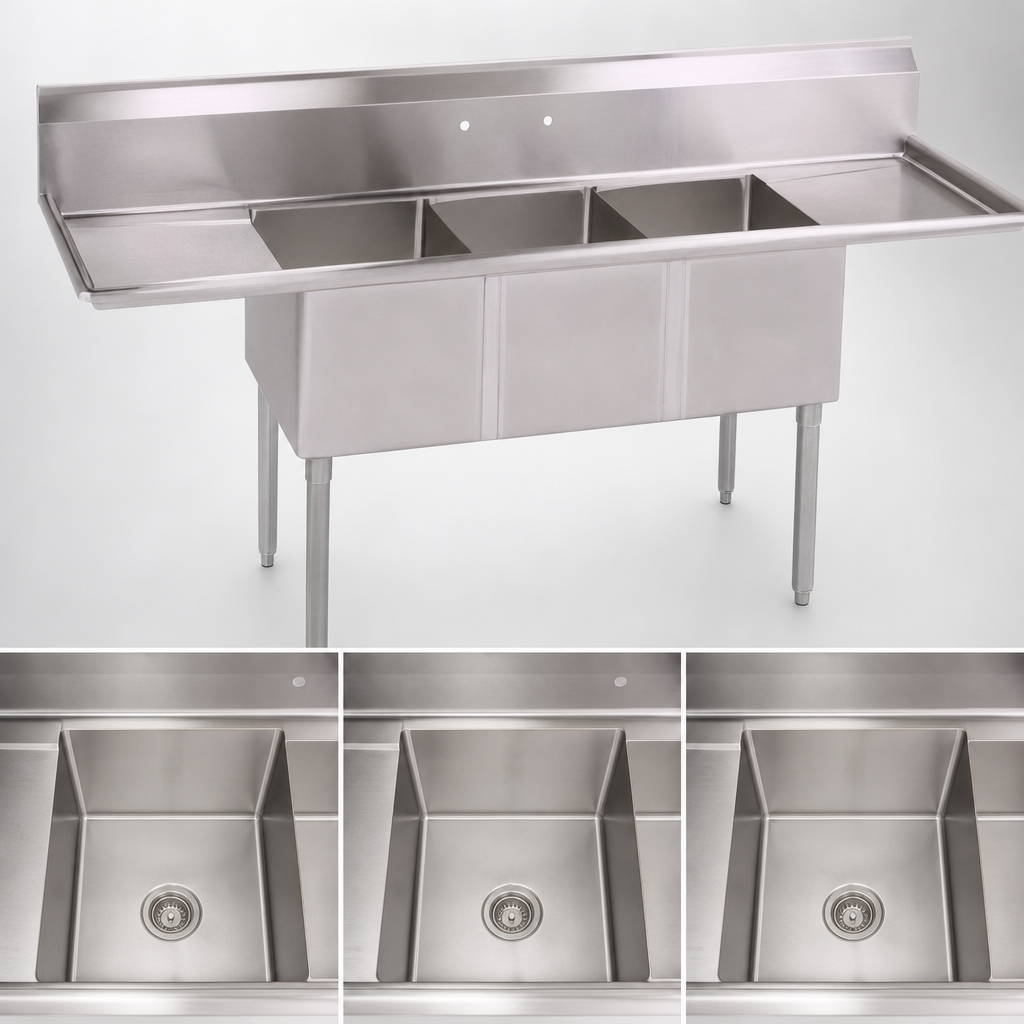

Includes three compartments, each measuring 18 in wide by 18 in front-to-back and 14 in deep.
Left And Right Drainboards
Includes an 18 in drainboard on both the left and right sides.
18-Gauge Type 300 Stainless Steel
The top and bowls are made from 18-gauge Type 300 stainless steel.
Satin Finish
The stainless steel has a No. 4 polish and satin finish.
Boxed Backsplash
The backsplash is 9.75 in high with a 45-degree top and 2 in wall return.
Faucet Hole Layout
Includes one set of splash-mount faucet holes with 8 in centers.
Die-Stamped Drain Openings
The bowl bottoms form for drainage to 3.5 in diameter die-stamped openings.
Galvanized Base
The base includes galvanized legs and gussets with adjustable plastic bullet feet.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
