Key specifications

Dimensions
90.0"W × 23.5"D × 43.75"H
Type
3-Compartment Sink
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Compartments
3
Spec sheet
John Boos SKU: E3S8-18-12T18 UPC: 662969010287

John Boos E3S8-18-12T18 3-Compartment Sink, Dual Drainboards

$1,184.04
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $110/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type 3-Compartment Sink
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Compartments 3
Compartment Size 18 in W x 18 in Front-to-Back x 12 in Deep
Drainboard Configuration Left and Right
Drainboard Width 18 in Each
Backsplash Height 9-3/4 in
Faucet Mount Splash Mount
Faucet Hole Centers 8 in
Drain Opening Diameter 3-1/2 in
Drain Opening Type Die-Stamped
Top Gauge 18 Gauge
Stainless Steel Series 300 Series
Polish #4
Base Material Galvanized Steel
Foot Type Adjustable Plastic Bullet

Description

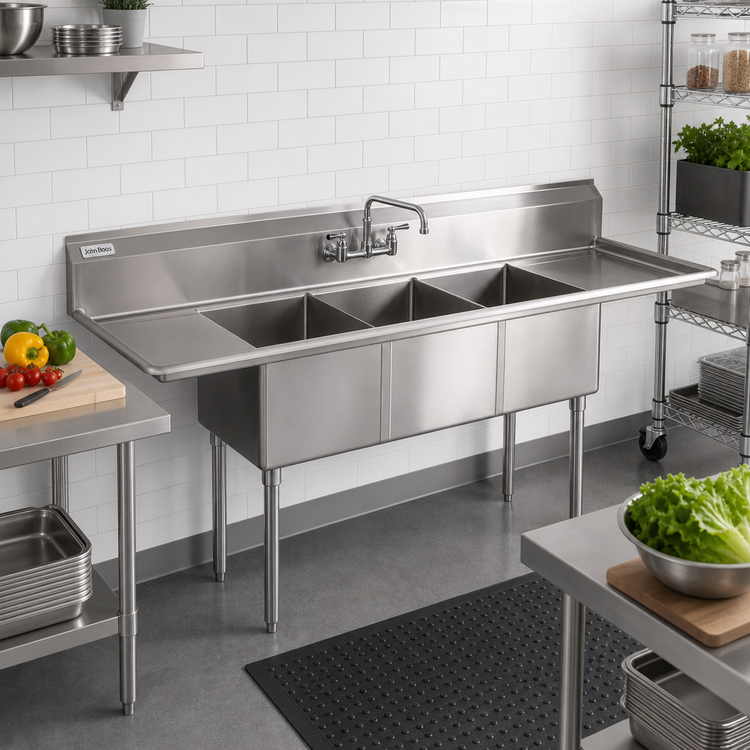

The John Boos E3S8-18-12T18 is a 3-compartment E-Series stainless steel sink measuring 90 inches wide overall. It has three 18-inch-wide by 18-inch front-to-back compartments, each 12 inches deep, plus left and right 18-inch drainboards.

  • Stainless steel construction: The top and bowls are 18-gauge Type 300 stainless steel with #4 polish and a satin finish.
  • Backsplash: The 9-3/4-inch boxed backsplash has a 45-degree top and a 2-inch return to the wall.
  • Faucet and drains: Includes one set of splash-mount faucet holes with 8-inch centers and 3-1/2-inch die-stamped drain openings.
  • Base: Galvanized legs and gussets are paired with adjustable plastic bullet feet.

Overall Dimensions:

90.0"W x 23.5"D x 43.75"H

Product Weight:

95.0 lb

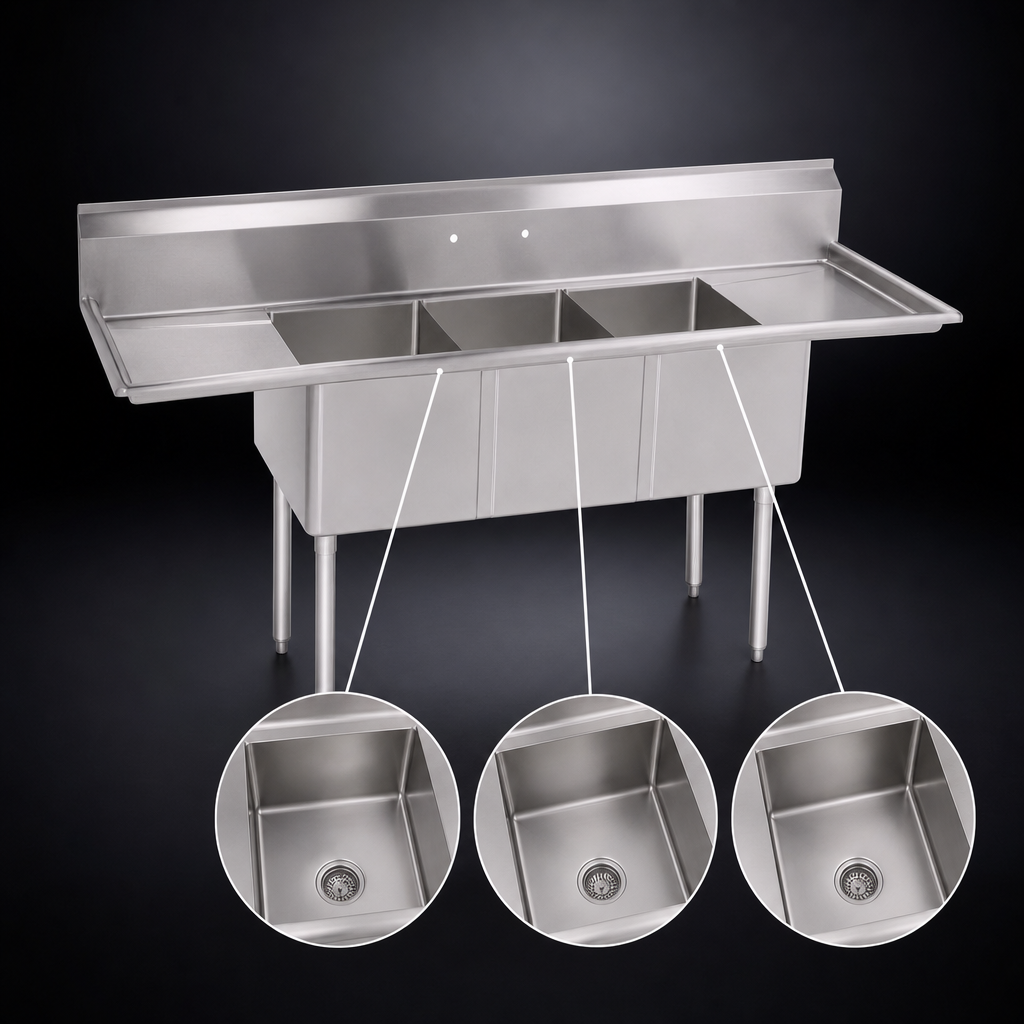

Three Compartments

The sink has three compartments measuring 18 inches wide by 18 inches front-to-back by 12 inches deep.

Left and Right Drainboards

Two 18-inch drainboards are positioned on the left and right sides of the sink.

Stainless Steel Top and Bowls

The top and bowls are 18-gauge Type 300 stainless steel with #4 polish and a satin finish.

Boxed Backsplash

The 9-3/4-inch-high boxed backsplash has a 45-degree top and a 2-inch return to the wall.

Splash-Mount Faucet Holes

One set of splash-mount faucet holes is provided with 8-inch centers.

Die-Stamped Drain Openings

The compartments have 3-1/2-inch-diameter die-stamped drain openings.

Galvanized Base

The sink has galvanized legs and gussets.

Adjustable Bullet Feet

The base uses adjustable plastic bullet feet.

Frequently Asked Questions

It has three compartments.
Each compartment measures 18 inches wide by 18 inches front-to-back by 12 inches deep.
Yes. It has an 18-inch drainboard on both the left and right sides.
The overall dimensions are 90 inches wide by 23-1/2 inches deep by 43-3/4 inches high.
It has a 9-3/4-inch-high boxed backsplash with a 45-degree top and a 2-inch return to the wall.
The sink has one set of splash-mount faucet holes with 8-inch centers.
The product is certified to CSA-Sanitation and NSF.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
