John Boos

John Boos E-Series 3-Compartment Stainless Steel Sink with Left Drainboard

SKU: E3S8-18-12L18-X
$898.91
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

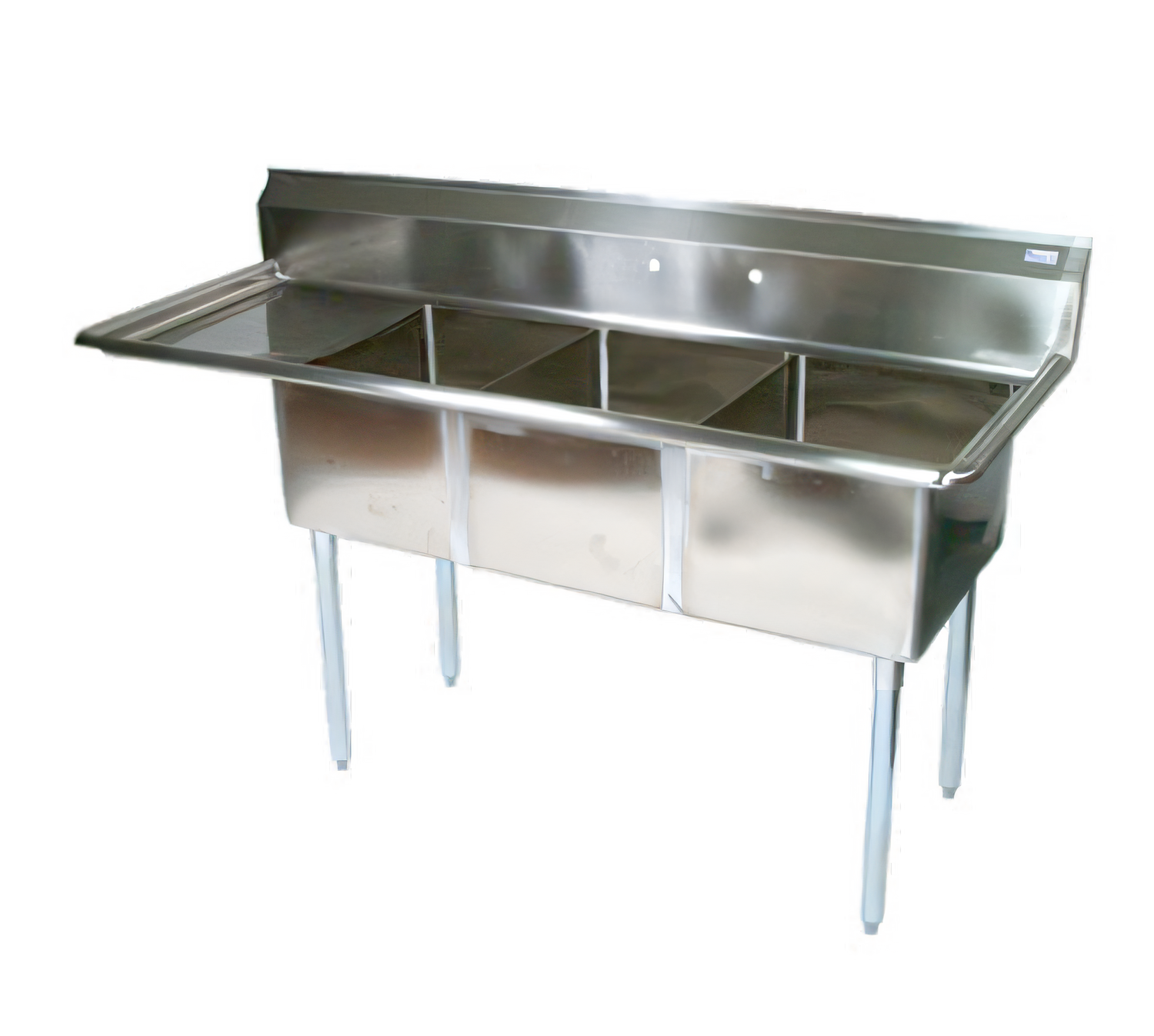

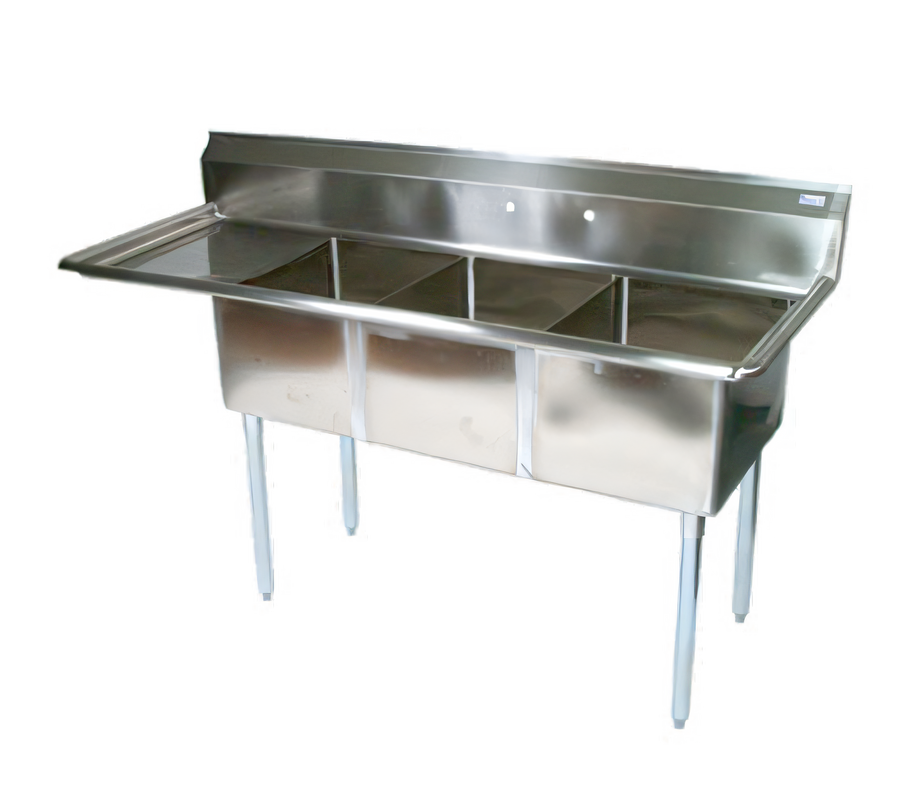

John Boos E-Series 3-Compartment Stainless Steel Sink with Left Drainboard

74.5 Inches W x 23.5 Inches D x 43.75 Inches H, 18-Gauge Top, 300 Series Stainless Steel

Built for busy prep and warewashing areas, this three-compartment sink combines a left drainboard, durable stainless steel construction, and a protective boxed backsplash in one efficient workstation.

  • Three-compartment layout supports efficient wash, rinse, and sanitize workflows.
  • Built-in 18-inch left drainboard adds convenient landing space for dishes and tools.
  • 9-3/4-inch boxed backsplash helps contain splashes and protect surrounding walls.
  • 18/300 stainless steel construction is designed for commercial durability.
  • Galvanized legs and adjustable plastic bullet feet help provide a stable, level setup.
  • NSF and CSA-Sanitation listed for foodservice sanitation compliance.

Overall Dimensions:

74.5"W x 23.5"D x 43.75"H

Product Weight:

88.0 lb

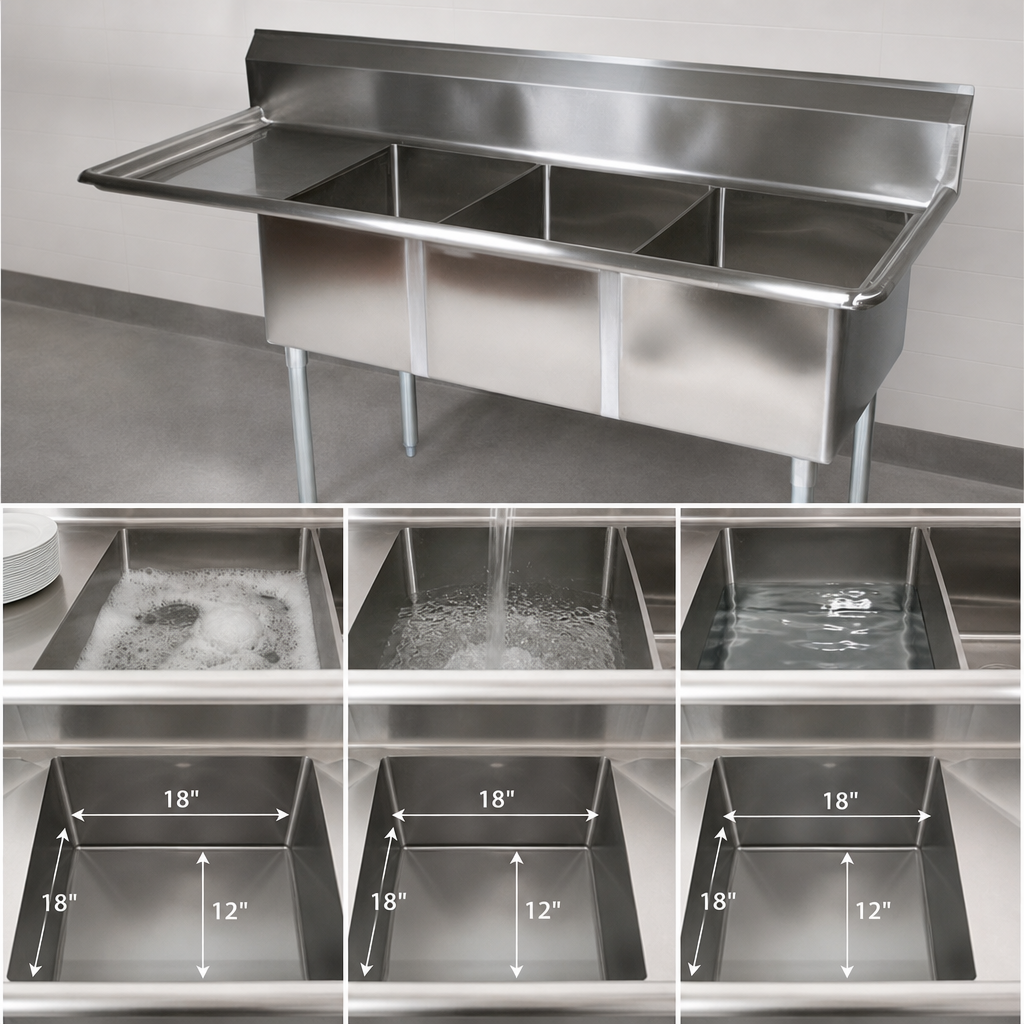

Three Compartment Design

Three 18-inch wide by 18-inch front-to-back by 12-inch deep compartments help separate washing, rinsing, and sanitizing tasks.

Left Drainboard

The 18-inch left-hand drainboard provides extra workspace for staging clean or soiled items.

Boxed Backsplash

A 9-3/4-inch boxed backsplash with a 45-degree top and 2-inch return helps reduce splashing.

Splash Mount Faucet Holes

One set of splash mount faucet holes with 8-inch centers supports standard faucet installation.

Die-Stamped Drain Openings

3-1/2-inch diameter die-stamped drain openings promote efficient drainage.

Stainless Steel Work Surface

18/300 stainless steel construction offers commercial-grade strength and corrosion resistance.

Galvanized Support Base

Galvanized legs and gussets with adjustable plastic bullet feet help keep the sink stable and level.

Sanitation Listings

NSF and CSA-Sanitation listings support use in commercial foodservice environments.

Type 3-Compartment Sink
Style With Left Drainboard
Installation Type Floor Model
Compartments 3
Compartment Width 18 Inches
Compartment Front-To-Back 18 Inches
Sink Depth 12 Inches
Material Stainless Steel
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Base Construction Galvanized Steel
Backsplash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Diameter 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 75 Inches
Shipping Depth 24 Inches
Shipping Height 44 Inches
Shipping Weight 88 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has three compartments, each measuring 18 inches wide by 18 inches front-to-back by 12 inches deep.
Yes, it includes one 18-inch left-hand drainboard.
The sink includes one set of splash mount faucet holes with 8-inch centers.
It has a 9-3/4-inch boxed backsplash with a 45-degree top and 2-inch return.
The sink is made from 18/300 stainless steel and uses galvanized legs and gussets with adjustable plastic bullet feet.
Yes, it is listed as NSF and CSA-Sanitation.
