Key specifications

Dimensions
74.5"W × 23.5"D × 43.75"H
Type
Compartment Sink
Style
3-Compartment
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Spec sheet
John Boos SKU: E3S8-18-12L18 UPC: 662969009960

John Boos E3S8-18-12L18 3-Compartment Sink, Left Drainboard

$1,146.42
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Size
Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $106/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Style 3-Compartment
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Compartments 3
Compartment Width 18 in
Compartment Front-To-Back 18 in
Bowl Depth 12 in
Drainboard Position Left
Drainboard Width 18 in
Backsplash Style Boxed
Backsplash Height 9.75 in
Backsplash Angle 45°
Backsplash Return 2 in
Faucet Hole Type Splash Mount
Faucet Hole Centers 8 in
Drain Opening Diameter 3.5 in
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Base Material Galvanized Steel
Leg Material Galvanized Steel
Gusset Material Galvanized Steel
Foot Type Adjustable Plastic Bullet Feet

Description

The John Boos E-Series three-compartment sink has three 18-inch-wide by 18-inch front-to-back compartments with 12-inch bowl depth, an 18-inch left drainboard, and a 9-3/4-inch boxed backsplash.

  • Constructed of 18-gauge Type 300 stainless steel with a #4 polish and satin finish.
  • Includes splash-mount faucet holes on 8-inch centers and 3-1/2-inch die-stamped drain openings.
  • Galvanized legs and gussets support the sink, with adjustable plastic bullet feet.

Overall Dimensions:

74.5"W x 23.5"D x 43.75"H

Product Weight:

88.0 lb

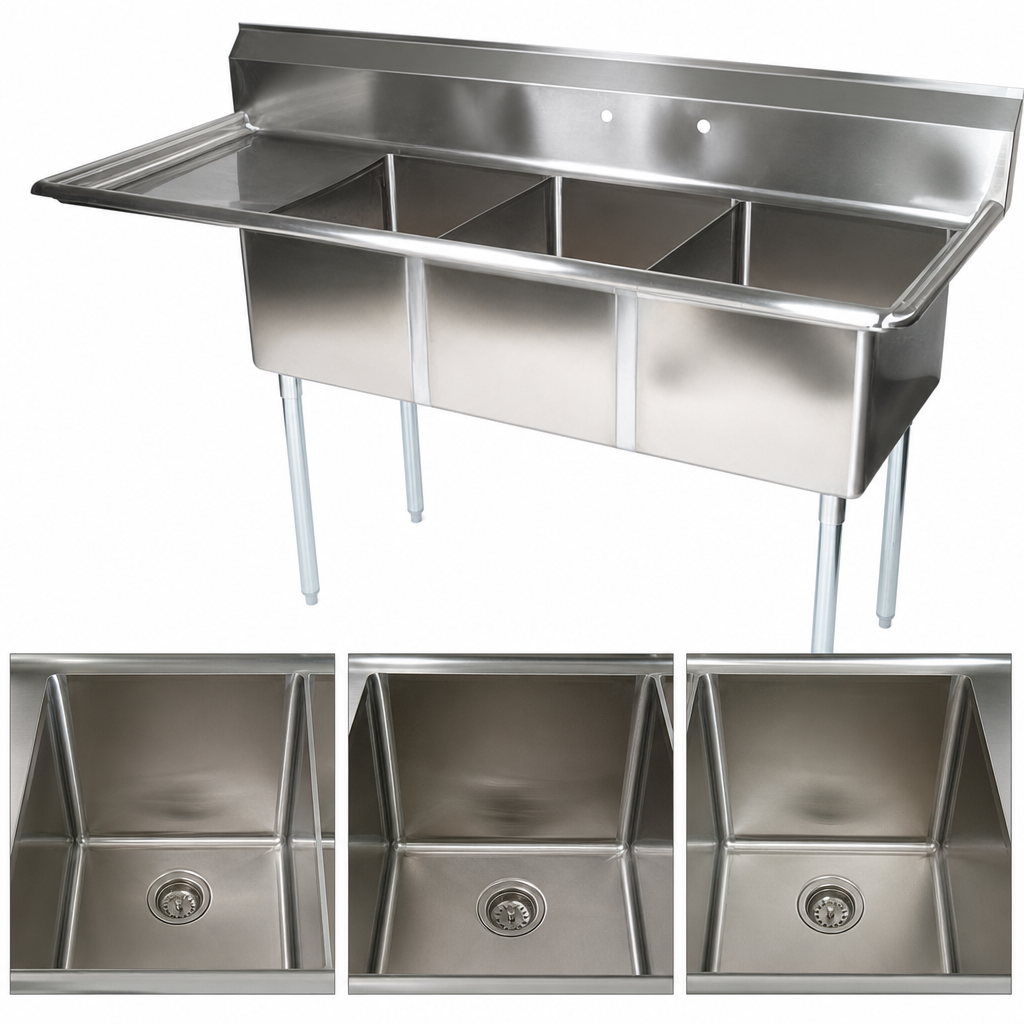

Three Compartments

Includes three 18 in wide x 18 in front-to-back x 12 in deep compartments.

Left Drainboard

Includes an 18 in drainboard on the left side.

Stainless Steel Construction

Uses 18-gauge Type 300 stainless steel with a #4 polish and satin finish.

Boxed Backsplash

The 9.75 in backsplash has a 45° top and 2 in return.

Faucet Hole Set

Includes splash-mount faucet holes on 8 in centers.

Die-Stamped Drain Openings

Each compartment has a 3.5 in diameter drain opening.

Galvanized Base

Includes galvanized legs and gussets with adjustable plastic bullet feet.

Frequently Asked Questions

It has three compartments, each measuring 18 in wide by 18 in front-to-back with a 12 in bowl depth.
The 18 in drainboard is on the left side.
The overall dimensions are 74.5 in wide, 23.5 in deep, and 43.75 in high.
It has splash-mount faucet holes on 8 in centers.
The sink top and bowls are made from 18-gauge Type 300 stainless steel with a satin finish.
The sink is certified to NSF and CSA-Sanitation.
