Key specifications

Dimensions
59.0"W × 23.5"D × 43.75"H
Type
Compartment Sink
Compartments
3
Installation Type
Floor Model
Material
Stainless Steel
Base Construction
Galvanized Steel
Spec sheet
John Boos SKU: E3S8-18-12-X

John Boos E3S8-18-12-X 3-Compartment Sink, 18 x 18 x 12 in

$849.42
/each
Estimated to ship in 8–11 business days
Factory Add-Ons
Included: John Boos warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $79/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Compartments 3
Installation Type Floor Model
Material Stainless Steel
Base Construction Galvanized Steel
Base Type Legs
Finish Satin Finish
Polish #4
Stainless Steel Series 300 Series
Top Gauge 18 Gauge
Compartment Width 18 in
Compartment Depth 18 in
Bowl Depth 12 in
Drainboards Without Drainboards
Splash Height 9.75 in
Backsplash Return 2 in
Backsplash Angle 45°
Faucet Hole Sets 1
Faucet Hole Centers 8 in
Drain Opening Diameter 3.5 in
Foot Type Adjustable Plastic Bullet Feet
Overall Width 59 in
Overall Depth 23.5 in
Overall Height 43.75 in

Description

The John Boos E3S8-18-12-X is a floor-model compartment sink with three 18 in x 18 in x 12 in compartments and no drainboards.

  • 18-gauge Type 300 stainless steel top and bowls with a #4 polish and satin finish.
  • 9.75 in boxed backsplash with a 45° top and 2 in return.
  • Galvanized steel legs and gussets with adjustable plastic bullet feet.
  • One set of splash-mount faucet holes on 8 in centers.
  • 3.5 in diameter die-stamped drain openings.

Overall Dimensions:

59.0"W x 23.5"D x 43.75"H

Product Weight:

77.0 lb

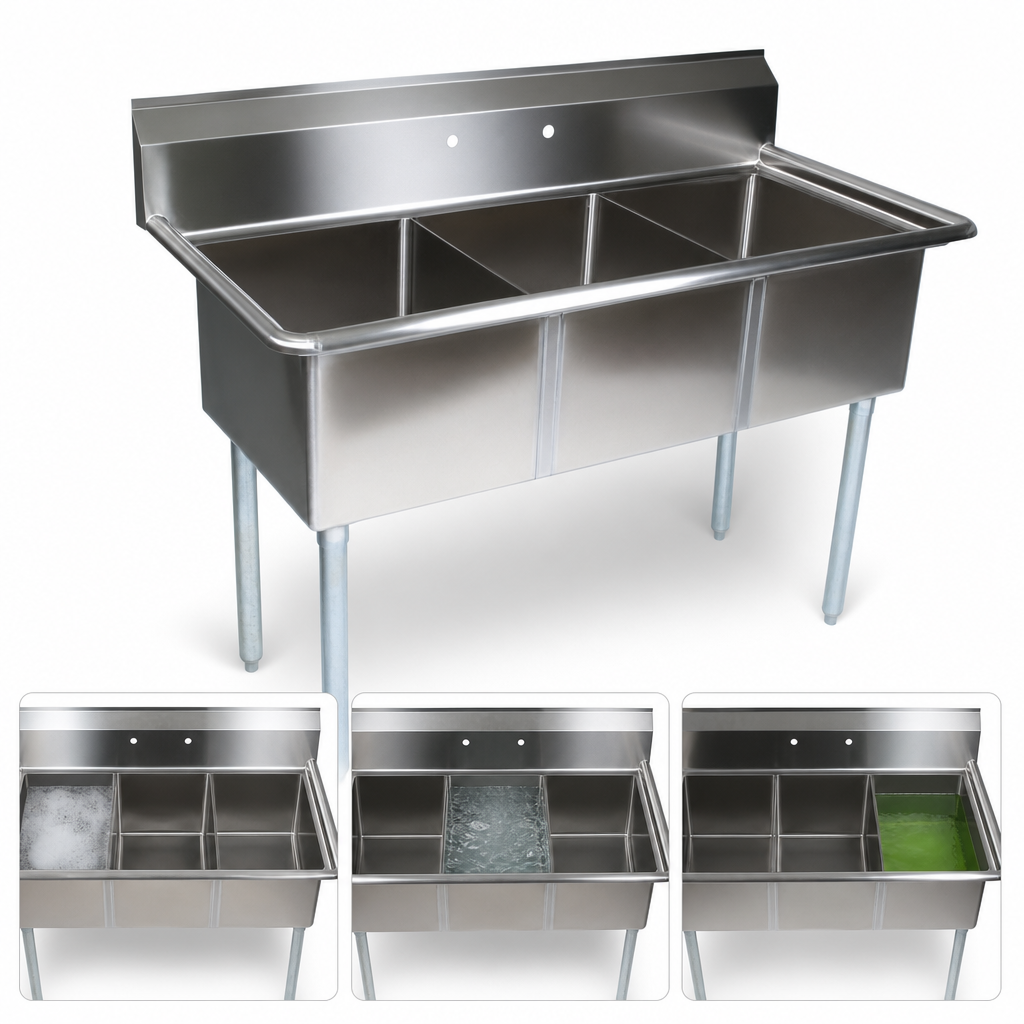

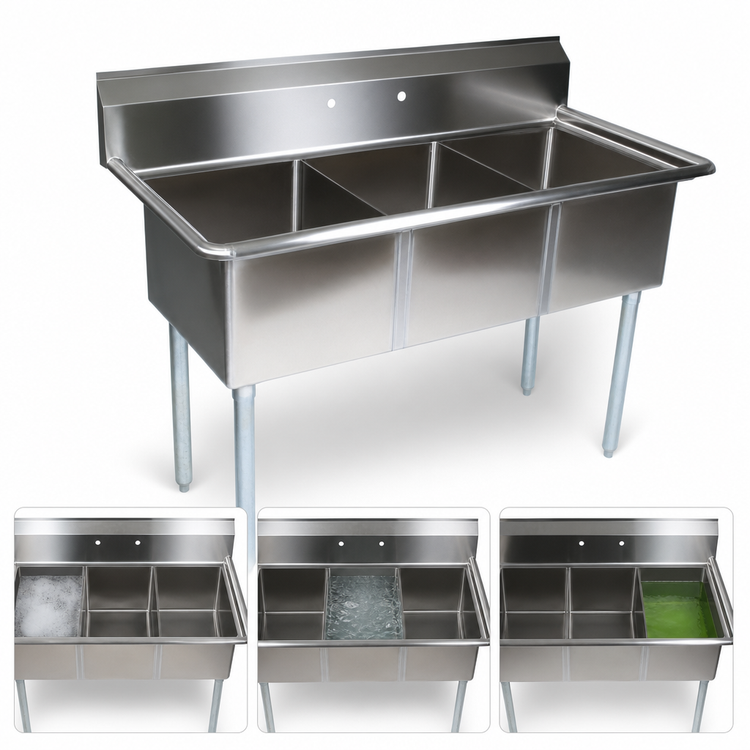

Three Compartments

The sink has three compartments measuring 18 in wide x 18 in front-to-back x 12 in deep each.

Stainless Steel Top and Bowls

The top and bowls are made from 18-gauge Type 300 stainless steel with a #4 polish and satin finish.

Boxed Backsplash

The full backsplash is 9.75 in high with a 45° top and 2 in return.

Galvanized Base Components

The sink has galvanized steel legs and gussets with adjustable plastic bullet feet.

Splash-Mount Faucet Holes

One set of faucet holes is provided with 8 in centers.

Die-Stamped Drain Openings

Each compartment has a 3.5 in diameter die-stamped drain opening.

Frequently Asked Questions

It has three compartments. Each measures 18 in wide x 18 in front-to-back x 12 in deep.
No. The exact model is specified without drainboards.
The overall dimensions are 59 in wide x 23.5 in deep x 43.75 in high.
The top and bowls are made from 18-gauge Type 300 stainless steel.
It has a 9.75 in boxed backsplash with a 45° top and 2 in return.
The listed certifications are CSA-Sanitation and NSF.
