John Boos E-Series 3-Compartment 18-Gauge 300 Series Stainless Steel Sink with Boxed Backsplash and Legs

SKU: E3S8-18-12
GTIN: 662969009946
$1,338.02
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

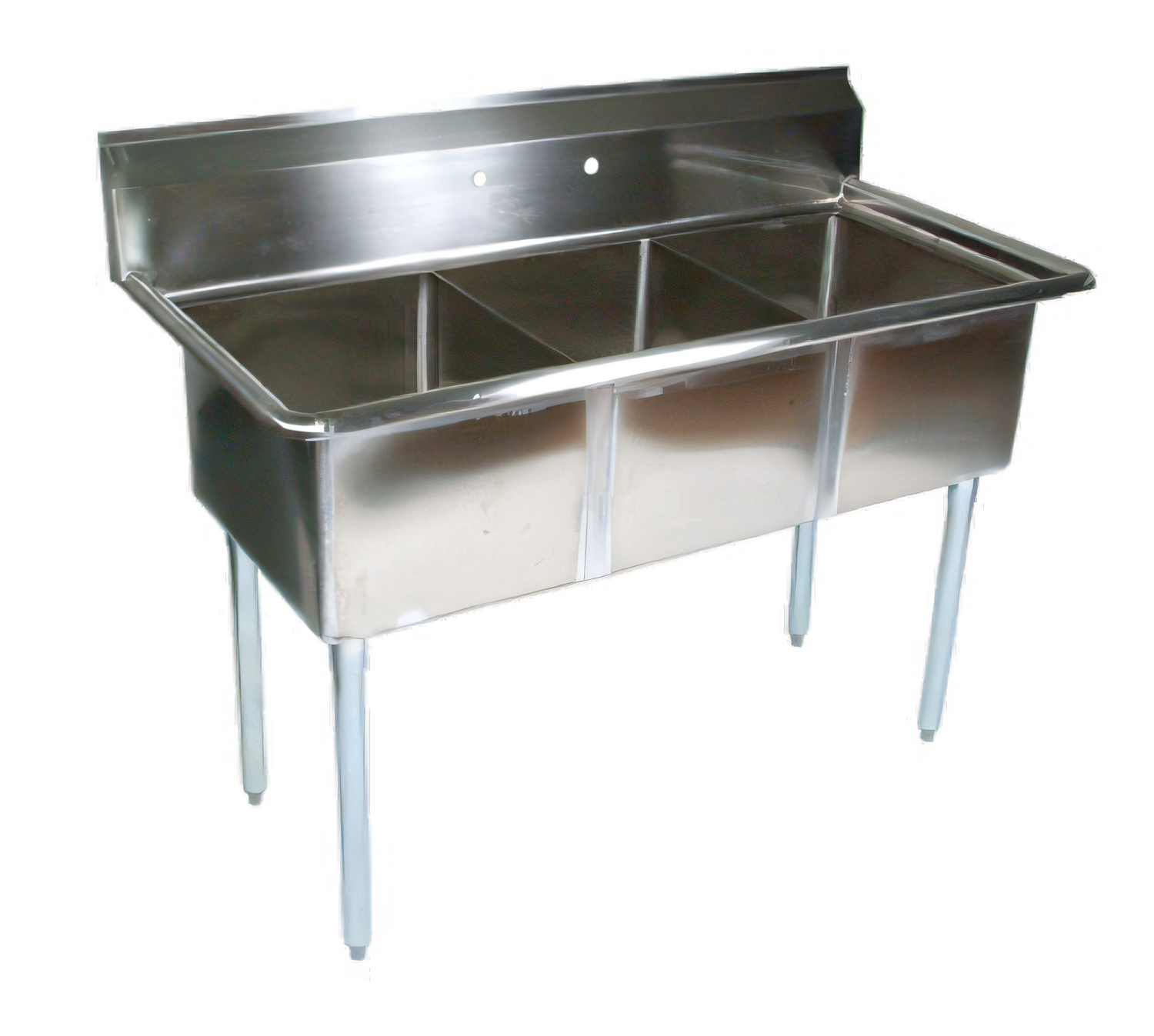

John Boos E-Series 3-Compartment 18-Gauge 300 Series Stainless Steel Sink with Boxed Backsplash and Legs

59 x 23-1/2 x 43-3/4 Inches Overall; 18 x 18 x 12 Inch Compartments

A durable three-bowl sink built for busy prep and wash stations, featuring a high boxed backsplash, splash-mount faucet holes, and galvanized leg support.

  • Three 18 x 18 x 12 inch compartments support wash, rinse, and sanitize workflows.
  • 9-3/4 inch boxed backsplash with 45° top and 2 inch return helps protect the wall behind the sink.
  • Splash-mount faucet holes with 8 inch centers are ready for fixture installation.
  • 18/300 stainless steel construction is paired with galvanized legs and gussets for long-lasting support.
  • Adjustable plastic bullet feet help level the sink on uneven floors.
  • 3-1/2 inch die-stamped drain openings promote efficient drainage.
  • Configured without drainboards to maximize open work area.

Overall Dimensions:

59.0"W x 23.5"D x 43.75"H

Product Weight:

77.0 lb

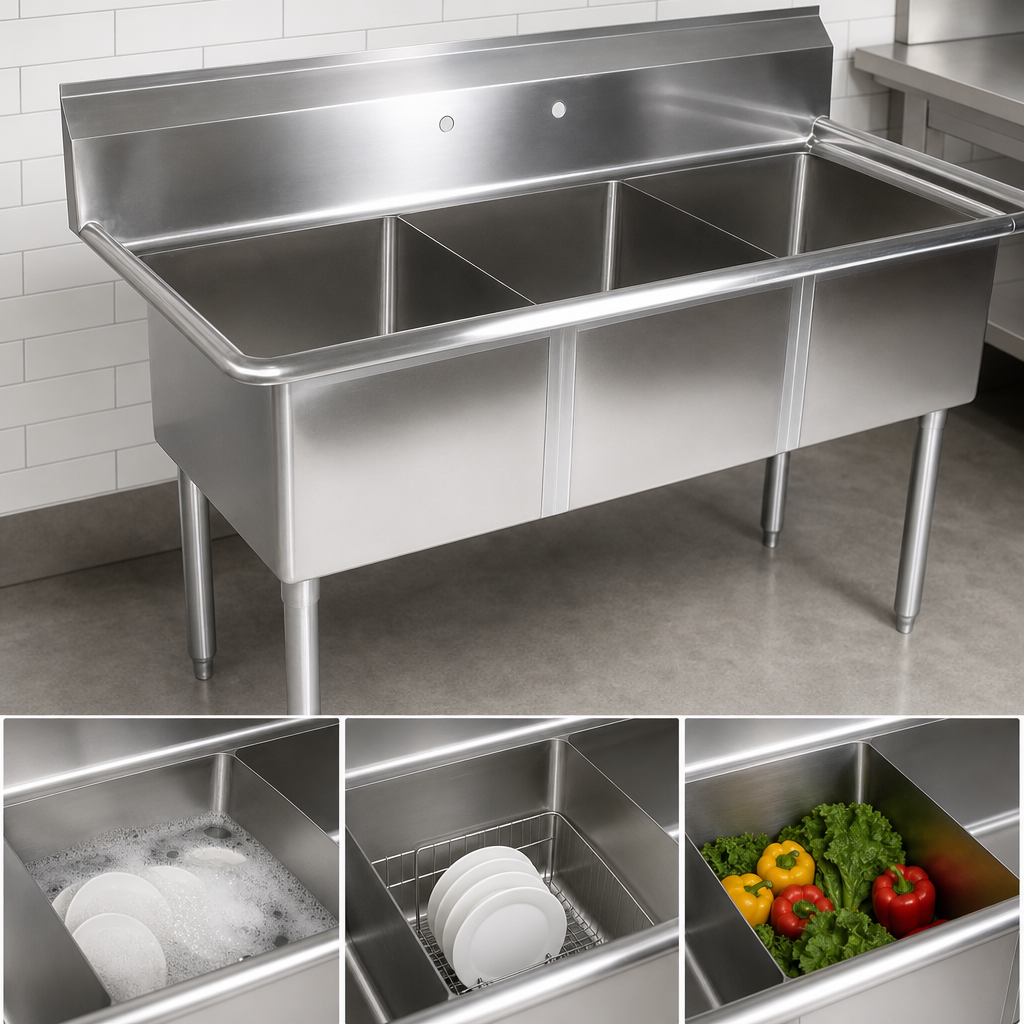

Three Compartments

Provides separate bowls for multi-step warewashing and prep tasks.

Boxed Backsplash

The 9-3/4 inch backsplash with a 45° top and 2 inch return helps reduce wall splash.

Splash-Mount Faucet Holes

One set of faucet holes with 8 inch centers is included for easy fixture mounting.

Die-Stamped Drain Openings

3-1/2 inch diameter drain openings are formed into the bowls for drainage.

18/300 Stainless Steel Construction

Built from 18-gauge, 300 series stainless steel for everyday commercial use.

Galvanized Legs and Gussets

Galvanized base components provide sturdy support for the sink assembly.

Adjustable Bullet Feet

Plastic bullet feet help with leveling and floor contact.

No Drainboards

Open configuration leaves more room around the sink for workflow and setup.

Type 3-Compartment Sink
Style Boxed Backsplash
Installation Type Floor Model
Compartments 3
Material 300 Series Stainless Steel
Gauge 18 Gauge
Base Construction Galvanized
Backsplash Height 9-3/4 Inches
Backsplash Return 2 Inches
Compartment Width 18 Inches
Compartment Depth 18 Inches
Compartment Height 12 Inches
Drain Opening Size 3-1/2 Inches
Faucet Hole Centers 8 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 59 Inches
Shipping Depth 24 Inches
Shipping Height 44 Inches
Shipping Weight 77 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

This sink has three compartments.
Each compartment measures 18 inches wide, 18 inches front-to-back, and 12 inches deep.
Yes. It includes a 9-3/4 inch boxed backsplash with a 45° top and 2 inch return.
Yes. The sink has one set of splash-mount faucet holes with 8 inch centers.
No. This model is configured without drainboards.
It is made from 18/300 stainless steel and includes galvanized legs and gussets.
