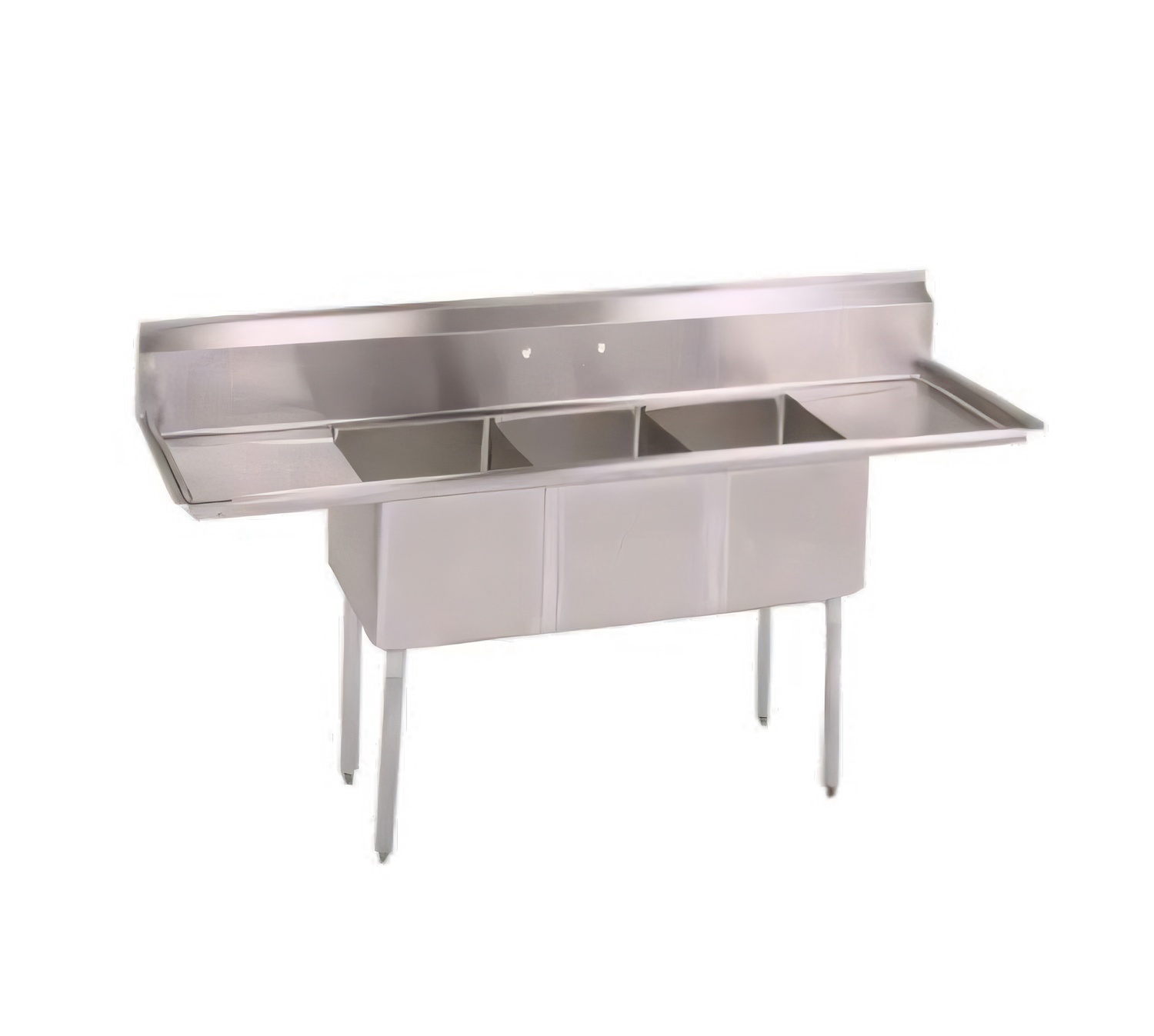

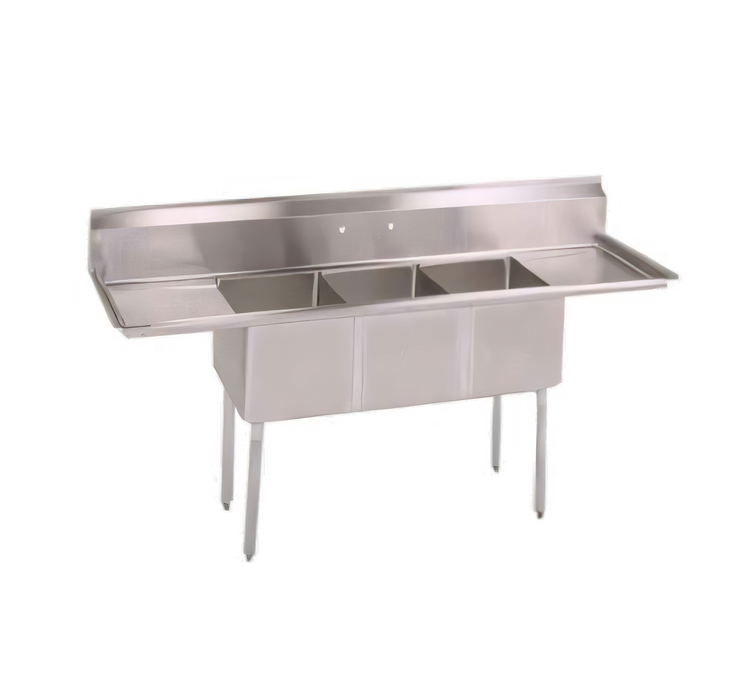

John Boos E-Series 84 Inch 3-Compartment Sink with Left and Right Drainboards

SKU: E3S8-1620-14T18-X
$1,093.95
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series 84 Inch 3-Compartment Sink with Left and Right Drainboards

14 Inch Deep Compartments, 9-3/4 Inch Boxed Backsplash, 18 Gauge Stainless Steel

This heavy-duty 3-compartment sink speeds up prep and cleanup with dual drainboards, deep bowls, and a splash-controlling boxed backsplash.

  • Three 16" x 20" x 14" compartments support wash, rinse, and sanitize workflows.
  • Dual 18" drainboards add extra staging and drying space on both sides.
  • 9-3/4" boxed backsplash with 45° top and 2" return helps contain splashes.
  • 18/300 stainless steel construction with galvanized legs and gussets is built for demanding kitchens.
  • Adjustable plastic bullet feet help level the sink on uneven floors.
  • Splash mount faucet holes with 8" centers are ready for fixture installation.

Overall Dimensions:

84.0"W x 25.5"D x 43.75"H

Product Weight:

100.0 lb

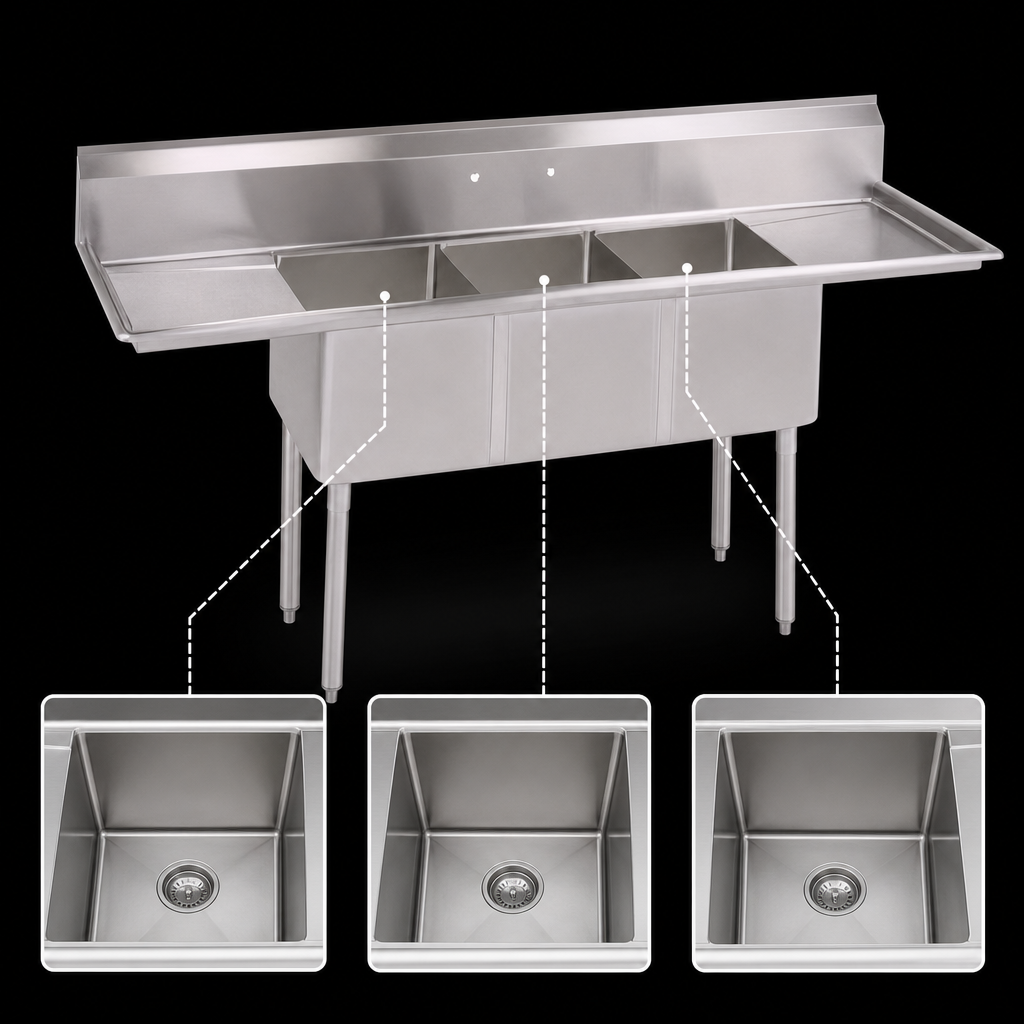

Three-Compartment Layout

Three individual compartments measure 16" wide x 20" front-to-back x 14" deep for efficient multi-step dish handling.

Dual Drainboards

18" left and right drainboards provide additional space for sorting, staging, and drying.

Boxed Backsplash

The 9-3/4" backsplash includes a 45° top and 2" return to help reduce wall splashing.

Splash-Mount Faucet Holes

One set of splash mount faucet holes with 8" centers supports faucet installation.

Die-Stamped Drain Openings

3-1/2" diameter die-stamped drain openings help promote smooth drainage.

Stainless Steel Construction

Built with 18/300 stainless steel for durability and corrosion resistance.

Galvanized Support Base

Galvanized legs and gussets provide sturdy support.

Adjustable Bullet Feet

Plastic bullet feet allow for easier leveling during installation.

Type 3-Compartment Sink
Style With Left and Right Drainboards
Installation Type Floor Model (With Legs)
Compartments 3
Material 300 Series Stainless Steel
Gauge 18 Gauge
Compartment Width 16 Inches
Compartment Front To Back 20 Inches
Compartment Depth 14 Inches
Drainboard Length 18 Inches
Backsplash Height 9-3/4 Inches
Drain Opening Diameter 3-1/2 Inches
Faucet Hole Centers 8 Inches
Shipping Width 84 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 100 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has three compartments, each measuring 16" wide x 20" front-to-back x 14" deep.
Yes. It includes 18" drainboards on both the left and right sides.
The sink has a 9-3/4" boxed backsplash with a 45° top and 2" return.
It is built with 18/300 stainless steel construction and galvanized legs and gussets.
Yes. It includes one set of splash mount faucet holes with 8" centers.
