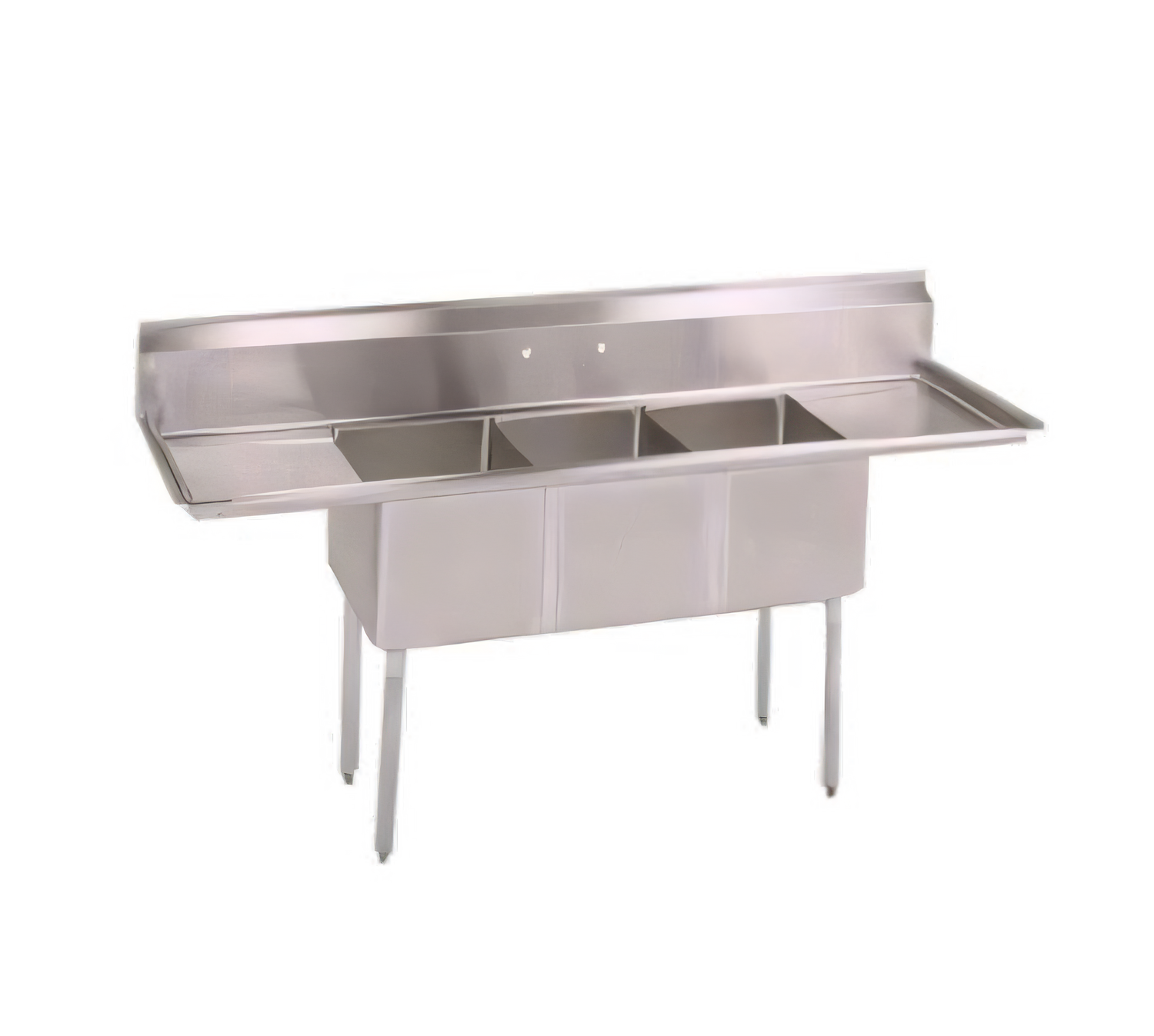

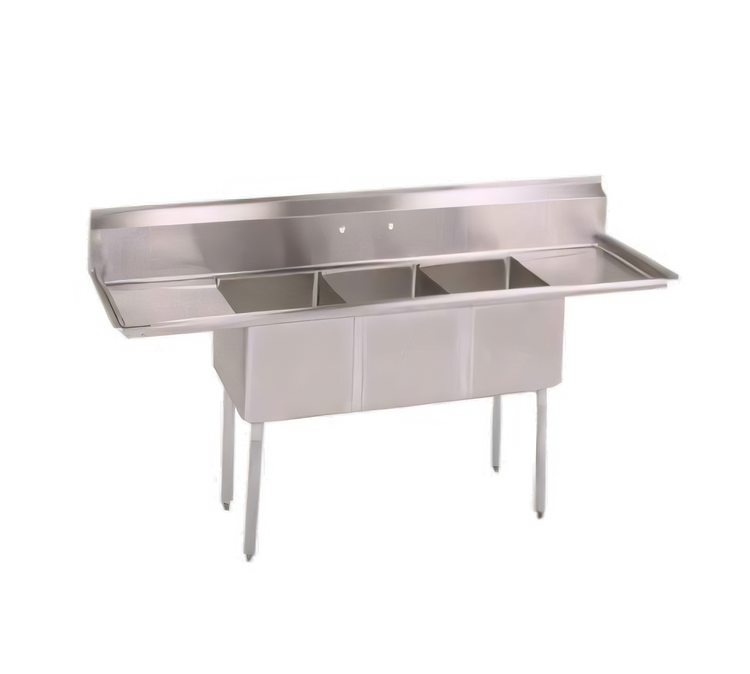

John Boos E-Series 3-Compartment Sink with Dual Drainboards, 84-Inch Wide

SKU: E3S8-1620-12T18-X
$1,046.52
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series 3-Compartment Sink with Dual Drainboards, 84-Inch Wide

12-Inch Deep Bowls, 9-3/4-Inch Backsplash, Galvanized Legs

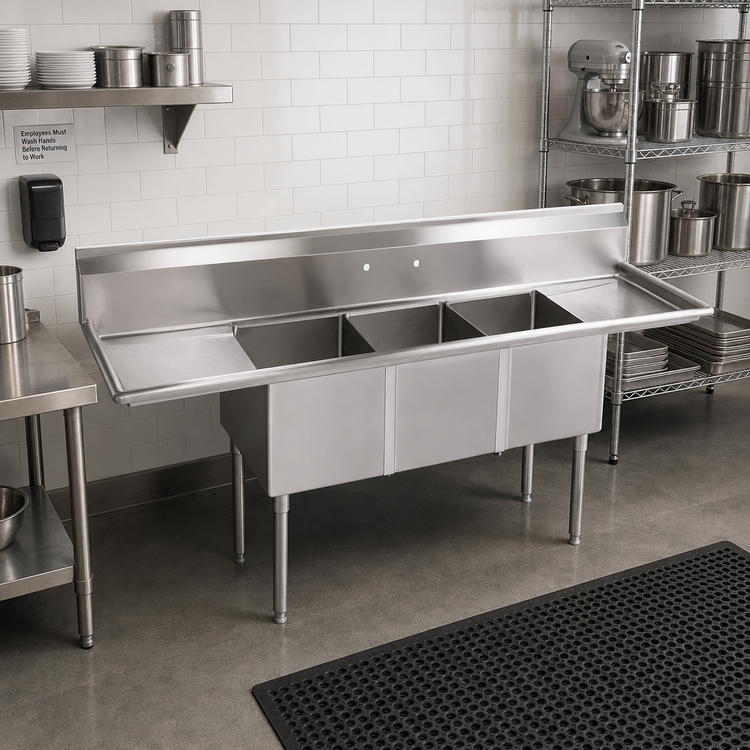

This spacious three-compartment sink pairs dual drainboards with a tall boxed backsplash and durable stainless steel construction for efficient commercial cleanup.

  • Three 16" x 20" x 12" compartments support wash, rinse, and sanitize workflows.
  • Left and right 18" drainboards add valuable landing space for dishes and prep items.
  • 9-3/4" boxed backsplash with a 45° top and 2" return helps protect the wall.
  • One set of splash-mount faucet holes with 8" centers simplifies faucet installation.
  • 3-1/2" die-stamped drain openings promote efficient drainage.
  • 18/300 stainless steel top with galvanized legs, gussets, and adjustable bullet feet delivers lasting support.
  • NSF listed for trusted foodservice use.

Overall Dimensions:

84.0"W x 25.5"D x 43.75"H

Product Weight:

95.0 lb

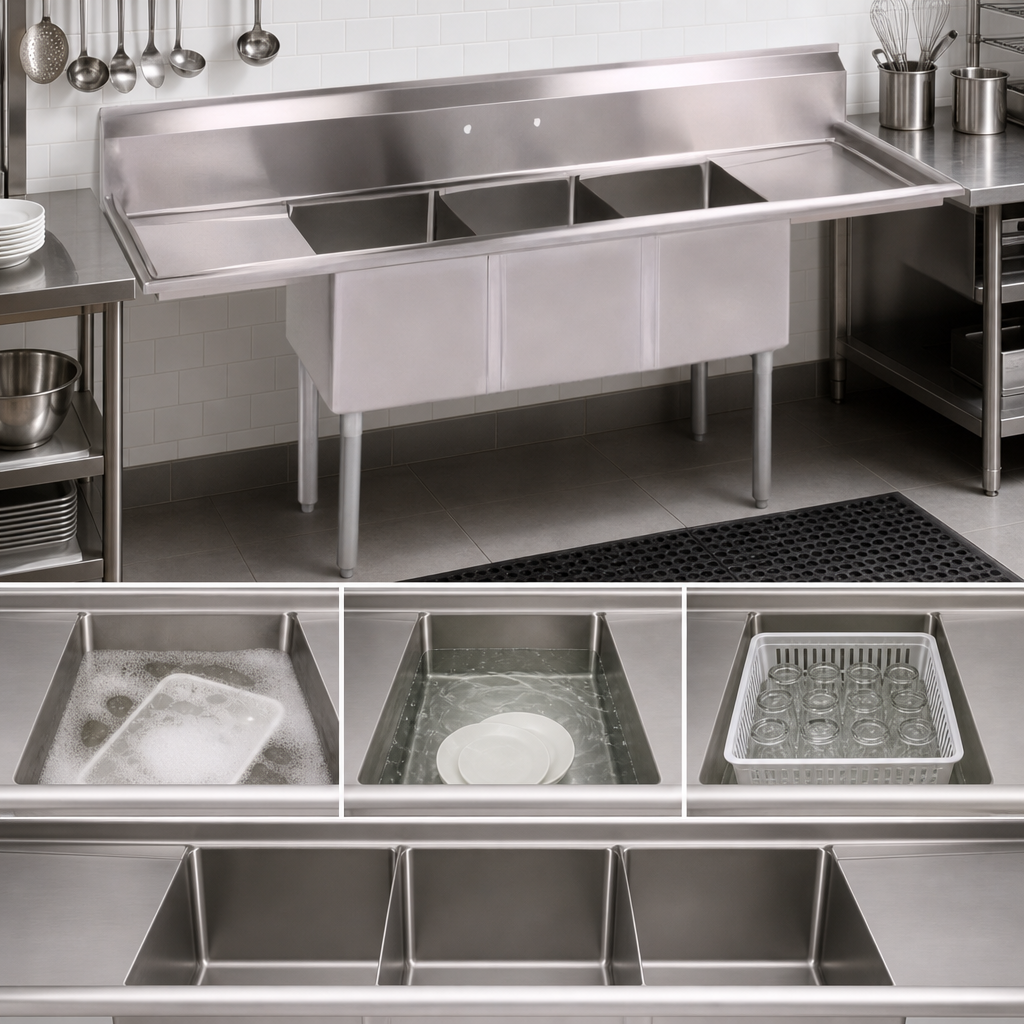

Three-Compartment Design

Provides separate wash, rinse, and sanitize stations in one sink.

Dual Drainboards

Left and right 18-inch drainboards offer extra workspace and landing area.

Tall Boxed Backsplash

9-3/4-inch backsplash with a 45° top and 2-inch return helps shield the wall from splashes.

Splash-Mount Faucet Holes

One set of faucet holes with 8-inch centers supports standard faucet installation.

Die-Stamped Drain Openings

3-1/2-inch drain openings help support fast and reliable drainage.

Stainless Steel Top and Galvanized Base

Built with 18/300 stainless steel, galvanized legs and gussets, and adjustable plastic bullet feet for durability and leveling.

NSF Listed

Listed as NSF for foodservice applications.

Type 3-Compartment Sink
Style E-Series
Installation Type Floor Model
Compartments 3
Compartment Width 16 Inches
Compartment Front To Back 20 Inches
Compartment Depth 12 Inches
Material Stainless Steel
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Base Type Legs
Base Construction Galvanized Steel
Drainboards Left And Right
Splash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Diameter 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 84 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 95 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Video assembly instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has three compartments, each measuring 16 inches wide by 20 inches front to back by 12 inches deep.
Yes. It includes 18-inch drainboards on both the left and right sides.
The sink is built with 18/300 stainless steel and galvanized legs and gussets.
It has a 9-3/4-inch boxed backsplash with a 45° top and a 2-inch return.
It includes one set of splash-mount faucet holes with 8-inch centers and 3-1/2-inch diameter die-stamped drain openings.
