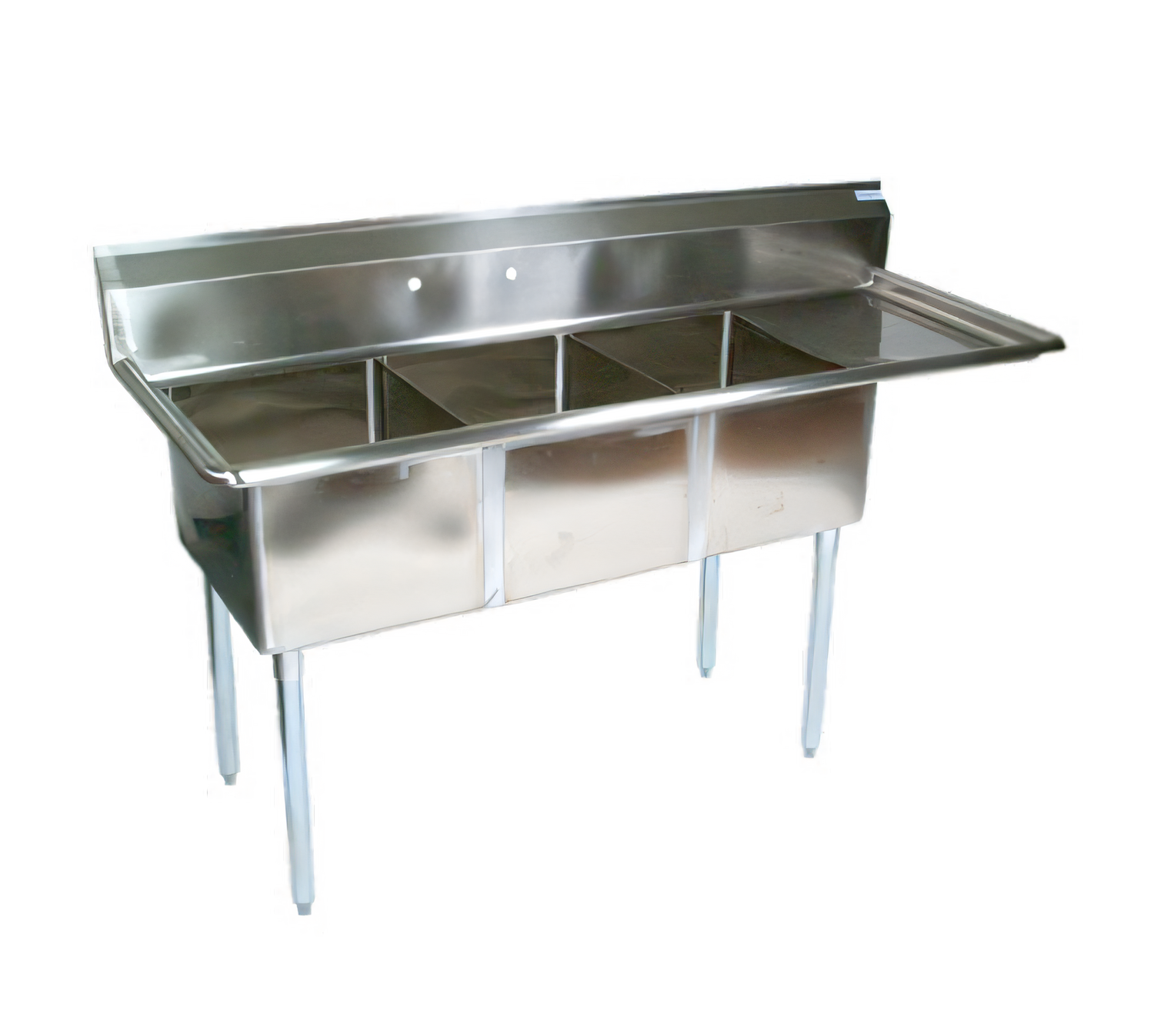

John Boos E-Series 3-Compartment Stainless Steel Sink with Right Drainboard

68-1/2" W x 25-1/2" D x 43-3/4" H overall; 16" x 20" x 12" compartments; 9-3/4" backsplash

Built for busy dish stations, this three-compartment sink combines a right-hand drainboard, high backsplash, and corrosion-resistant stainless steel construction.

  • Three compartments support wash, rinse, and sanitize workflows.
  • 18-inch right-hand drainboard adds space for staging and drying.
  • 18/300 stainless steel top is built for durable commercial use.
  • 9-3/4-inch boxed backsplash with 45° top and 2-inch return helps protect the wall.
  • Splash-mount faucet holes on 8-inch centers simplify faucet installation.
  • Galvanized legs, gussets, and adjustable bullet feet provide sturdy, level support.
  • 3-1/2-inch die-stamped drain openings support efficient drainage.

Overall Dimensions:

68.5"W x 25.5"D x 43.75"H

Product Weight:

87.0 lb

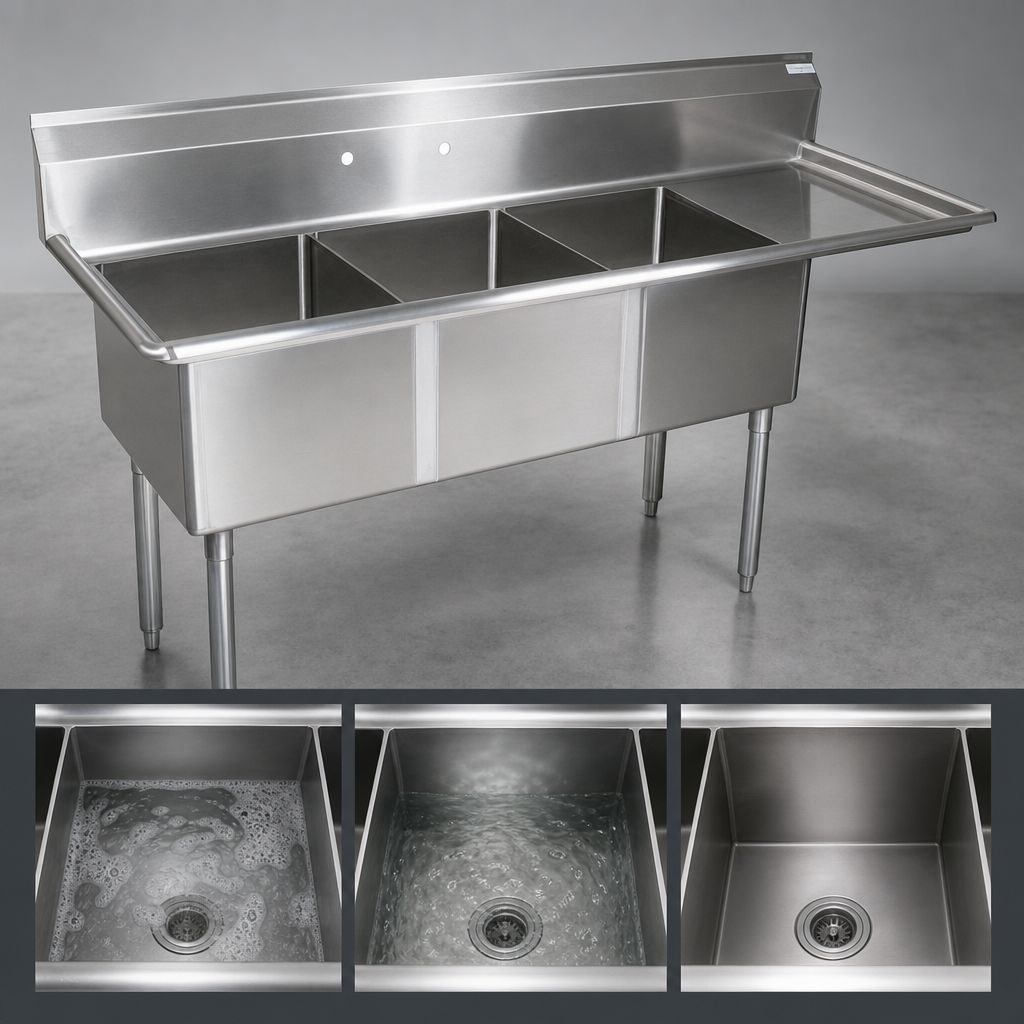

Three-Compartment Layout

Provides separate wash, rinse, and sanitize stations for efficient kitchen workflow.

Right-Hand Drainboard

The 18-inch drainboard offers added landing and drying space on the right side.

Stainless Steel Sink Top

18/300 stainless steel construction is designed for durability and corrosion resistance.

Boxed Backsplash

9-3/4-inch backsplash with a 45° top and 2-inch return helps shield the wall from splash.

Splash-Mount Faucet Holes

Includes one set of faucet holes on 8-inch centers for compatible faucet installation.

Die-Stamped Drain Openings

3-1/2-inch drain openings help promote quick drainage.

Galvanized Support Base

Galvanized legs and gussets provide strong structural support.

Adjustable Bullet Feet

Plastic bullet feet help level the sink on uneven floors.

Type 3-Compartment Sink
Style Right-Hand Drainboard
Installation Type Floor Model
Compartments 3
Material 300 Series Stainless Steel
Gauge 18 Gauge
Compartment Width 16 Inches
Compartment Depth 20 Inches
Sink Depth 12 Inches
Drainboard Length 18 Inches
Backsplash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Base Construction Galvanized Steel
Selling Unit Each
Units Per Case 1
Shipping Width 69 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 87 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has three compartments, each measuring 16" wide x 20" front-to-back x 12" deep.
Yes. It includes an 18-inch right-hand drainboard.
The overall size is 68-1/2" W x 25-1/2" D x 43-3/4" H.
The sink top is 18/300 stainless steel, and the support base uses galvanized legs and gussets.
Yes. It includes one set of splash-mount faucet holes on 8-inch centers.
It has 3-1/2-inch diameter die-stamped drain openings.
