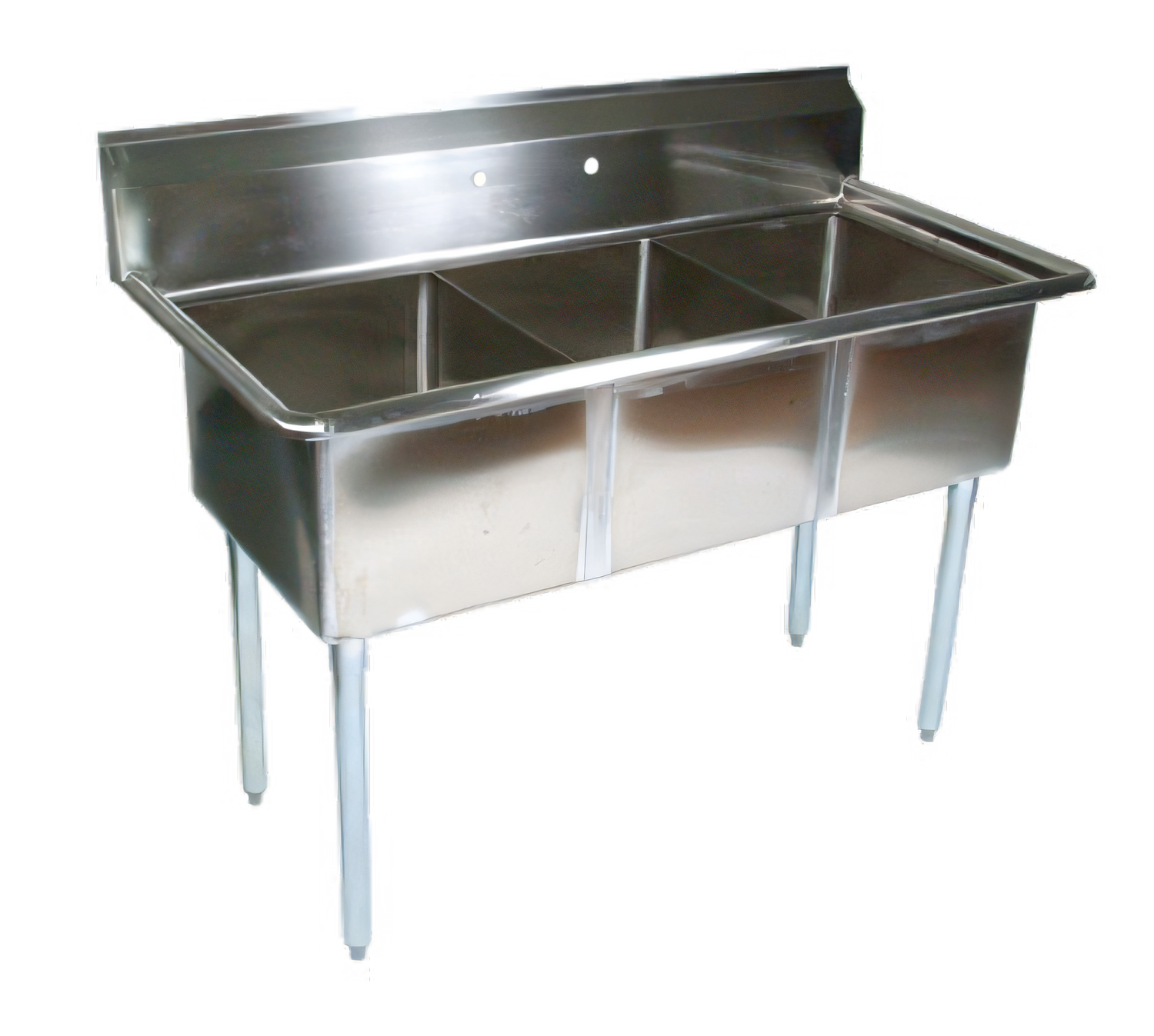

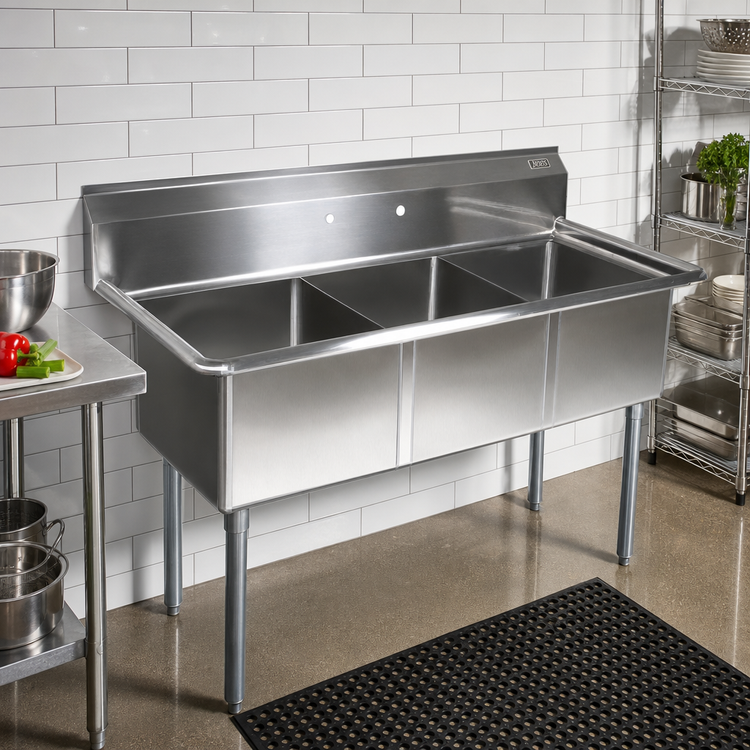

John Boos E-Series Commercial 3-Compartment Stainless Steel Sink with Boxed Backsplash

53W x 25-1/2D x 43-3/4H, 16 x 20 x 12 Inch Compartments, Splash Mount Faucet Holes

Built for high-volume dish areas, this three-compartment sink pairs durable stainless steel construction with a roomy basin layout and splash-controlling backsplash.

  • Three-compartment layout supports washing, rinsing, and sanitizing in one workspace.
  • Each compartment measures 16 inches wide x 20 inches front-to-back x 12 inches deep for practical working room.
  • 9-3/4 inch boxed backsplash with a 45° top and 2 inch return helps reduce wall splatter.
  • 18/300 stainless steel top is designed for demanding commercial environments.
  • Galvanized legs and gussets add support, while adjustable plastic bullet feet help with leveling.
  • Includes splash mount faucet holes with 8 inch centers and die-stamped 3-1/2 inch drain openings.
  • Compact footprint is specified without drainboards.

Overall Dimensions:

53.0"W x 25.5"D x 43.75"H

Product Weight:

76.0 lb

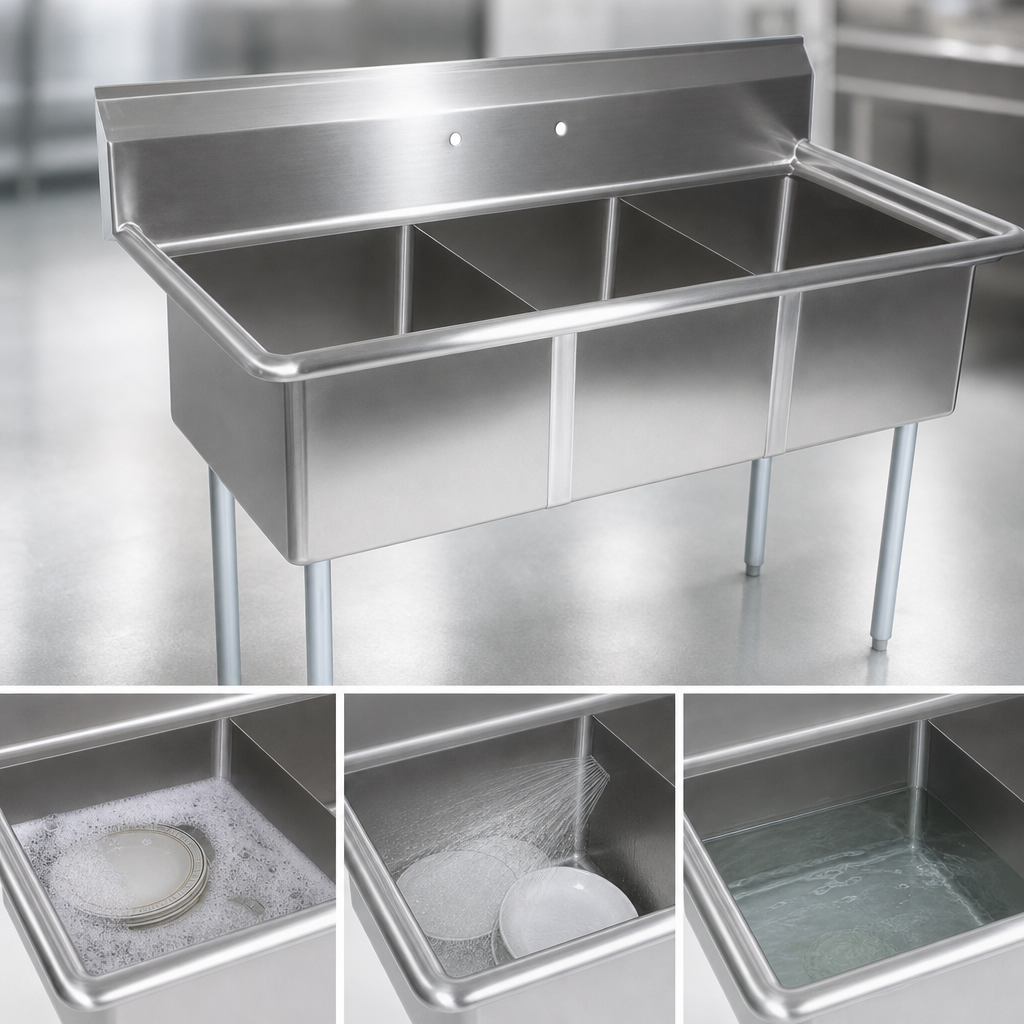

Three-Compartment Design

Provides separate sections for washing, rinsing, and sanitizing tasks.

18/300 Stainless Steel Top

Durable stainless steel work surface suited for heavy daily use.

Boxed Backsplash

The 9-3/4 inch backsplash features a 45° top and 2 inch return to help contain splashes.

Splash Mount Faucet Holes

One set of faucet holes is included with 8 inch centers for installation.

Die-Stamped Drain Openings

3-1/2 inch diameter drain openings are built into the sink bowls.

Galvanized Legs and Gussets

Steel base construction adds stability and support.

Adjustable Plastic Bullet Feet

Helps level the sink on uneven floors during installation.

No Drainboards

A space-saving configuration that keeps the overall footprint compact.

Type 3-Compartment Sink
Style E-Series
Installation Type Floor Model (With Legs)
Compartments 3
Compartment Width 16 Inches
Compartment Depth 20 Inches
Sink Depth 12 Inches
Splash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Diameter 3-1/2 Inches
Top Gauge 18 Gauge
Base Construction Galvanized
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 53 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 76 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has three compartments, each sized at 16 inches wide x 20 inches front-to-back x 12 inches deep.
Yes. It includes a 9-3/4 inch boxed backsplash with a 45° top and 2 inch return.
The sink includes one set of splash mount faucet holes with 8 inch centers.
No. This model is specified without drainboards.
The sink uses an 18/300 stainless steel top with galvanized legs and gussets, plus adjustable plastic bullet feet.
