Key specifications

Dimensions
50.0"W × 20.5"D × 43.75"H
Type
3-Compartment Sink
Style
E-Series
Installation Type
Floor Model
Material
Stainless Steel
Base Material
Galvanized Steel
Spec sheet
John Boos SKU: E3S8-15-14-X

John Boos E3S8-15-14-X 50-Inch 3-Compartment Sink

$785.07
/each
Estimated to ship in 8–11 business days
Factory Add-Ons
Included: John Boos warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $73/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type 3-Compartment Sink
Style E-Series
Installation Type Floor Model
Material Stainless Steel
Base Material Galvanized Steel
Finish Satin
Polish #4
Compartments 3
Compartment Size 15 in W x 15 in D x 14 in Deep
Top Gauge 18 Gauge
Stainless Steel Series 300 Series
Splash Height 9-3/4 in
Backsplash Type Boxed
Backsplash Return 2 in
Backsplash Angle 45°
Faucet Hole Count 1 Set
Faucet Hole Centers 8 in
Drain Opening 3-1/2 in Diameter
Drainboards None
Base Type Legs
Leg Diameter 1-5/8 in
Foot Type Plastic Bullet Feet
Foot Adjustment Adjustable

Description

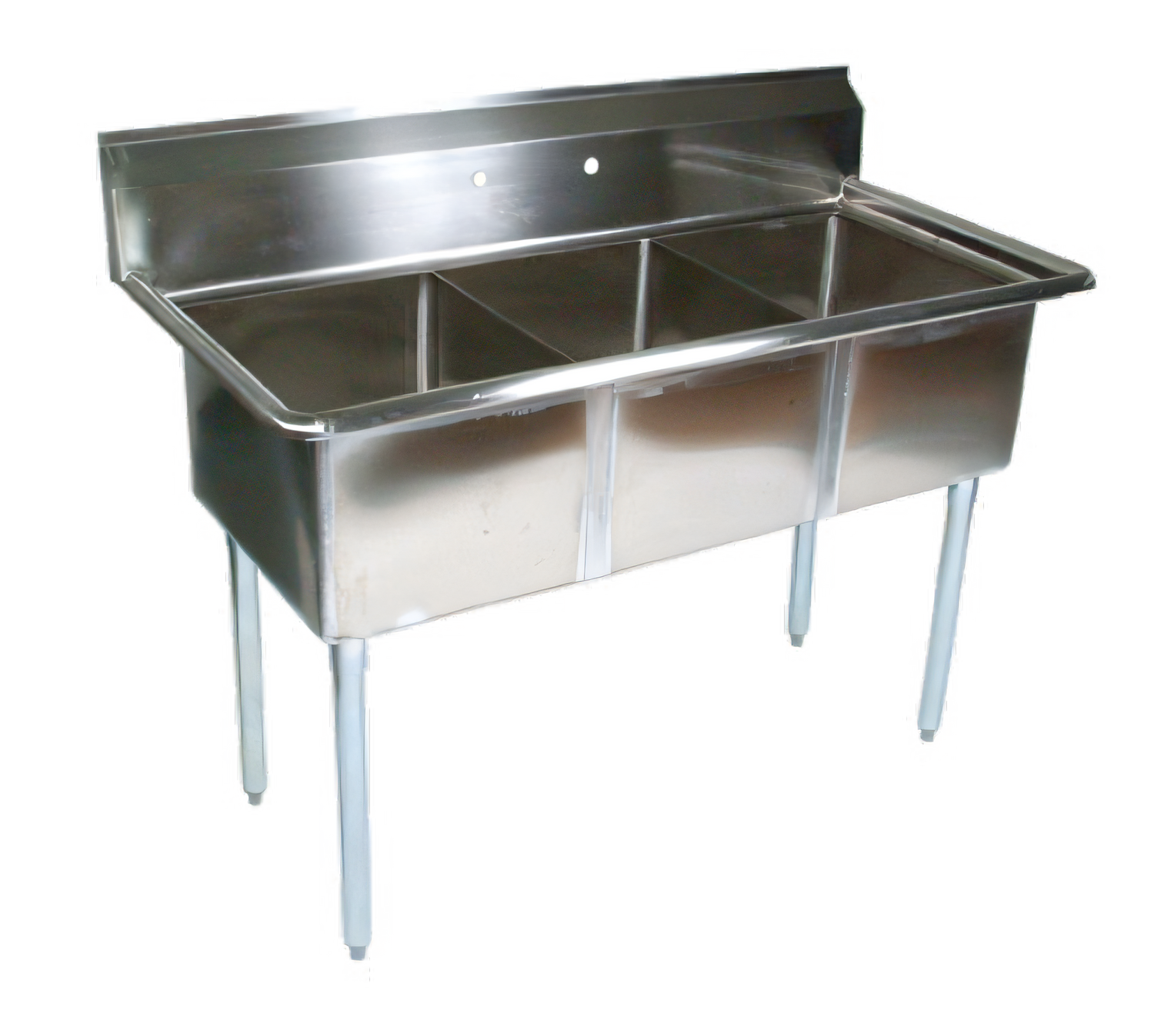

The John Boos E3S8-15-14-X is a floor-model, three-compartment sink made with 18-gauge Type 300 stainless steel and a satin finish.

  • Three 15 in W x 15 in D x 14 in deep compartments
  • 50 in W x 20.5 in D x 43.75 in H overall size
  • 9-3/4 in boxed backsplash with a 2 in wall return and 45° top
  • One set of splash-mount faucet holes with 8 in centers
  • Galvanized legs and gussets with adjustable plastic bullet feet
  • 3-1/2 in diameter die-stamped drain openings
  • Specified without drainboards

Overall Dimensions:

50.0"W x 20.5"D x 43.75"H

Product Weight:

69.0 lb

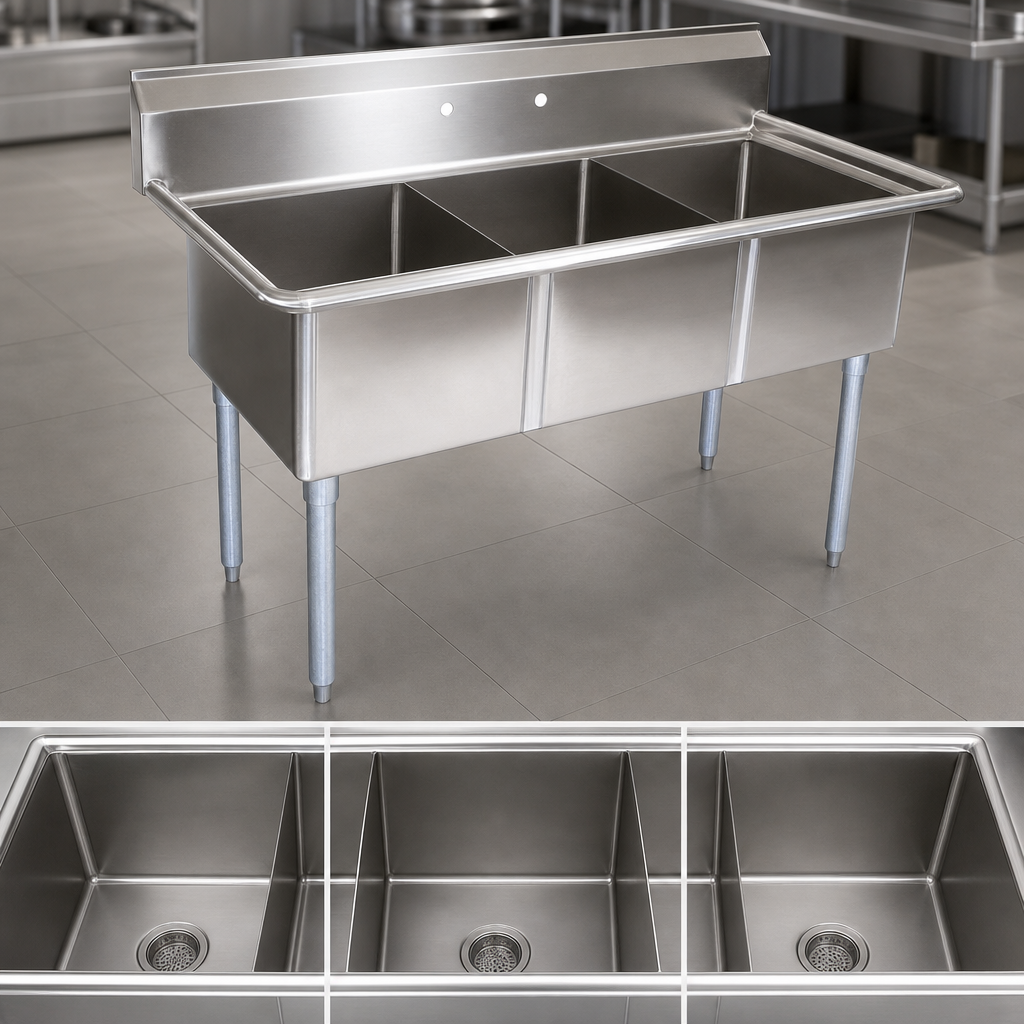

Three Compartments

Includes three compartments measuring 15 in wide x 15 in front-to-back x 14 in deep.

Stainless Steel Construction

Top and compartments are made from 18-gauge Type 300 stainless steel with a #4 satin finish.

Boxed Backsplash

The full-length backsplash is 9-3/4 in high and includes a 2 in return to the wall at a 45° angle.

Faucet Hole Set

Includes one set of splash-mount faucet holes with 8 in centers.

Die-Stamped Drain Openings

Compartments drain through 3-1/2 in diameter die-stamped openings.

Galvanized Base

The sink has galvanized legs and gussets.

Adjustable Feet

The legs terminate in adjustable plastic bullet feet.

No Drainboards

The product is specified without drainboards.

Frequently Asked Questions

Each of the three compartments measures 15 in wide x 15 in front-to-back x 14 in deep.
The sink measures 50 in wide x 20.5 in deep x 43.75 in high overall.
No. It is specified without drainboards.
It has a 9-3/4 in boxed backsplash with a 2 in return to the wall and a 45° top.
Yes. It has one set of splash-mount faucet holes with 8 in centers.
The top and compartments are made from 18-gauge Type 300 stainless steel with a satin finish.
