John Boos E-Series 3-Compartment Stainless Steel Sink with Boxed Backsplash

SKU: E3S8-15-14
GTIN: 662969350000
$1,132.74
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

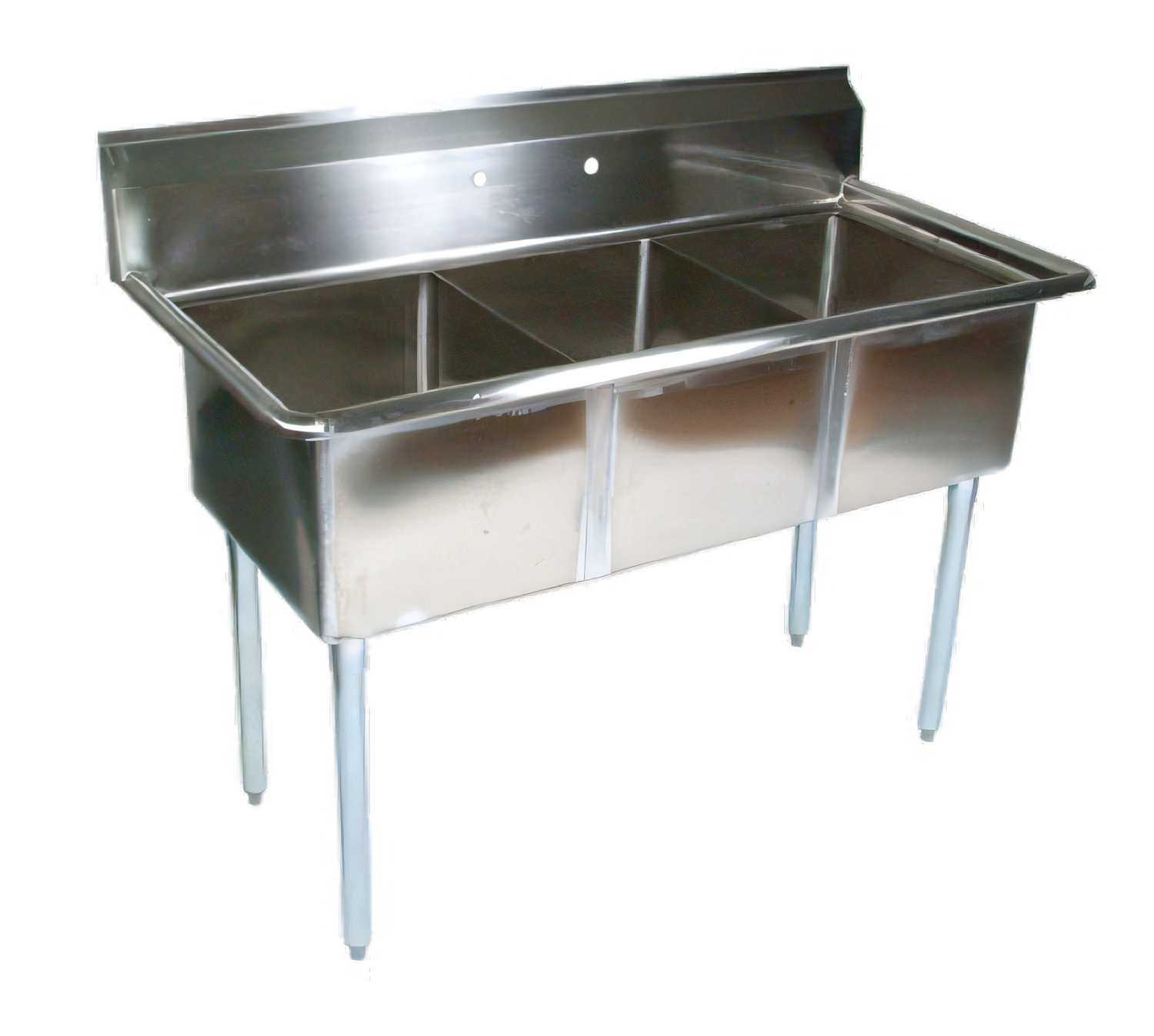

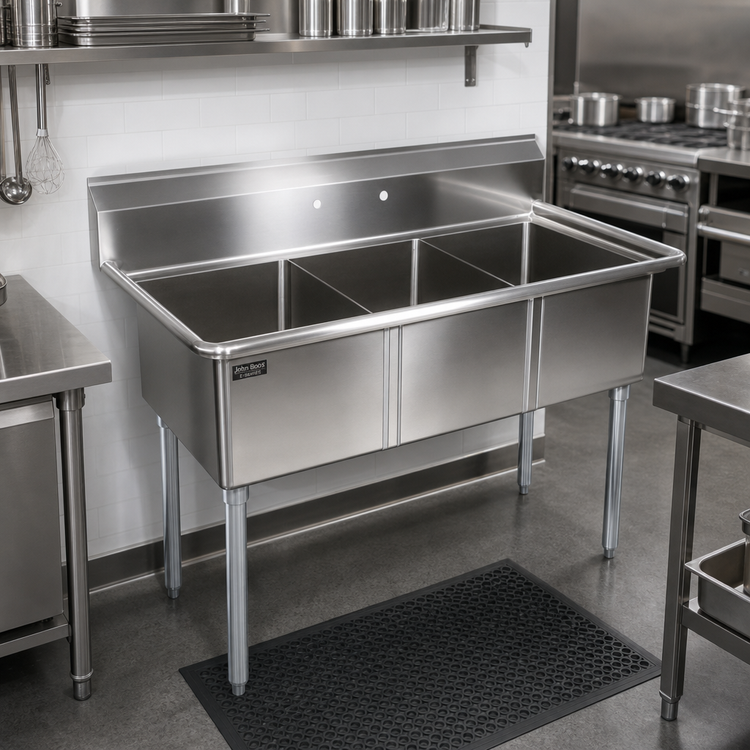

John Boos E-Series 3-Compartment Stainless Steel Sink with Boxed Backsplash

50 x 20-1/2 x 43-3/4 Inches Overall, 14-Inch Deep Compartments, Galvanized Legs

Built for busy dish areas, this E-Series sink combines three 14-inch-deep compartments, a protective boxed backsplash, and sturdy galvanized support legs.

  • Three 15" x 15" x 14" compartments support wash, rinse, and sanitize workflow.
  • 50" x 20-1/2" overall footprint with 43-3/4" working height fits commercial dish areas.
  • 9-3/4" boxed backsplash helps contain splashes and protect the wall.
  • Splash-mount faucet holes on 8" centers and 3-1/2" die-stamped drains simplify installation.
  • 18/300 stainless steel top with galvanized legs, gussets, and adjustable bullet feet adds durability and leveling support.
  • No drainboards keeps the layout compact and space efficient.

Overall Dimensions:

50.0"W x 20.5"D x 43.75"H

Product Weight:

69.0 lb

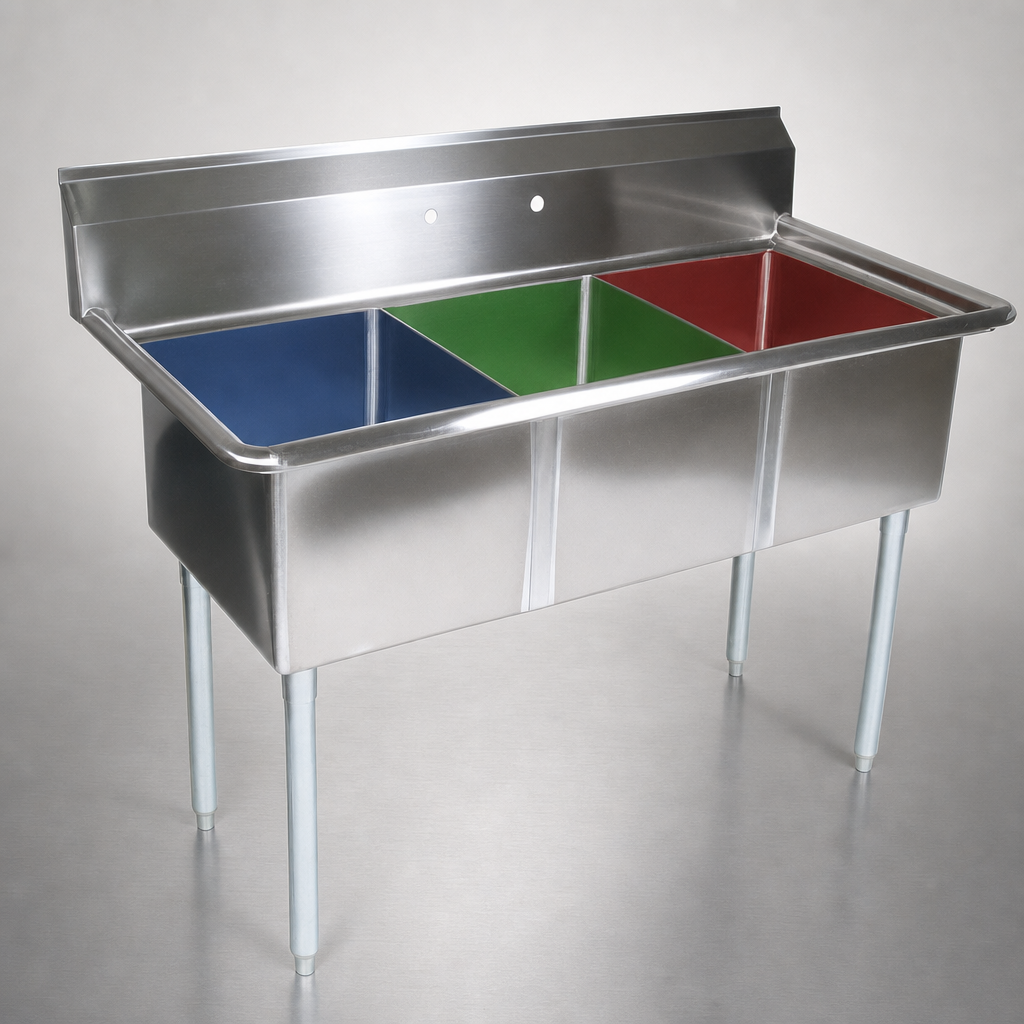

Three-Compartment Design

Three separate compartments help organize washing, rinsing, and sanitizing tasks.

Compartment Size

Each compartment measures 15" side-to-side x 15" front-to-back x 14" deep.

Boxed Backsplash

The 9-3/4" high backsplash has a 45° top and 2" return to help reduce wall splashes.

Splash-Mount Faucet Holes

Includes one set of faucet holes with 8" centers for splash-mount faucet installation.

Die-Stamped Drain Openings

3-1/2" diameter drain openings are formed for dependable drainage.

18/300 Stainless Steel Top

Built with 18-gauge, 300 series stainless steel for corrosion resistance and durability.

Galvanized Leg Support

Galvanized legs and gussets provide a sturdy floor-mounted base.

Adjustable Bullet Feet

Plastic bullet feet allow leveling on uneven floors.

Compact Floor-Mounted Footprint

Overall size measures 50" W x 20-1/2" D x 43-3/4" H for a practical commercial footprint.

No Drainboards

Designed without drainboards for a more compact sink layout.

Type 3-Compartment Sink
Style E-Series
Installation Type Floor Model
Material Stainless Steel
Compartments 3
Compartment Size 15 x 15 x 14 Inches
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Base Construction Galvanized
Base Type Legs
Splash Height 9-3/4 Inches
Drainboards Without Drainboards
Selling Unit Each
Units Per Case 1
Shipping Width 50 Inches
Shipping Depth 21 Inches
Shipping Height 44 Inches
Shipping Weight 69 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

Each compartment measures 15" side-to-side x 15" front-to-back x 14" deep.
Yes. It includes a 9-3/4" boxed backsplash with a 45° top and 2" return.
It includes one set of splash-mount faucet holes with 8" centers.
No. This model is designed without drainboards.
Use clean soft towels, sponges, or plastic scouring pads with non-chloride cleaners. Avoid wire brushes, metal scrapers, steel scouring pads, and chlorine bleach.
