John Boos E-Series 3-Compartment Stainless Steel Sink with Left and Right Drainboards, 66-Inch Wide

SKU: E3S8-1416-12T12-X
$836.76
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series 3-Compartment Stainless Steel Sink with Left and Right Drainboards, 66-Inch Wide

18-gauge 300 series top, three 14" x 16" x 12" compartments, 9-3/4" boxed backsplash, 8" faucet centers

Built for heavy-duty kitchen workflows, this E-Series sink pairs three deep bowls with dual drainboards, a protective backsplash, and rugged stainless steel construction.

  • Three 14" x 16" x 12" compartments support washing, rinsing, and prep tasks.
  • 12" left and right drainboards provide convenient landing space for ware and utensils.
  • 9-3/4" boxed backsplash with a 45° top and 2" return helps protect walls from splashes.
  • 18-gauge 300 series stainless steel top offers durability and corrosion resistance.
  • Galvanized legs and gussets with adjustable plastic bullet feet add stability.
  • Splash-mount faucet holes with 8" centers and 3-1/2" drain openings simplify installation.

Overall Dimensions:

66.0"W x 21.5"D x 43.75"H

Product Weight:

75.0 lb

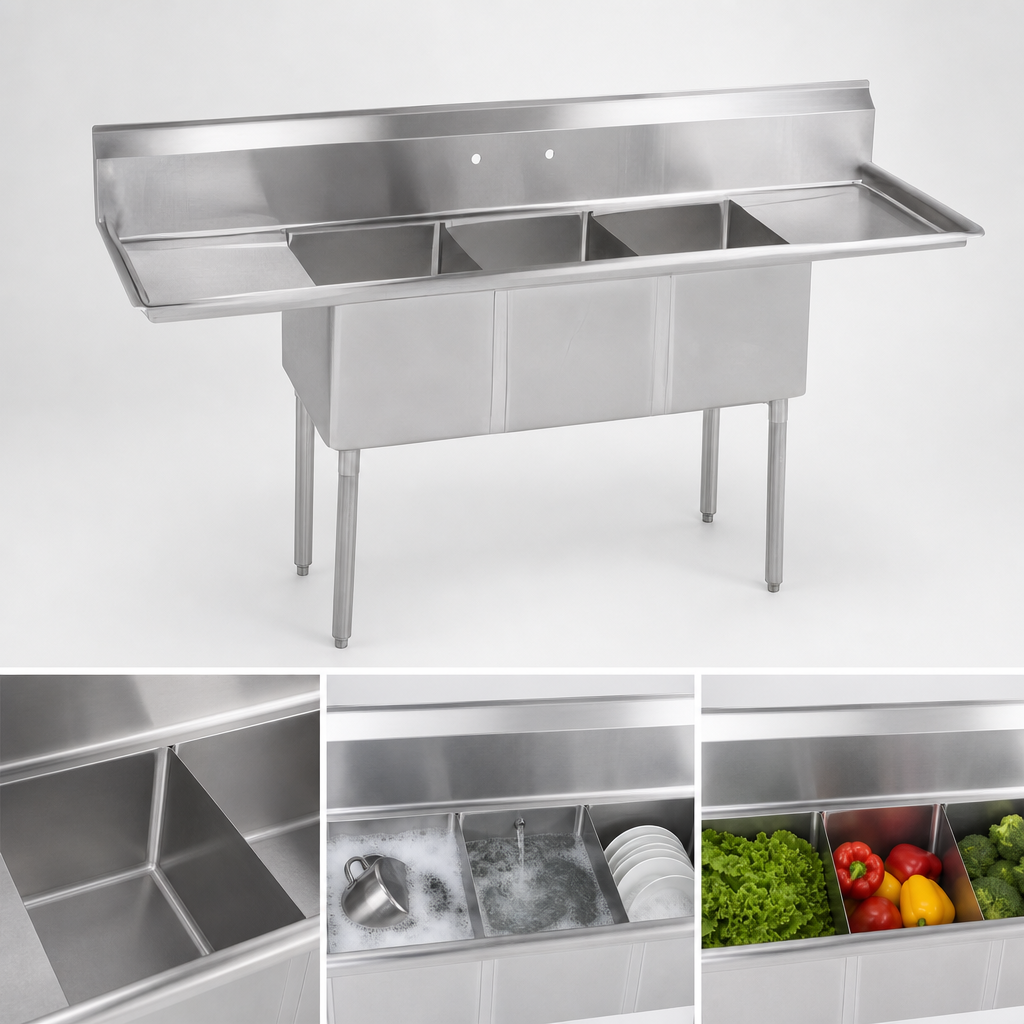

Three-Compartment Sink

Includes three 14" W x 16" front-to-back x 12" deep compartments for multi-step sink workflows.

Dual Drainboards

Two 12" drainboards on the left and right sides add space for sorting, staging, and drying.

Boxed Backsplash

The 9-3/4" backsplash with a 45° top and 2" return helps contain splashes and protect the wall.

Stainless Steel Top

18-gauge 300 series stainless steel construction offers corrosion resistance and a professional appearance.

Galvanized Support Base

Galvanized legs and gussets provide sturdy support for commercial use.

Adjustable Bullet Feet

Plastic bullet feet help level the sink on uneven floors.

Faucet and Drain Ready

One set of splash-mount faucet holes with 8" centers and 3-1/2" die-stamped drain openings.

Type 3-Compartment Sink
Style E-Series
Installation Type Floor Model
Base Type Legs
Base Construction Galvanized Steel
Top Gauge 18 Gauge
Material 300 Series Stainless Steel
Compartments 3
Compartment Width 14 Inches
Compartment Front-to-Back 16 Inches
Sink Depth 12 Inches
Drainboards 2
Splash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Shipping Width 66 Inches
Shipping Depth 22 Inches
Shipping Height 44 Inches
Shipping Weight 75 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has three compartments, each measuring 14" W x 16" front-to-back x 12" deep.
Yes. It includes 12" drainboards on both the left and right sides.
The sink has one set of splash-mount faucet holes with 8" centers.
It features a 9-3/4" boxed backsplash with a 45° top and 2" return.
The sink has 3-1/2" diameter die-stamped drain openings.
The top is 18-gauge 300 series stainless steel, and the legs and gussets are galvanized steel.
