John Boos

John Boos E-Series 3-Compartment Stainless Steel Sink with Dual Drainboards, 60-Inch W x 25-1/2-Inch D

SKU: E3S8-1220-12T12
GTIN: 662969469085
$1,135.28
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series 3-Compartment Stainless Steel Sink with Dual Drainboards, 60-Inch W x 25-1/2-Inch D

12-Inch Deep Compartments, 9-3/4-Inch Boxed Backsplash, Splash-Mount Faucet Holes

Built for demanding commercial prep areas, this E-Series sink combines three deep compartments, dual drainboards, and durable stainless steel construction for efficient workflow.

  • Three 12" W x 20" front-to-back x 12" deep compartments support washing, rinsing, and sanitizing.
  • Left and right 12-inch drainboards provide extra landing and drying space.
  • 9-3/4-inch boxed backsplash with a 45° top and 2-inch return helps protect the wall.
  • Splash-mount faucet holes with 8-inch centers simplify faucet installation.
  • 18/300 stainless steel top construction is paired with galvanized legs and gussets for durability.
  • Adjustable plastic bullet feet help level the sink on uneven floors.

Overall Dimensions:

60.0"W x 25.5"D x 43.75"H

Product Weight:

78.0 lb

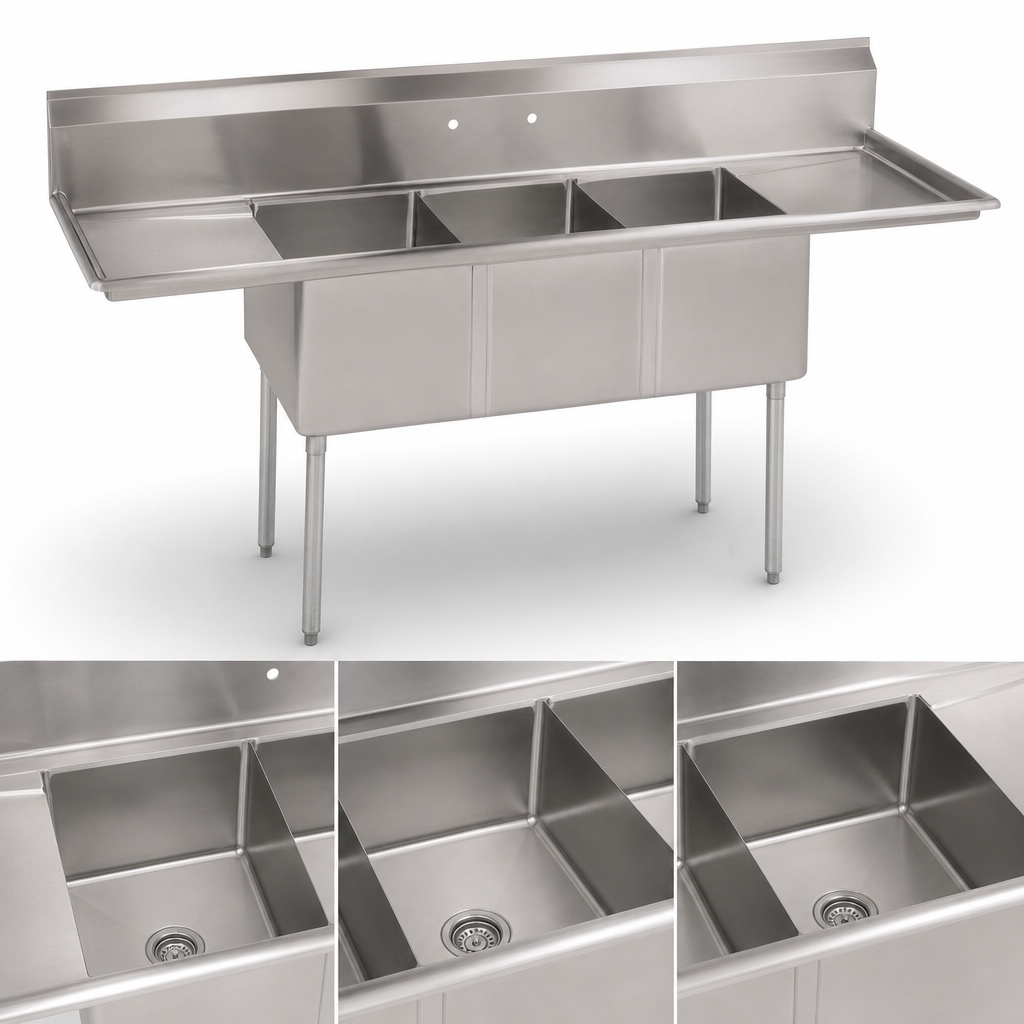

Three-Compartment Layout

Includes three separate bowls for multi-step commercial sink workflows.

Dual Drainboards

Left and right drainboards add convenient space for staging clean items or letting them drain.

Boxed Backsplash

The 9-3/4-inch backsplash with a 45° top and 2-inch return helps limit splash-over and protect wall surfaces.

Splash-Mount Faucet Holes

One set of faucet holes with 8-inch centers is provided for sink faucet installation.

Die-Stamped Drain Openings

Each compartment includes a 3-1/2-inch diameter die-stamped drain opening.

Stainless Steel Construction

The sink is built with 18/300 stainless steel and supported by galvanized legs and gussets.

Adjustable Bullet Feet

Plastic bullet feet allow for easy leveling during installation.

Type 3-Compartment Sink
Style E-Series
Installation Type Floor Model
Compartments 3
Material Stainless Steel
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Base Construction Galvanized
Base Type Legs
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 78 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This sink has three compartments, each measuring 12 inches wide by 20 inches front-to-back by 12 inches deep.
Yes. It includes 12-inch drainboards on both the left and right sides.
It has a 9-3/4-inch boxed backsplash with a 45° top and 2-inch return.
The sink includes one set of splash-mount faucet holes with 8-inch centers.
The sink uses an 18/300 stainless steel top with galvanized legs and gussets, plus adjustable plastic bullet feet.
Use clean soft towels, clean sponges, or plastic scouring pads with non-chloride cleaners. Avoid wire brushes, metal scrapers, steel scouring pads, and chlorine bleach.
