Key specifications

Dimensions
60.0"W × 19.5"D × 43.75"H
Type
3-Compartment Sink
Style
E-Series
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Spec sheet
John Boos SKU: E3S8-1014-10T15 UPC: 662969009021

John Boos E3S8-1014-10T15 60-Inch 3-Compartment Sink

$894.96
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $83/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type 3-Compartment Sink
Style E-Series
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Compartments 3
Compartment Dimensions 10 in W x 14 in front-to-back x 10 in deep
Drainboard Position Left and Right
Drainboard Width 15 in
Backsplash Height 9.75 in
Backsplash Type Boxed
Backsplash Top Angle 45 Degrees
Backsplash Return 2 in
Faucet Hole Type Splash Mount
Faucet Hole Count 1 Set
Faucet Hole Centers 8 in
Drain Opening Diameter 3.5 in
Top Gauge 18 Gauge
Stainless Steel Series 300 Series
Base Material Galvanized Steel
Foot Type Adjustable Plastic Bullet
Leg Diameter 1.625 in

Description

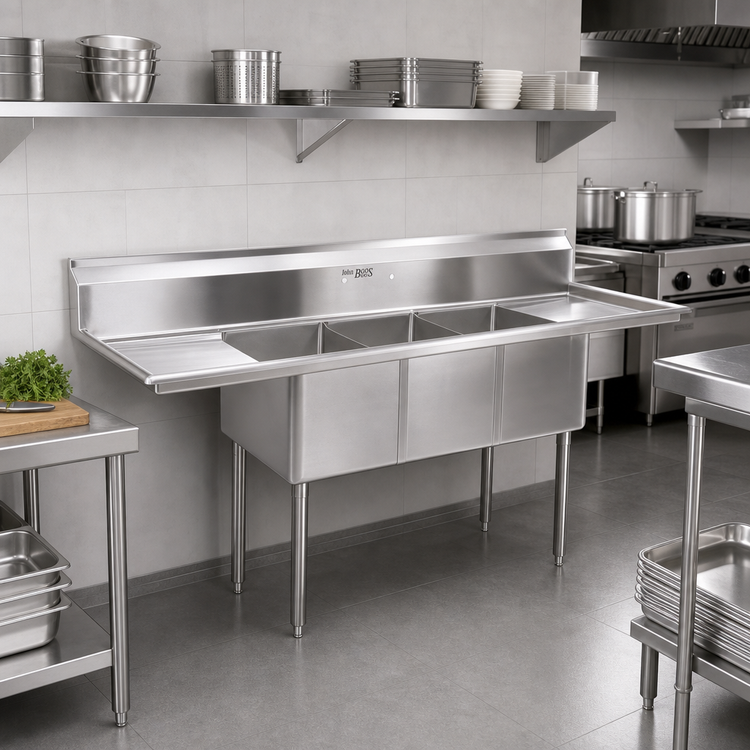

The John Boos E-Series 3-compartment sink has three 10-inch-deep compartments, 15-inch drainboards on the left and right, and a 9.75-inch boxed backsplash.

  • Stainless steel construction: The top and bowls are 18-gauge Type 300 stainless steel with a #4 polish and satin finish.
  • Galvanized base: Includes galvanized legs and gussets with adjustable plastic bullet feet.
  • Faucet and drain features: Includes one set of splash-mount faucet holes with 8-inch centers and 3.5-inch die-stamped drain openings.

Overall dimensions are 60 inches wide by 19.5 inches deep by 43.75 inches high.

Overall Dimensions:

60.0"W x 19.5"D x 43.75"H

Product Weight:

61.0 lb

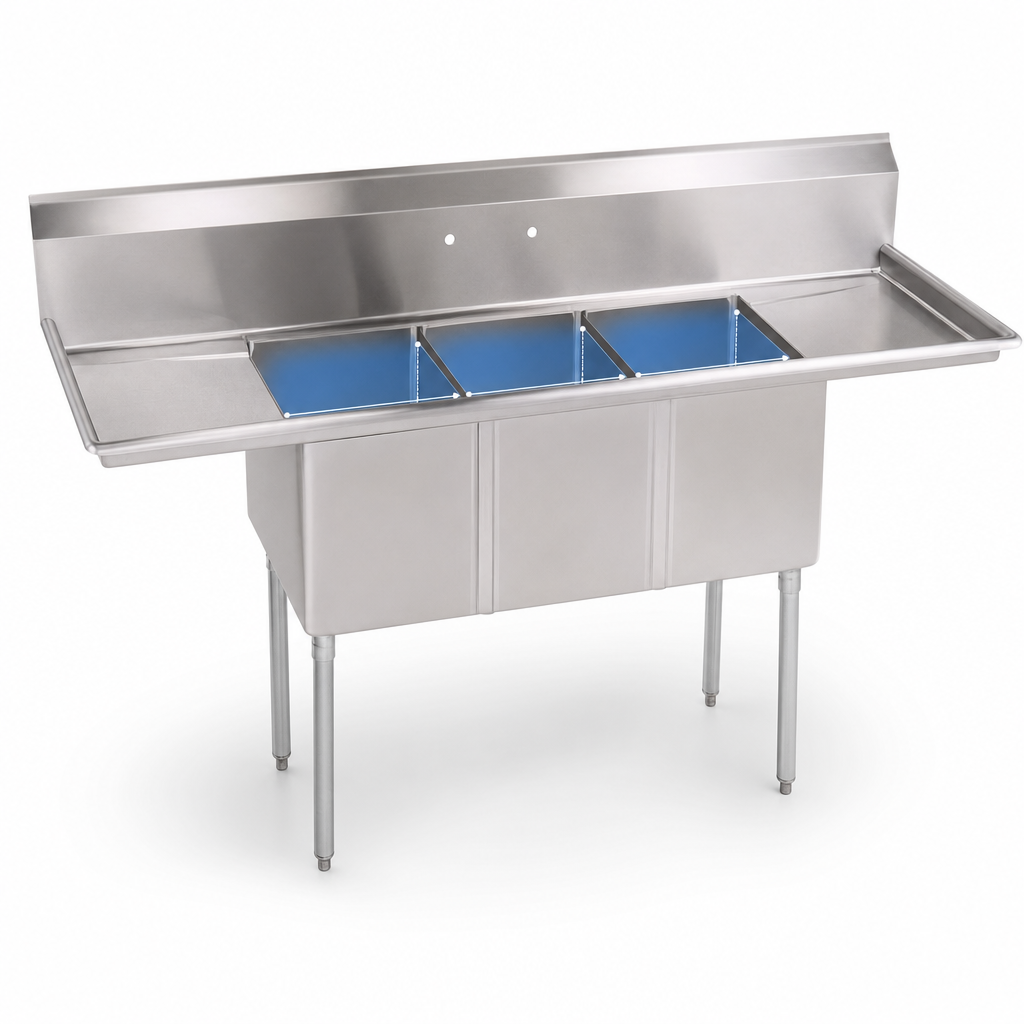

Three Compartments

Three compartments measure 10 in wide by 14 in front-to-back by 10 in deep.

Left and Right Drainboards

Includes 15 in drainboards on both sides of the sink.

Boxed Backsplash

The 9.75 in backsplash has a 45-degree top and a 2 in return.

Stainless Steel Top and Bowls

The top and bowls are 18-gauge Type 300 stainless steel with a #4 polish and satin finish.

Splash-Mount Faucet Holes

Includes one set of faucet holes with 8 in centers.

Die-Stamped Drain Openings

The compartments have 3.5 in diameter die-stamped drain openings.

Galvanized Base

Galvanized legs and gussets support the sink.

Adjustable Plastic Bullet Feet

Includes adjustable plastic bullet feet.

Frequently Asked Questions

This sink has three compartments.
Each compartment measures 10 in wide by 14 in front-to-back by 10 in deep.
Yes. It includes 15 in drainboards on both the left and right sides.
The overall dimensions are 60 in wide by 19.5 in deep by 43.75 in high.
It includes one set of splash-mount faucet holes with 8 in centers.
