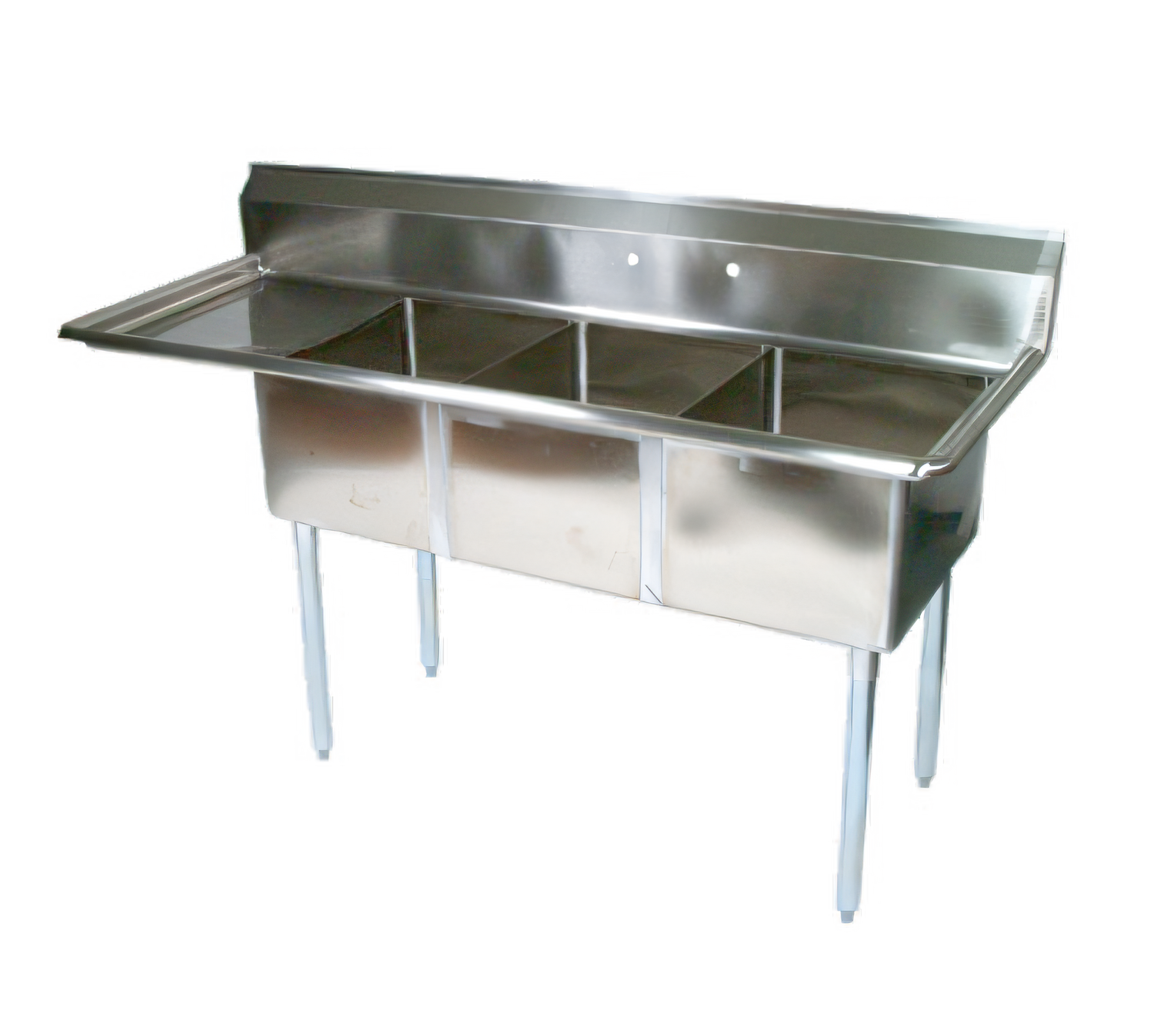

John Boos E-Series Commercial 3-Compartment Sink with Left Drainboard, 47-1/2 in W x 19-1/2 in D x 43-3/4 in H, 18/300 Stainless Steel

SKU: E3S8-1014-10L15-X
$761.52
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series Commercial 3-Compartment Sink with Left Drainboard, 47-1/2 in W x 19-1/2 in D x 43-3/4 in H, 18/300 Stainless Steel

9-3/4 in Boxed Backsplash, Splash-Mount Faucet Holes, Galvanized Legs

A durable three-compartment sink with a left drainboard, deep bowls, and a stainless-steel build made for high-volume prep and dishwashing stations.

  • Three compartments measure 10 in W x 14 in front-to-back x 10 in deep for wash, rinse, and sanitize workflows.
  • 15 in left-hand drainboard provides extra landing space for dishes and utensils.
  • 9-3/4 in boxed backsplash with a 45° top and 2 in return helps reduce wall splashes.
  • One set of splash-mount faucet holes with 8 in centers simplifies faucet installation.
  • 3-1/2 in die-stamped drain openings support efficient drainage.
  • 18/300 stainless steel construction with galvanized legs and gussets is built for daily commercial use.

Overall Dimensions:

47.5"W x 19.5"D x 43.75"H

Product Weight:

60.0 lb

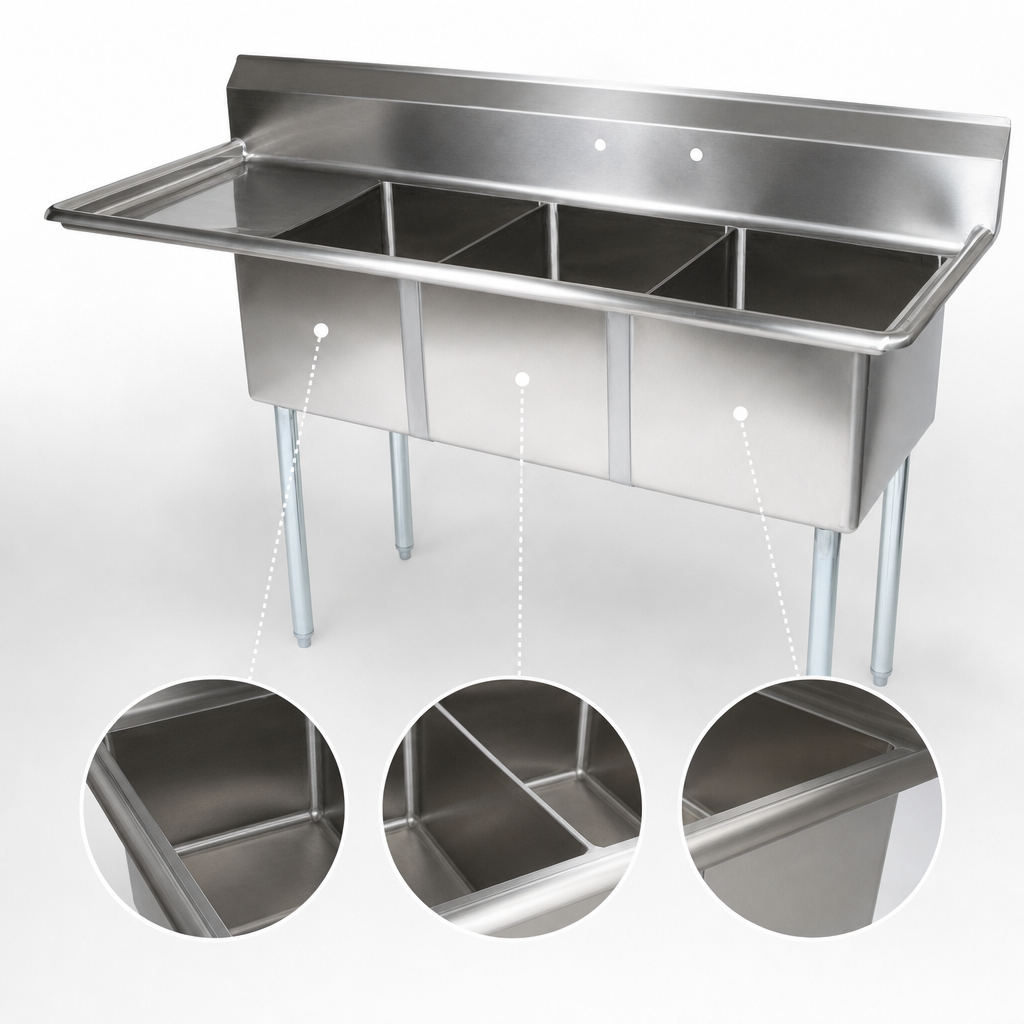

Three-Compartment Layout

Each compartment measures 10 in wide x 14 in front-to-back x 10 in deep for organized warewashing.

Left-Hand Drainboard

The 15 in drainboard offers a convenient staging area for clean or soiled items.

Boxed Backsplash

A 9-3/4 in backsplash with a 45° top and 2 in return helps contain water and splashes.

Splash-Mount Faucet Holes

One set of faucet holes on 8 in centers supports standard sink faucet mounting.

Efficient Drain Openings

3-1/2 in die-stamped drain openings are formed for reliable drainage.

Durable Stainless-Steel Build

The sink uses 18 gauge 300 series stainless steel for a rugged commercial work surface.

Galvanized Leg Base

Galvanized legs and gussets, plus adjustable plastic bullet feet, help support the sink and aid leveling.

Type 3-Compartment Sink
Style Left Drainboard
Installation Type Floor Model
Compartments 3
Compartment Width 10 Inches
Compartment Depth 14 Inches
Sink Depth 10 Inches
Drainboard Length 15 Inches
Backsplash Height 9-3/4 Inches
Backsplash Return 2 Inches
Mounting Type Splash Mount
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Top Gauge 18 Gauge
Material 300 Series Stainless Steel
Base Type Legs
Base Construction Galvanized Steel
Foot Type Adjustable Plastic Bullet Feet
Shipping Width 48 Inches
Shipping Depth 20 Inches
Shipping Height 44 Inches
Shipping Weight 60 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download PDF Video assembly instructions PDF Download

Frequently Asked Questions

It has three compartments, each measuring 10 in wide x 14 in front-to-back x 10 in deep.
Yes. It includes a 15 in left-hand drainboard.
It has one set of splash-mount faucet holes with 8 in centers.
It is made with 18/300 stainless steel and supported by galvanized legs and gussets.
The overall size is 47-1/2 in W x 19-1/2 in D x 43-3/4 in H.
