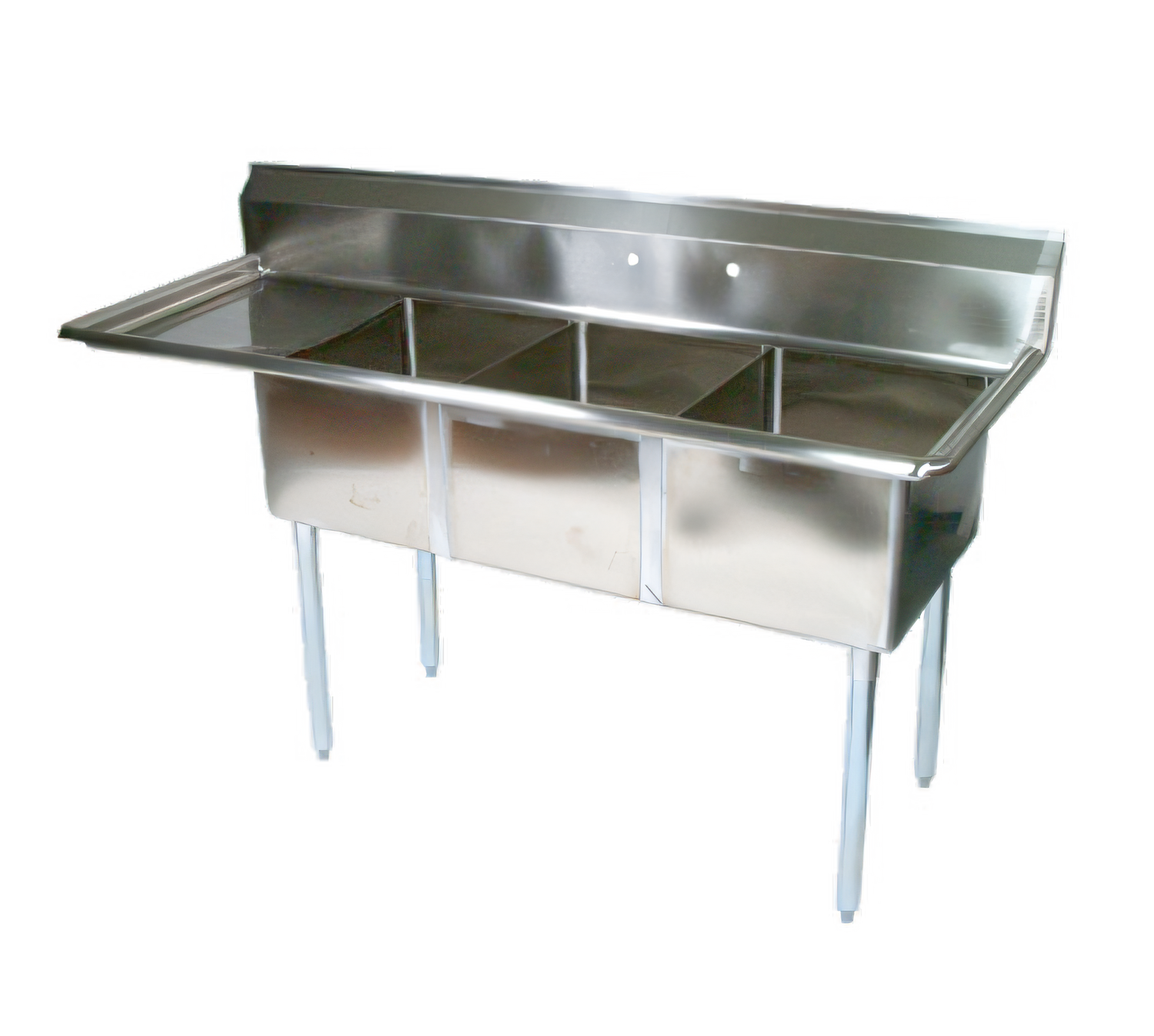

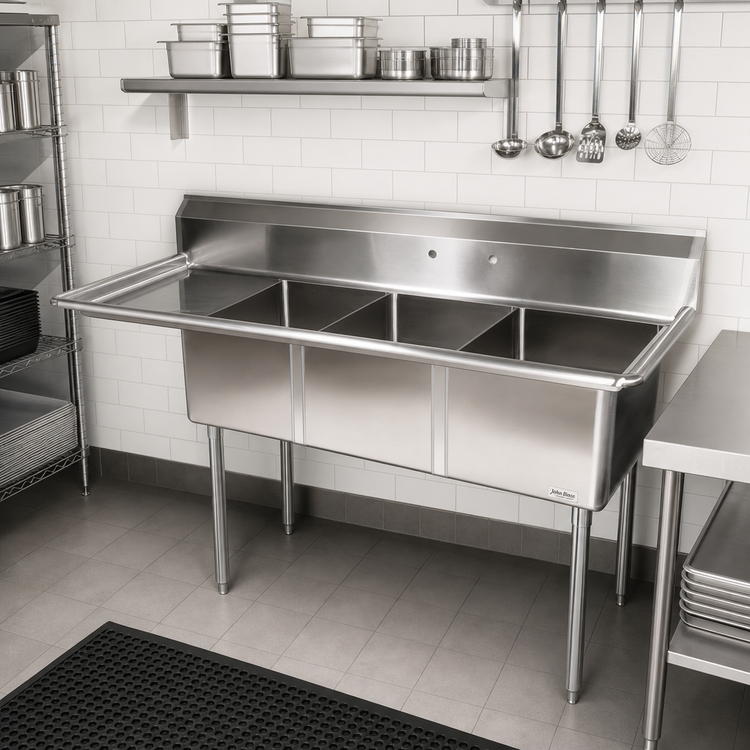

John Boos E-Series 3-Compartment Stainless Steel Sink with Left Drainboard and Boxed Backsplash

18 Gauge, 300 Series Stainless Steel, 47-1/2 x 19-1/2 x 43-3/4 Inches

This E-Series sink is built for busy prep and warewashing areas with three compartments, a left drainboard, and a splash-controlling boxed backsplash.

  • Three 10" W x 14" front-to-back x 10" deep compartments support wash, rinse, and sanitize workflows.
  • 15" left-hand drainboard adds a convenient landing area for clean or dirty ware.
  • 9-3/4" boxed backsplash with a 45° top and 2" return helps contain splashes.
  • 18/300 stainless steel top is paired with galvanized legs and gussets for long-term durability.
  • Adjustable plastic bullet feet help level the sink on uneven floors.
  • Splash-mount faucet holes with 8" centers and 3-1/2" die-stamped drain openings simplify installation.

Overall Dimensions:

47.5"W x 19.5"D x 43.75"H

Product Weight:

60.0 lb

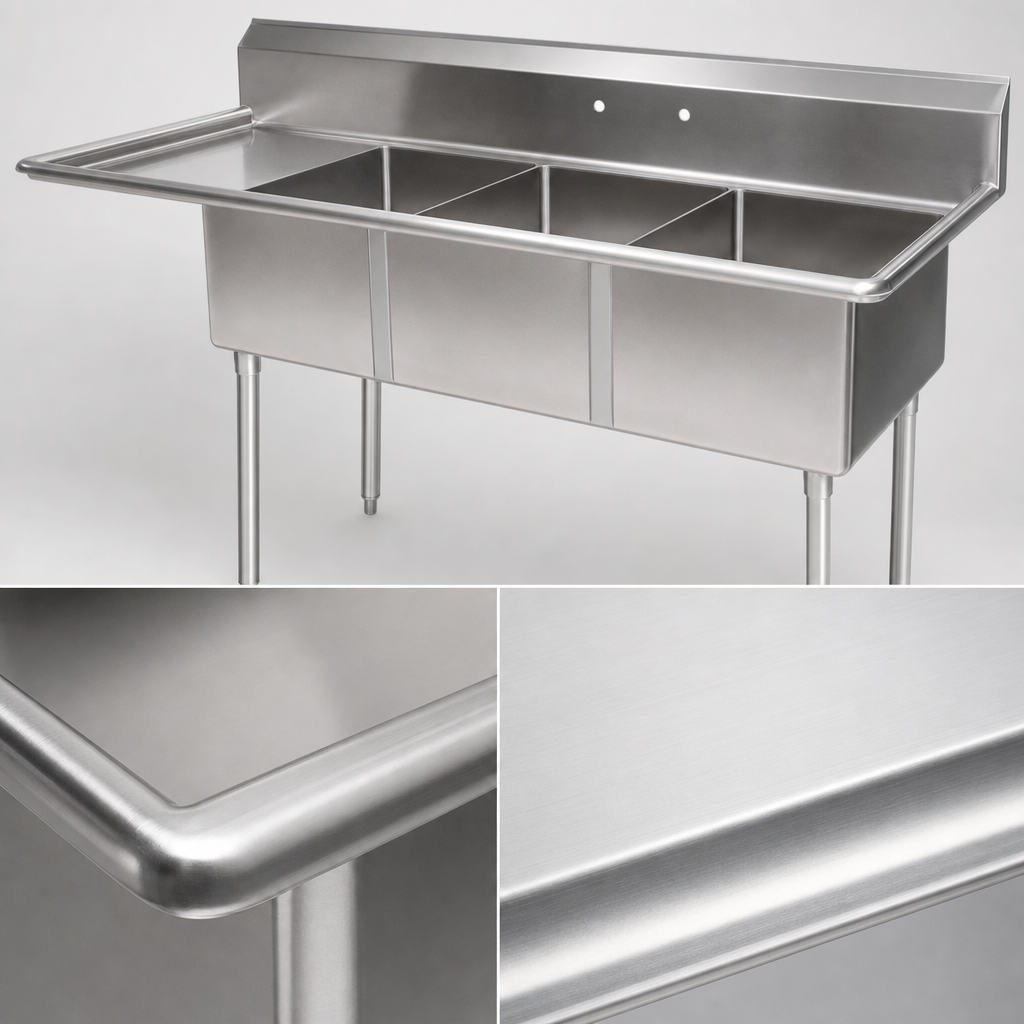

18/300 Stainless Steel Top

Durable stainless steel construction designed for commercial sink use.

Three-Compartment Layout

Provides separate stations for washing, rinsing, and sanitizing.

Left-Hand Drainboard

15-inch drainboard on the left side offers extra workspace and drainage area.

Boxed Backsplash

9-3/4-inch backsplash with 45° top and 2-inch return helps reduce wall splashes.

Splash-Mount Faucet Holes

Includes one set of faucet holes with 8-inch centers for faucet installation.

Die-Stamped Drain Openings

3-1/2-inch drain openings are formed for dependable drainage.

Galvanized Legs and Gussets

Galvanized base components add support and help stabilize the sink.

Adjustable Plastic Bullet Feet

Allows for leveling on uneven floors.

Type 3-Compartment Sink
Style With Left Drainboard
Installation Type Floor Model
Material 300 Series Stainless Steel
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Base Type Legs
Base Construction Galvanized Steel
Compartments 3
Compartment Width 10 Inches
Compartment Depth 14 Inches
Sink Depth 10 Inches
Drainboard Length 15 Inches
Backsplash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 20 Inches
Shipping Height 44 Inches
Shipping Weight 60 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has three compartments, each measuring 10" wide x 14" front-to-back x 10" deep.
Yes. It includes a 15-inch drainboard on the left side.
The sink has one set of splash-mount faucet holes with 8-inch centers.
The sink has 3-1/2-inch diameter die-stamped drain openings.
It is made with 18/300 stainless steel and galvanized legs and gussets.
